Fig. 29: Disconnecting Accelerator Cable From Accelerator Pedal And Shaft
Courtesy of FORD MOTOR CO.

2. Depress the accelerator cable lock tabs on the inside of the passenger compartment and push the

accelerator cable into the engine compartment.



2003 Ford Pickup F150

2003 ENGINE PERFORMANCE Acceleration Control - F150 Pickup

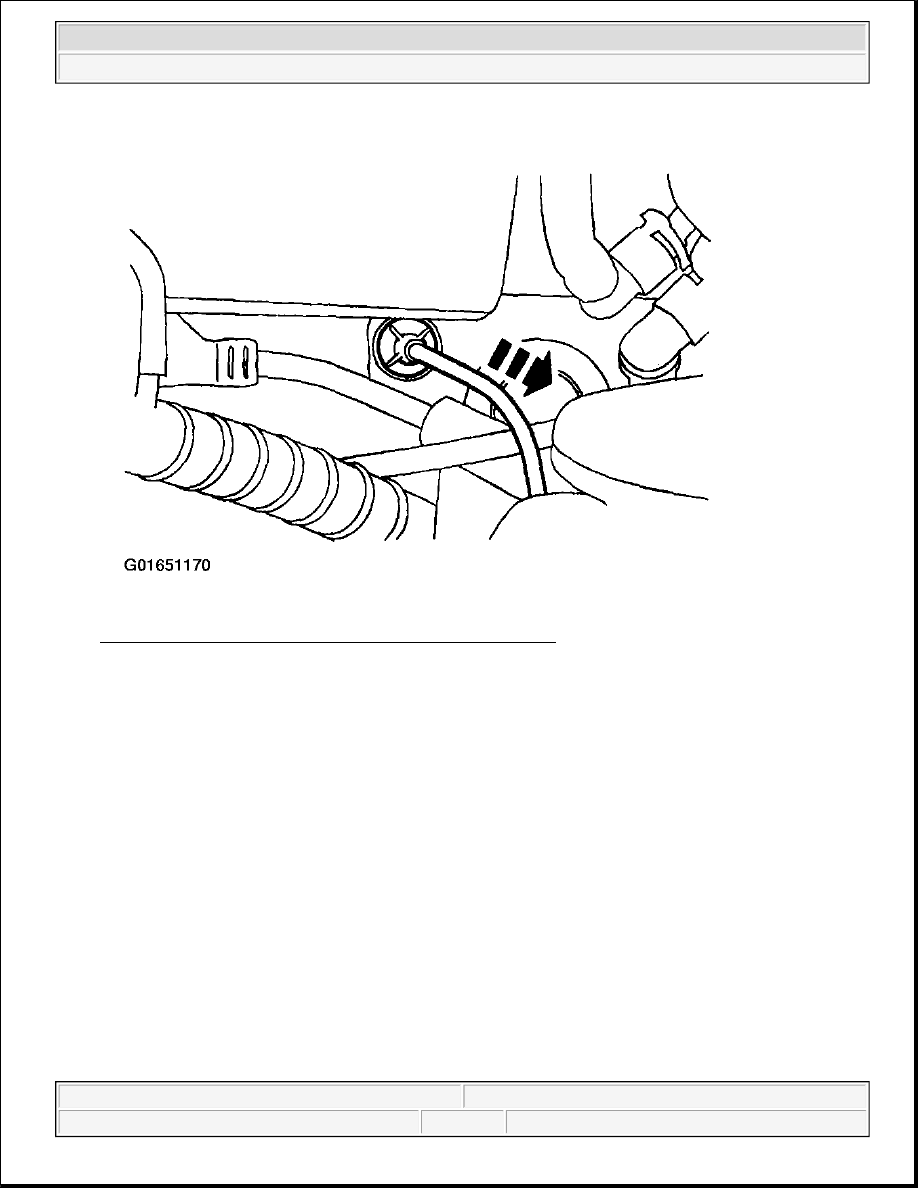

Fig. 30: pushing accelerator cable into engine compartment
Courtesy of FORD MOTOR CO.

3. Remove the accelerator cable.

1. Rotate the throttle lever forward.

2. Slide the accelerator cable end from the throttle lever.

3. Depress the accelerator cable lock tabs and remove the accelerator cable from the accelerator cable

bracket.



2003 Ford Pickup F150

2003 ENGINE PERFORMANCE Acceleration Control - F150 Pickup

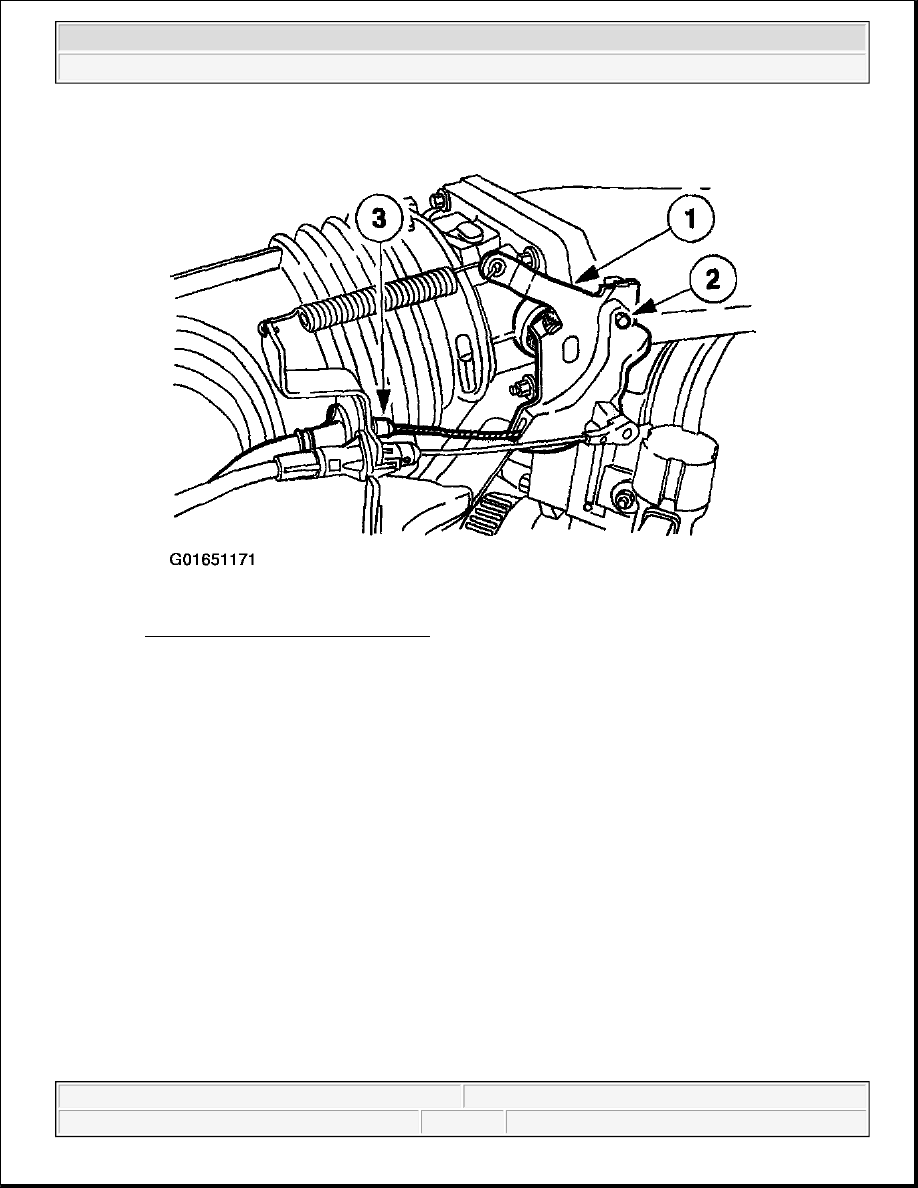

Fig. 31: Removing Accelerator Cable
Courtesy of FORD MOTOR CO.

4. To install, reverse the removal procedure.



2003 Ford Pickup F150

2003 ENGINE PERFORMANCE Acceleration Control - F150 Pickup



2003 ENGINE PERFORMANCE

Removal & Installation - F150 Pickup - Bi-Fuel - Gasoline/CNG

INTRODUCTION

The 5.4L engine is available with two bi-fuel options, Liquid Propane Gas (LPG) or Compressed Natural Gas
(CNG). The fuel control system on these engines is separate from the gasoline fuel system and has unique parts.
This article only covers removal and installation procedures for alternate fuel components on CNG bi-fuel
vehicles. For alternate fuel components on LPG bi-fuel vehicles, see REMOVAL & INSTALLATION - F150
PICKUP - BI-FUEL - GASOLINE/LPG article. Procedures for systems and components that are the same as
gasoline powered models are not included in either article. See REMOVAL & INSTALLATION -
BLACKWOOD, EXPEDITION, F150 PICKUP & NAVIGATOR article. Alternate fuel powered vehicles
utilize special fuel filler valve, fuel tanks, fuel pressure regulator, coalescent filter assembly, fuel lines, fuel rails
and fuel injectors.

COMPONENT LOCATIONS

COMPONENT LOCATIONS

BI-FUEL COMPONENT LOCATIONS

COMPUTERIZED ENGINE CONTROLS

ALTERNATE FUEL CONTROL MODULE

Removal & Installation

NOTE:

For component locations, see BI-FUEL COMPONENT LOCATIONS table.

Application

Location

ALT Fuel Switch

On Instrument Panel

Alternate Fuel Control Module

Right Front Of Engine Compartment

Coalescent Filter

Under Vehicle, On Frame Rail

Fuel Pressure Regulator

Next To Coalescent Filter

Fuel Rail Pressure Sensor

On Fuel Rail

Fuel Rail Temperature Sensor

On Fuel Rail

Fuel Tank Pressure Sensor

On Fuel Pressure Regulator

Fuel Tank Solenoid(s)

On Each Fuel Cylinder

Fuel Tank Temperature Sensor

On Fuel Tank

Power Distribution Box

On Left Side Of Engine Compartment

NOTE:

Numbers in parenthesis refer to numbers in illustration.
