Ford F150 Pickup. Instruction - part 102

Fig. 59: Connecting Transmission Range Indicator To Steering Column
Courtesy of FORD MOTOR CO.

21. Connect the remaining electrical connectors on the steering column.



2003 Ford Pickup F150

2003 ACCESSORIES AND BODY, CAB Instrument Panel and Console - F150 Pickup





2003 Ford Pickup F150

2003 ACCESSORIES AND BODY, CAB Instrument Panel and Console - F150 Pickup

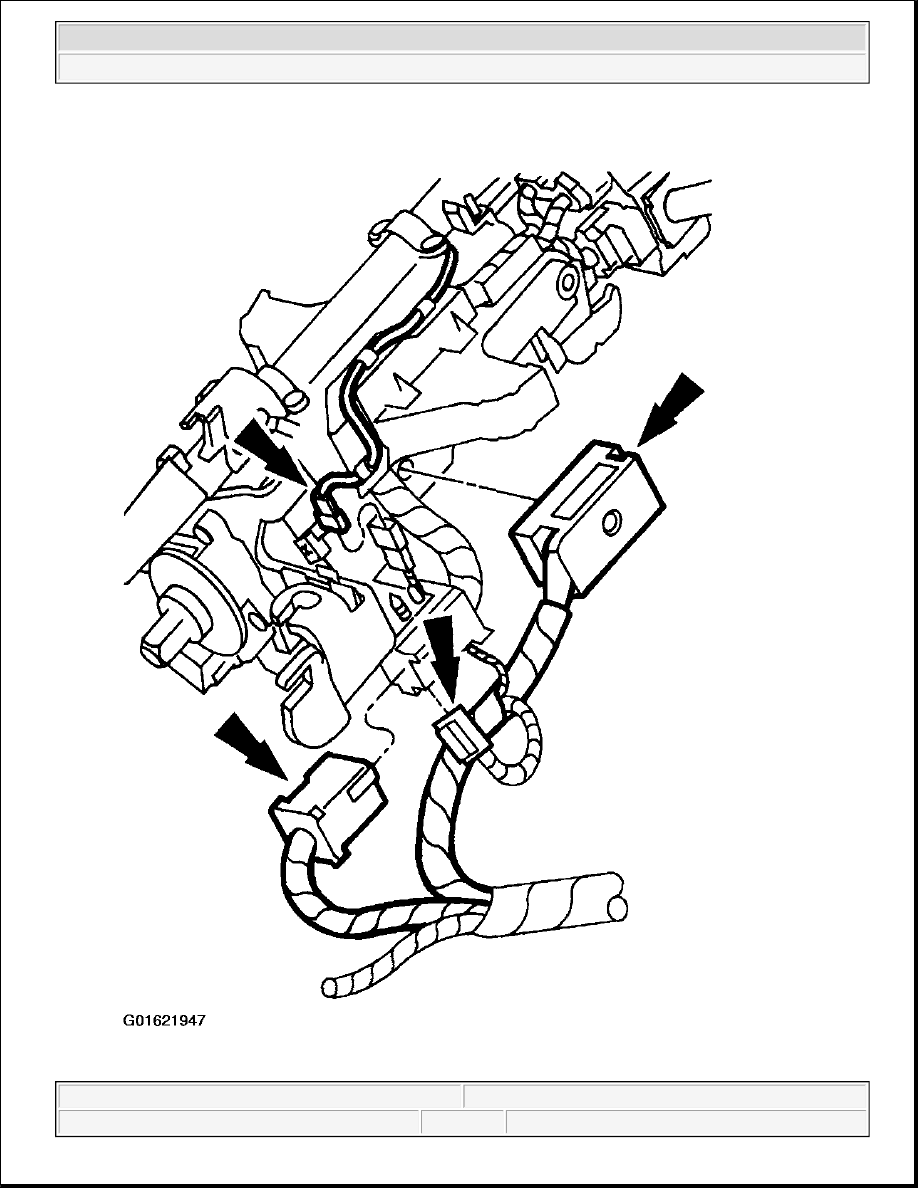

Fig. 60: Connecting Remaining Electrical Connectors On Steering Column
Courtesy of FORD MOTOR CO.

22. Connect the clockspring electrical connectors and the anti-theft sensor electrical connector.

Fig. 61: Connecting Clockspring Electrical Connectors
Courtesy of FORD MOTOR CO.

23. Install the instrument panel steering column opening cover reinforcement.

1. Position the instrument panel steering column opening cover reinforcement.

2. Install the nuts.



2003 Ford Pickup F150

2003 ACCESSORIES AND BODY, CAB Instrument Panel and Console - F150 Pickup



Fig. 62: Installing Instrument Panel Steering Column Opening Cover Reinforcement
Courtesy of FORD MOTOR CO.

24. Connect the LH instrument panel main wiring harness connectors.
