Ford F150 Pickup. Instruction - part 100





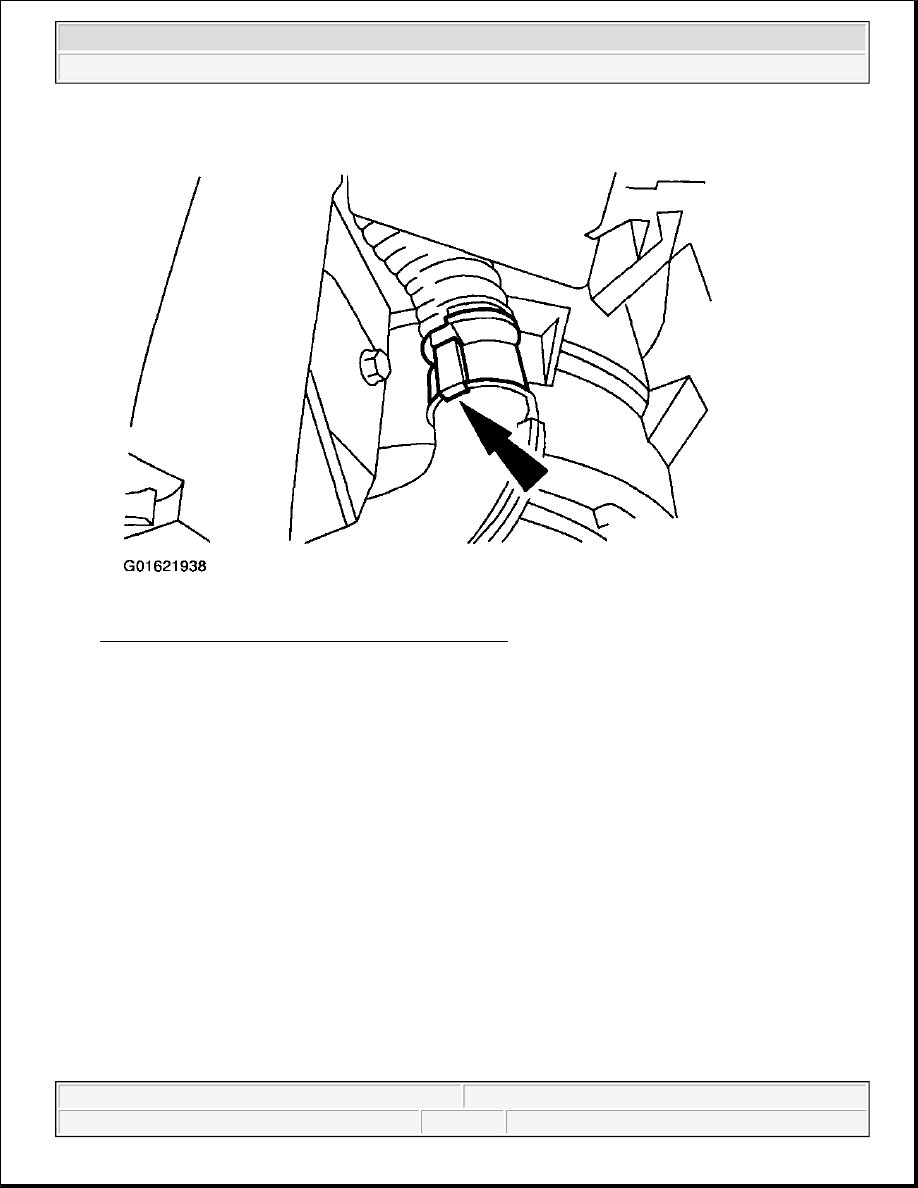

Fig. 51: Connecting EATC Hose To Evaporator Case
Courtesy of FORD MOTOR CO.

13. Connect the climate control wiring harness connector.



2003 Ford Pickup F150

2003 ACCESSORIES AND BODY, CAB Instrument Panel and Console - F150 Pickup



Fig. 52: Connecting Climate Control Wiring Harness Connector
Courtesy of FORD MOTOR CO.

14. Connect the RH instrument panel main harness connectors.

z

Insert all the wiring harness locator into the cowl side panel.



2003 Ford Pickup F150

2003 ACCESSORIES AND BODY, CAB Instrument Panel and Console - F150 Pickup



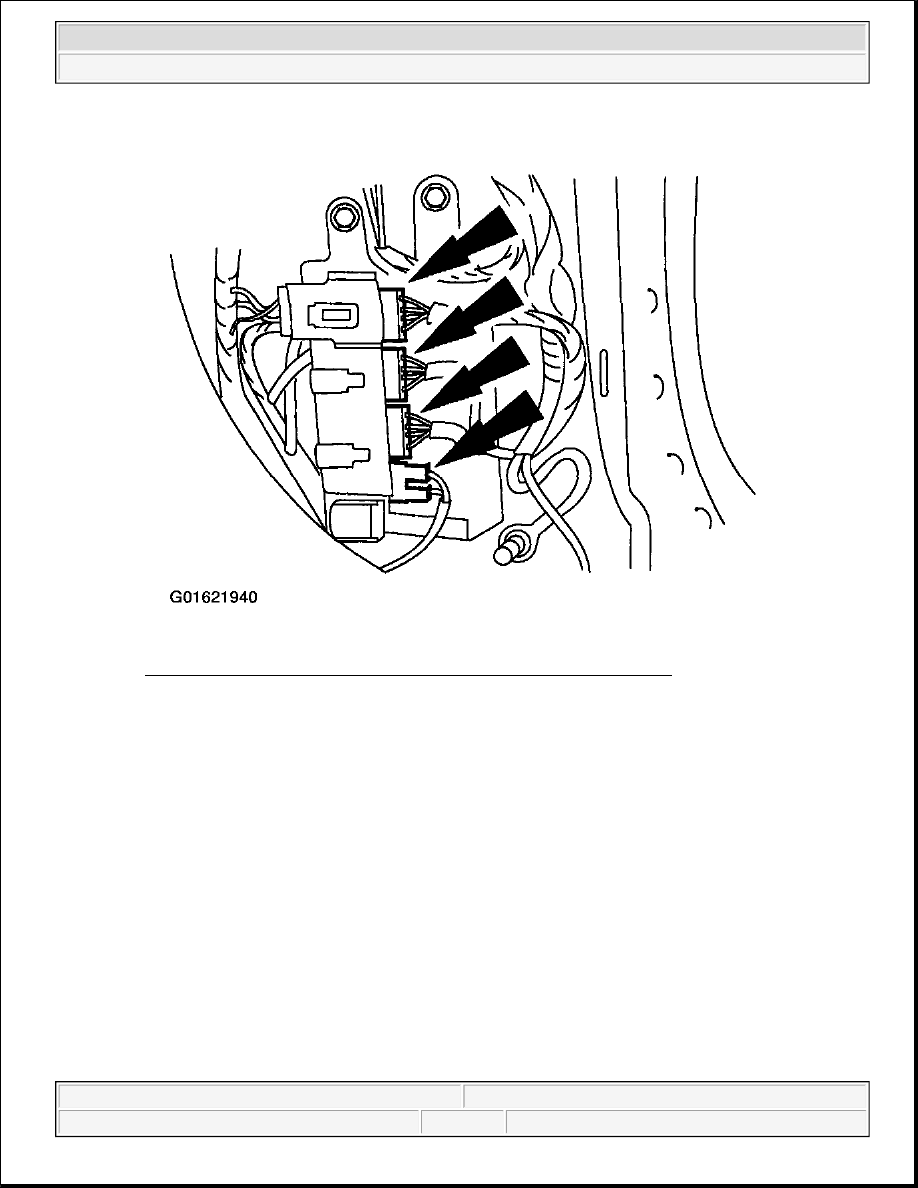

Fig. 53: Connecting RH Instrument Panel Main Harness Connectors
Courtesy of FORD MOTOR CO.

15. Install the RH ground bolts.



2003 Ford Pickup F150

2003 ACCESSORIES AND BODY, CAB Instrument Panel and Console - F150 Pickup



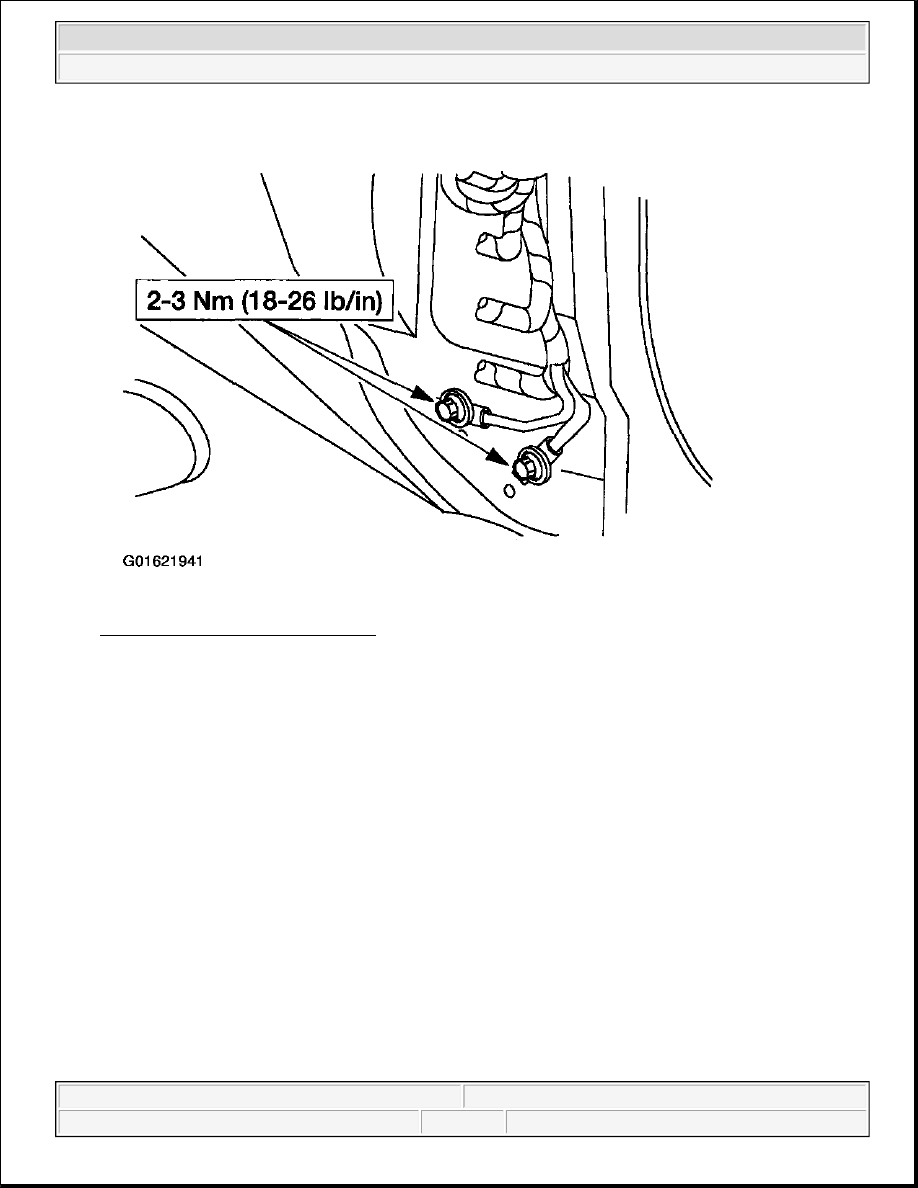

Fig. 54: Installing RH Ground Bolts
Courtesy of FORD MOTOR CO.

16. Connect the inertia fuel shutoff switch electrical connector.



2003 Ford Pickup F150

2003 ACCESSORIES AND BODY, CAB Instrument Panel and Console - F150 Pickup
