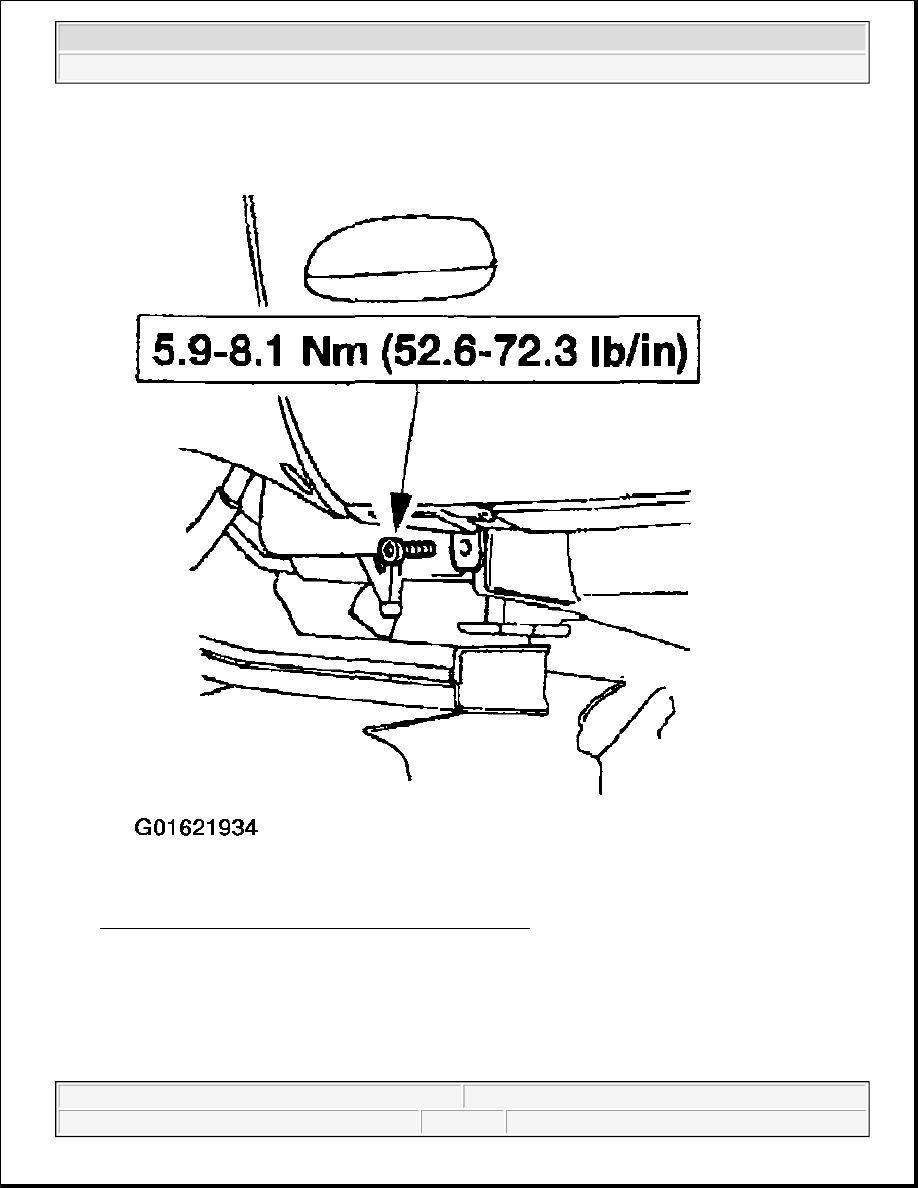

Fig. 47: Installing Instrument Panel Reinforcement Bolt
Courtesy of FORD MOTOR CO.

7. Install the instrument panel bolt on the relay bracket.



2003 Ford Pickup F150

2003 ACCESSORIES AND BODY, CAB Instrument Panel and Console - F150 Pickup

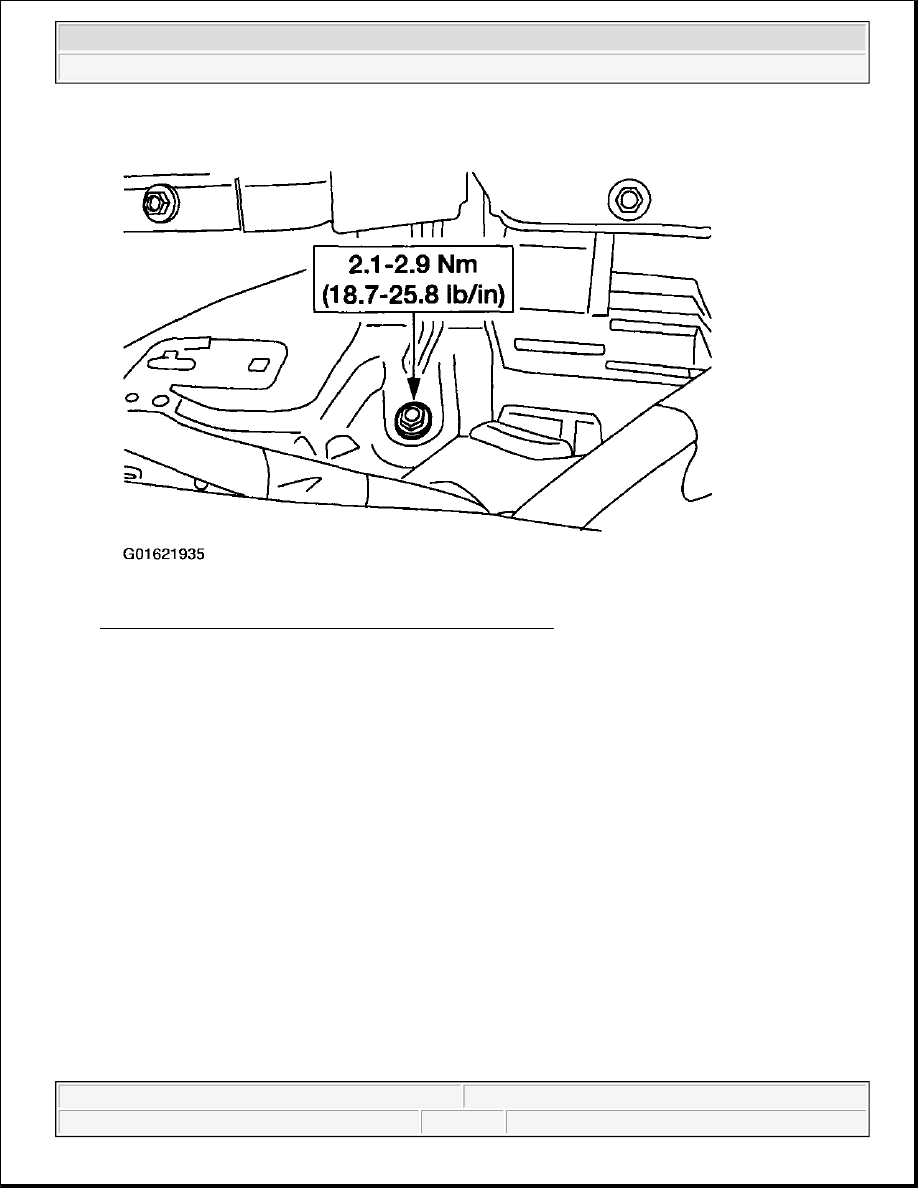

Fig. 48: Installing Instrument Panel Bolt On Relay Bracket
Courtesy of FORD MOTOR CO.

8. Install the instrument panel bolts through the passenger side air bag module opening.

z

Install the RH bolt first.



2003 Ford Pickup F150

2003 ACCESSORIES AND BODY, CAB Instrument Panel and Console - F150 Pickup

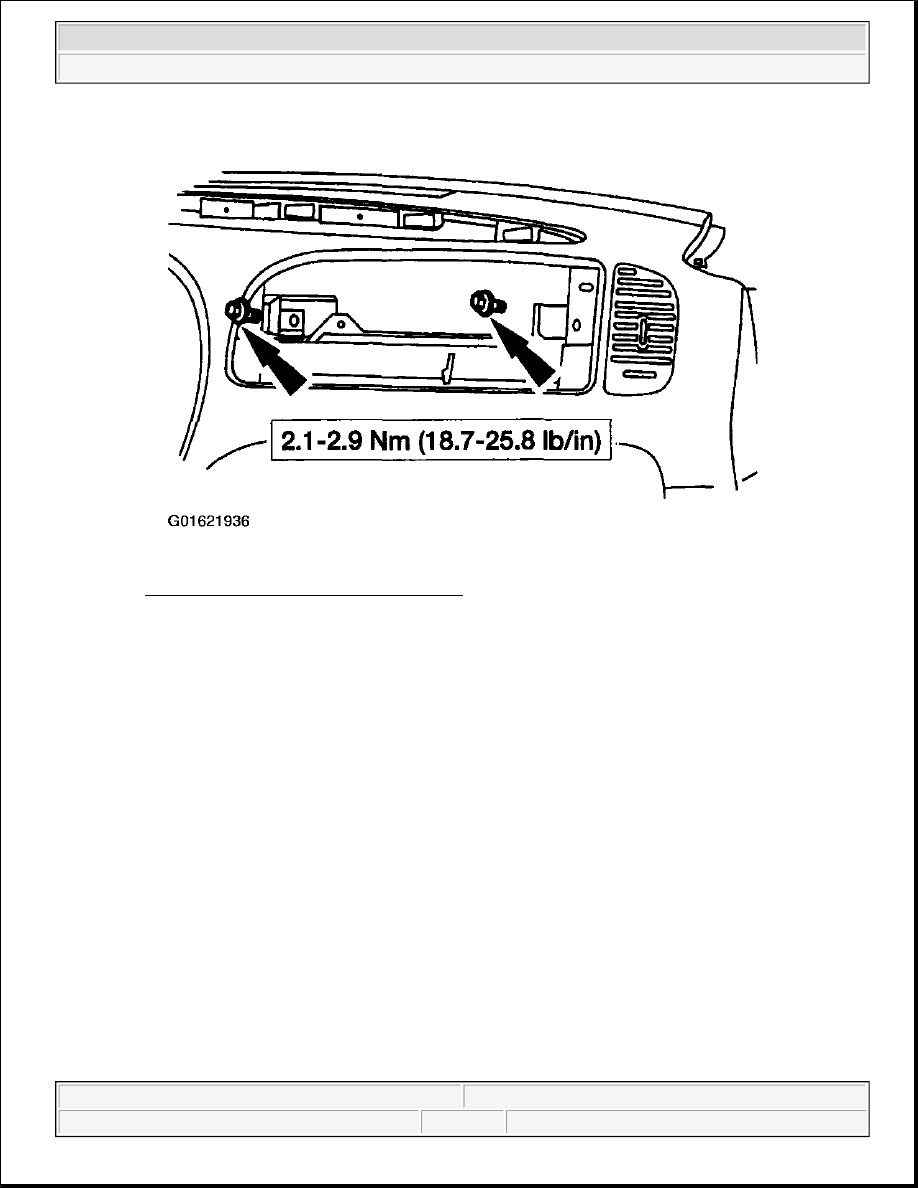

Fig. 49: Installing Instrument Panel Bolts
Courtesy of FORD MOTOR CO.

9. Install the glove compartment.

10. Install the antenna lead-in cable into the instrument panel.

1. Position the antenna lead-in cable into the instrument panel.

2. Connect the cable locators between the instrument panel channel and the audio unit end of the

cable.



2003 Ford Pickup F150

2003 ACCESSORIES AND BODY, CAB Instrument Panel and Console - F150 Pickup



Fig. 50: Installing Antenna Lead-In Cable Into Instrument Panel
Courtesy of FORD MOTOR CO.

11. Install the audio unit. Refer to AUDIO UNIT .

12. If equipped, connect the EATC hose to the evaporator case.
