Ford F150 Pickup. Instruction - part 97

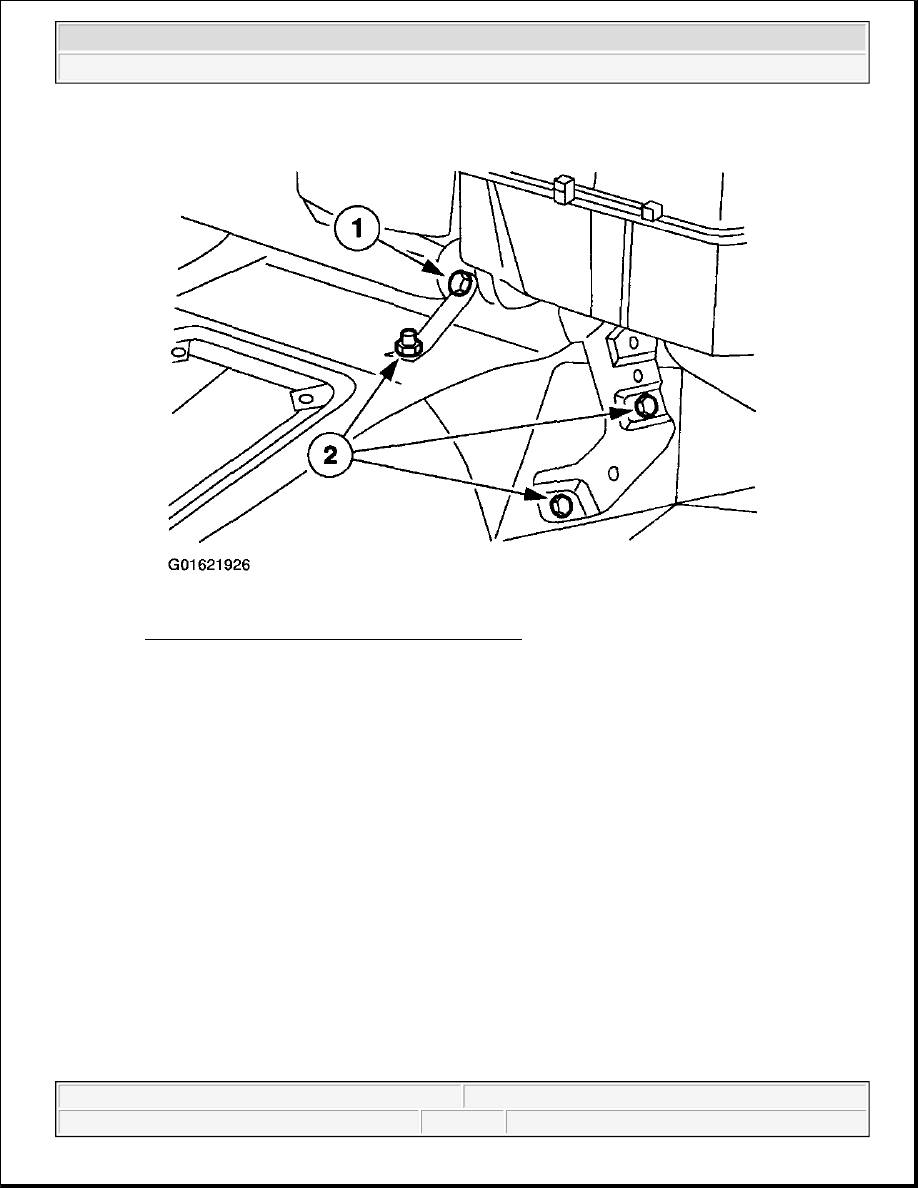

Fig. 39: Loosening Instrument Panel Floor Brace
Courtesy of FORD MOTOR CO.

45. Remove the RH instrument panel cowl side nut.



2003 Ford Pickup F150

2003 ACCESSORIES AND BODY, CAB Instrument Panel and Console - F150 Pickup



Fig. 40: Removing RH Instrument Panel Cowl Side Nut
Courtesy of FORD MOTOR CO.

46. Remove the LH instrument panel cowl side nut.



2003 Ford Pickup F150

2003 ACCESSORIES AND BODY, CAB Instrument Panel and Console - F150 Pickup



Fig. 41: Removing LH Instrument Panel Cowl Side Nut
Courtesy of FORD MOTOR CO.

47. Remove the instrument panel cowl top bolts.

1. Remove the covers.

2. Remove the bolts



2003 Ford Pickup F150

2003 ACCESSORIES AND BODY, CAB Instrument Panel and Console - F150 Pickup



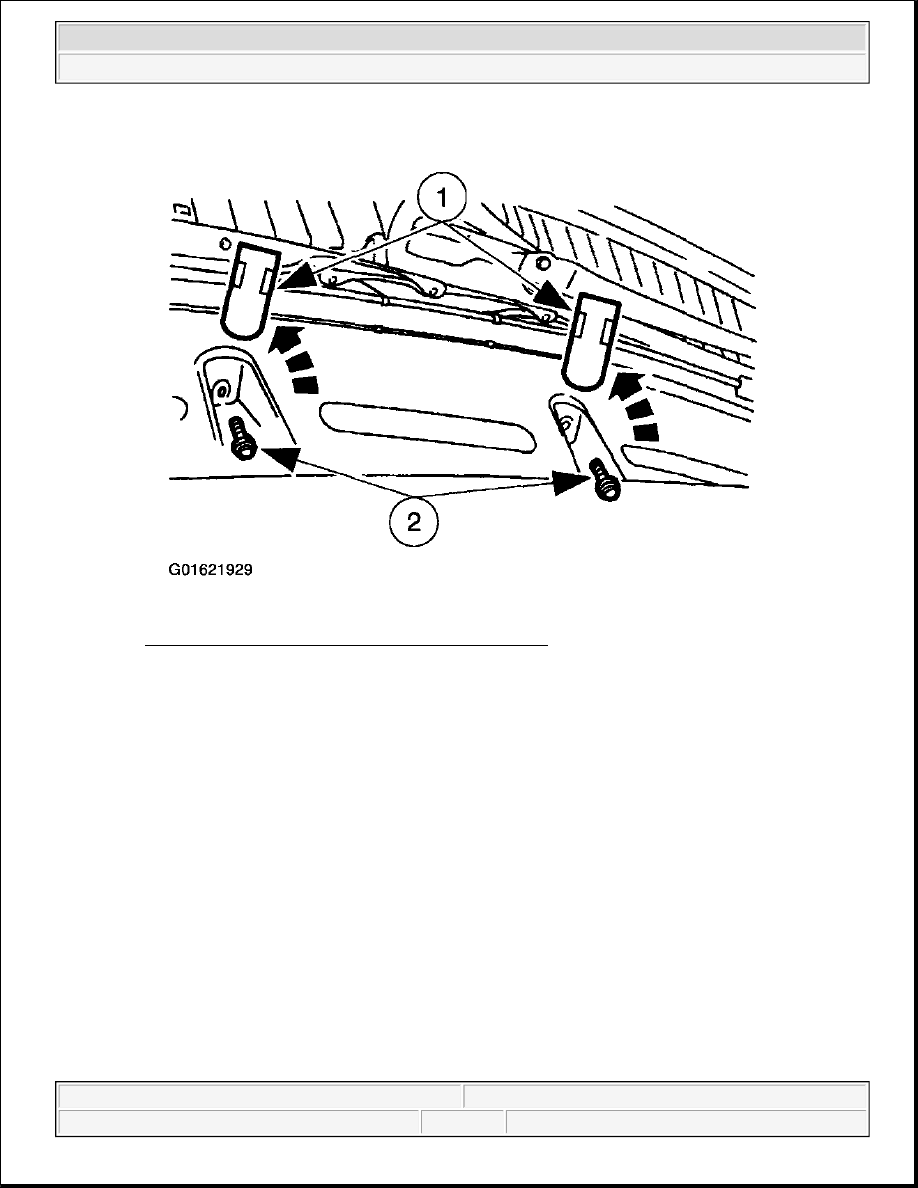

Fig. 42: Removing Instrument Panel Cowl Top Bolts
Courtesy of FORD MOTOR CO.

48. Remove the instrument panel.

Installation

1. Align and position the instrument panel with the clips in the sheet metal.

2. Install the instrument panel cowl top bolts.

1. Install the bolts.

2. Install the covers.

NOTE:

This step will require an assistant.

NOTE:

This step will require an assistant.



2003 Ford Pickup F150

2003 ACCESSORIES AND BODY, CAB Instrument Panel and Console - F150 Pickup
