Fig. 31: Removing RH Ground Bolts
Courtesy of FORD MOTOR CO.

35. Disconnect the RH instrument panel main harness connectors.

z

Release all the wiring harness locators from the cowl side panel.



2003 Ford Pickup F150

2003 ACCESSORIES AND BODY, CAB Instrument Panel and Console - F150 Pickup

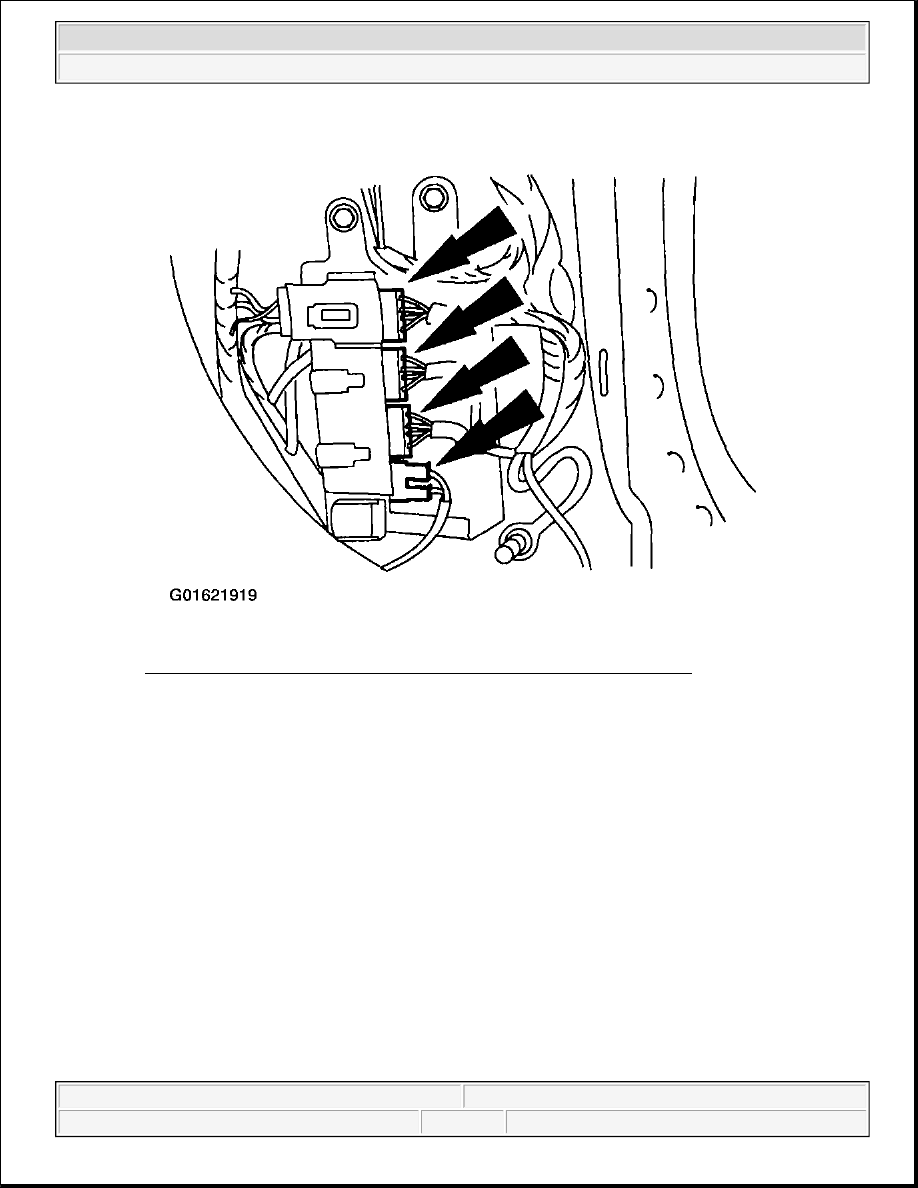

Fig. 32: Disconnecting RH Instrument Panel Main Harness Connectors
Courtesy of FORD MOTOR CO.

36. Disconnect the climate control wiring harness connector.



2003 Ford Pickup F150

2003 ACCESSORIES AND BODY, CAB Instrument Panel and Console - F150 Pickup

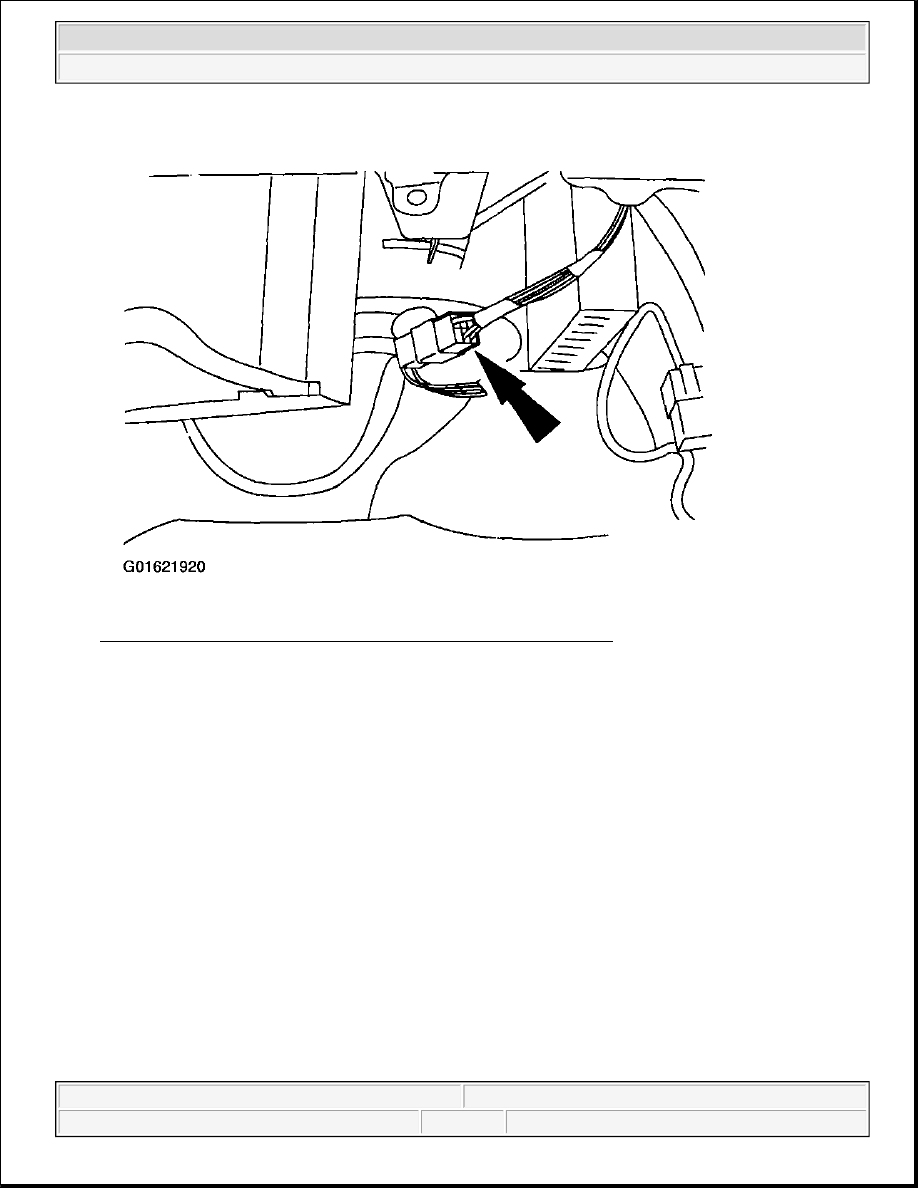

Fig. 33: Disconnecting Climate Control Wiring Harness Connector
Courtesy of FORD MOTOR CO.

37. If equipped, disconnect the electronic automatic temperature control (EATC) hose from the evaporator

case.



2003 Ford Pickup F150

2003 ACCESSORIES AND BODY, CAB Instrument Panel and Console - F150 Pickup



Fig. 34: Disconnecting Electronic Automatic Temperature Control Hose
Courtesy of FORD MOTOR CO.

38. Remove the audio unit. Refer to AUDIO UNIT .

39. Remove the antenna lead-in cable from the instrument panel.

1. Disconnect the three cable locators from the lower instrument panel channel.

2. Remove the antenna lead-in cable from the instrument panel.
