Insert the main wiring harness locators.

Fig. 63: Connecting LH Instrument Panel Main Wiring Harness Connectors
Courtesy of FORD MOTOR CO.

25. Connect the audio unit ground and the GEM/CTM ground bolts.



2003 Ford Pickup F150

2003 ACCESSORIES AND BODY, CAB Instrument Panel and Console - F150 Pickup



Fig. 64: Connecting Audio Unit Ground And GEM/CTM Ground Bolts
Courtesy of FORD MOTOR CO.

26. If equipped, connect the CPP switch.



2003 Ford Pickup F150

2003 ACCESSORIES AND BODY, CAB Instrument Panel and Console - F150 Pickup



Fig. 65: Connecting CPP Switch
Courtesy of FORD MOTOR CO.

27. If equipped, connect the adjustable pedal motor harness connector.



2003 Ford Pickup F150

2003 ACCESSORIES AND BODY, CAB Instrument Panel and Console - F150 Pickup

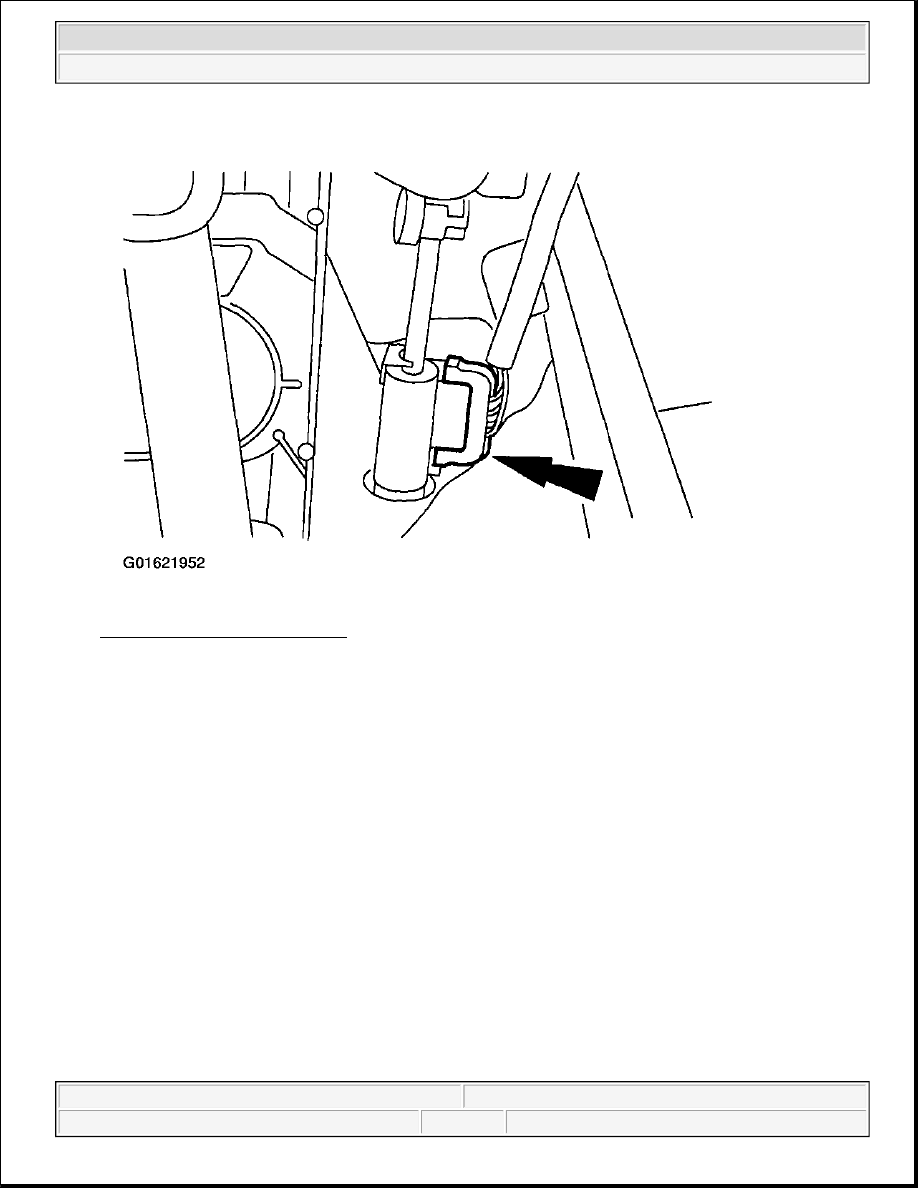

Fig. 66: Connecting Adjustable Pedal Motor Harness Connector
Courtesy of FORD MOTOR CO.

28. If equipped, connect the adjustable pedal motor electrical connector.



2003 Ford Pickup F150

2003 ACCESSORIES AND BODY, CAB Instrument Panel and Console - F150 Pickup
