Ford F150 Pickup. Instruction - part 1019

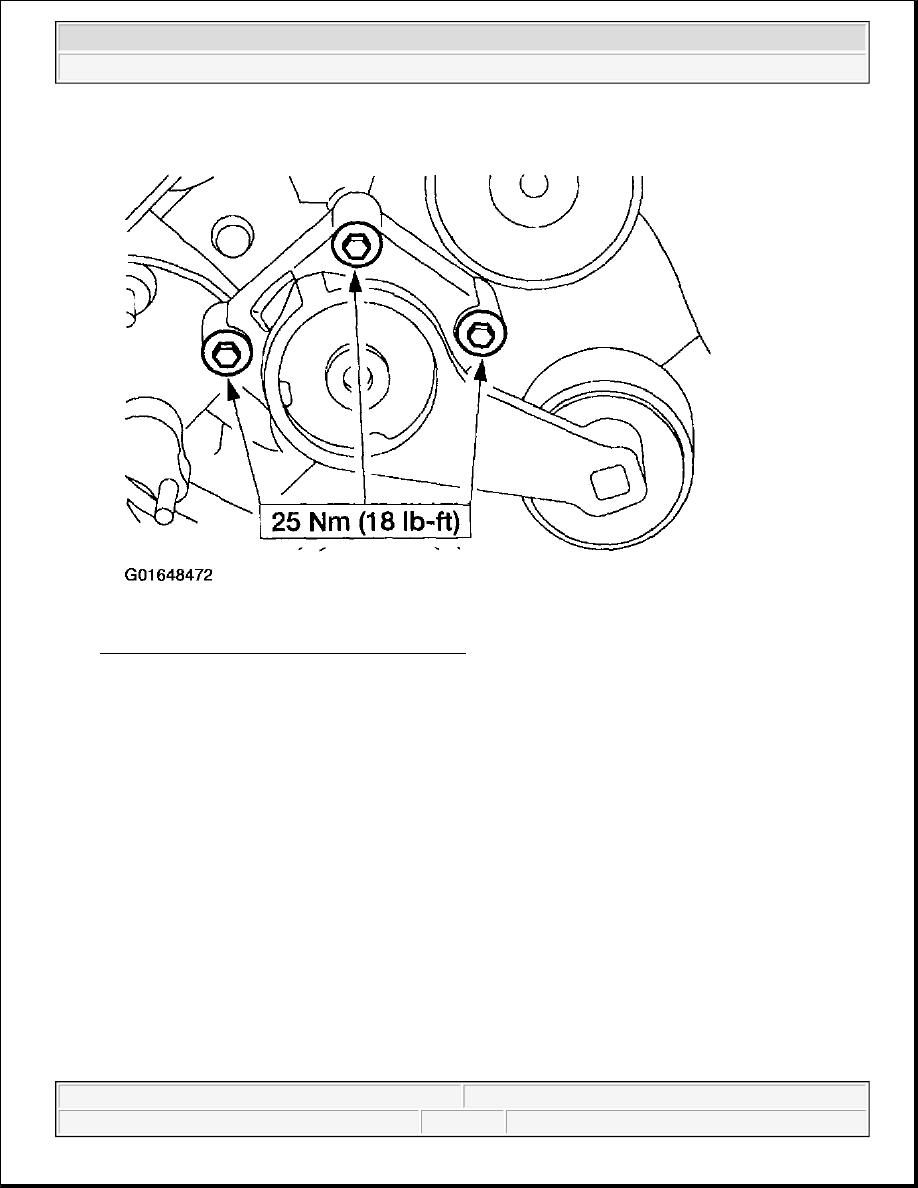

Fig. 20: Removing Belt Tensioner - 4.2L
Courtesy of FORD MOTOR CO.

3. To install, reverse the removal procedure.

BELT TENSIONER - 4.6L & 5.4L

Removal & Installation

1. Remove the drive belt. For additional information, refer to BELT - 4.6L & 5.4L WITH A/C or BELT -

4.6L & 5.4L WITHOUT A/C .

NOTE:

The belt tensioner for a vehicle with A/C is shown, the belt tensioner for a
vehicle without A/C is similar, except for the ribbed pulley.



2003 Ford Pickup F150

2003 ENGINE Accessory Drive - F150 Pickup



Fig. 21: Removing Belt Tensioner - 4.6L & 5.4L
Courtesy of FORD MOTOR CO.

2. Remove the bolts and the belt tensioner.

3. To install, reverse the removal procedure.

ACCESSORY DRIVE BELT TENSIONER - SUPERCHARGED ENGINE

Removal & Installation

1. Remove the bolt and position the charge air cooler reservoir aside.



2003 Ford Pickup F150

2003 ENGINE Accessory Drive - F150 Pickup



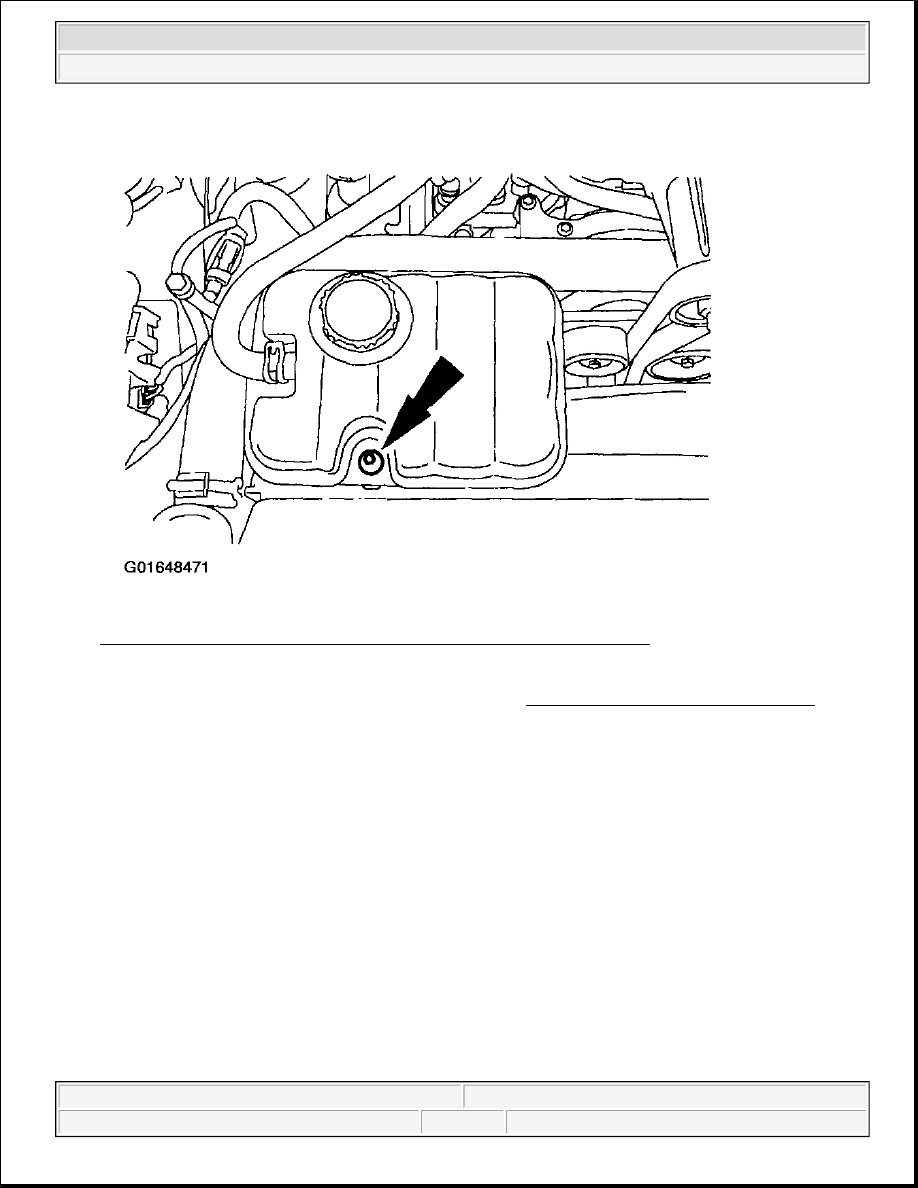

Fig. 22: Removing Charge Air Cooler Reservoir - Supercharged Engine
Courtesy of FORD MOTOR CO.

2. Remove the drive belt. For additional information, refer to BELT - SUPERCHARGED ENGINE .

3. Remove the three bolts and the drive belt tensioner.



2003 Ford Pickup F150

2003 ENGINE Accessory Drive - F150 Pickup



Fig. 23: Removing Drive Belt Tensioner - Supercharged Engine
Courtesy of FORD MOTOR CO.

4. To install, reverse the removal procedure.

BELT IDLER PULLEY - 4.2L

Removal & Installation

1. Remove the drive belt off of the belt idler pulley. For additional information, refer to BELT - 4.2L .

NOTE:

The belt idler pulley for a vehicle with A/C is shown, the belt idler pulley for
a vehicle without A/C is similar, except for the ribbed pulley.
