spring within the tensioner assembly breaks or some other mechanical part of the tensioner fails, there is no
need to check tensioners for proper tension.

The only mechanical check that need be made, if you have any doubt about the tensioner function, would be to
remove the belt in the area of the tensioner, to avoid belt contact, then using the proper tool, rotate the tensioner
from its relaxed position through its full stroke and back to the relaxed position to assure that there is no "stick,
grab, bind," and to assure that there is tension on the spring. It is a normal condition for the tensioner to be
moving, under certain conditions, when the engine is running. If the tensioner meets these criteria, it should be
assumed to be a good tensioner.

Drive Belt Misalignment

Non-standard replacement drive belts may track differently or improperly. If a replacement drive belt tracks
improperly, install a new drive belt to avoid performance failure or loss of belt.

CAUTION: Incorrect drive belt installation will cause excessive drive belt wear and

may cause the drive belt to come off the drive pulleys.



2003 Ford Pickup F150

2003 ENGINE Accessory Drive - F150 Pickup



Fig. 14: Identifying Correct Drive Belt Rides Over Pulley
Courtesy of FORD MOTOR CO.

With the engine running, check drive belt tracking. If the (A) edge of the drive belt rides beyond the edge of the



2003 Ford Pickup F150

2003 ENGINE Accessory Drive - F150 Pickup



pulleys, noise and premature wear may occur. Make sure the (B) drive belt rides correctly on the pulley. If a
drive belt tracking condition exists, proceed with the following:

Visually check the drive belt tensioner for damage, especially the mounting pad surface. If the drive belt
tensioner is not installed correctly, the mounting surface pad will be out of position. This will result in chirp and
squeal noises.

z

With the engine running, visually observe the grooves in the pulleys (not the pulley flanges or pulley
front surfaces) for excessive wobble. INSTALL new components if necessary.

z

Check all accessories, mounting brackets and the drive belt tensioner for any interference that would
prevent the component from mounting properly. Correct any interference condition and recheck belt
tracking.

z

Tighten all accessories, mounting brackets, and drive belt tensioner retaining hardware to specification.
Recheck the drive belt tracking.

REMOVAL & INSTALLATION

BELT - 4.2L

Removal & Installation

1. Rotate the tensioner counterclockwise and remove the drive belt.



2003 Ford Pickup F150

2003 ENGINE Accessory Drive - F150 Pickup



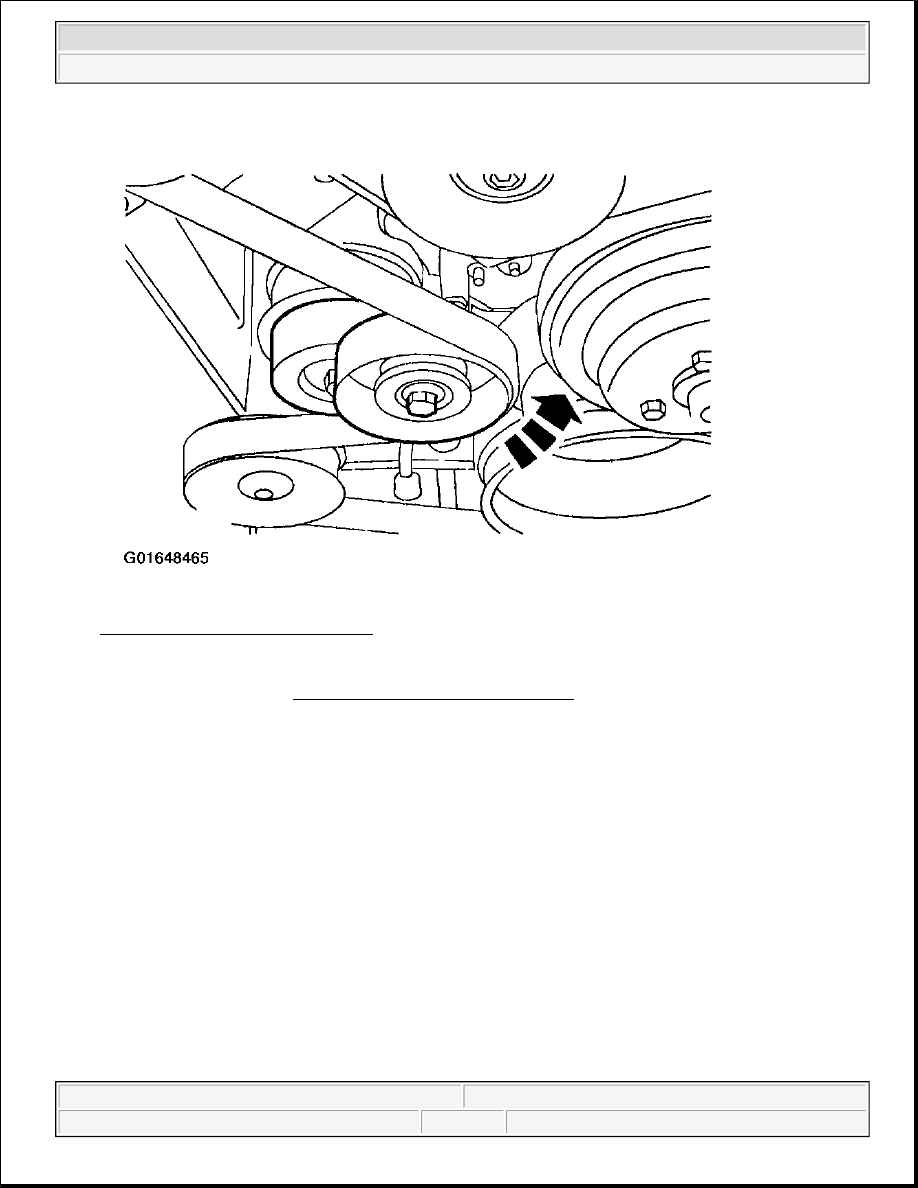

Fig. 15: Removing Drive Belt - 4.2L
Courtesy of FORD MOTOR CO.

2. To install, reverse the removal procedure.

BELT - 4.6L & 5.4L WITH A/C

Removal & Installation

1. Rotate the tensioner clockwise and remove the drive belt.

NOTE:

Refer to COMPONENT LOCATIONS - 4.2L for correct drive belt routing.
