Ford F150 Pickup. Instruction - part 1015

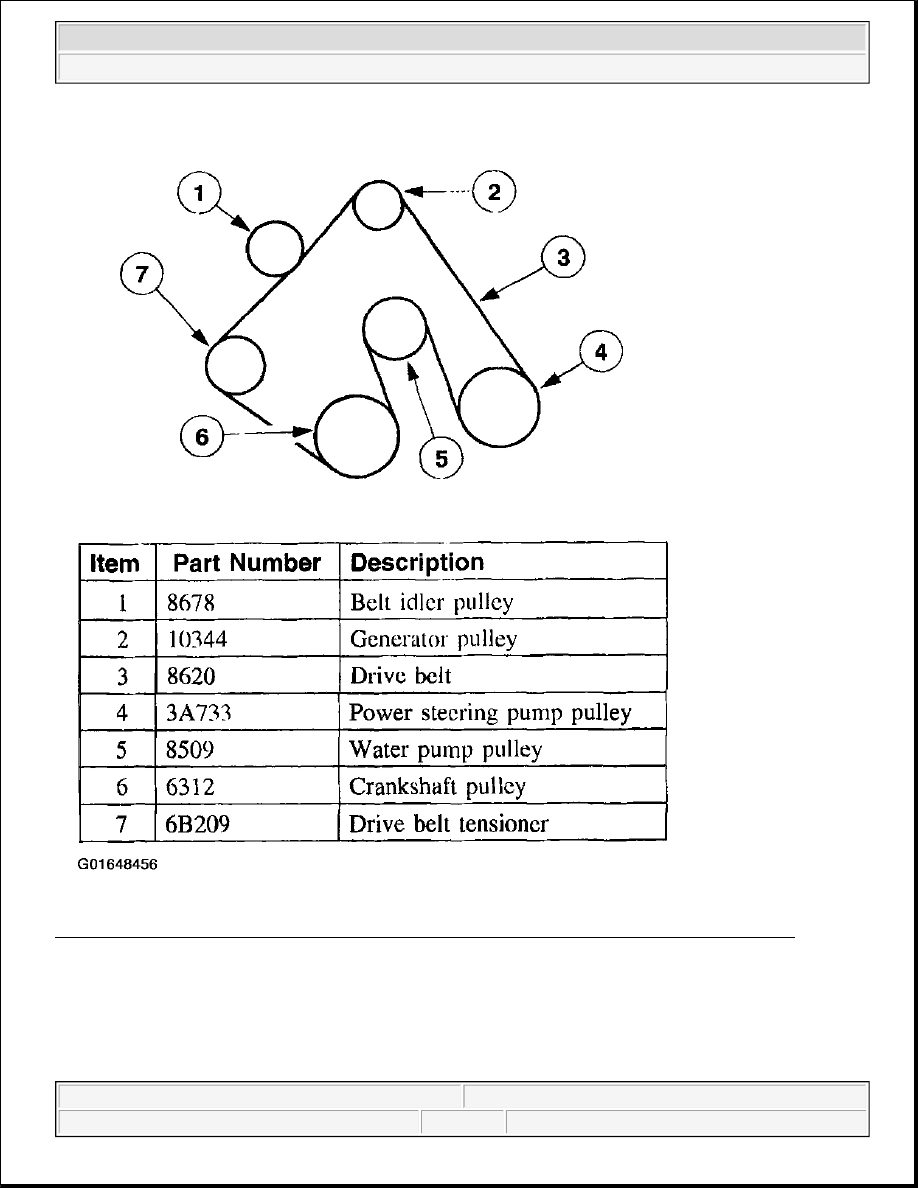

Fig. 6: Identifying Accessory Drive Routing & Component Locations - 4.6L & 5.4L Without A/C
Courtesy of FORD MOTOR CO.

ACCESSORY DRIVE - SUPERCHARGED ENGINE

Component Locations - 5.4L Supercharged Engines



2003 Ford Pickup F150

2003 ENGINE Accessory Drive - F150 Pickup



Fig. 7: Identifying Accessory Drive Routing & Component Locations - 5.4L Supercharged Engines
Courtesy of FORD MOTOR CO.

Component Locations - 5.4L Supercharged Engines



2003 Ford Pickup F150

2003 ENGINE Accessory Drive - F150 Pickup



Fig. 8: Identifying Accessory Drive Routing & Component Locations - 5.4L Supercharged Engines
Courtesy of FORD MOTOR CO.

DIAGNOSIS & TESTING



2003 Ford Pickup F150

2003 ENGINE Accessory Drive - F150 Pickup



ACCESSORY DRIVE

Inspection & Verification

1. Verify the concern by running the engine.

2. Inspect the drive belt for chunking, fraying and wear. Refer to the illustrations.

3. Check the drive belt for correct routing.

Fig. 9: Identifying V-Ribbed Serpentine Drive Belt With Cracks Across Ribs
Courtesy of FORD MOTOR CO.



2003 Ford Pickup F150

2003 ENGINE Accessory Drive - F150 Pickup
