Ford F150 Pickup. Instruction - part 1013





Fig. 15: Removing Radiator
Courtesy of FORD MOTOR CO.

4. To install, reverse the removal procedure.

DEGAS BOTTLE

Removal & Installation

1. Drain the coolant. For additional information, refer to SUPERCHARGER COOLING SYSTEM

DRAINING, FILLING & BLEEDING .

2. Disconnect the coolant hoses.



2003 Ford Pickup F150

2003 ENGINE Supercharger Cooling - F150 Pickup



Fig. 16: Disconnecting Coolant Hoses
Courtesy of FORD MOTOR CO.

3. Remove the bolts and the degas bottle.



2003 Ford Pickup F150

2003 ENGINE Supercharger Cooling - F150 Pickup



Fig. 17: Removing Degas Bottle
Courtesy of FORD MOTOR CO.

4. To install, reverse the removal procedure.



2003 Ford Pickup F150

2003 ENGINE Supercharger Cooling - F150 Pickup



2003 ENGINE

Accessory Drive - F150 Pickup

SPECIFICATIONS

GENERAL SPECIFICATIONS

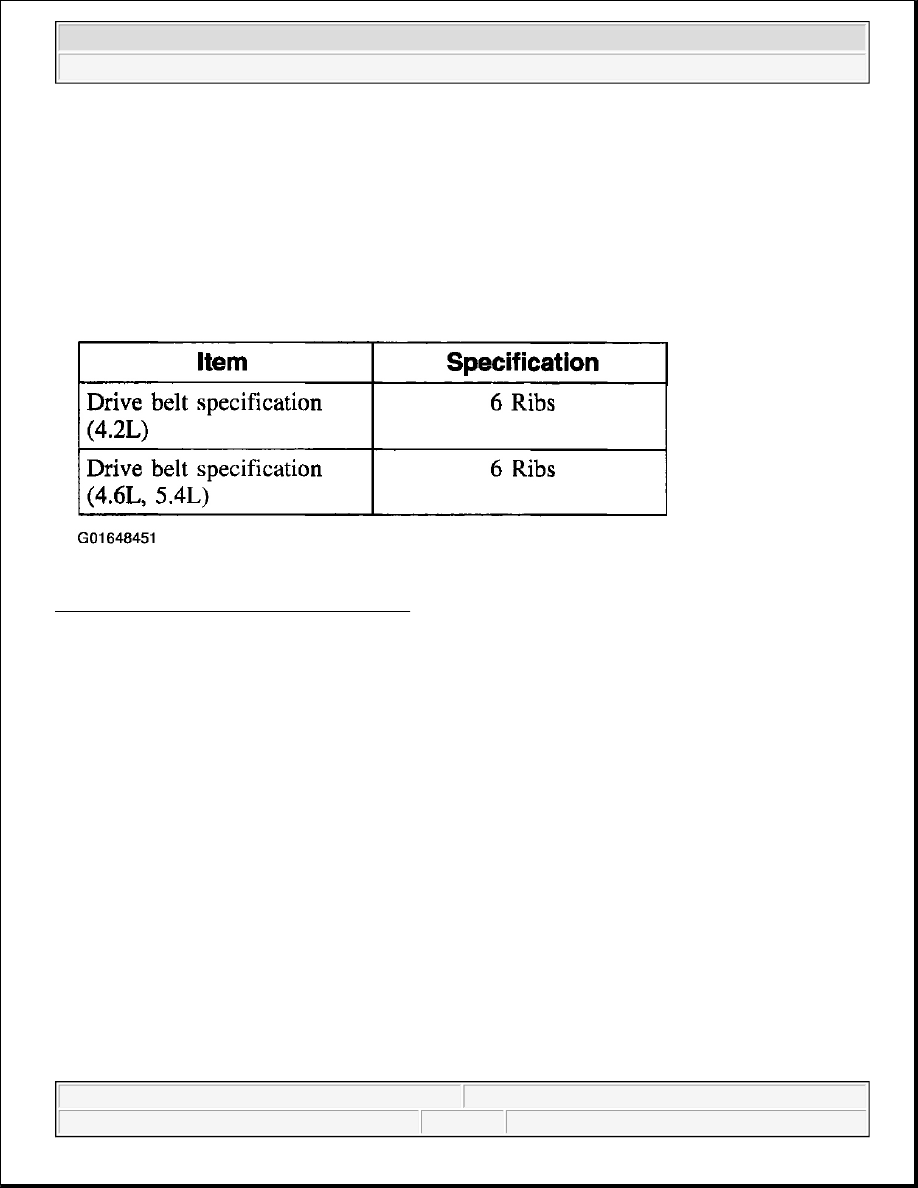

Fig. 1: Accessory Drive General Specifications
Courtesy of FORD MOTOR CO.

TORQUE SPECIFICATIONS



2003 Ford Pickup F150

2003 ENGINE Accessory Drive - F150 Pickup





2003 Ford Pickup F150

2003 ENGINE Accessory Drive - F150 Pickup
