Ford F150 Pickup. Instruction - part 1018

Fig. 16: Removing Drive Belt - 4.6L & 5.4L With A/C
Courtesy of FORD MOTOR CO.

2. To install, reverse the removal procedure.

BELT - 4.6L & 5.4L WITHOUT A/C

Removal & Installation

1. Rotate the tensioner counterclockwise and remove the drive belt.

NOTE:

Refer to COMPONENT LOCATIONS - 4.6L & 5.4L WITH A/C for correct
drive belt routing.



2003 Ford Pickup F150

2003 ENGINE Accessory Drive - F150 Pickup



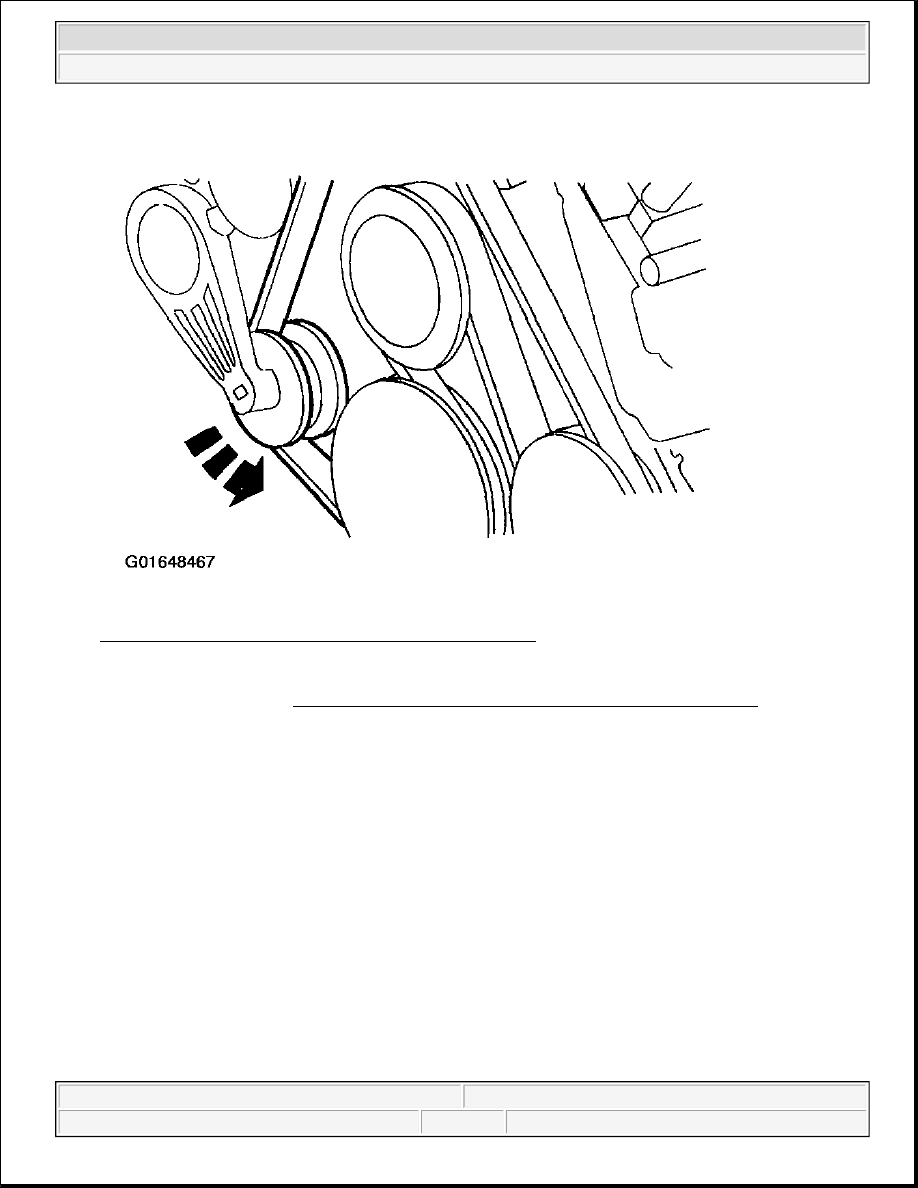

Fig. 17: Removing Drive Belt - 4.6L & 5.4L Without A/C
Courtesy of FORD MOTOR CO.

2. To install, reverse the removal procedure.

BELT - SUPERCHARGED ENGINE

Removal & Installation

1. Rotate the tensioner clockwise and remove the supercharger drive belt.

NOTE:

Refer to COMPONENT LOCATIONS - 4.6L & 5.4L WITHOUT A/C for correct
drive belt routing.



2003 Ford Pickup F150

2003 ENGINE Accessory Drive - F150 Pickup



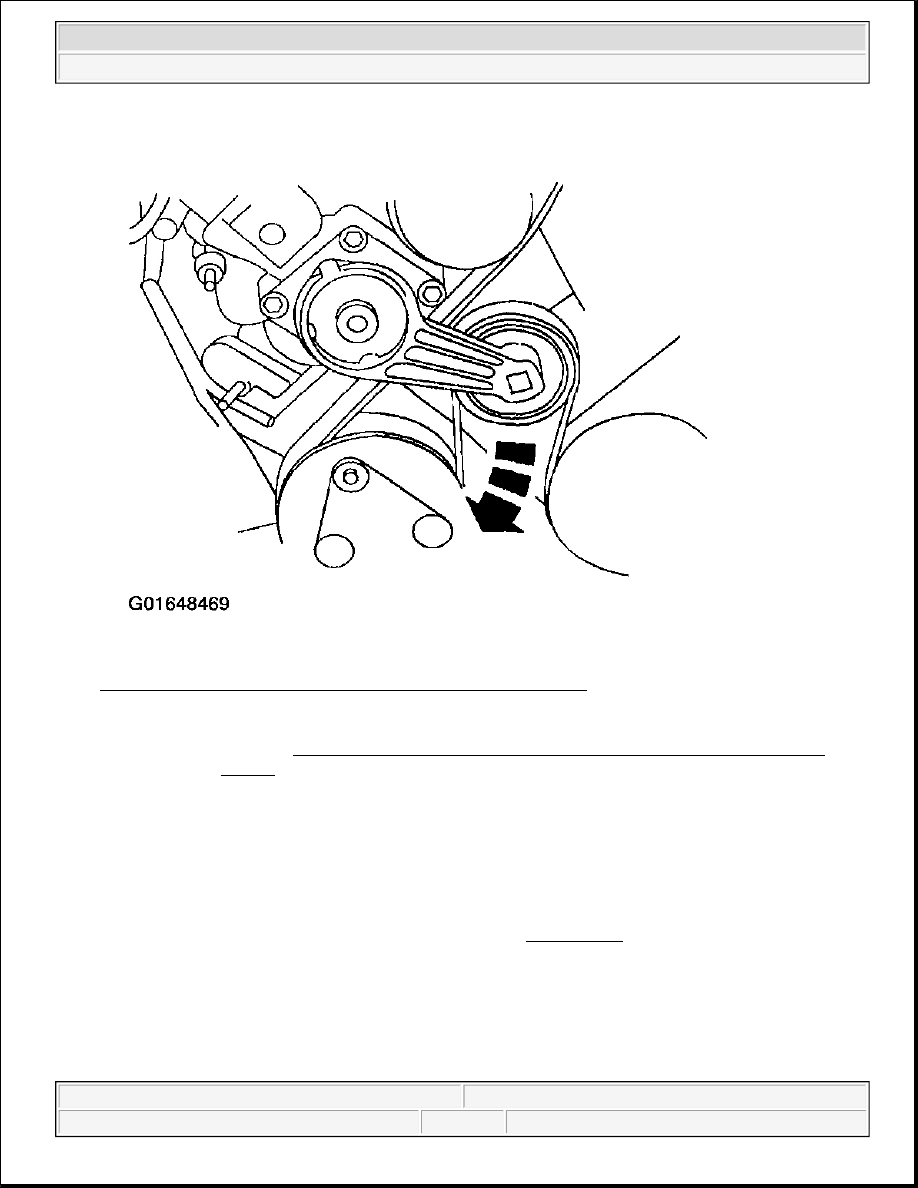

Fig. 18: Removing Supercharger Drive Belt - Supercharged Engine
Courtesy of FORD MOTOR CO.

2. Remove the fan blade and the fan shroud. For additional information, refer to ENGINE COOLING .

3. Remove the auxiliary supercharger crankshaft pulley. For additional information, refer to ENGINE -

4.6L AND 5.4L article .

4. Rotate the tensioner clockwise and remove the accessory drive belt.



2003 Ford Pickup F150

2003 ENGINE Accessory Drive - F150 Pickup



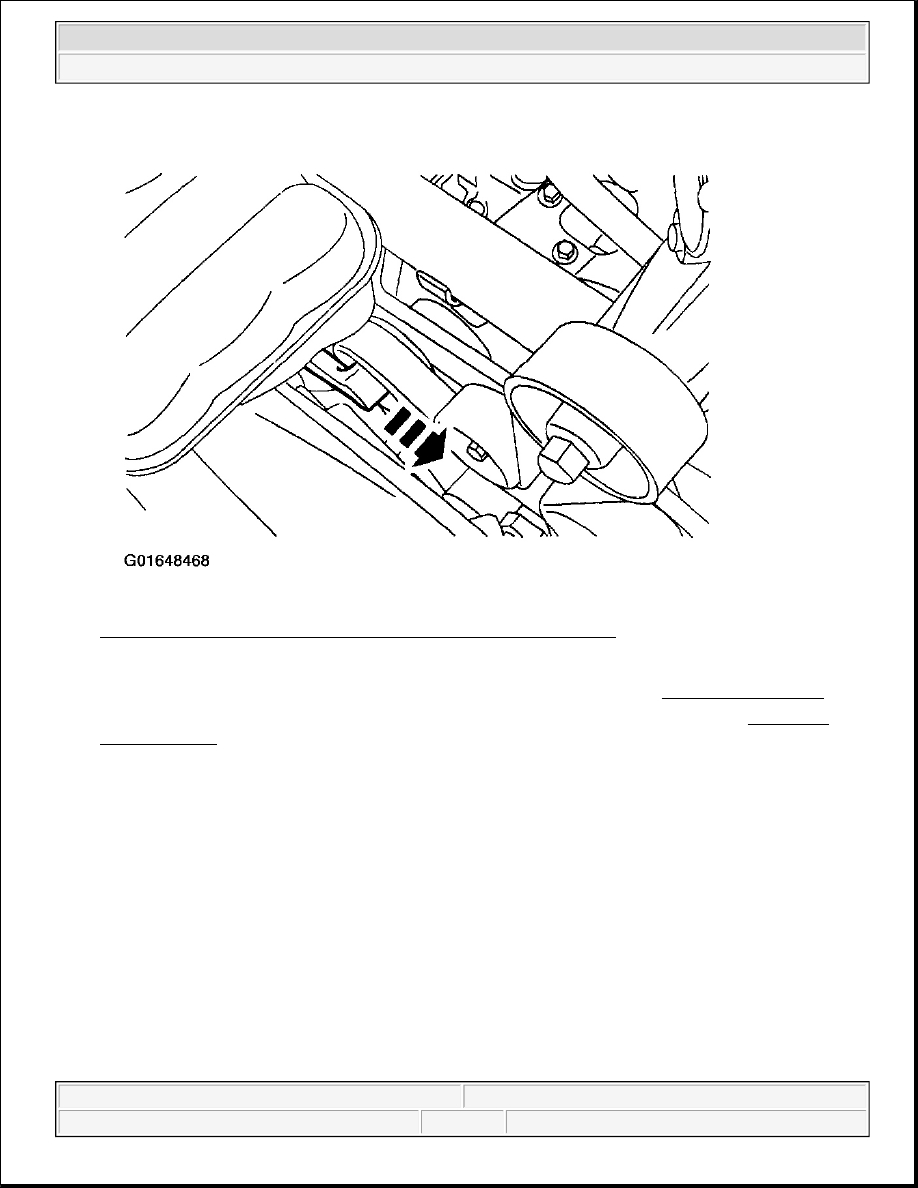

Fig. 19: Removing Accessory Drive Belt - Supercharged Engine
Courtesy of FORD MOTOR CO.

5. To install, reverse the removal procedure.

BELT TENSIONER - 4.2L

Removal & Installation

1. Remove the drive belt. For additional information, refer to BELT - 4.2L .

2. Remove the belt tensioner.

NOTE:

Refer to ACCESSORY DRIVE - SUPERCHARGED ENGINEACCESSORY
DRIVE for correct drive belt routing.
