Ford F150 Pickup. Instruction - part 1020

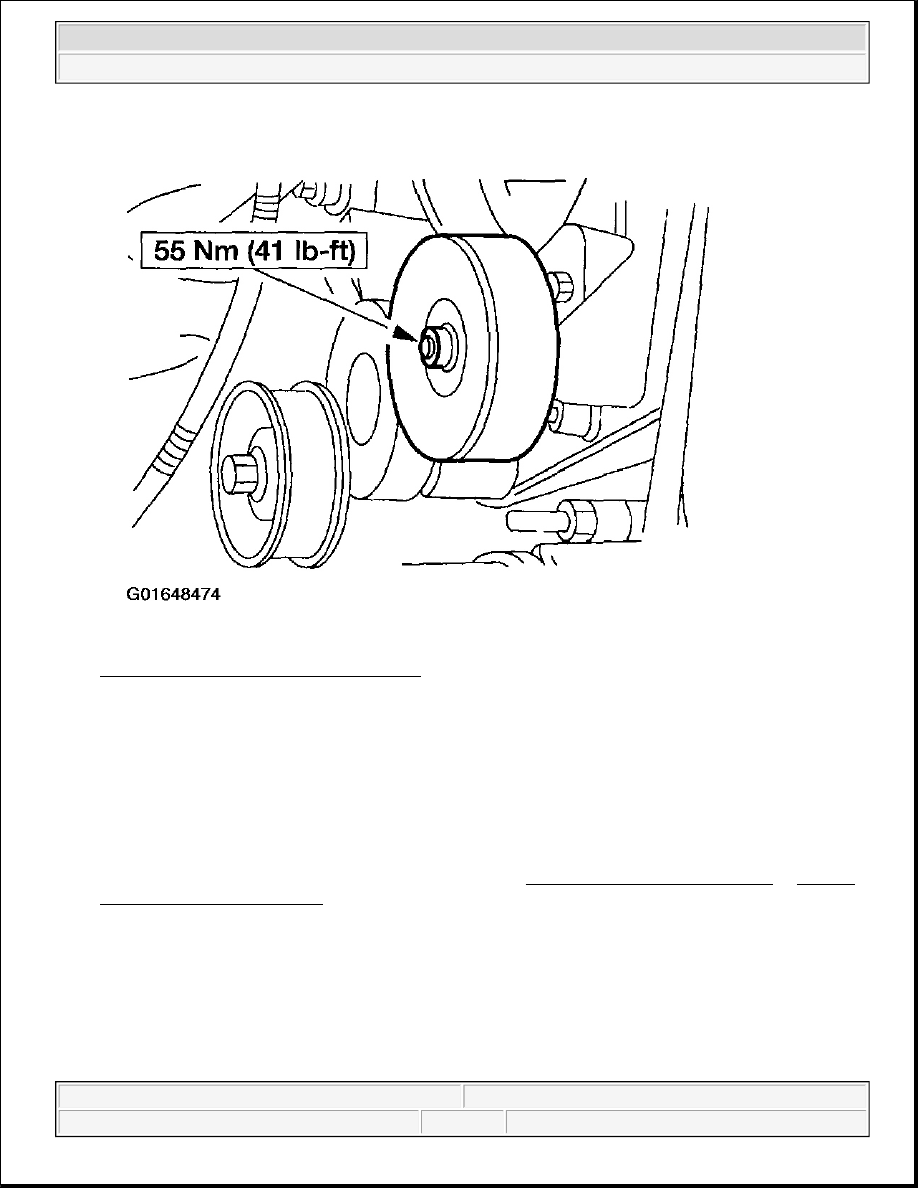

Fig. 24: Removing Belt Idler Pulley - 4.2L
Courtesy of FORD MOTOR CO.

2. Remove the bolt and the belt idler pulley.

3. To install, reverse the removal procedure.

BELT IDLER PULLEY - 4.6L & 5.4L

Removal & Installation

1. Remove the drive belt. For additional information, refer to BELT - 4.6L & 5.4L WITH A/C or BELT -

4.6L & 5.4L WITHOUT A/C .

2. Remove the bolt and the belt idler pulley.



2003 Ford Pickup F150

2003 ENGINE Accessory Drive - F150 Pickup



Fig. 25: Removing Belt Idler Pulley - 4.6L & 5.4L
Courtesy of FORD MOTOR CO.

3. To install, reverse the removal procedure.

BELT IDLER PULLEY - SUPERCHARGED ENGINE

Removal & Installation

1. Remove the drive belt. For additional information, refer to BELT-SUPERCHARGED ENGINE .

2. Remove the bolts and the belt idler pulley.



2003 Ford Pickup F150

2003 ENGINE Accessory Drive - F150 Pickup



Fig. 26: Removing Belt Idler Pulley - Supercharged Engine
Courtesy of FORD MOTOR CO.

3. To install, reverse the removal procedure.
