Ford F150 Pickup. Instruction - part 75

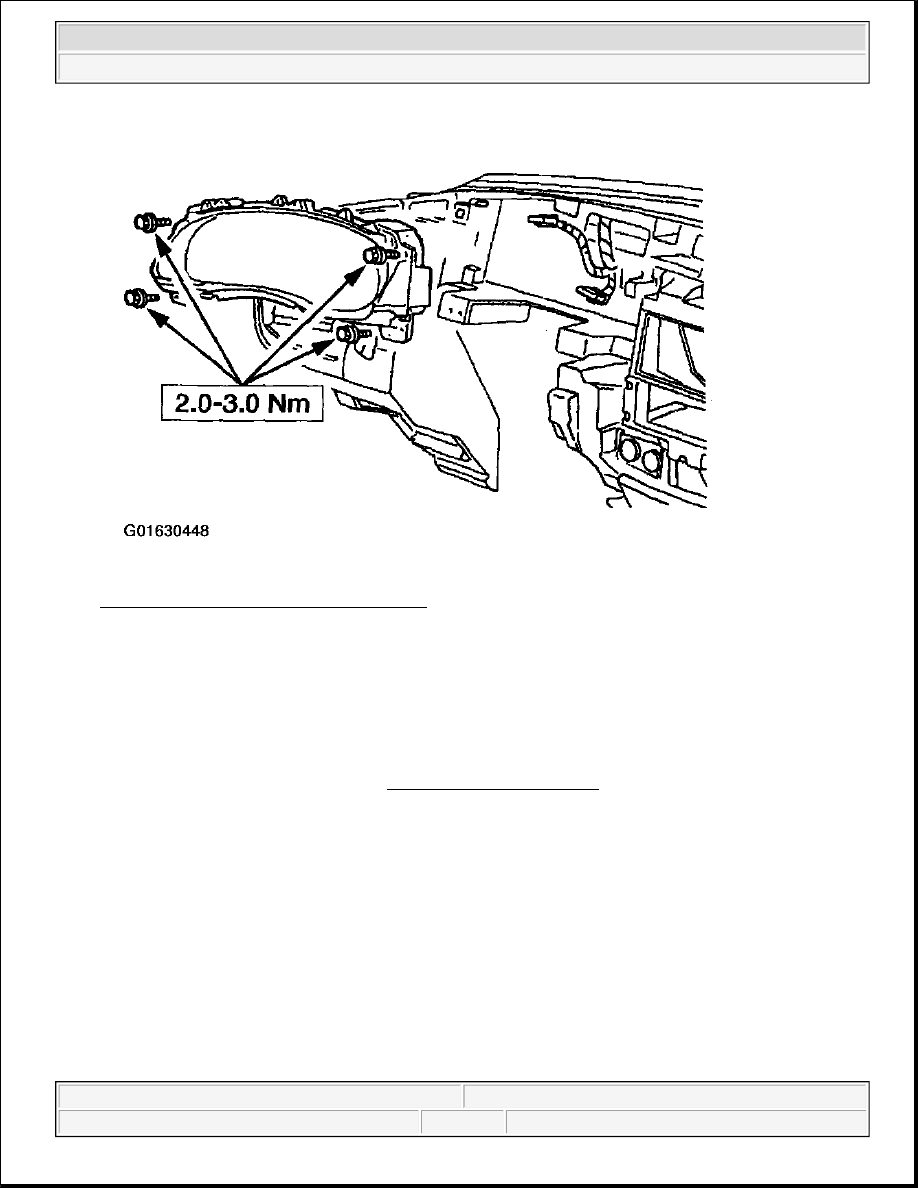

Fig. 70: Installing New Instrument Cluster
Courtesy of FORD MOTOR CO.

1. To install, reverse the removal procedure.

WARNING INDICATOR BULB

Removal

1. Remove the instrument cluster; refer to INSTRUMENT CLUSTER .



2003 Ford Pickup F150

2003 ACCESSORIES AND BODY, CAB Instrument Cluster-Conventional - F150 Pickup



Fig. 71: Removing Instrument Cluster
Courtesy of FORD MOTOR CO.

2. Remove the necessary instrument cluster bulb(s).

z

Remove the back cover if necessary.



2003 Ford Pickup F150

2003 ACCESSORIES AND BODY, CAB Instrument Cluster-Conventional - F150 Pickup



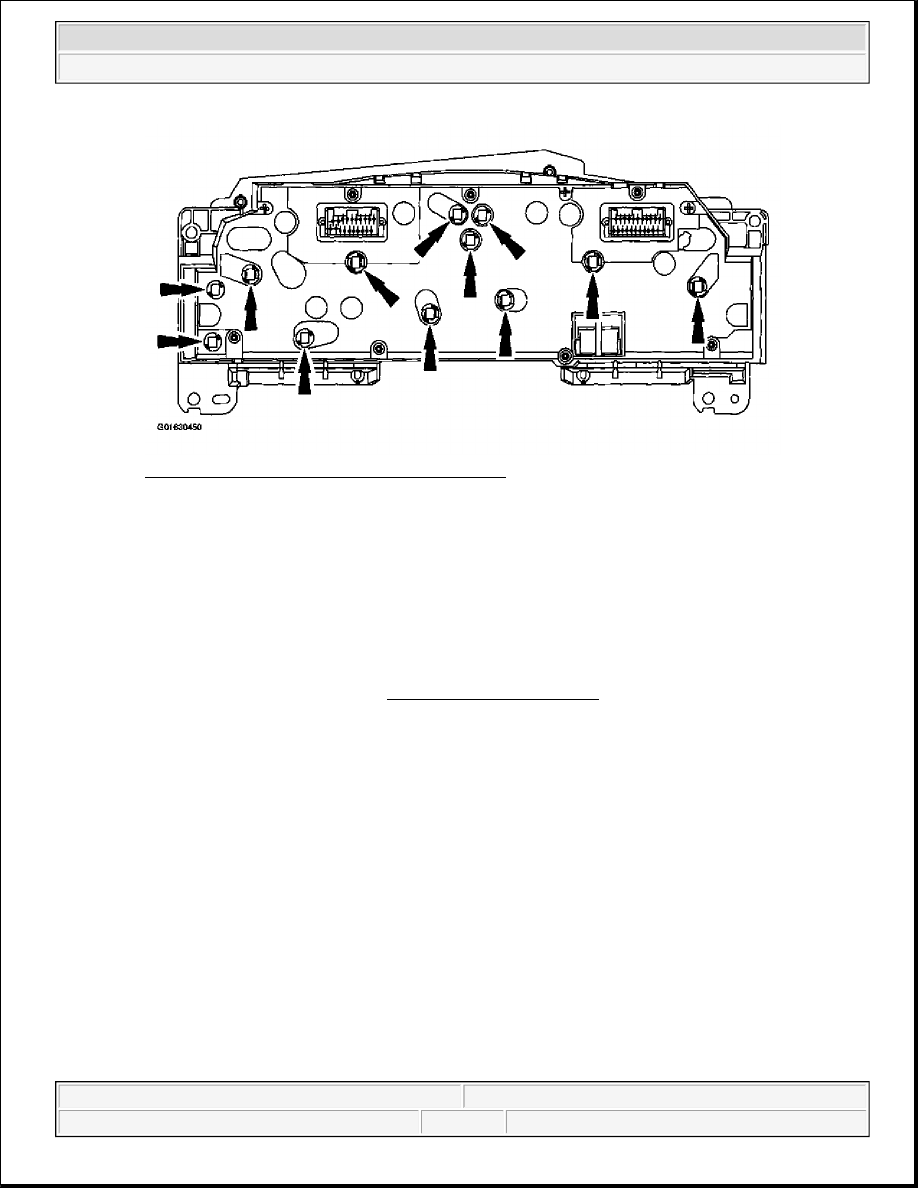

Fig. 72: Identifying Instrument Cluster Bulb(s)
Courtesy of FORD MOTOR CO.

Installation

1. To install, reverse the removal procedure.

CLUSTER LENS

Removal

1. Remove the instrument cluster; refer to INSTRUMENT CLUSTER .

2. Remove the instrument cluster lens.

1. Remove the screws.

2. Remove the instrument cluster lens.

NOTE:

F150 shown, Lightning similar.



2003 Ford Pickup F150

2003 ACCESSORIES AND BODY, CAB Instrument Cluster-Conventional - F150 Pickup



Fig. 73: Removing Instrument Cluster Lens
Courtesy of FORD MOTOR CO.

Installation

1. To install, reverse the removal procedure.
