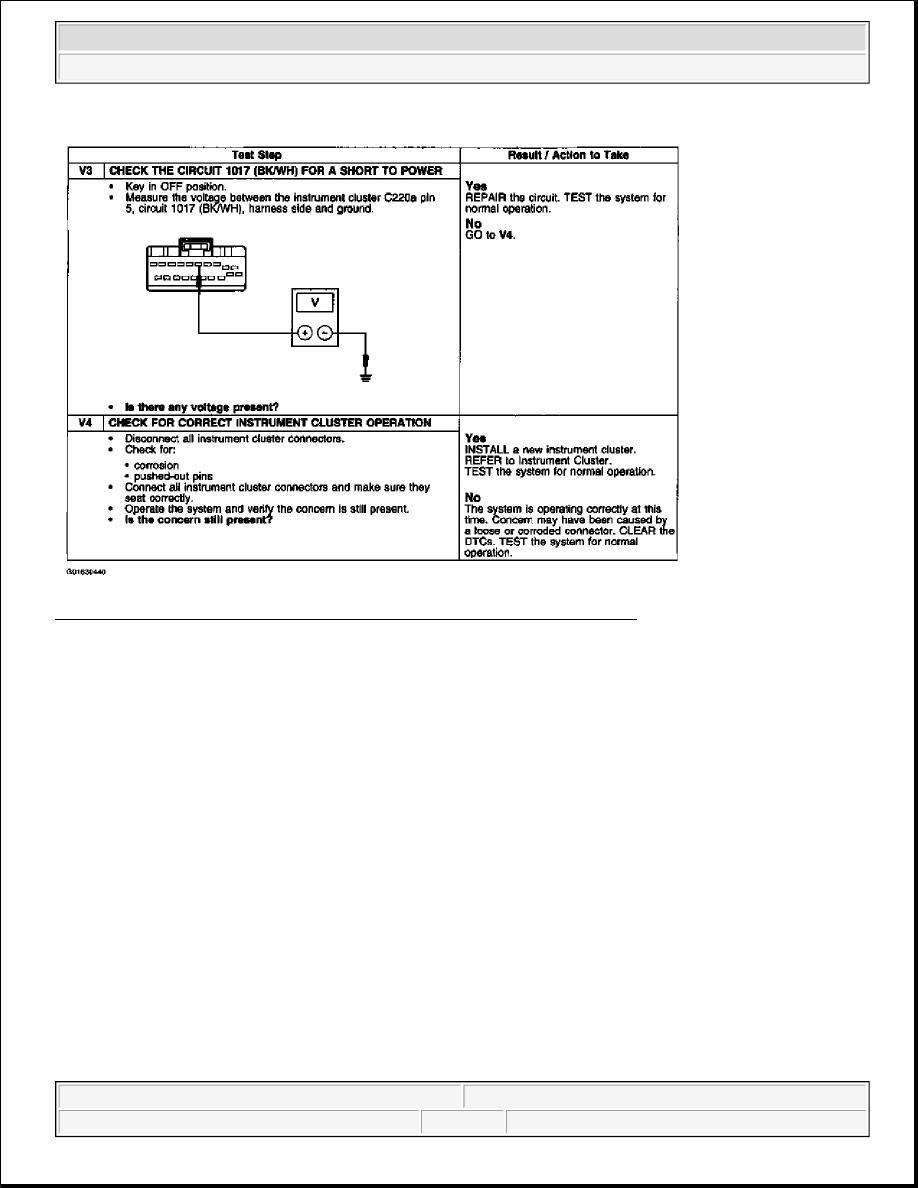

Fig. 62: Pinpoint Test V: Check Fuel Cap Indicator Is Inoperative (V3 - V4)
Courtesy of FORD MOTOR CO.

PINPOINT TEST W: THE INSTRUMENT CLUSTER IS INOPERATIVE

CAUTION: Use the correct probe adapter(s) when making measurements. Failure to

use the correct probe adapter(s) may damage the connector.



2003 Ford Pickup F150

2003 ACCESSORIES AND BODY, CAB Instrument Cluster-Conventional - F150 Pickup

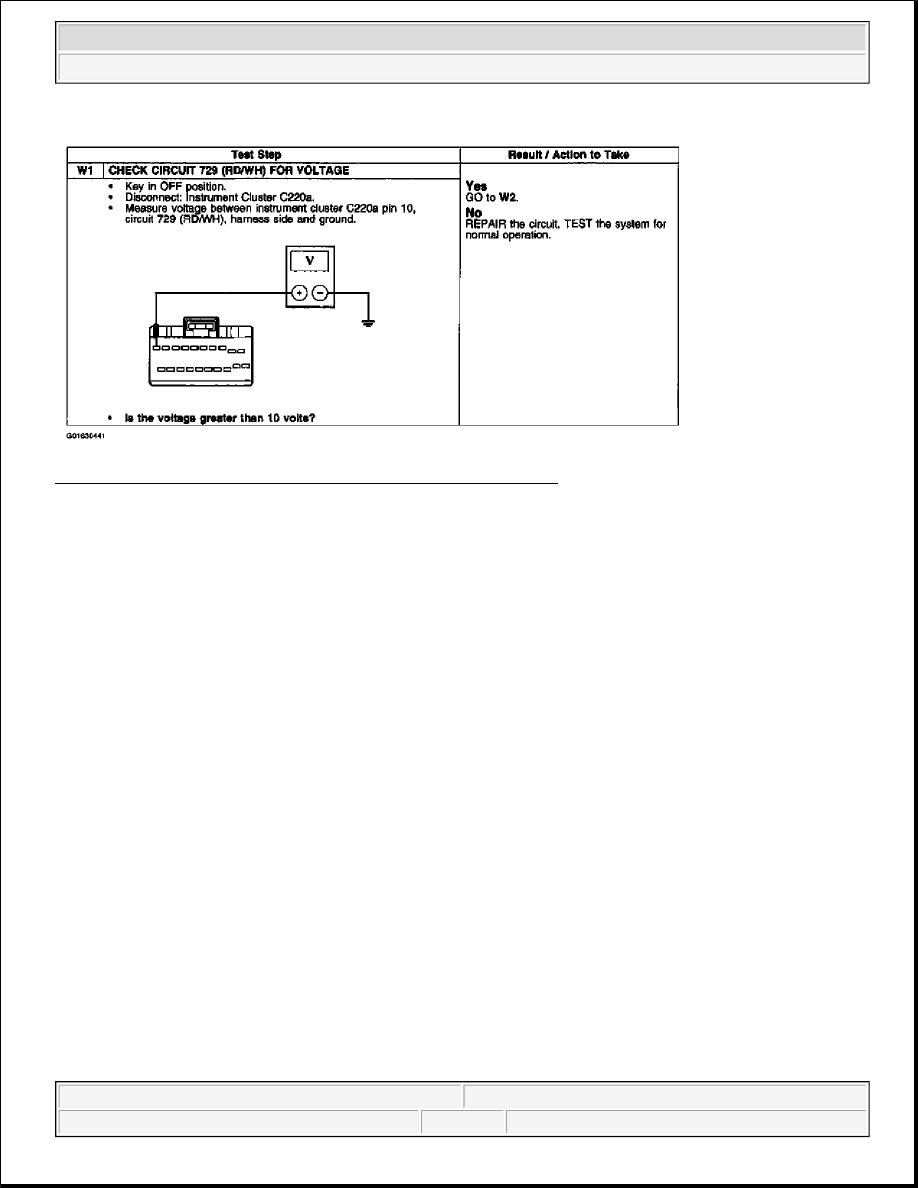

Fig. 63: Pinpoint Test W: Instrument Cluster Is Inoperative (W1)
Courtesy of FORD MOTOR CO.



2003 Ford Pickup F150

2003 ACCESSORIES AND BODY, CAB Instrument Cluster-Conventional - F150 Pickup



Fig. 64: Pinpoint Test W: Instrument Cluster Is Inoperative (W2 - W4)
Courtesy of FORD MOTOR CO.



2003 Ford Pickup F150

2003 ACCESSORIES AND BODY, CAB Instrument Cluster-Conventional - F150 Pickup

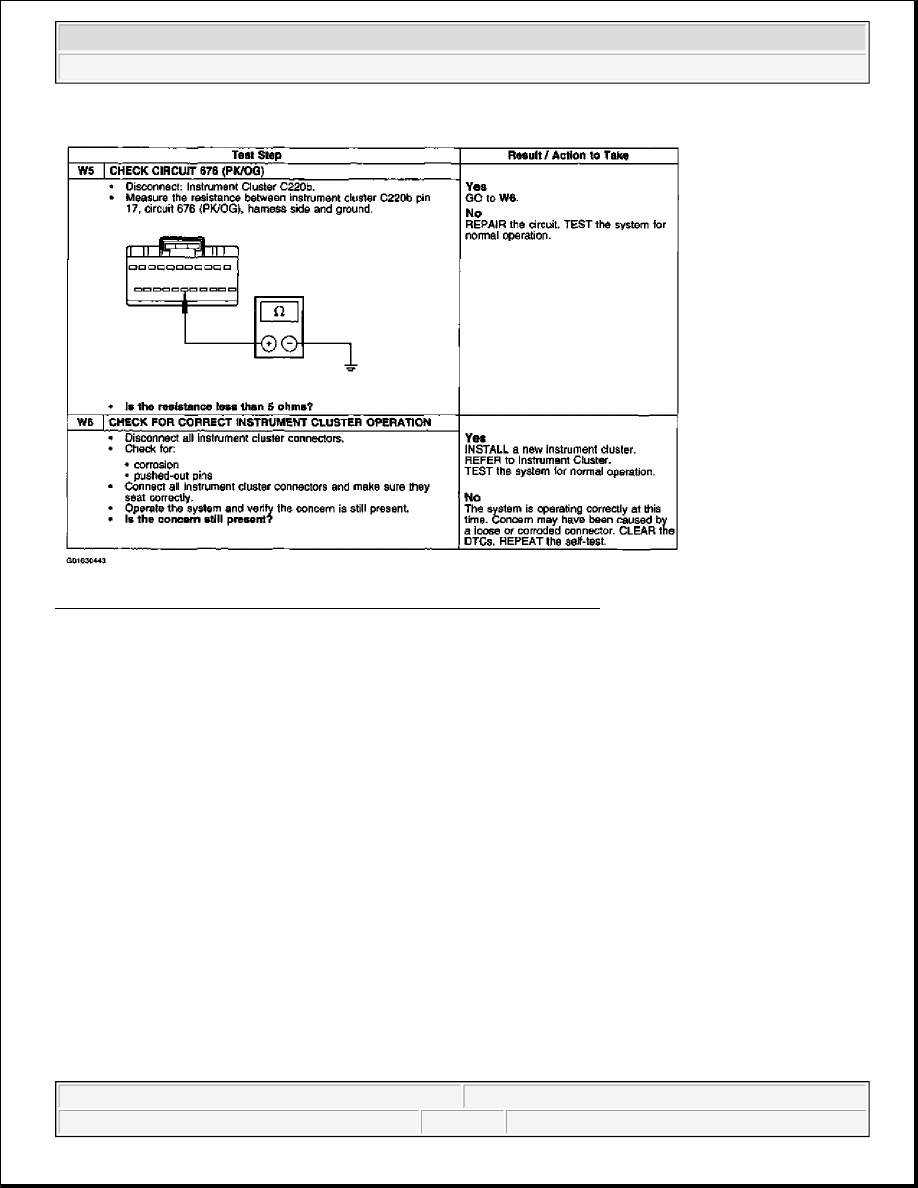

Fig. 65: Pinpoint Test W: Instrument Cluster Is Inoperative (W5 - W6)
Courtesy of FORD MOTOR CO.

PINPOINT TEST X: CHECK GAGE INDICATOR IS INOPERATIVE/ALWAYS ON



2003 Ford Pickup F150

2003 ACCESSORIES AND BODY, CAB Instrument Cluster-Conventional - F150 Pickup
