Fig. 66: Pinpoint Test X: Check Gage Indicator Is Inoperative/Always On (X1 - X3)
Courtesy of FORD MOTOR CO.

REMOVAL AND INSTALLATION

INSTRUMENT CLUSTER

Removal

1. Disconnect the battery.

2. Remove the headlamp switch. Refer to LAMP SWITCH -- HEADLAMP .

3. Carefully release the four clips and remove the steering column opening cover.

CAUTION: Electronic modules are sensitive to electrical charges. If exposed to

these charges, damage may result.



2003 Ford Pickup F150

2003 ACCESSORIES AND BODY, CAB Instrument Cluster-Conventional - F150 Pickup



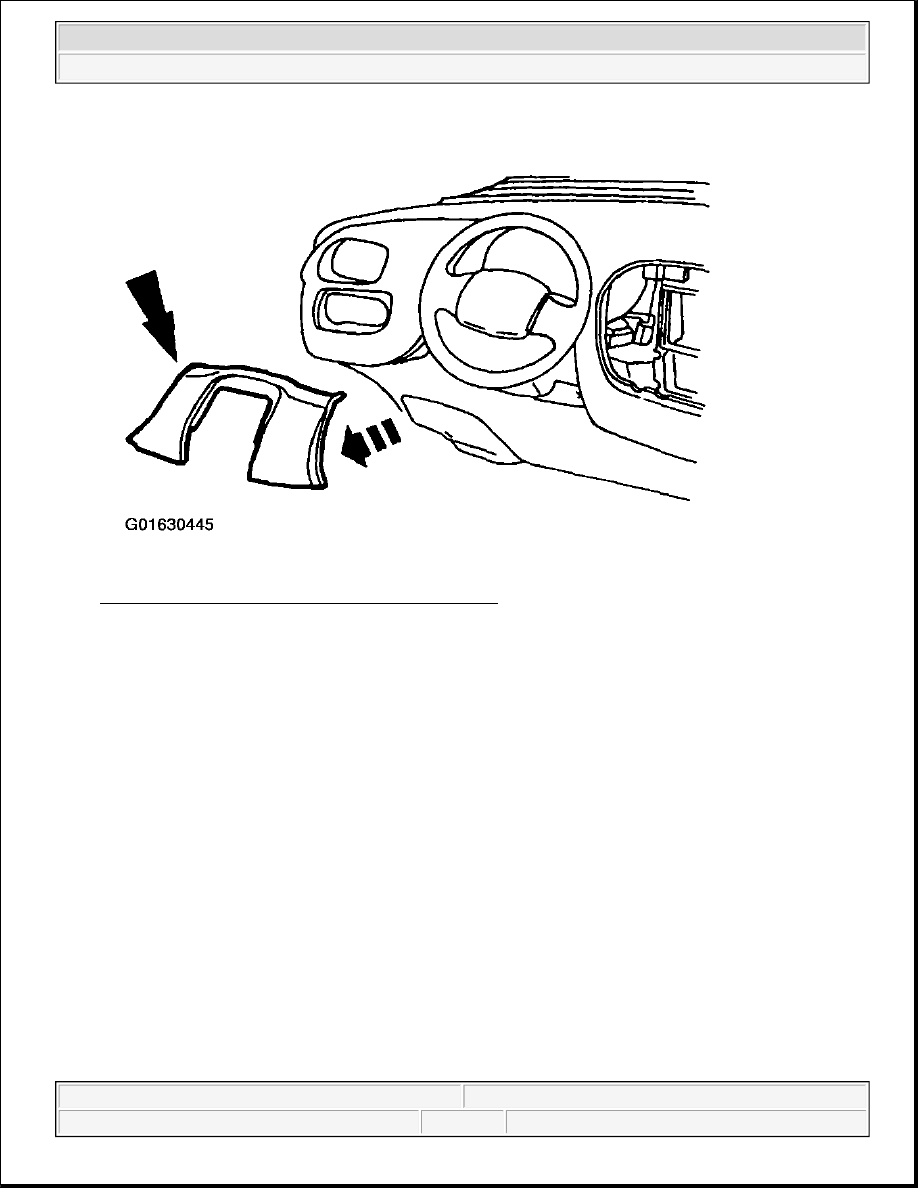

Fig. 67: Removing Steering Column Opening Cover
Courtesy of FORD MOTOR CO.

4. Remove the instrument panel finish panel (044D70).

1. Remove the bolts.

2. Remove the instrument panel finish panel.



2003 Ford Pickup F150

2003 ACCESSORIES AND BODY, CAB Instrument Cluster-Conventional - F150 Pickup



Fig. 68: Removing Instrument Panel Finish Panel
Courtesy of FORD MOTOR CO.

5. Remove the instrument cluster (10849).

1. Remove the bolts.

2. Disconnect the electrical connectors.

3. Remove the instrument cluster.

z

If equipped, remove the transmission range indicator.

z

If equipped, disconnect the boost gauge vacuum line.



2003 Ford Pickup F150

2003 ACCESSORIES AND BODY, CAB Instrument Cluster-Conventional - F150 Pickup



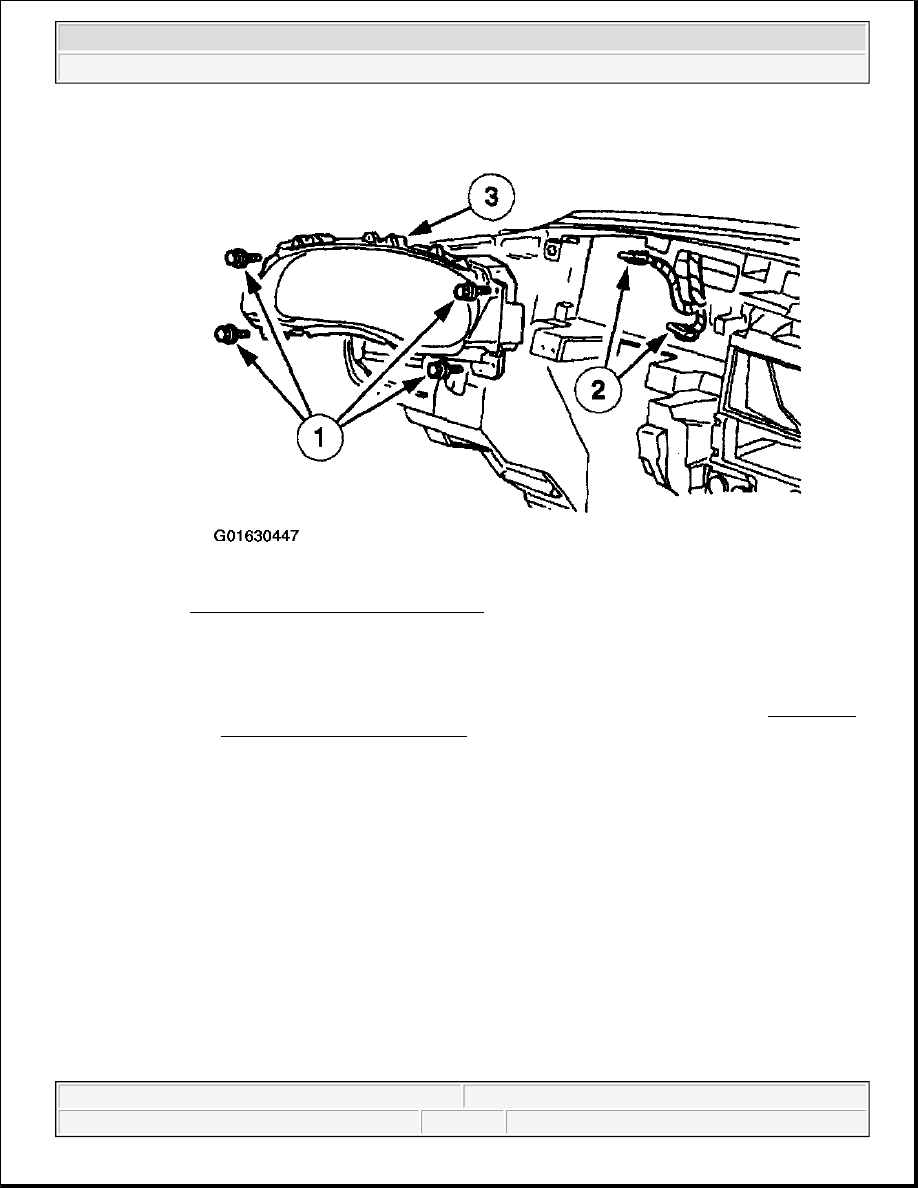

Fig. 69: Removing Instrument Cluster
Courtesy of FORD MOTOR CO.

Installation

NOTE:

Following installation of a new instrument cluster, carry out the Parameter
Reset and Key Programming .
