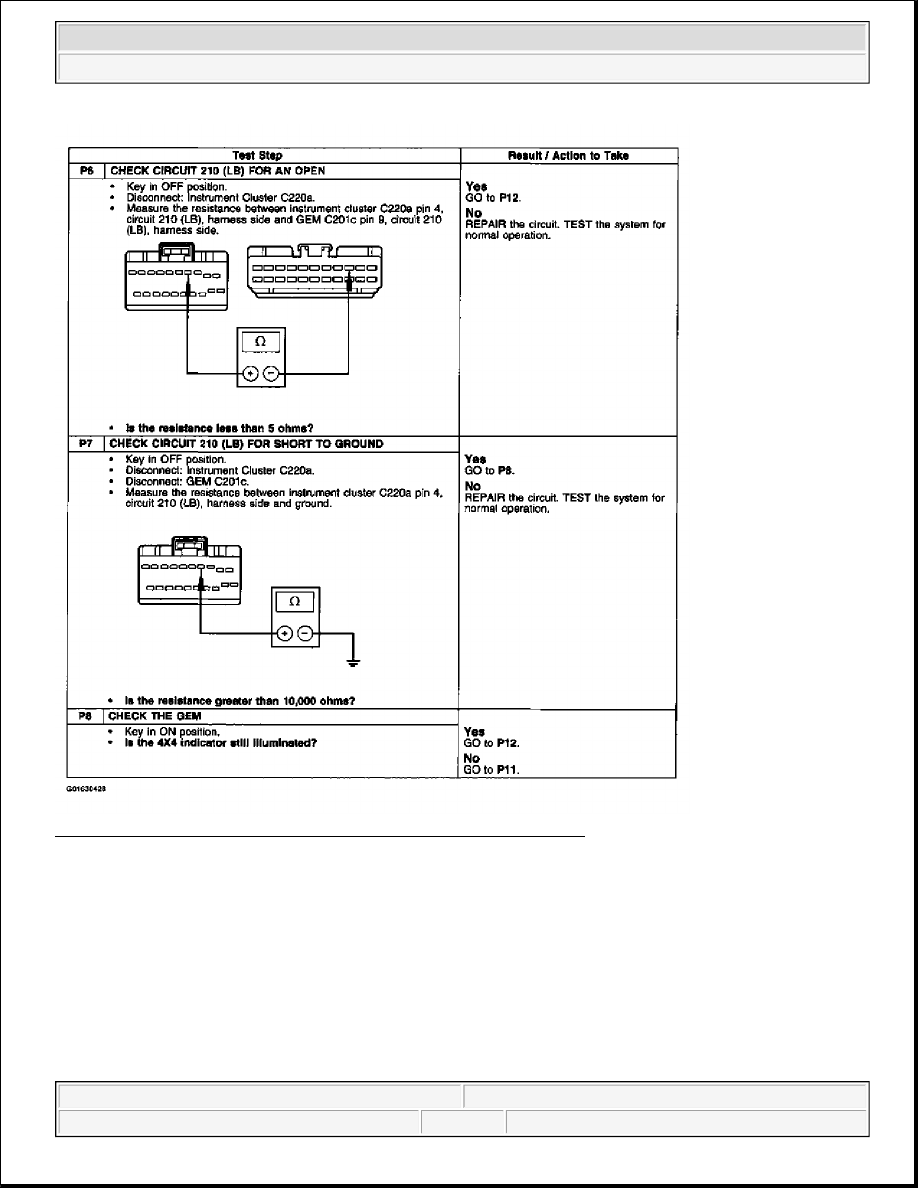

Fig. 50: Pinpoint Test P: 4X4 Indicator Is Never/Always On (P6 - P8)
Courtesy of FORD MOTOR CO.



2003 Ford Pickup F150

2003 ACCESSORIES AND BODY, CAB Instrument Cluster-Conventional - F150 Pickup

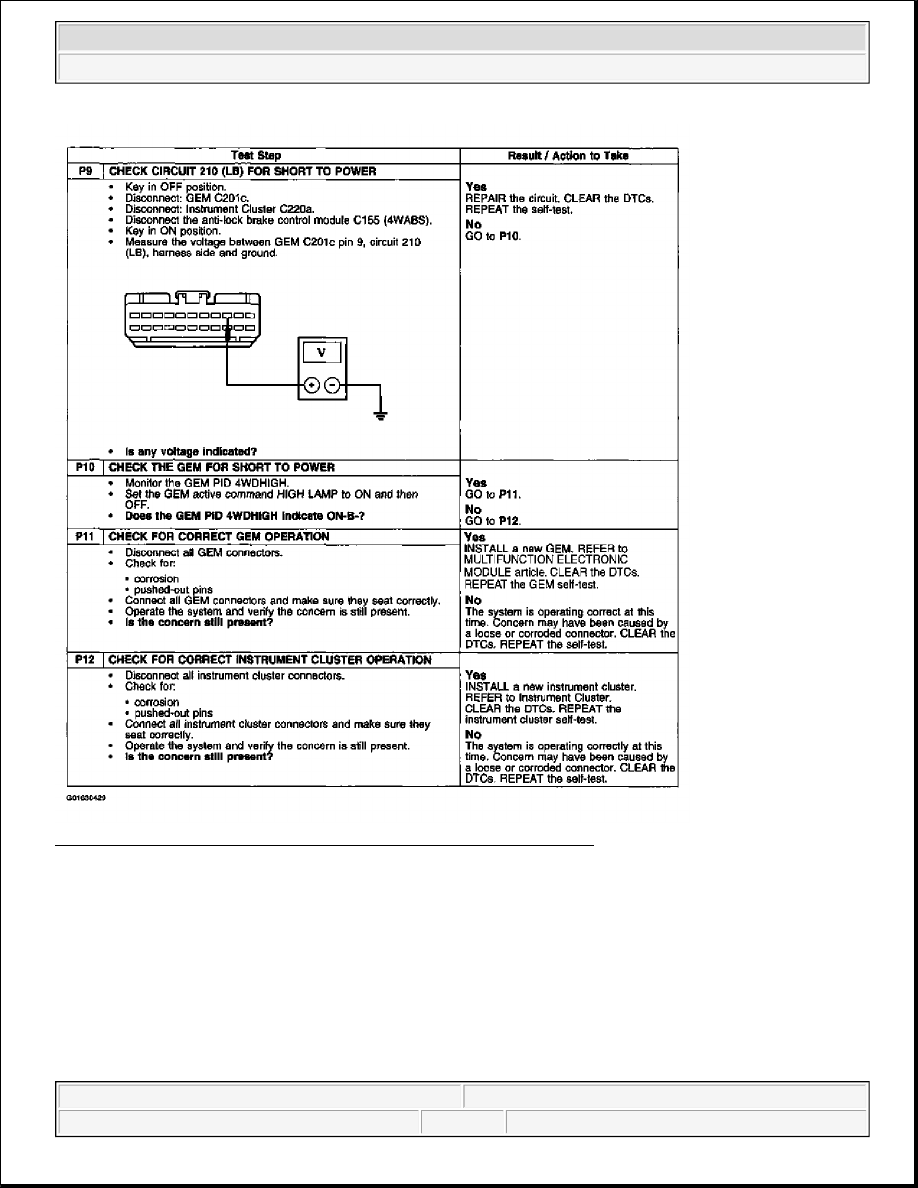

Fig. 51: Pinpoint Test P: 4X4 Indicator Is Never/Always On (P9 - P12)
Courtesy of FORD MOTOR CO.

PINPOINT TEST Q: THE HIGH BEAM INDICATOR IS INOPERATIVE/ALWAYS ON

CAUTION: Use the correct probe adapter(s) when making measurements. Failure to

use the correct probe adapter(s) may damage the connector.



2003 Ford Pickup F150

2003 ACCESSORIES AND BODY, CAB Instrument Cluster-Conventional - F150 Pickup



Fig. 52: Pinpoint Test Q: High Beam Indicator Is Inoperative/Always On (Q1)
Courtesy of FORD MOTOR CO.

Fig. 53: Pinpoint Test Q: High Beam Indicator Is Inoperative/Always On (Q2 -Q3)
Courtesy of FORD MOTOR CO.

PINPOINT TEST R: THE ABS WARNING INDICATOR IS INOPERATIVE/ALWAYS ON

CAUTION: Use the correct probe adapter(s) when making measurements. Failure to

use the correct probe adapter(s) may damage the connector.



2003 Ford Pickup F150

2003 ACCESSORIES AND BODY, CAB Instrument Cluster-Conventional - F150 Pickup

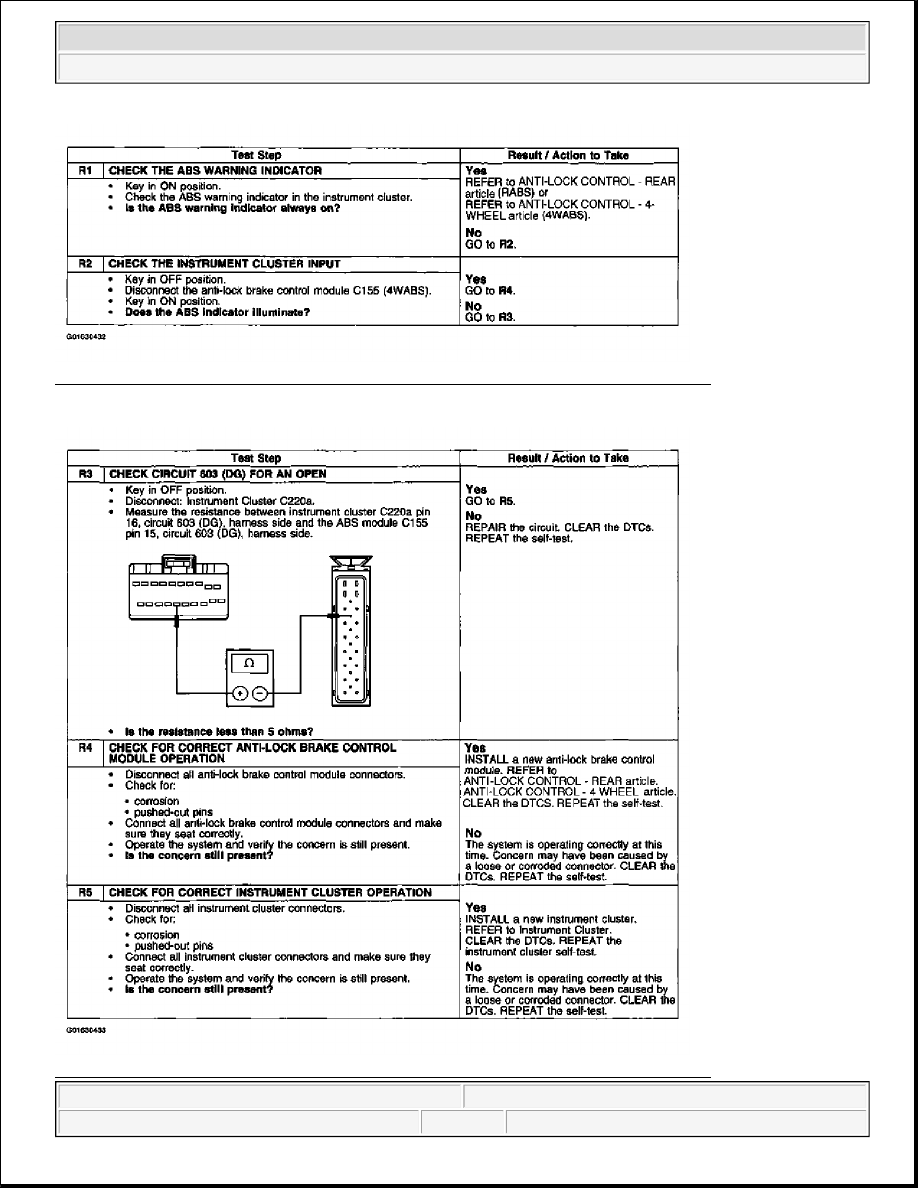

Fig. 54: Pinpoint Test R: ABS Warning Indicator Is Inoperative/Always On (R1 - R2)
Courtesy of FORD MOTOR CO.

Fig. 55: Pinpoint Test R: ABS Warning Indicator Is Inoperative/Always On (R3 - R5)
