2003 ACCESSORIES AND BODY, CAB

Instrument Cluster-Natural Gas - F150

SPECIFICATIONS

GENERAL SPECIFICATIONS

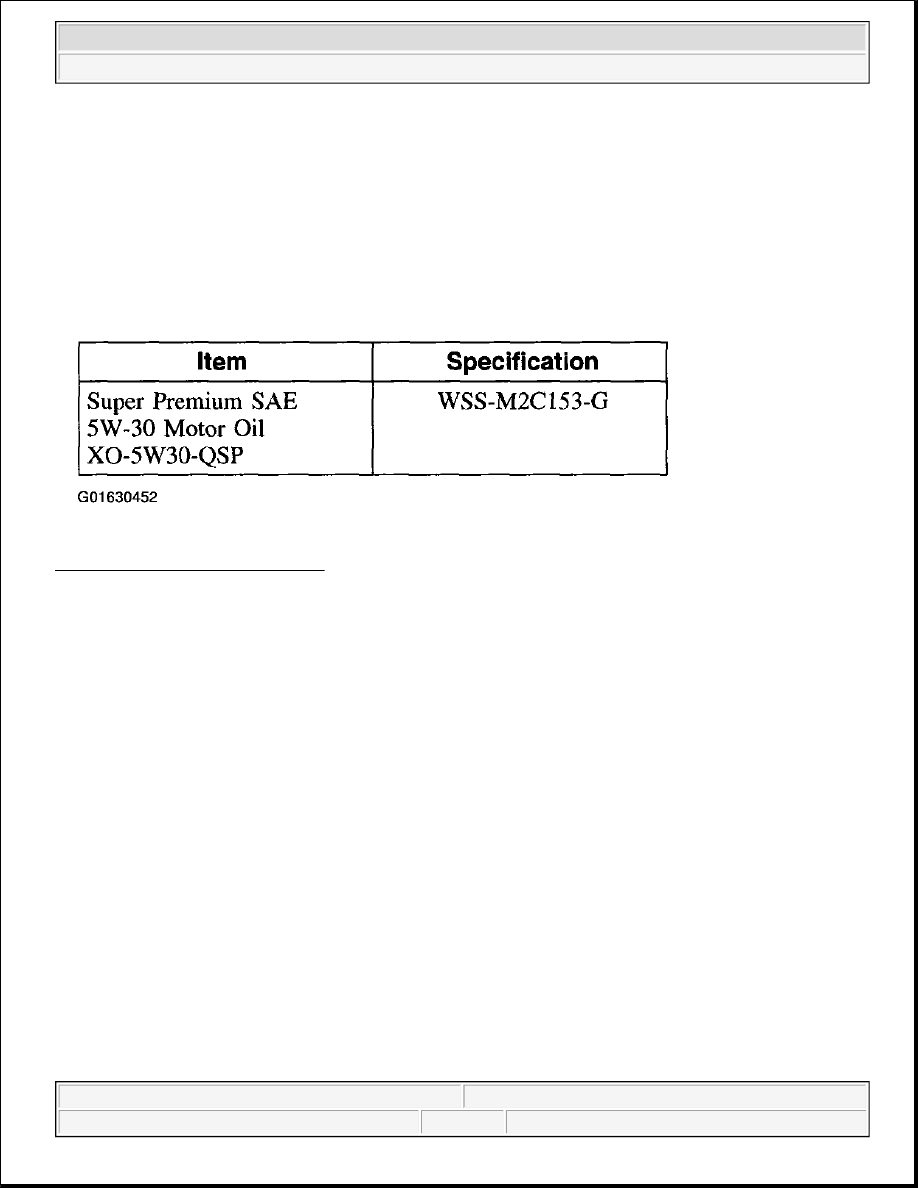

Fig. 1: General Specification Chart
Courtesy of FORD MOTOR CO.

TORQUE SPECIFICATIONS



2003 Ford Pickup F150

2003 ACCESSORIES AND BODY, CAB Instrument Cluster-Natural Gas - F150





2003 Ford Pickup F150

2003 ACCESSORIES AND BODY, CAB Instrument Cluster-Natural Gas - F150

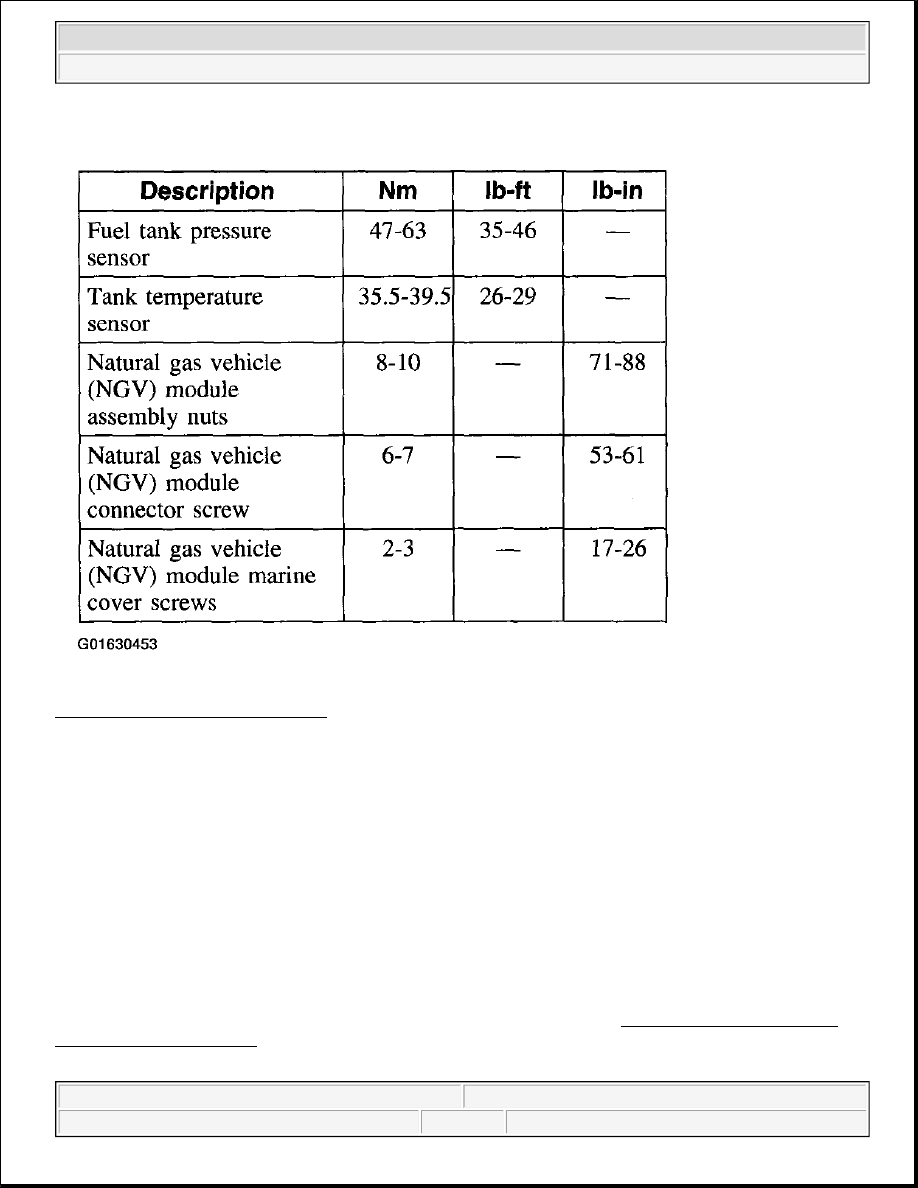

Fig. 2: Torque Specifications Chart
Courtesy of FORD MOTOR CO.

DESCRIPTION AND OPERATION

INSTRUMENT CLUSTER - NATURAL GAS VEHICLE

The natural gas fuel indication system consists of the following components:

z

The natural gas vehicle (NGV) module

z

The fuel gauge located in the instrument cluster (10849)

z

The fuel tank pressure sensor

z

The tank temperature sensor

For additional information regarding base instrument cluster function, refer to INSTRUMENT CLUSTER-
CONVENTIONAL - F150 .



2003 Ford Pickup F150

2003 ACCESSORIES AND BODY, CAB Instrument Cluster-Natural Gas - F150



Instrument Cluster Replacement

When an instrument cluster replacement is necessary, contact the Instrument Cluster Program. Refer to
INSTRUMENT CLUSTER-CONVENTIONAL - F150 .

DIAGNOSIS AND TESTING

INSTRUMENT CLUSTER

Refer to INSTRUMENT CLUSTER for schematic and connector information.

Special Tool(s)

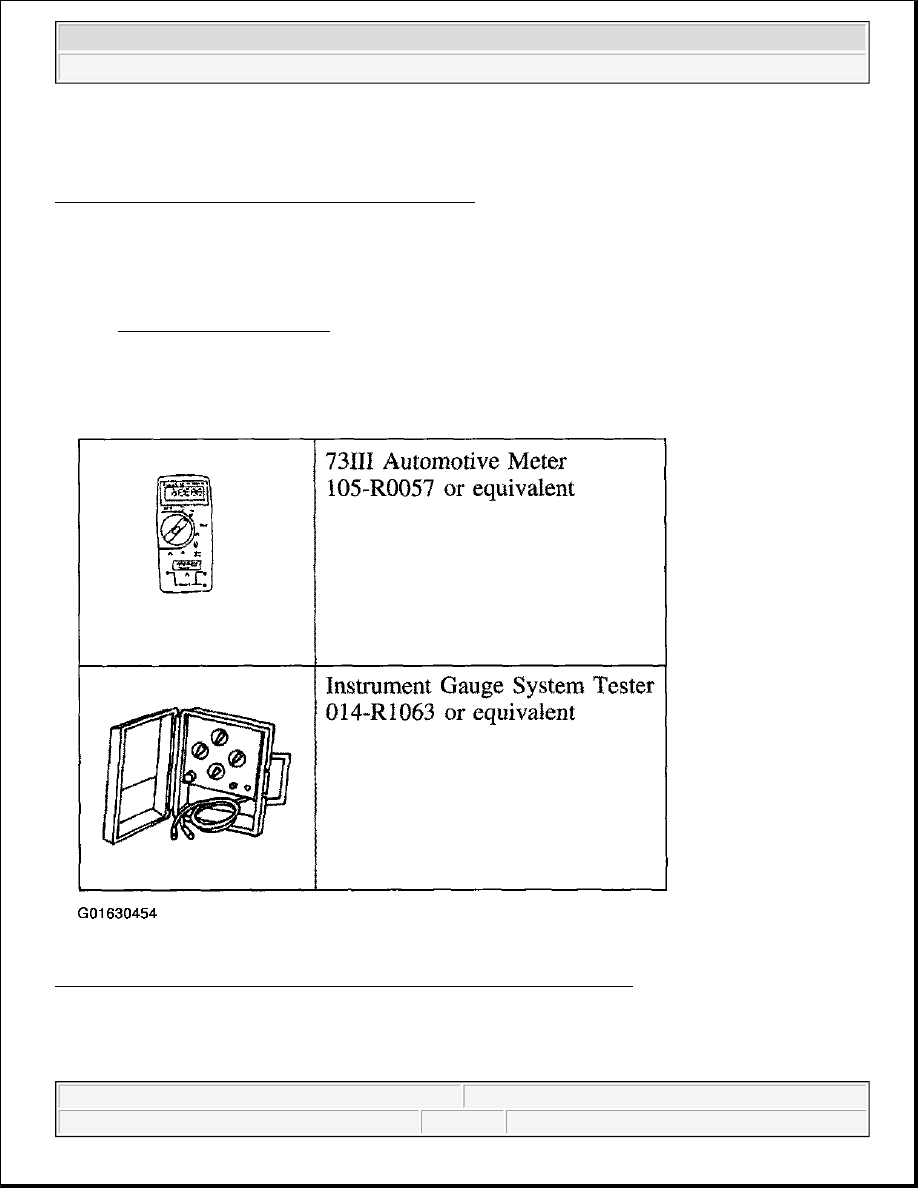

Fig. 3: Identifying Instrument Cluster Replacement Special Tool(s) (1 Of 2)
Courtesy of FORD MOTOR CO.



2003 Ford Pickup F150

2003 ACCESSORIES AND BODY, CAB Instrument Cluster-Natural Gas - F150



Fig. 4: Identifying Instrument Cluster Replacement Special Tool(s) (2 Of 2)
Courtesy of FORD MOTOR CO.

Principles of Operation

Natural Gas Vehicle (NGV) Module

The Natural Gas Vehicle (NGV) module assembly:

WARNING:

Do not modify the system configuration or components or install new
components with parts not specially designed for use with natural gas.
Ford motor company has specially designed the materials, components
and system configuration for the 5.4L natural gas vehicle, and each
particular system is precisely calibrated for efficient operation. The use of
different parts or materials can produce an untested configuration that
could result in fire or personal injury or cause engine damage.

WARNING:

It is important that your natural gas vehicle be correctly maintained by
Ford natural gas trained personnel. If a concern occurs, it is important
that correctly trained personnel diagnose the cause. If the problem relates
to the fuel system, correct new part installation is imperative to keep your
vehicle operating at normal performance. Natural gas components and
gasoline fuel components are not interchangeable. If your vehicle is not
repaired in accordance with natural gas-fueled vehicle procedures,
damage can occur and your warranty may be invalidated.

NOTE:

All standard production components and systems receive routine repairs under
base warranty procedures.
