Specification

Name

WSH-M1C231-B

A/C refrigerant compressor oil:
Motorcraft® PAG Refrigerant Compressor Oil
YN-12-D

ESB-M1C93-B

Multi-purpose grease:
Motorcraft® Multi-Purpose Grease Spray
XL-5

--

Lock cylinders (U.S.):
Penetrating and Lock Lubricant
XL-1

--

Lock cylinders (Canada):
Penetrating Fluid
CXC-51-A

--

Lock cylinders (Mexico):
Penetrating and Lock Lubricant
MXL-1

If you use oil and fluids that do not meet the
defined specification and viscosity grade, this
may lead to:
•

Component damage which is not covered
by the vehicle warranty.

•

Longer engine cranking periods.

•

Increased emission levels.

•

Reduced engine performance.

•

Reduced fuel economy.

•

Degraded brake performance.

We recommend Motorcraft motor oil for your
vehicle. If Motorcraft oil is not available, use
motor oils of the recommended viscosity
grade that meet API SN requirements and
display the API Certification Mark for gasoline
engines. Do not use oil labeled with API SN
service category unless the label also
displays the API certification mark.

311

MKS (CLE) Canada/United States of America, enUSA, First Printing

Capacities and Specifications

E142732

An oil that displays this symbol conforms to
current engine, emission system and fuel
economy performance standards of the
International Lubricants Specification
Advisory Council (ILSAC).

Do not use supplemental engine oil additives
because they are unnecessary and could lead
to engine damage that may not be covered
by your vehicle warranty.

Note: Ford recommends using DOT 4 Low
Viscosity (LV) High Performance Brake Fluid
or equivalent meeting WSS-M6C65-A2. Use
of any fluid other than the recommended fluid
may cause degraded brake performance and
not meet the Ford performance standards.
Keep brake fluid clean and dry. Contamination
with dirt, water, petroleum products or other
materials may result in brake system damage
and possible failure.

Note:  Automatic transmissions that require
MERCON LV transmission fluid should only
use MERCON LV transmission fluid. The use
of any other fluid may cause transmission
damage.

312

MKS (CLE) Canada/United States of America, enUSA, First Printing

Capacities and Specifications

GENERAL INFORMATION

Radio Frequencies and Reception
Factors

AM and FM frequencies are established by
the Federal Communications Commission
(FCC) and the Canadian Radio and
Telecommunications Commission (CRTC).
Those frequencies are:
•

AM: 530, 540-1700, 1710 kHz

•

FM: 87.9-107.7, 107.9 MHz

Radio Reception Factors

The further you travel from an AM or FM station, the weaker the signal and the weaker the reception.

Distance and strength

Hills, mountains, tall buildings, bridges, tunnels, freeway overpasses, parking garages, dense tree foliage and
thunderstorms can interfere with the reception.

Terrain

When you pass a ground-based broadcast repeating tower, a stronger signal may overtake a weaker one and
result in the audio system muting.

Station overload

CD and CD Player Information

Note: CD units play commercially pressed
4.75-inch (12 centimeter) audio compact discs
only. Due to technical incompatibility, certain
recordable and re-recordable compact discs
may not function correctly when used in Ford
CD players.

Note: Do not insert CDs with homemade
paper (adhesive) labels into the CD player as
the label may peel and cause the CD to
become jammed. You should use a permanent
felt tip marker rather than adhesive labels on
your homemade CDs. Ballpoint pens may
damage CDs. Please contact an authorized
dealer for further information.

Note: Do not use any irregularly shaped discs
or discs with a scratch protection film
attached.

Always handle discs by their edges only.
Clean the disc with an approved CD cleaner
only. Wipe it from the center of the disc
toward the edge. Do not clean in a circular
motion.

Do not expose discs to direct sunlight or heat
sources for extended periods.

313

MKS (CLE) Canada/United States of America, enUSA, First Printing

Audio System

MP3 and WMA Track and Folder
Structure

Audio systems capable of recognizing and
playing MP3 and WMA individual tracks and
folder structures work as follows:
•

There are two different modes for MP3
and WMA disc playback: MP3 and WMA
track mode (system default) and MP3
and WMA folder mode.

•

MP3 and WMA track mode ignores any
folder structure on the MP3 and WMA
disc. The player numbers each MP3 and
WMA track on the disc (noted by the MP3
or WMA file extension) from T001 to a
maximum of T255. The maximum
number of playable MP3 and WMA files
may be less depending on the structure
of the CD and exact model of radio
present.

•

MP3 and WMA folder mode represents a
folder structure consisting of one level of
folders. The CD player numbers all MP3
and WMA tracks on the disc (noted by
the MP3 or WMA file extension) and all
folders containing MP3 and WMA files,
from F001 (folder) T001 (track) to F253
T255.

•

Creating discs with only one level of
folders helps with navigation through the
disc files.

If you are burning your own MP3 and WMA
discs, it is important to understand how the
system reads the structures you create. While
various files may be present (files with
extensions other than MP3 and WMA), only
files with the MP3 and WMA extension are
played; other files are ignored by the system.
This enables you to use the same MP3 and
WMA disc for a variety of tasks on your work
computer, home computer and your
in-vehicle system.

In track mode, the system displays and plays
the structure as if it were only one level deep
(all MP3 and WMA files play, regardless of
being in a specific folder). In folder mode, the
system only plays the MP3 and WMA files in
the current folder.

AUDIO UNIT - VEHICLES WITH:
PREMIUM AM/FM/CD

WARNING

Driving while distracted can result in
loss of vehicle control, crash and injury.
We strongly recommend that you use

extreme caution when using any device that
may take your focus off the road. Your
primary responsibility is the safe operation
of your vehicle. We recommend against the
use of any hand-held device while driving and
encourage the use of voice-operated systems
when possible. Make sure you are aware of
all applicable local laws that may affect the
use of electronic devices while driving.

Note: The touchsceen system controls most
of the audio features. See your MyLincoln
Touch information.

314

MKS (CLE) Canada/United States of America, enUSA, First Printing

Audio System

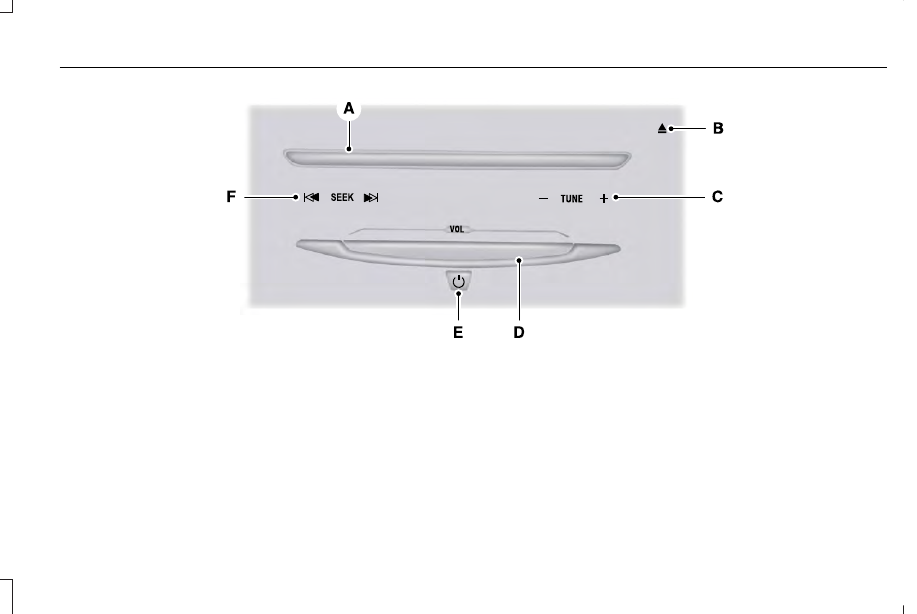

E146318

CD slot: Insert a CD.

A

Eject: Press to eject a CD.

B

TUNE: Press to search manually through the radio frequency band. The system stops at the first station it finds in that direction. In
SIRIUS mode, the system selects the previous or next channel. If you select a specific category (Jazz, Rock, News, etc.), turn the
TUNE control to find the previous or next channel in the selected category.

C

Volume: Press to adjust the volume.

D

315

MKS (CLE) Canada/United States of America, enUSA, First Printing

Audio System

Power: Press to switch the system on and off.

E

Seek/Fast Forward/Reverse: Press to go to the previous or next track or available radio station. Press and hold to either reverse
or fast forward through the current track or to quickly reverse or advance through the radio bands in individual increments.

F

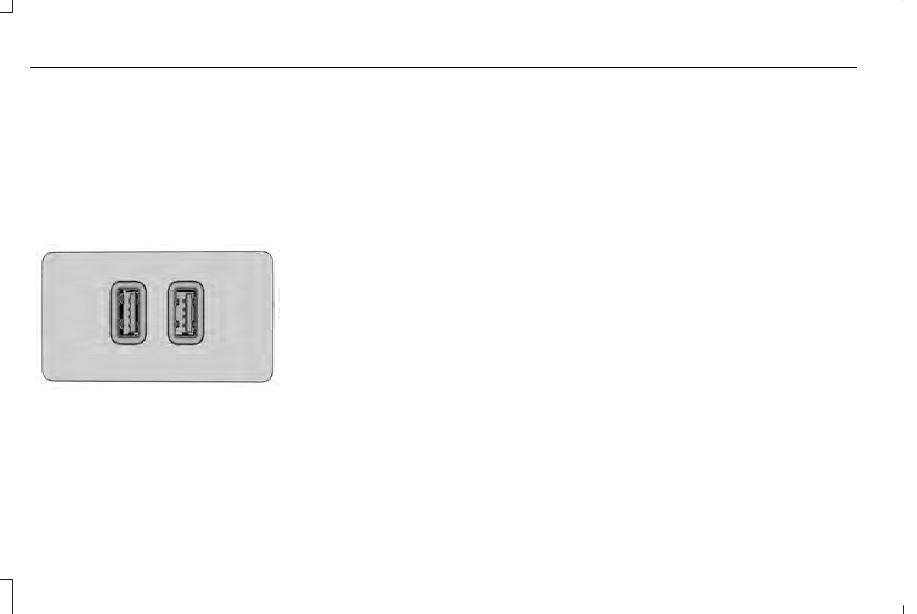

MEDIA HUB

The media hub may be located on the
instrument panel or center console.

E207805

See your SYNC information.

316

MKS (CLE) Canada/United States of America, enUSA, First Printing

Audio System

For a complete listing of the accessories that
are available for your vehicle, please contact
your authorized dealer or visit our online store
at:

Web Address (United States)

www.Accessories.Lincoln.com

Web Address (Canada)

www.LincolnCanada.com

Lincoln Motor Company will repair or replace
any properly authorized dealer-installed
Lincoln Original Accessory found to be
defective in factory-supplied materials or
workmanship during the warranty period, as
well as any component damaged by the
defective accessories.

Lincoln Motor Company will warrant your
vehicle through the warranty that provides
the greatest benefit:
•

24 months, unlimited mileage.

•

The remainder of your new vehicle limited
warranty.

Contact an authorized dealer for details and
a copy of the warranty.

Exterior style

•

Moonroof deflectors.

•

Side-window deflectors.

•

Splash guards.

Interior style

•

All-weather floor mats.

•

Carpeted floor mats.

•

Sport pedals.

Lifestyle

•

Ash cup (smoker's packages).

•

Car cover*.

•

Cargo area protector.

•

Cargo organization and management.

Peace of mind

•

Locking fuel plug.

•

Wheel locks.

•

Remote start.

•

Vehicle security.

*The accessory manufacturer designs,
develops and therefore warrants Lincoln
Licensed Accessories, and does not design
or test these accessories to Lincoln Motor
Company engineering requirements. Contact
an authorized Lincoln dealer for the
manufacturer's limited warranty details and
request a copy of the Lincoln Licensed
Accessories product limited warranty from
the accessory manufacturer.

317

MKS (CLE) Canada/United States of America, enUSA, First Printing

Accessories

For maximum vehicle performance, keep the
following information in mind when adding
accessories or equipment to your vehicle:
•

When adding accessories, equipment,
passengers and luggage to your vehicle,
do not exceed the total weight capacity
of the vehicle or of the front or rear axle
(GVWR or GAWR as indicated on the
Safety Compliance Certification label).
Consult an authorized dealer for specific
weight information.

•

The Federal Communications
Commission (FCC) and Canadian Radio
Telecommunications Commission
(CRTC) regulate the use of mobile
communications systems that are
equipped with radio transmitters, for
example, two-way radios, telephones and
theft alarms. Any such equipment
installed in your vehicle should comply
with the Federal Communications
Commission (FCC) and Canadian Radio
Telecommunications Commission
(CRTC) regulations and should be
installed only by an authorized dealer.

•

Mobile communications systems may
harm the operation of your vehicle,
particularly if their manufacturer did not
design them specifically for automotive
use.

•

If you or an authorized Lincoln dealer add
any non-Lincoln electrical or electronic
accessories or components to your
vehicle, you may adversely affect battery
performance and durability. In addition,
you may also adversely affect the
performance of other electrical systems
in the vehicle.

318

MKS (CLE) Canada/United States of America, enUSA, First Printing

Accessories

PROTECT YOURSELF FROM THE RISING
COST OF VEHICLE REPAIRS WITH A
LINCOLN EXTENDED SERVICE PLAN.

EXTENDED SERVICE PLANS (U.S.
Only)

Lincoln owners have discovered the powerful
protection of Lincoln Extended Service Plan.
It is the only extended service plan backed
by Lincoln Motor Company, and provides
peace of mind protection beyond the New
Vehicle Limited Warranty coverage.

Lincoln ESP Can Quickly Pay for Itself

One service bill – the cost of parts and labor
– can easily exceed the price of your Lincoln
Extended Service Plan. With Lincoln ESP, you
minimize your risk for unexpected repair bills
and rising repair costs.

Up to 1000+ Covered Vehicle
Components

There are four Extended Service Plans with
different levels of coverage. Ask your
authorized dealer for details.

1.

PremiumCARE - Our most
comprehensive coverage. With over 1000
covered components, this plan is so
complete that we generally only discuss
what’s not covered.

2. ExtraCARE - Covers 113 components, and

includes many high-tech items.

3. BaseCARE - Covers 84 components.

4. PowertrainCARE - Covers 29 critical

components.

Lincoln Extended Service Plan is honored by
all authorized Lincoln and Ford dealers in the
United States, Canada and Mexico. It is the
only extended service plan authorized and
backed by Lincoln Motor Company.

That means you get:
•

Reliable, quality service at any Lincoln or
Ford dealership.

•

Repairs performed by factory trained
technicians, using genuine parts.

Rental Car Reimbursement

1st day Rental Benefit

You take advantage of replacement
transportation if your vehicle is at your
authorized dealer for same day covered
repairs.

Extended Rental Benefits

If your vehicle is kept overnight for covered
repairs, you are eligible for rental car
coverage, including bumper to bumper
warranty repairs, and Field Service Actions.

Roadside Assistance

Exclusive 24/7 roadside assistance, including:

•

Towing, flat-tire change and battery jump
starts.

•

Out of fuel and lock-out assistance.

•

Travel expense reimbursement for
lodging, meals and rental car.

•

Destination assistance for taxi, shuttle,
rental car coverage and emergency
transportation.

Transferable Coverage

If you sell your vehicle before your Lincoln
Extended Service Plan coverage expires, you
can transfer any remaining coverage to the
new owner. Whenever you sell your vehicle,
prospective buyers may have a higher degree
of confidence that vehicle was properly
maintained with Lincoln ESP, thereby
improving resale value.

319

MKS (CLE) Canada/United States of America, enUSA, First Printing

Extended Service Plan (ESP)

Avoid the Rising Cost of Properly
Maintaining Your Vehicle!

Lincoln Extended Service Plan also offers a
Premium Maintenance Plan that covers all
scheduled maintenance, and select items
that routinely wear out. The coverage is
prepaid, so you never have to worry about
affording your vehicle maintenance. It covers
regular checkups, routine inspections,
preventive care and replacement of select
items that require periodic attention for
normal wear:

•

Windshield wiper blades.

•

Spark plugs.

•

The clutch disc.

•

Brake pads and linings.

•

Shock absorbers and struts.

•

Engine cooling hoses, clamps and o-rings.

•

Engine belts.

•

Diesel exhaust fluid replenishment.

Interest Free Finance Options Available

Take advantage of our interest free
installment payment plan. Just a 10% down
payment will provide you with an affordable,
no interest, no fee payment program allowing
you all the security and benefits Lincoln ESP
has to offer while paying over time. You are
pre-approved with no credit checks, no
hassles! To learn more, call our Lincoln ESP
specialists at 800-367-3377.

Complete the information below and mail
to:

Ford ESP
P.O. Box 321067
Detroit, MI 48232

EXTENDED SERVICE PLANS
(CANADA ONLY)

You can get more protection for your vehicle
by purchasing a Lincoln Extended Service
Plan. Lincoln Extended Service Plan is the
only service contract backed by Lincoln Motor
Company of Canada, Limited. Depending on
the plan you purchase, Lincoln Extended
Service Plan provides benefits such as:

•

Rental reimbursement.

•

Coverage for certain maintenance and
wear items.

•

Protection against repair costs after your
New Vehicle Limited Warranty Coverage
expires.

•

Roadside Assistance benefits.

There are several Lincoln Extended Service
Plans available in various time, distance and
deductible combinations. Each plan is
tailored to fit your own driving needs,
including reimbursement for towing and
rental. When you purchase Lincoln Extended
Service Plan, you receive added
peace-of-mind protection throughout
Canada, the United States and Mexico,
provided by a network of participating
authorized Lincoln Motor Company dealers.

Note: Repairs performed outside of Canada,
the United States and Mexico are not eligible
for Lincoln Extended Service Plan coverage.

This information is subject to change. For
more information, visit your local Lincoln of
Canada dealer or www.Lincoln.ca to find the
Lincoln Extended Service Plan that is right
for you.

320

MKS (CLE) Canada/United States of America, enUSA, First Printing

Extended Service Plan (ESP)

GENERAL MAINTENANCE
INFORMATION

Why Maintain Your Vehicle?

Carefully following the maintenance
schedule helps protect against major repair
expenses resulting from neglect or
inadequate maintenance and may help to
increase the value of your vehicle when you
sell or trade it. Keep all receipts for
completed maintenance with your vehicle.

We have established regular maintenance
intervals for your vehicle based upon rigorous
testing. It is important that you have your
vehicle serviced at the proper times. These
intervals serve two purposes; one is to
maintain the reliability of your vehicle and
the second is to keep your cost of owning
your vehicle down.

It is your responsibility to have all scheduled
maintenance performed and to make sure
that the materials used meet the
specifications identified in this owner's
manual.  See Capacities and
Specifications (page 296).

Failure to perform scheduled maintenance
invalidates warranty coverage on parts
affected by the lack of maintenance.

Why Maintain Your Vehicle at Your
Dealership?

Factory-Trained Technicians

Service technicians participate in extensive
factory-sponsored certification training to
help them become experts on the operation
of your vehicle. Ask your dealership about the
training and certification their technicians
have received.

Genuine Ford and Motorcraft®
Replacement Parts

Dealerships stock Ford, Motorcraft and
Ford-authorized branded re-manufactured
replacement parts. These parts meet or
exceed our specifications. Parts installed at
your dealership carry a nationwide 24-month
or unlimited mile (kilometer) parts and labor
limited warranty.

If you do not use Ford authorized parts they
may not meet our specifications and
depending on the part, it could affect
emissions compliance.

Convenience

Many dealerships have extended evening and
Saturday hours to make your service visit
more convenient and they offer one stop
shopping. They can perform any services that
are required on your vehicle, from general
maintenance to collision repairs.

Note: Not all dealers have extended hours or
body shops. Please contact your dealer for
details.

Protecting Your Investment

Maintenance is an investment that pays
dividends in the form of improved reliability,
durability and resale value. To maintain the
proper performance of your vehicle and its
emission control systems, make sure you
have scheduled maintenance performed at
the designated intervals.

Your vehicle is equipped with the Intelligent
Oil-Life Monitor system, which displays a
message in the information display at the
proper oil change interval. This interval may
be up to one year or 10000 miles (16000
kilometers).

321

MKS (CLE) Canada/United States of America, enUSA, First Printing

Scheduled Maintenance

When the oil change message appears in the
information display, it is time for an oil
change. Make sure you perform the oil change
within two weeks or 500 miles (800
kilometers) of the message appearing. Make
sure you reset the Intelligent Oil-Life Monitor
after each oil change.  See  (page 89).

If your information display resets prematurely
or becomes inoperative, you should perform
the oil change interval at six months or 5000
miles (8000 kilometers) from your last oil
change. Never exceed one year or 10000
miles (16000 kilometers) between oil change
intervals.

Your vehicle is very sophisticated and built
with multiple, complex, performance
systems. Every manufacturer develops these
systems using different specifications and
performance features. That is why it is
important to rely upon your dealership to
properly diagnose and repair your vehicle.

Ford Motor Company has recommended
maintenance intervals for various parts and
component systems based upon engineering
testing. Ford Motor Company relies upon this
testing to determine the most appropriate
mileage for replacement of oils and fluids to
protect your vehicle at the lowest overall cost
to you and recommends against
maintenance schedules that deviate from
the scheduled maintenance information.

We strongly recommend the use of only
genuine Ford, Motorcraft or Ford-authorized
re-manufactured replacement parts
engineered for your vehicle.

Additives and Chemicals

This owner's manual and the Ford Workshop
Manual list the recommended additives and
chemicals for your vehicle. We do not
recommend using chemicals or additives not
approved by us as part of your vehicle’s
normal maintenance. Please consult your
warranty information.

Oils, Fluids and Flushing

In many cases, fluid discoloration is a normal
operating characteristic and, by itself, does
not necessarily indicate a concern or that the
fluid needs to be changed. However, a
qualified expert, such as the factory-trained
technicians at your dealership, should inspect
discolored fluids that also show signs of
overheating or foreign material
contamination immediately.

Make sure to change your vehicle’s oils and
fluids at the specified intervals or in
conjunction with a repair. Flushing is a viable
way to change fluid for many vehicle
sub-systems during scheduled maintenance.
It is critical that systems are flushed only with
new fluid that is the same as that required to
fill and operate the system or using a
Ford-approved flushing chemical.

Owner Checks and Services

Make sure you perform the following basic
maintenance checks and inspections every
month or at six-month intervals.

322

MKS (CLE) Canada/United States of America, enUSA, First Printing

Scheduled Maintenance

Check every month

Engine oil level.

Function of all interior and exterior lights.

Tires (including spare) for wear and proper pressure.

Windshield washer fluid level.

Check every six months

Battery connections. Clean if necessary.

Body and door drain holes for obstructions. Clean if necessary.

Cooling system fluid level and coolant strength.

Door weatherstrips for wear. Lubricate if necessary.

Hinges, latches and outside locks for proper operation. Lubricate if necessary.

Parking brake for proper operation.

Safety belts and seat latches for wear and function.

Safety warning lamps (brake, ABS, airbag and safety belt) for operation.

Washer spray and wiper operation. Clean or replace blades as necessary.

323

MKS (CLE) Canada/United States of America, enUSA, First Printing

Scheduled Maintenance

Multi-Point Inspection

In order to keep your vehicle running right, it
is important to have the systems on your
vehicle checked regularly. This can help
identify potential issues and prevent major

problems. We recommend having the
following multi-point inspection performed
at every scheduled maintenance interval to
help make sure your vehicle keeps running
great.

Multi-Point inspection

Hazard warning system operation

Accessory drive belt(s)

Horn operation

Battery performance

Radiator, cooler, heater and air conditioning hoses

Engine air filter

Suspension components for leaks or damage

Exhaust system

Steering and linkage

Exterior lamps operation

Tires (including spare) for wear and proper pressure

**

Fluid levels

*

; fill if necessary

Windshield for cracks, chips or pits

For oil and fluid leaks

Washer spray and wiper operation

Half-shaft dust boots

*

 Brake, coolant recovery reservoir, automatic transmission and window washer

**

If your vehicle is equipped with a temporary mobility kit, check the tire sealant expiration Use By date on the canister. Replace as needed.

324

MKS (CLE) Canada/United States of America, enUSA, First Printing

Scheduled Maintenance

Be sure to ask your dealership service advisor
or technician about the multi-point vehicle
inspection. It is a comprehensive way to
perform a thorough inspection of your vehicle.
Your checklist gives you immediate feedback
on the overall condition of your vehicle.

NORMAL SCHEDULED
MAINTENANCE

Intelligent Oil-Life Monitor™

Your vehicle is equipped with an Intelligent
Oil-Life Monitor that determines when you
should change the engine oil based on how
your vehicle is used. By using several
important factors in its calculations, the
monitor helps reduce the cost of owning your
vehicle and reduces environmental waste at
the same time.

This means you do not have to remember to
change the oil on a mileage-based schedule.
Your vehicle lets you know when an oil
change is due by displaying a message in the
information display.

The following table provides examples of
vehicle use and its impact on oil change
intervals. It is a guideline only. Actual oil
change intervals depend on several factors
and generally decrease with severity of use.

When to expect the message prompting you to change your oil

Vehicle use and example

Interval

Normal

7500-10000 miles

(12000-16000 km)

Normal commuting with highway driving
No, or moderate, load or towing
Flat to moderately hilly roads
No extended idling

Severe

5000-7499 miles

(8000-11999 km)

Moderate to heavy load or towing
Mountainous or off-road conditions
Extended idling

325

MKS (CLE) Canada/United States of America, enUSA, First Printing

Scheduled Maintenance

When to expect the message prompting you to change your oil

Vehicle use and example

Interval

Extended hot or cold operation

Extreme

3000-4999 miles

(4800-7999 km)

Maximum load or towing
Extreme hot or cold operation

Maintenance Intervals

At every oil change interval as indicated by the information display

*

Change engine oil and filter.

**

Rotate the tires.

Perform a multi-point inspection (recommended).

Inspect the automatic transmission fluid level. Consult your dealer for requirements.

Inspect the brake pads, rotors, hoses and parking brake.

Inspect the engine cooling system strength and hoses.

Inspect the exhaust system and heat shields.

Inspect the rear axle and U-joints.

Inspect the half-shaft boots.

326

MKS (CLE) Canada/United States of America, enUSA, First Printing

Scheduled Maintenance
