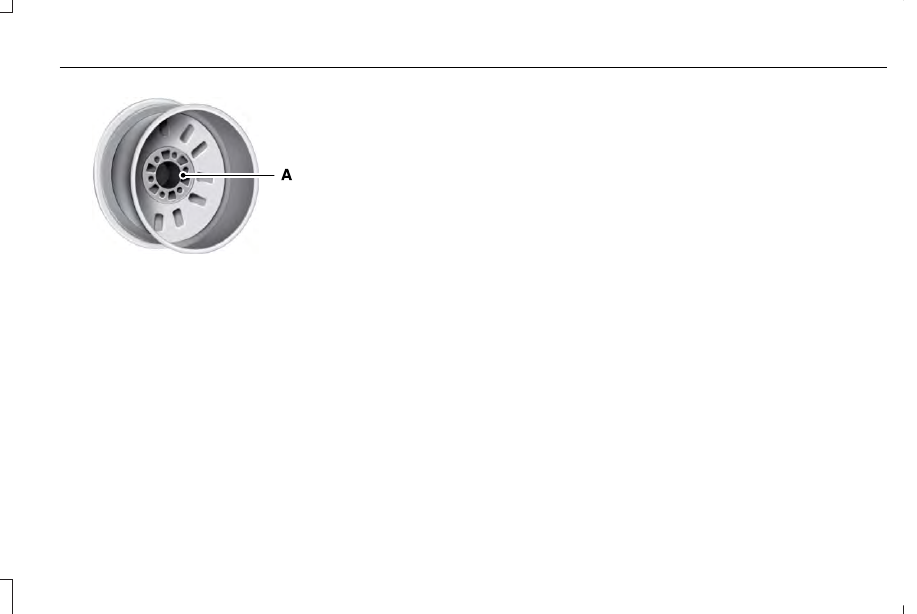

Wheel pilot bore

A

Inspect the wheel pilot bore and mounting
surface prior to installation. Remove any
visible corrosion or loose particles.

295

MKS (CLE) Canada/United States of America, enUSA, First Printing

Wheels and Tires

ENGINE SPECIFICATIONS - 3.5L ECOBOOST™

3.5L Ecoboost

Engine

214

Cubic inches

1-4-2-5-3-6

Firing order

Coil on plug

Ignition system

0.030 in (0.75 mm) - 0.033 in (0.85 mm)

Spark plug gap

10.0:1

Compression ratio

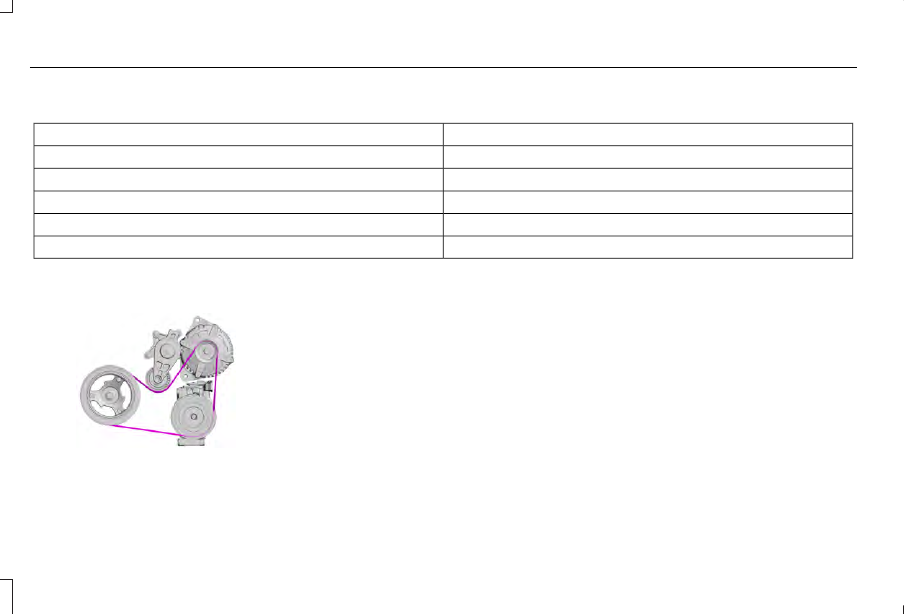

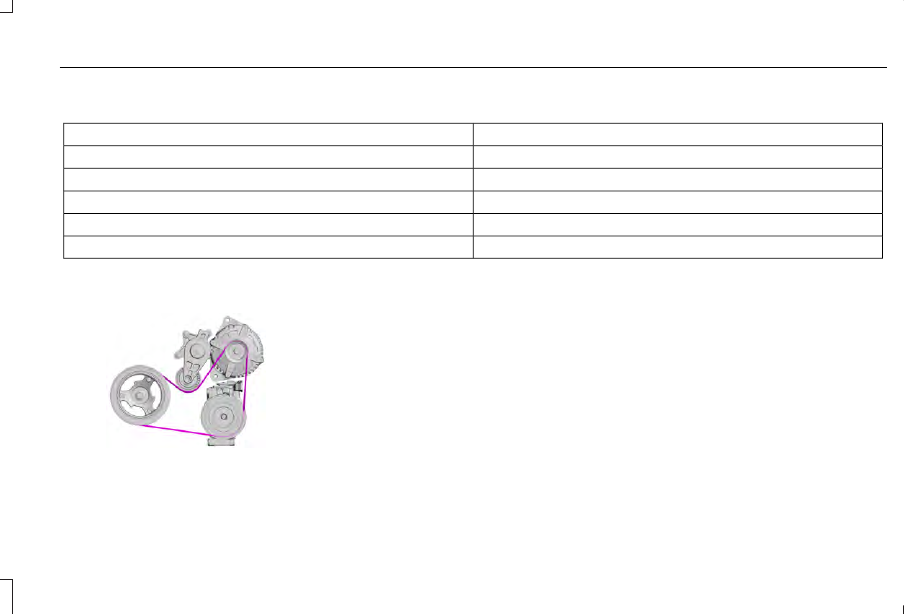

Drivebelt Routing

E191904

296

MKS (CLE) Canada/United States of America, enUSA, First Printing

Capacities and Specifications

ENGINE SPECIFICATIONS - 3.7L

3.7L

Engine

226

Cubic inches

1-4-2-5-3-6

Firing order

Coil on plug

Ignition system

0.049 in (1.25 mm) - 0.053 in (1.35 mm)

Spark plug gap

10.5:1

Compression ratio

Drivebelt Routing

E191904

297

MKS (CLE) Canada/United States of America, enUSA, First Printing

Capacities and Specifications

MOTORCRAFT PARTS - 3.5L ECOBOOST™

Part Number

Component

FA-1884

Air filter.

BXT-65-650

Battery.

FP-68

Cabin air filter.

FL-500-S

Oil filter.

SP-534

Spark plugs.

WW-2501 (driver side)

Windshield wipers.

WW-2043 (passenger side)

We recommend Motorcraft replacement
parts available at your Ford dealer or at
fordparts.com for scheduled maintenance.
These parts meet or exceed Ford Motor
Company’s specifications and are engineered
for your vehicle. The use of other parts may
impact vehicle performance, emissions and
durability. Your warranty may be void for any
damage related to the use of other parts.

If a Motorcraft oil filter is not available, use
an oil filter that meets industry performance
specification SAE/USCAR-36.

For spark plug replacement, contact an
authorized dealer. Replace the spark plugs
at the appropriate intervals.  See Scheduled
Maintenance (page 321).

298

MKS (CLE) Canada/United States of America, enUSA, First Printing

Capacities and Specifications

MOTORCRAFT PARTS - 3.7L

Part Number

Component

FA-1884

Air filter.

BXT-65-650

Battery.

FP-68

Cabin air filter.

FL-500-S

Oil filter.

SP-520

Spark plugs.

WW-2501 (driver side)

Windshield wipers.

WW-2043 (passenger side)

We recommend Motorcraft replacement
parts available at your Ford dealer or at
fordparts.com for scheduled maintenance.
These parts meet or exceed Ford Motor
Company’s specifications and are engineered
for your vehicle. The use of other parts may
impact vehicle performance, emissions and
durability. Your warranty may be void for any
damage related to the use of other parts.

If a Motorcraft oil filter is not available, use
an oil filter that meets industry performance
specification SAE/USCAR-36.

For spark plug replacement, contact an
authorized dealer. Replace the spark plugs
at the appropriate intervals.  See Scheduled
Maintenance (page 321).

VEHICLE IDENTIFICATION
NUMBER

The vehicle identification number is located
on the left-hand side of the instrument panel.

299

MKS (CLE) Canada/United States of America, enUSA, First Printing

Capacities and Specifications

E142476

Please note that in the graphic, XXXX is
representative of your vehicle identification
number.

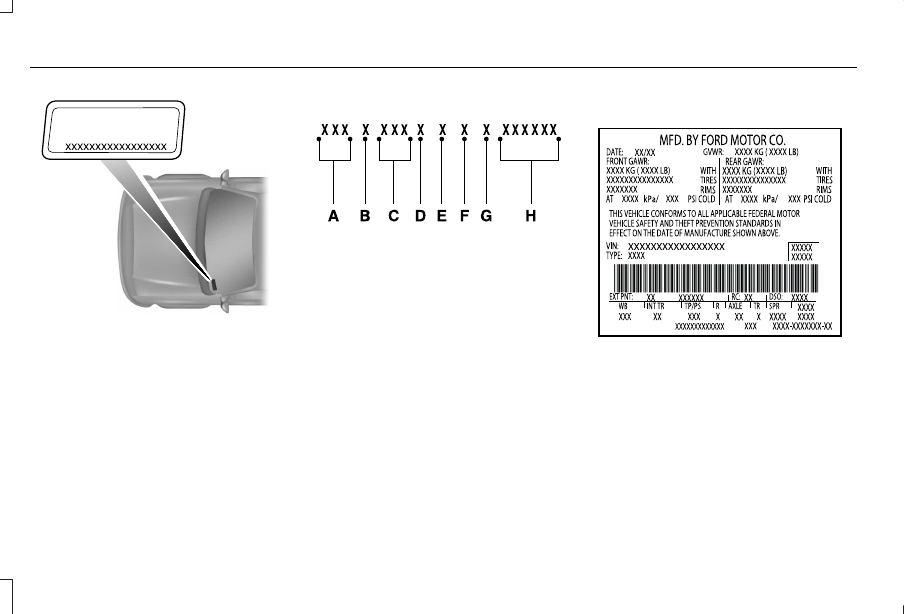

The Vehicle Identification Number contains
the following information:

E142477

World manufacturer identifier

A

Brake system, Gross Vehicle
Weight Rating, Restraint Devices
and their locations

B

Make, vehicle line, series, body type

C

Engine type

D

Check digit

E

Model year

F

Assembly plant

G

Production sequence number

H

VEHICLE CERTIFICATION LABEL

E167469

The National Highway Traffic Safety
Administration Regulations require that a
Safety Compliance Certification Label be
affixed to a vehicle and prescribe where the
Safety Compliance Certification Label may
be located. The Safety Compliance
Certification Label shall be affixed to either
the door hinge pillar, the door latch post, or
the edge of the door near the door latch, next
to the driver's seating position.

300

MKS (CLE) Canada/United States of America, enUSA, First Printing

Capacities and Specifications

TRANSMISSION CODE
DESIGNATION

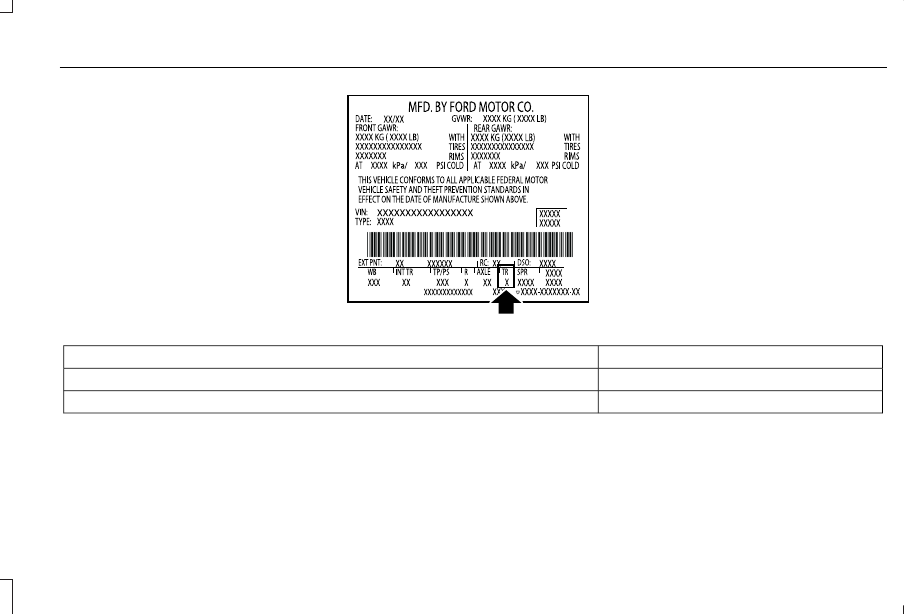

E167814

The transmission code is on the Safety
Compliance Certification Label. The following
table shows the transmission code along with
the transmission description.

Code

Description

J

Six-speed automatic transmission (6F50)

C

Six-speed automatic transmission (6F55)

301

MKS (CLE) Canada/United States of America, enUSA, First Printing

Capacities and Specifications

CAPACITIES AND SPECIFICATIONS - 3.5L ECOBOOST™

Capacities

WARNING

The air conditioning refrigerant system contains refrigerant R-134a under high pressure. Opening the air conditioning refrigerant system
can cause personal injury. Have the air conditioning refrigerant system serviced only by qualified personnel.

Capacity

Item

6.0 qt (5.7 L)

Engine oil

11.4 qt (10.8 L)

Engine coolant

Between MIN/MAX on brake fluid reservoir

Brake fluid

2.4 pt (1.15 L)

Rear axle fluid

11.6 qt (11 L)*

Automatic transmission fluid

18 fl oz (0.53 L)

Power Transfer Unit (PTU) fluid

Fill as required

Windshield washer fluid

19.0 gal (71.9 L)

Fuel tank

1.63 lb (0.74 kg)

Air conditioning refrigerant

5.24 fl oz (155 ml)

Air conditioning refrigerant compressor oil

*Approximate dry fill capacity. Actual amount may vary during fluid changes.

302

MKS (CLE) Canada/United States of America, enUSA, First Printing

Capacities and Specifications

Specifications

Materials

Specification

Name

WSS-M2C946-A

Recommended motor oil (U.S.):
Motorcraft SAE 5W-30 Premium Synthetic Blend Motor Oil
XO-5W30-QSP

WSS-M2C946-A

Recommended Motor oil (Canada):
Motorcraft SAE 5W-30 Super Premium Motor Oil
CXO-5W30-LSP12

WSS-M2C946-A

Recommended motor oil (Mexico):
Motorcraft SAE 5W-30 Synthetic Motor Oil
MXO-5W30-QSP

WSS-M2C946-A

Optional motor oil (U.S. and Mexico):
Motorcraft SAE 5W-30 Full Synthetic Motor Oil
XO-5W30-QFS

WSS-M2C946-A

Optional Motor oil (Canada):
Motorcraft SAE 5W-30 Synthetic Motor Oil
CXO-5W30-LFS12

WSS-M97B44-D2

Engine coolant (U.S. and Mexico):
Motorcraft Orange Antifreeze/Coolant Prediluted
VC-3DIL-B

WSS-M97B44-D2

Engine coolant (Canada):
Motorcraft Orange Antifreeze/Coolant Prediluted
CVC-3DIL-B

303

MKS (CLE) Canada/United States of America, enUSA, First Printing

Capacities and Specifications

Specification

Name

WSS-M6C65-A2

Brake fluid:
Motorcraft DOT 4 Low Viscosity (LV) High Performance Motor Vehicle Brake Fluid
PM-20

WSP-M2C197-A

Rear axle fluid (U.S. and Mexico):
Motorcraft SAE 80W-90 Premium Rear Axle Lubricant
XY-80W90-QL

WSP-M2C197-A

Rear axle fluid (Canada):
Motorcraft SAE 80W-90 Premium Rear Axle Lubricant
CXY-80W90-1L

WSS-M2C938-A

Automatic transmission fluid (U.S. and Mexico):

MERCON LV

Motorcraft MERCON LV Automatic Transmission Fluid
XT-10-QLVC

WSS-M2C938-A

Automatic transmission fluid (Canada):

MERCON LV

Motorcraft MERCON LV Automatic Transmission Fluid
CXT-10-LV12

WSL-M2C192-A

Power Transfer Unit (PTU) fluid (U.S. and Mexico):
Motorcraft SAE 75W-140 Synthetic Rear Axle Lubricant
XY-75W140-QL

WSL-M2C192-A

Power Transfer Unit (PTU) fluid (Canada):
Motorcraft SAE 75W-140 Synthetic Rear Axle Lubricant
CXY-75W140-1L

WSS-M14P19-A

Windshield washer fluid (U.S. and Mexico):
Motorcraft Premium Windshield Wash Concentrate with Bitterant
ZC-32-B2

304

MKS (CLE) Canada/United States of America, enUSA, First Printing

Capacities and Specifications

Specification

Name

WSS-M14P19-A

Windshield washer fluid (Canada):
Motorcraft Premium Quality Windshield Washer Fluid
CXC-37-(A, B, D, F)

WSH-M17B19-A

A/C refrigerant (U.S.):
Motorcraft R-134a Refrigerant
YN-19

WSH-M17B19-A

A/C refrigerant (Canada):
Motorcraft R-134a Refrigerant
CYN-16-R

WSH-M17B19-A

A/C refrigerant (Mexico):
Motorcraft R-134a Refrigerant
MYN-19

WSH-M1C231-B

A/C refrigerant compressor oil:
Motorcraft PAG Refrigerant Compressor Oil
YN-12-D

ESB-M1C93-B

Multi-purpose grease:
Motorcraft Multi-Purpose Grease Spray
XL-5

305

MKS (CLE) Canada/United States of America, enUSA, First Printing

Capacities and Specifications

Specification

Name

--

Lock cylinders (U.S.):
Penetrating and Lock Lubricant
XL-1

--

Lock cylinders (Canada):
Penetrating Fluid
CXC-51-A

--

Lock cylinders (Mexico):
Penetrating and Lock Lubricant
MXL-1

If you use oil and fluids that do not meet the
defined specification and viscosity grade, this
may lead to:
•

Component damage which is not covered
by the vehicle warranty.

•

Longer engine cranking periods.

•

Increased emission levels.

•

Reduced engine performance.

•

Reduced fuel economy.

•

Degraded brake performance.

We recommend Motorcraft motor oil for your
vehicle. If Motorcraft oil is not available, use
motor oils of the recommended viscosity
grade that meet API SN requirements and
display the API Certification Mark for gasoline
engines. Do not use oil labeled with API SN
service category unless the label also
displays the API certification mark.

E142732

An oil that displays this symbol conforms to
current engine, emission system and fuel
economy performance standards of the
International Lubricants Specification
Advisory Council (ILSAC).

306

MKS (CLE) Canada/United States of America, enUSA, First Printing

Capacities and Specifications

Do not use supplemental engine oil additives
because they are unnecessary and could lead
to engine damage that may not be covered
by your vehicle warranty.

Note: Ford recommends using DOT 4 Low
Viscosity (LV) High Performance Brake Fluid
or equivalent meeting WSS-M6C65-A2. Use
of any fluid other than the recommended fluid
may cause degraded brake performance and
not meet the Ford performance standards.
Keep brake fluid clean and dry. Contamination
with dirt, water, petroleum products or other
materials may result in brake system damage
and possible failure.

Note:  Automatic transmissions that require
MERCON LV transmission fluid should only
use MERCON LV transmission fluid. The use
of any other fluid may cause transmission
damage.

CAPACITIES AND SPECIFICATIONS - 3.7L

Capacities

WARNING

The air conditioning refrigerant system contains refrigerant R-134a under high pressure. Opening the air conditioning refrigerant system
can cause personal injury. Have the air conditioning refrigerant system serviced only by qualified personnel.

Capacity

Item

6.0 qt (5.7 L)

Engine oil

11.1 qt (10.5 L)

Engine coolant

Between MIN/MAX on brake fluid reservoir

Brake fluid

2.4 pt (1.15 L)

Rear axle fluid (All Wheel Drive)

10.9 qt (10.3 L)*

Automatic transmission fluid

307

MKS (CLE) Canada/United States of America, enUSA, First Printing

Capacities and Specifications

Capacity

Item

18 fl oz (0.53 L)

Power Transfer Unit (PTU) fluid (All Wheel Drive)

Fill as required

Windshield washer fluid

19.0 gal (71.9 L)

Fuel tank

1.43 lb (0.65 kg)

Air conditioning refrigerant

5.24 fl oz (155 ml)

Air conditioning refrigerant compressor oil

*Approximate dry fill capacity. Actual amount may vary during fluid changes.

Specifications

Materials

Specification

Name

WSS-M2C945-A

Recommended motor oil (U.S.):
Motorcraft® SAE 5W-20 Premium Synthetic Blend Motor Oil
XO-5W20-QSP

WSS-M2C945-A

Recommended Motor oil (Canada):
Motorcraft® SAE 5W-20 Super Premium Motor Oil
CXO-5W20-LSP12

WSS-M2C945-A

Recommended motor oil (Mexico):
Motorcraft® SAE 5W-20 Synthetic Motor Oil
MXO-5W20-QSP

WSS-M2C945-A

Optional motor oil (U.S. and Mexico):

308

MKS (CLE) Canada/United States of America, enUSA, First Printing

Capacities and Specifications

Specification

Name

Motorcraft® SAE 5W-20 Full Synthetic Motor Oil
XO-5W20-QFS

WSS-M2C945-A

Optional Motor oil (Canada):
Motorcraft® SAE 5W-20 Synthetic Motor Oil
CXO-5W20-LFS12

WSS-M97B44-D2

Engine coolant (U.S. and Mexico):
Motorcraft® Orange Antifreeze/Coolant Prediluted
VC-3DIL-B

WSS-M97B44-D2

Engine coolant (Canada):
Motorcraft® Orange Antifreeze/Coolant Prediluted
CVC-3DIL-B

WSS-M6C65-A2

Brake fluid:
Motorcraft® DOT 4 Low Viscosity (LV) High Performance Motor Vehicle Brake Fluid
PM-20

WSP-M2C197-A

Rear axle fluid (U.S. and Mexico):
Motorcraft® SAE 80W-90 Premium Rear Axle Lubricant
XY-80W90-QL

WSP-M2C197-A

Rear axle fluid (Canada):
Motorcraft® SAE 80W-90 Premium Rear Axle Lubricant
CXY-80W90-1L

WSS-M2C938-A

Automatic transmission fluid (U.S. and Mexico):

MERCON LV

Motorcraft® MERCON LV Automatic Transmission Fluid
XT-10-QLVC

309

MKS (CLE) Canada/United States of America, enUSA, First Printing

Capacities and Specifications

Specification

Name

WSS-M2C938-A

Automatic transmission fluid (Canada):

MERCON LV

Motorcraft® MERCON LV Automatic Transmission Fluid
CXT-10-LV12

WSL-M2C192-A

Power Transfer Unit (PTU) fluid (U.S. and Mexico):
Motorcraft® SAE 75W-140 Synthetic Rear Axle Lubricant
XY-75W140-QL

WSL-M2C192-A

Power Transfer Unit (PTU) fluid (Canada):
Motorcraft® SAE 75W-140 Synthetic Rear Axle Lubricant
CXY-75W140-1L

WSS-M14P19-A

Windshield washer fluid (U.S. and Mexico):
Motorcraft® Premium Windshield Wash Concentrate with Bitterant
ZC-32-B2

WSS-M14P19-A

Windshield washer fluid (Canada):
Motorcraft® Premium Quality Windshield Washer Fluid
CXC-37-(A, B, D, F)

WSH-M17B19-A

A/C refrigerant (U.S.):
Motorcraft® R-134a Refrigerant
YN-19

WSH-M17B19-A

A/C refrigerant (Canada):
Motorcraft® R-134a Refrigerant
CYN-16-R

WSH-M17B19-A

A/C refrigerant (Mexico):
Motorcraft® R-134a Refrigerant
MYN-19

310

MKS (CLE) Canada/United States of America, enUSA, First Printing

Capacities and Specifications
