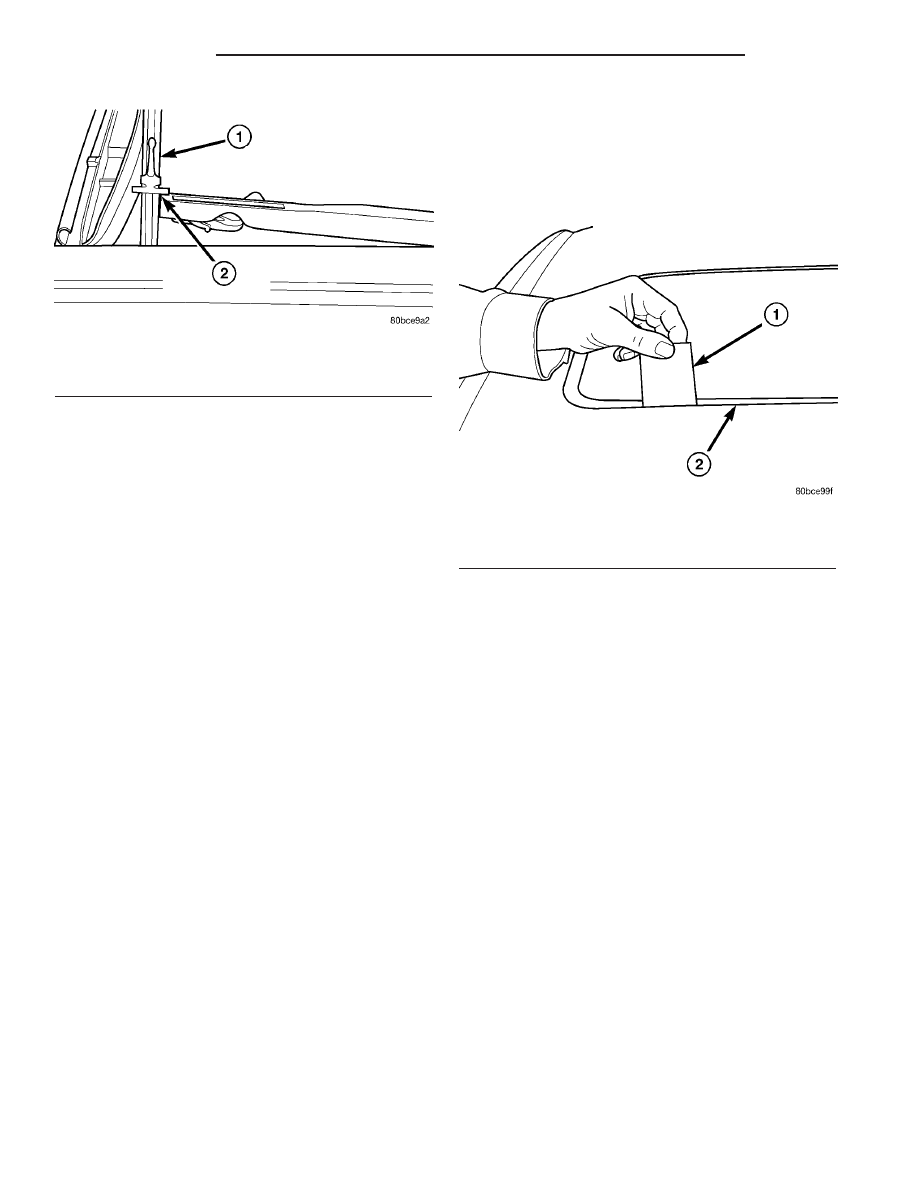

RE–POSITIONING DRIVE MOTOR If the drive motor is not in the correct position it can be adjusted to the correct position when the sun- ADJUSTMENTS – SUNROOF GLASS FLUSHNESS (1) Position sunshade in full rearward position. Place the glass panel in the full closed position. (2) To adjust front of glass; (a) Loosen front and middle glass attachment screws. (b) Adjust front of sunroof glass panel so that the corners are flush to 1.0 mm below the top sur- (c) Tighten all glass attachment screws. (3) To adjust rear of glass; (a) Loosen rear and middle glass attachment screws. (b) Adjust rear of sunroof glass panel so that the corners are flush to plus 1.0 mm off the top surface (c) Tighten all glass attachment screws. CENTERING SUNROOF GLASS ADJUSTMENT Using a business card, check sunroof glass for cen- ter in opening (Fig. 5). Move business card around SUNSHADE REMOVAL (1) Open sunroof glass panel to the vent position. two rear slide blocks of sunshade from sunshade (3) Slide the sunshade rearward to have access to the two front slide blocks of sunshade and disengage (4) Lift sunshade out of sunshade guide. INSTALLATION (1) Place sunshade with cloth side down and install one side’s slide blocks into the track on the (2) Slide the other side’s slide blocks to fully inward position and insert them into the sunshade (3) Verify that all four slide blocks are fully engaged in the sunshade guide. (4) Slide sunshade fully rearward and forward to verify operation. Fig. 4 MEASURING HEIGHT - IN VEHICLE 1 - RULE Fig. 5 INSERT BUSINESS CARD 1 - BUSINESS CARD 23 - 80 SUNROOF PL/SRT-4 GLASS PANEL (Continued) |
