(2) Connect electrical connectors to the seat back,

if equipped.

(3) Install inboard pivot bolt. Tighten bolt to 40

N·m (30 ft. lbs.) torque.

(4) Install bolts attaching recliner to seat cushion

frame. Tighten bolts to 12 N·m (9 ft. lbs.) torque.

(5) Install seat cushion side shields.
(6) Install seat in vehicle.

FRONT SEAT BACK COVER

REMOVAL

(1) Remove seat from vehicle.
(2) Remove head restraint.
(3) Remove front seat back.
(4) Disengage the J-strap retainer or zipper if

equipped.

(5) Roll cover upward to hog rings. Cut hog rings

to free cover (Fig. 2).

(6) Roll cover to top of seat back and remove head

restraint sleeve guides.

(7) Remove cover from seat back.

INSTALLATION

NOTE: Do not reuse the recliner assembly attaching
bolts.

(1) Position cover at the top of seat back.
(2) Carefully roll cover down to the area that hog

rings are to be installed.

(3) Install hog rings.
(4) Roll cover downward.
(5) Engage

the

J-strap

retainer

or

zipper,

if

equipped.

(6) Install new head restraint sleeve guides.
(7) Install seat back to seat cushion. Tighten bolts

to 40 N·m (30 ft. lbs.) torque.

(8) Install seat in vehicle.
(9) Install head restraint.
(10) Check seat back and headrest operation.

FRONT SEAT CUSHION

REMOVAL

(1) Remove seat from vehicle.
(2) Remove front seat cushion side shield.
(3) Remove seat back.
(4) Remove track and recliner assembly.
(5) Remove seat cushion (Fig. 3).

INSTALLATION - FRONT SEAT CUSHION

(1) Connect seat cushion heater element connector,

if equipped.

(2) Install track and recliner assembly. Tighten

bolts to 12 N·m (9 ft. lbs.) torque.

(3) Install seat back. Tighten bolts to 40 N·m (30

ft. lbs.) torque. (Fig. 3)

(4) Install cushion side shields.
(5) Install seat in vehicle.

FRONT SEAT CUSHION COVER

REMOVAL

(1) Remove seat from vehicle.
(2) Remove front seat cushion side shields.
(3) Remove seat back.
(4) Remove track and recliner assembly.
(5) Disengage J-strap attaching seat cover from

the seat cushion frame.

(6) Pull cover off to the hog rings.
(7) Cut hog rings attaching seat cover to seat cush-

ion pad.

(8) Remove seat cushion cover from seat cushion.

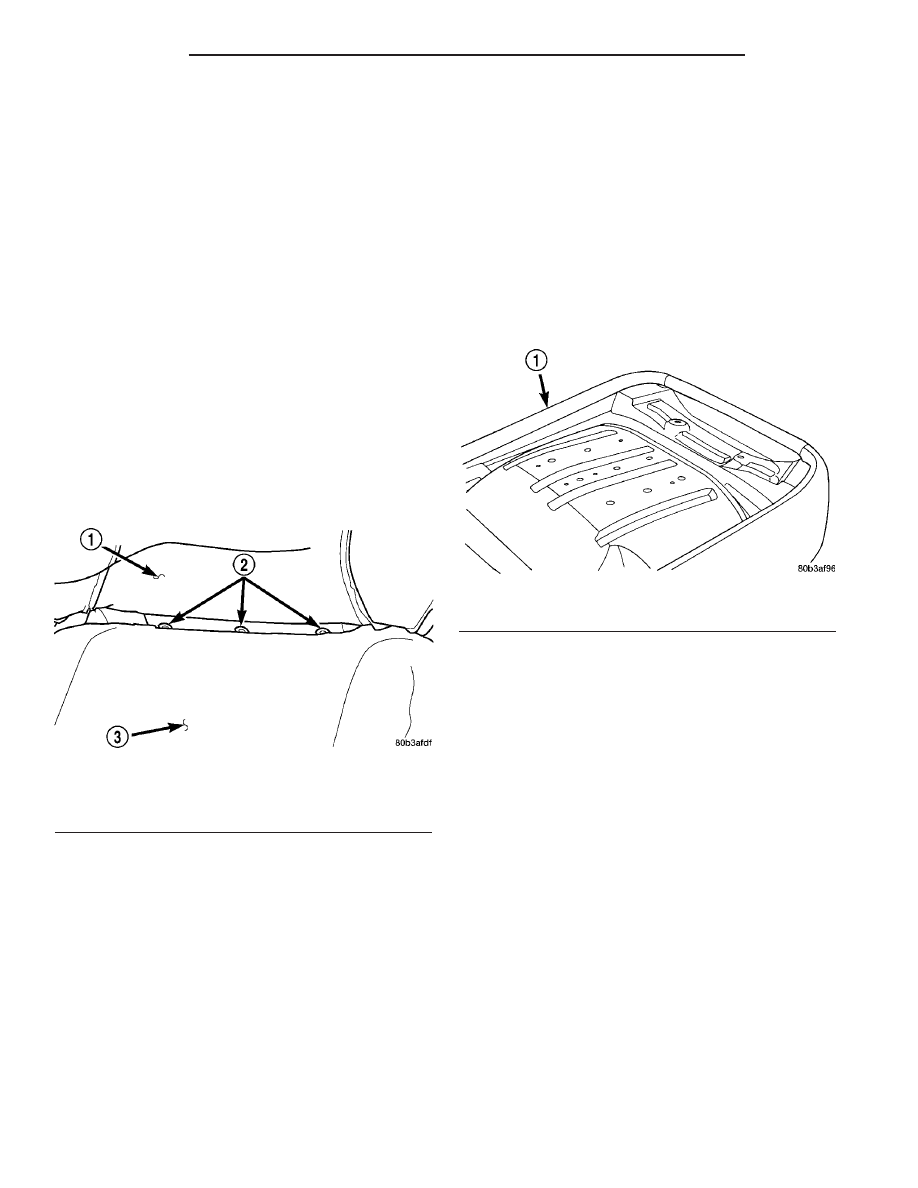

Fig. 2 Front Seat Back Hog Rings

1 - SEAT COVER
2 - HOG RINGS
3 - CUSHION

Fig. 3 Front Seat Cushion

1 - FRONT SEAT CUSHION

23 - 72

SEATS

PL/SRT-4

FRONT SEAT BACK (Continued)

INSTALLATION

(1) Position seat cover on cushion.
(2) Align seat cover with cushion alignment inden-

tations.

(3) Install hog rings.
(4) Engage J-strap attaching seat cover to front of

seat cushion frame.

(5) Install track and recliner assembly. Tighten

front track to pan bolts to 12 N·m (9 ft. lbs.) torque.

(6) Install seat back.
(7) Install front seat cushion side shields.
(8) Install seat in vehicle.

REAR SEAT CUSHION

REMOVAL

(1) Pull upward at each end of the rear seat cush-

ion to disengage retainer loops from cups in floor.

(2) Remove rear seat cushion from vehicle (Fig. 4).

INSTALLATION

(1) Place rear seat cushion in position under bot-

tom of seat back.

(2) Position inboard seat belts on top of seat cush-

ion.

(3) Guide seat cushion loops into retainer cups in

floor pan.

(4) Push downward on the front corners of the seat

cushion to engage retainers.

REAR SEAT BACK

REMOVAL

(1) Remove rear seat cushion. (Refer to 23 - BODY/

SEATS/SEAT CUSHION - REMOVAL)

(2) Remove bolts attaching rear seat back and seat

belts to floor (Fig. 5).

(3) Push rear seat back upward to disengage hooks

at top of seat back (Fig. 6).

(4) Remove rear seat from vehicle.

INSTALLATION

(1) Move rear seat back into position in vehicle.
(2) Push seat back downward to engage hooks at

top of seat back.

(3) Install bolts attaching rear seat back and seat

belts to floor.

NOTE: The torque specification for the inner seat
belt/rear seat back retaining bolts is 57 N·m (42 ft.
lbs.).

(4) Install rear seat cushion. (Refer to 23 - BODY/

SEATS/SEAT CUSHION - INSTALLATION)

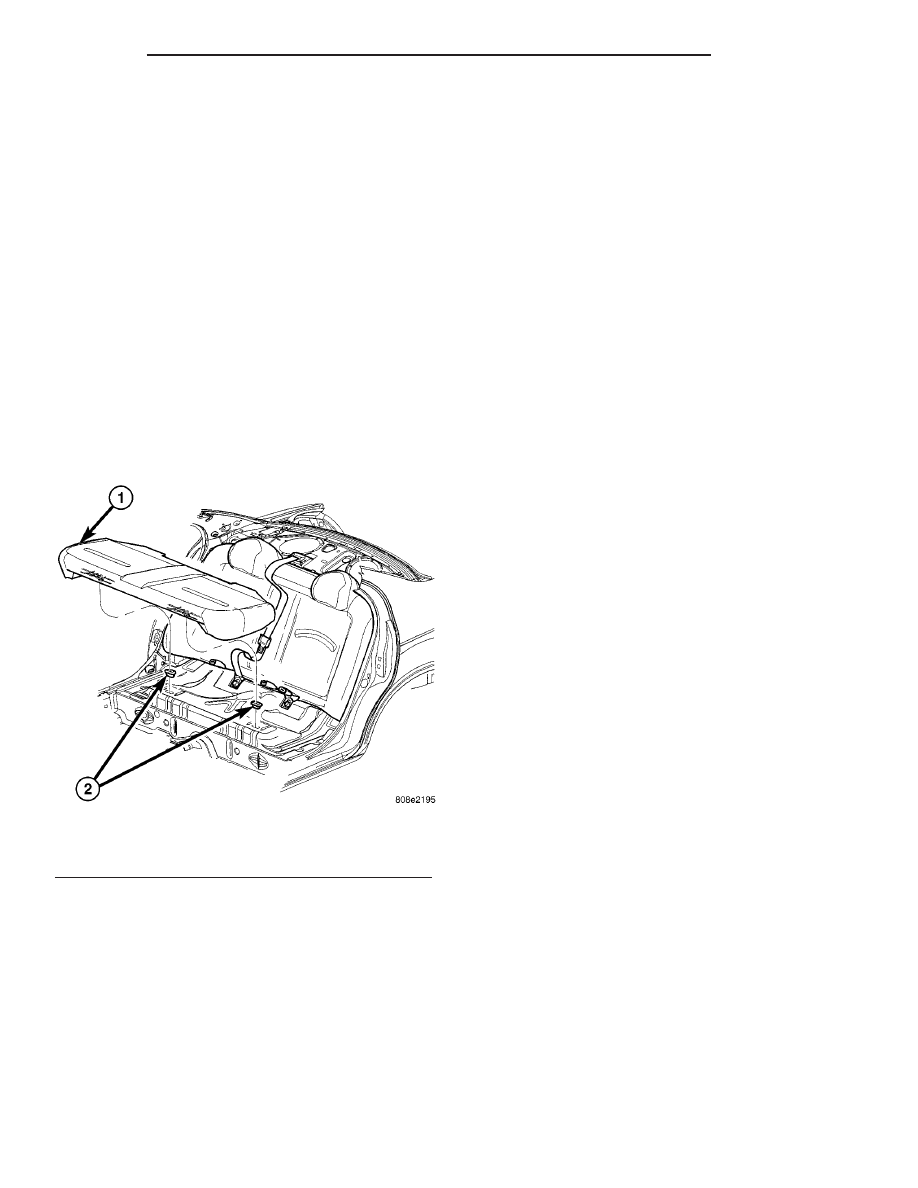

Fig. 4 Rear Seat Cushion

1 - REAR SEAT CUSHION
2 - CUSHION ATTACHING RETAINER

PL/SRT-4

SEATS

23 - 73

FRONT SEAT CUSHION COVER (Continued)

STRIKER - REAR SEAT BACK

REMOVAL

(1) Remove the seat back assembly. (Refer to 23 -

BODY/SEATS/REAR SEAT BACK - REMOVAL)

(2) Remove the three bolts attaching the left side

striker to the seat back assembly collar, that latches
to the 60 section left side seat back and discard the
striker.

INSTALLATION

(1) Install the new striker and install the three

bolts.

(2) Install the seat back assembly. (Refer to 23 -

BODY/SEATS/REAR

SEAT

BACK

-

INSTALLA-

TION)

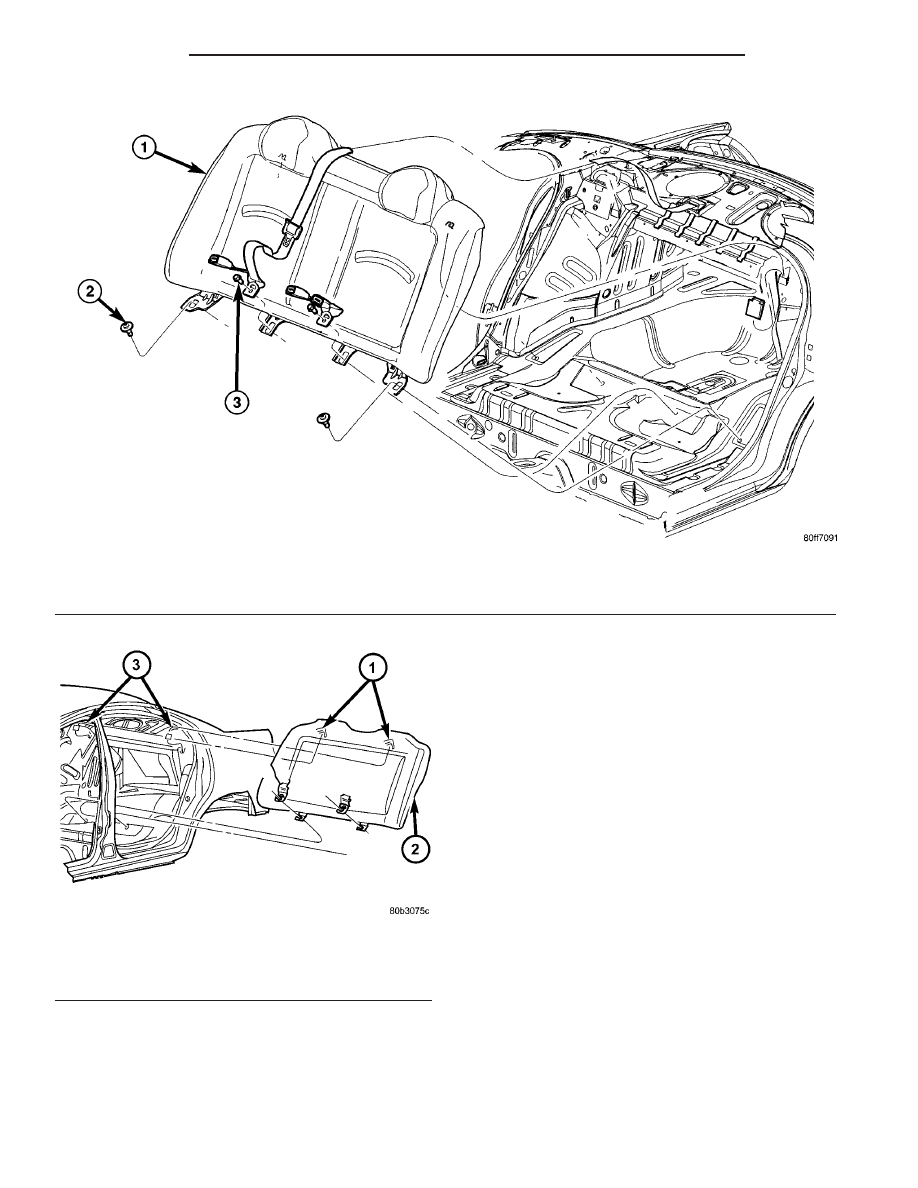

Fig. 5 SEAT BACK BOLTS

1 - SEAT BACK ASSEMBLY
2 - OUTER BOLTS (2)

3 - INNER BOLTS (2)

Fig. 6 SEAT BACK

1 - SEAT BACK HOOKS
2 - REAR SEAT BACK
3 - SEAT BACK ATTACHMENT CLIPS

23 - 74

SEATS

PL/SRT-4

STRIKER - REAR SEAT BACK (Continued)

SUNROOF

TABLE OF CONTENTS

page

page

SUNROOF

DESCRIPTION - SUNROOF COMPONENT

LOCATIONS

. . . . . . . . . . . . . . . . . . . . . . . . . . 75

DIAGNOSIS AND TESTING - SUNROOF

. . . . . . 75

LIMIT SWITCH

DESCRIPTION

. . . . . . . . . . . . . . . . . . . . . . . . . 78

MODULE ASSEMBLY

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 78

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . . 78

CONTROL UNIT

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 78

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . . 78

SUNROOF DRIVE MOTOR

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 78

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . . 78

GLASS PANEL

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . . 79

ADJUSTMENTS

ADJUSTMENTS – SUNROOF VENT

POSITION . . . . . . . . . . . . . . . . . . . . . . . . . . . 79

ADJUSTMENTS – SUNROOF GLASS

. . . . . . 80

SUNSHADE

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . . 80

WIND DEFLECTOR

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 81

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . . 81

SUNROOF

DESCRIPTION - SUNROOF COMPONENT
LOCATIONS

Refer to (Fig. 1) for sunroof component locations.

DIAGNOSIS AND TESTING - SUNROOF

Before beginning sunroof diagnostics verify that all

other power accessories are in proper operating con-
dition. If not, a common electrical problem may exist.
For circuit, splice and component descriptions (Refer
to 8 - ELECTRICAL/WIRING DIAGRAM INFORMA-
TION - DESCRIPTION). Check the condition of the
circuit protection (fuses, circuit breakers or fuse
links) Inspect all wiring connector pins for proper
engagement and continuity (Refer to 8 - ELECTRI-
CAL/WIRING DIAGRAM INFORMATION - DIAG-
NOSIS AND TESTING). Check for battery voltage at
the power sunroof control switches. If battery voltage
is detected at the control switches, proceed with the
following tests.

Before beginning diagnosis for wind noise or water

leaks, verify that the problem was not caused by
releasing the control switch before the sunroof was
fully closed. The sunroof module has a water-man-
agement system. If however, the sunroof glass is in a
partial closed position, high pressure water may be
forced beyond the water management system bound-
aries and onto the headlining.

PL/SRT-4

SUNROOF

23 - 75
