Dodge Neon / Neon SRT-4. Manual - part 395





DOOR SILL TRIM

REMOVAL

(1) Open door to gain access to sill trim.
(2) Disengage clips attaching sill trim to door sill

and door opening flange.

(3) Remove door sill trim from vehicle (Fig. 5) and

(Fig. 6).

INSTALLATION

(1) Position door sill trim on door sill.
(2) Align locating pins on backside of trim panel to

holes in door sill.

(3) Engage clips on trim panel into slots in door

sill.

(4) Engage clips on trim panel onto door opening

flange.

(5) Press downward on trim panel to fully engage

all clips.

FLOOR CONSOLE

REMOVAL

(1) Fully apply parking brake.
(2) Remove screw cover plugs over screws just

rearward of cup holders.

(3) Remove screws in cup holders attaching con-

sole to floor bracket (Fig. 7).

(4) Open console storage compartment lid, if so

equipped.

(5) Remove

screws

attaching

console

to

floor

bracket.

(6) Remove shift lever knob, if vehicle is equipped

with a manual transmission.

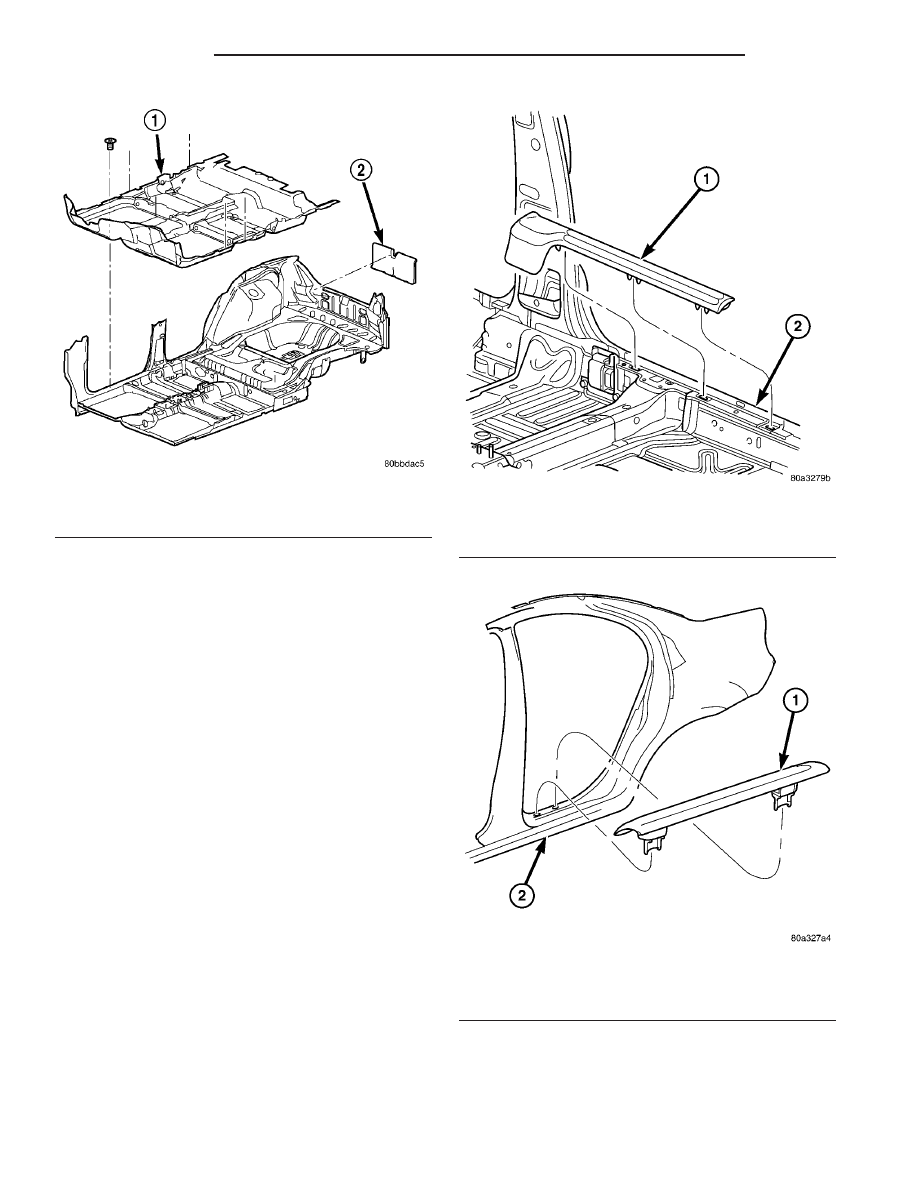

Fig. 4 Carpet

1 - FLOOR CARPET
2 - TRUCK REAR END PANEL

Fig. 5 FRONT DOOR SILL TRIM

1 - FRONT DOOR SILL TRIM
2 - FRONT DOOR SILL

Fig. 6 REAR DOOR SILL TRIM

1 - REAR DOOR SILL TRIM
2 - REAR DOOR SILL

23 - 64

INTERIOR

PL/SRT-4

DOOR SILL TRIM (Continued)

(7) Lift console upward over gear selector and park

brake handle.

(8) Remove console from vehicle.

INSTALLATION

(1) Place floor console into position in vehicle.
(2) Install screws attaching console to floor brack-

ets.

(3) Install shift lever knob, if vehicle is equipped

with a manual transmission.

(4) Release parking brake.

HEADLINER

REMOVAL

(1) Remove screws attaching sun visors to roof

header panel.

(2) Disconnect wire connector from lighted vanity

mirror, if so equipped.

(3) Remove sun visors from vehicle.
(4) Remove A-pillar trim covers.
(5) Remove B-pillar trim panels.
(6) Remove (upper) quarter panel trim panels.
(7) Remove assist handle, if so equipped.
(8) Remove sun visor hooks.
(9) Remove coat hooks, if so equipped.
(10) Remove three push in fasteners at rear of

headliner.

(11) Disengage dome lamp wire connector, at rear

of headliner.

(12) Remove push in fastener attaching wiring to

C-pillar.

(13) Remove headliner through door opening (Fig.

8).

INSTALLATION

(1) Position headliner in vehicle.
(2) Install sun visor hooks, if so equipped.
(3) Install coat hooks, if so equipped.
(4) Install three push in fastener at rear of head-

liner.

(5) Install assist handles, if so equipped.
(6) Install push in fastener attaching headliner

wiring to C-pillar.

(7) Connect dome lamp wire connector, at rear of

headliner.

(8) Install (upper) quarter panel trim panel.
(9) Install B-pillar trim panels.
(10) Install A-pillar trim covers.
(11) Install sun visors, lighted vanity mirror wire

connector, if so equipped, and screws attaching sun
visors to roof header panel.

LOWER QUARTER TRIM

REMOVAL

(1) Remove upper quarter trim panel.
(2) Remove rear seat cushion and back.
(3) Disengage clips attaching trim to lower quarter

panel.

(4) Remove seat belt from slot in trim panel.
(5) Remove lower quarter trim from vehicle (Fig.

13).

INSTALLATION

(1) Position lower quarter trim panel to vehicle.
(2) Install seat belt to slot in trim panel.

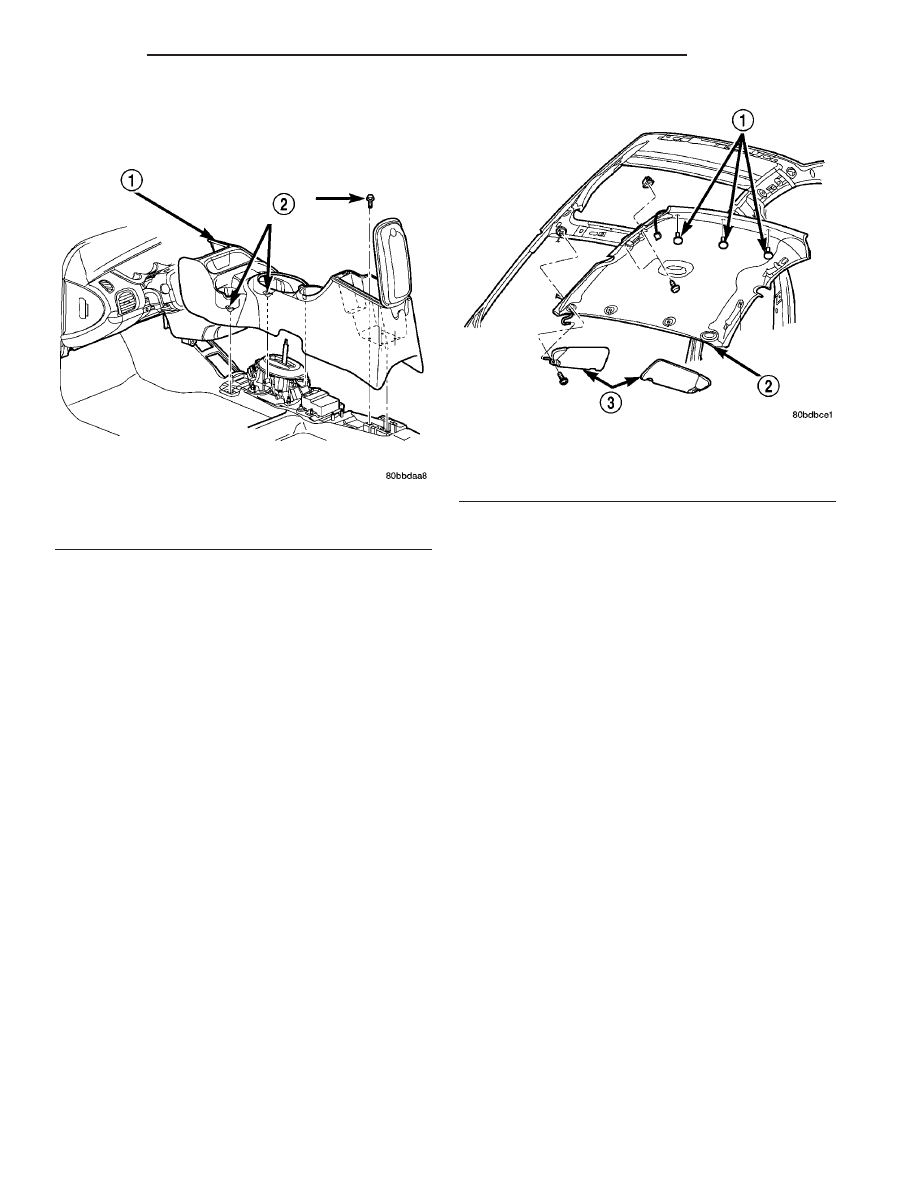

Fig. 7 Floor Console

1 - FLOOR CONSOLE WITH ARMREST
2 - ATTACHING SCREWS

Fig. 8 Headliner

1 - HEADLINER TO REAR HEADER FASTENERS
2 - HEADLINER
3 - VISORS

PL/SRT-4

INTERIOR

23 - 65

FLOOR CONSOLE (Continued)

(3) Align locating pins on backside of trim panel to

mating holes in inner quarter panel.

(4) Press clips on trim panel into slots in inner

quarter panel.

(5) Install rear seat back and cushion.
(6) Install upper quarter trim panel.

REAR SHELF TRIM PANEL

REMOVAL

(1) Remove quarter trim panels as necessary.

(Refer to 23 - BODY/INTERIOR/UPPER QUARTER
TRIM - REMOVAL)

(2) Remove rear seat cushion and back. (Refer to

23 - BODY/SEATS/REAR SEAT BACK - REMOVAL)

(3) Disengage seat belt bezels from rear shelf trim

panel.

(4) Remove rear seat shoulder belt from the shelf

by sliding belt through the slot.

(5) Remove rear shelf trim panel from vehicle (Fig.

9).

INSTALLATION

(1) Place into position rear shelf trim panel.
(2) Slide the rear seat shoulder belt through the

slot in the rear shelf trim panel.

(3) Engage seat belt bezels to rear shelf trim

panel.

(4) Install rear seat cushion and back. (Refer to 23

- BODY/SEATS/REAR SEAT BACK - INSTALLA-
TION)

(5) Install quarter trim. (Refer to 23 - BODY/IN-

TERIOR/UPPER QUARTER TRIM - INSTALLA-
TION)

REAR VIEW MIRROR

REMOVAL

(1) Loosen the mirror base set screw (Fig. 10).
(2) Slide the mirror base upward and off the

bracket.

INSTALLATION

(1) Position the mirror base at the bracket and

slide it downward onto the support bracket.

(2) Tighten the setscrew 1 N·m (15 in. lbs.) torque.

SIDE COWL TRIM

REMOVAL

(1) Disengage clips attaching cowl trim to cowl

side panel.

(2) Remove cowl trim from vehicle (Fig. 11).

INSTALLATION

(1) Position cowl trim panel to inner cowl panel.
(2) Align locating pins on backside of cowl trim

panel to mating holes in inner cowl panel.

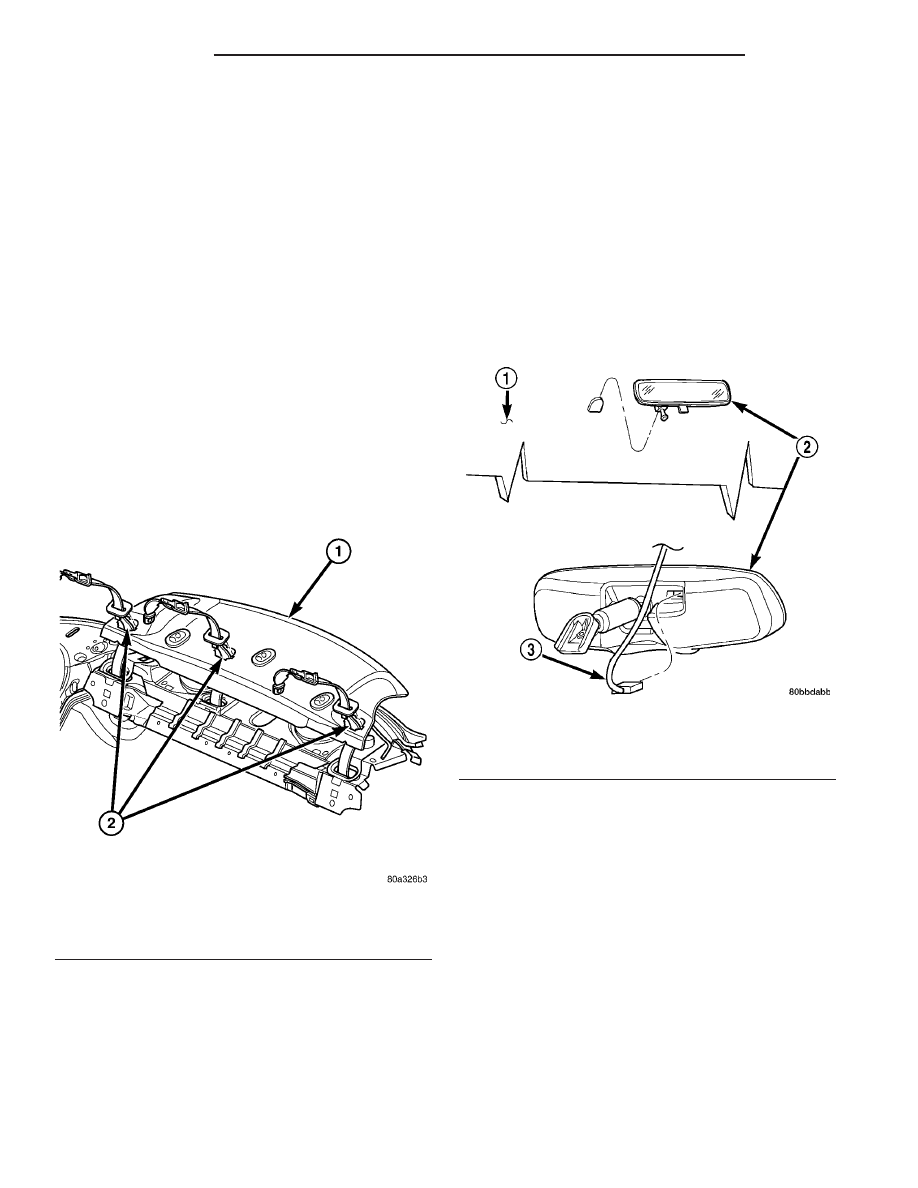

Fig. 9 REAR SHELF PANEL

1 - REAR SELF PANEL
2 - SEAT BELT SLOTS

Fig. 10 Rear View Mirror

1 - WINDSHIELD
2 - MIRROR
3 - LIGHTED MIRROR CONNECTOR

23 - 66

INTERIOR

PL/SRT-4

LOWER QUARTER TRIM (Continued)

(3) Push clips on trim panel into slots in inner

cowl panel.

SUN VISOR

REMOVAL

All vehicles with driver and passenger side airbags

must have a colored coded five Bullet point airbag
warning label applied to the sun visor, verify label
availability and ensure the label is installed.

(1) Remove sun visor from center support.
(2) Remove screws attaching sun visor to roof

header.

(3) Remove sun visor from header.
(4) If equipped, disconnect wire connector from

body harness.

(5) Remove sun visor from vehicle.

INSTALLATION

All vehicles with driver and passenger side airbags

must have a colored coded five Bullet point airbag
warning label applied to the sun visor, verify label
availability and ensure the label is installed.

(1) Place sun visor in position.
(2) If equipped, connect wire connector from body

harness.

(3) Install screws attaching sun visor to header.
(4) Install sun visor into center support.

TRUNK LINING

REMOVAL

(1) Remove fasteners (three per side) attaching

carpet to shelf panel. Fasteners are accessed from
inside the vehicle (Fig. 12).

(2) Pull out leading flaps of the carpet through the

opening from the shelf panel.

(3) Pull carpet from under the springs.
(4) Remove trunk carpet from vehicle.

INSTALLATION

(1) Place carpet in truck and smooth out.
(2) Tuck both sides of the carpet ends under

springs.

(3) Position the leading flaps of the carpet through

the opening onto the shelf panel.

(4) Install fasteners (three per side) to secure the

carpet to shelf panel (install fasteners from inside
the vehicle).

(5) Overlap the slits in the back of the carpet so

the center section lays over the outer sections.

UPPER QUARTER TRIM

REMOVAL

(1) Disengage clips attaching trim to upper quar-

ter panel (Fig. 13).

(2) Remove upper trim panel from vehicle.

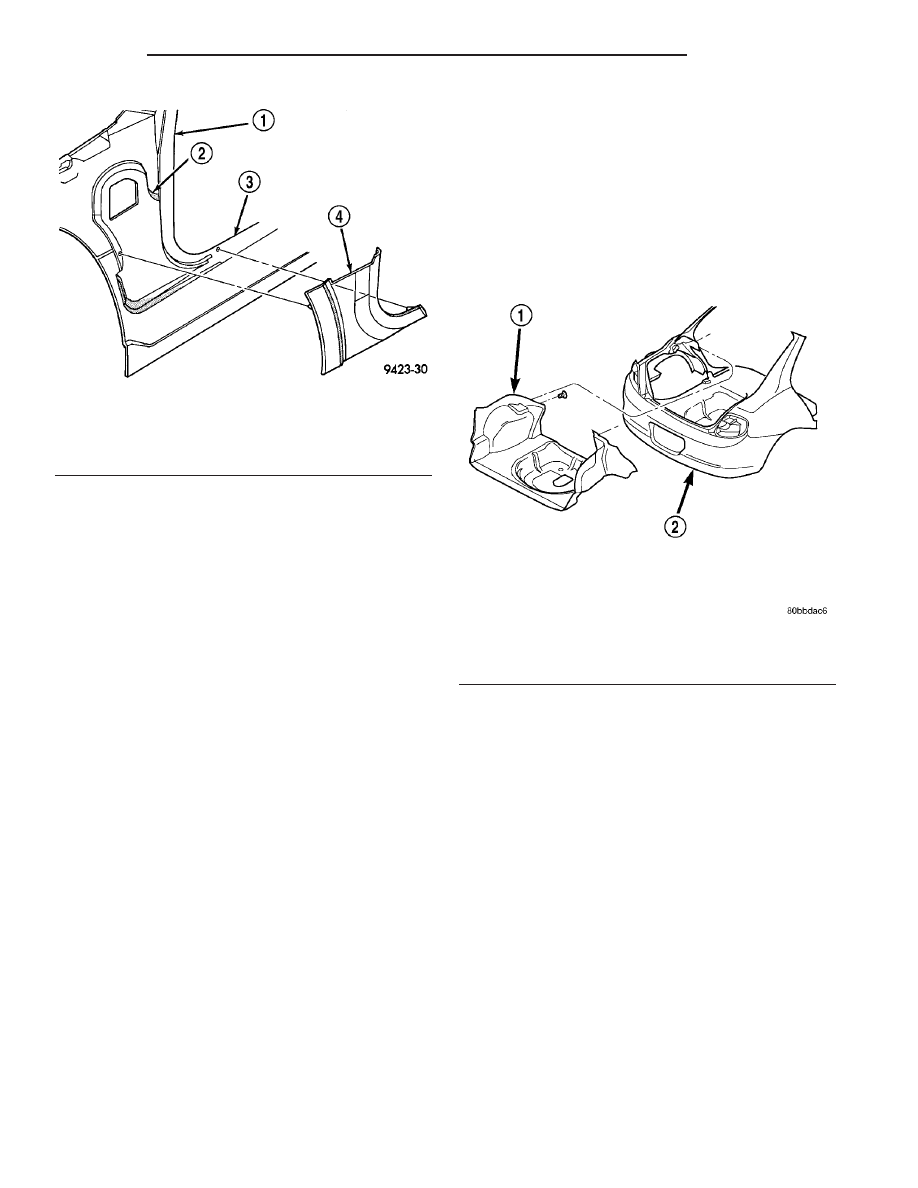

Fig. 11 Side Cowl Trim

1 - DOOR OPENING
2 - COWL
3 - SILL
4 - COWL TRIM

Fig. 12 Trunk Carpet

1 - REAR FASCIA
2 - TRUNK CARPET

PL/SRT-4

INTERIOR

23 - 67

SIDE COWL TRIM (Continued)
