EXTERIOR HANDLE

REMOVAL

(1) Remove door trim panel.
(2) Close door glass.
(3) Disengage clips attaching linkage rods to door

handle.

(4) Remove nuts attaching outside handle to door

(Fig. 5).

(5) Remove outside handle.

INSTALLATION

(1) Position door outside handle in opening.
(2) Tighten attaching nuts.
(3) Connect linkage rods to latch.
(4) Connect lock and latch rods to door handle.
(5) Install door trim panel.

HINGE

REMOVAL

NOTE: If both hinges on one door are to be
replaced, remove and install one hinge completely
prior to beginning the second hinge.

(1) Open and support door on a suitable lifting

device.

(2) Remove bolts attaching door check strap to

lower B-pillar for greater access, if necessary.

(3) Mark position of hinge on both the door end

frame and lower B-pillar to ease installation.

(4) Remove bolts attaching hinge to door end

frame (Fig. 3).

(5) Remove bolts attaching hinge to lower B-pillar.
(6) Remove door hinge from vehicle.

INSTALLATION

NOTE: If both hinges on one door are to be
replaced, remove and install one hinge completely
prior to beginning the second hinge.

NOTE: Do not grease door hinges.

(1) If necessary, paint new door hinge prior to

installation.

(2) Position door hinge on vehicle.
(3) Loosely install bolts attaching hinge to lower

B-pillar.

(4) Loosely install bolts attaching hinge to door

end frame.

(5) Align hinge to marks made previously and

tighten all bolts.

(6) Install bolts attaching door check strap to

lower B-pillar, if removed previously.

(7) Verify door fit and operation. Adjust door hinge

for proper door alignment, if necessary.

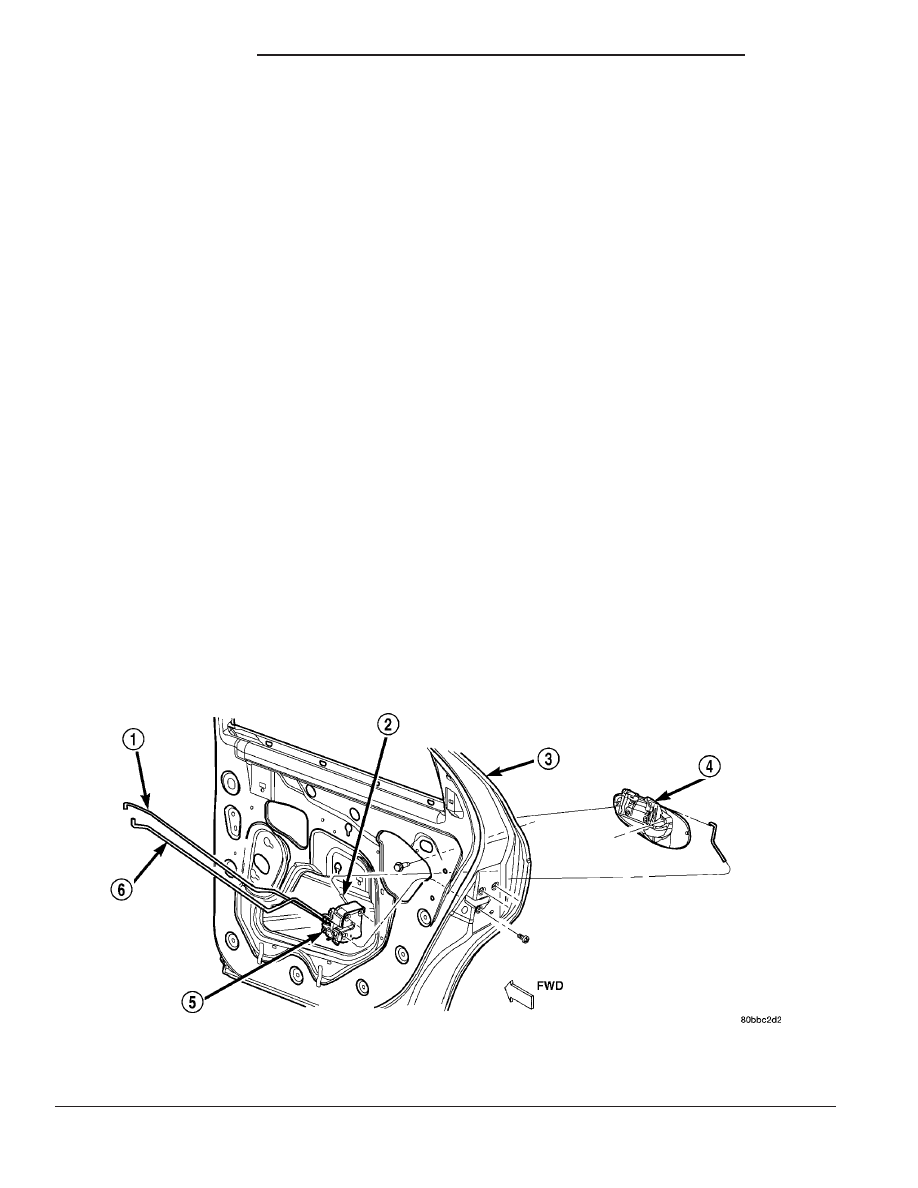

Fig. 5 Rear Door Outside Handle

1 - LOCK TO LATCH LINK & SLEEVE
2 - OUTSIDE HANDLE TO LATCH
3 - REAR DOOR

4 - OUTSIDE DOOR HANDLE
5 - CHILD SAFETY LATCH
6 - INSIDE DOOR HANDLE LINK & SLEEVE

23 - 32

DOORS - REAR

PL/SRT-4

LATCH

REMOVAL

(1) Remove door trim panel.
(2) Close door glass.
(3) Loosen lower rear run channel.
(4) Disconnect clips attaching linkage rods to door

latch.

(5) Remove linkage rods from latch (Fig. 6).
(6) Remove screws attaching latch to door end

frame

(7) Remove door latch from vehicle.

INSTALLATION

CAUTION: Do not close door before adjusting the
door latch. Door may fail to open.

(1) Position door latch on vehicle and install

screws attaching latch to door end frame.

(2) Connect linkage rods to latch.
(3) Connect lock and latch rods to door latch.
(4) Tighten lower rear run channel.
(5) Install door trim panel.

ADJUSTMENTS

ADJUSTMENT

(1) Insert a hex-wrench through the elongated hole

in the door end frame near the latch striker opening.

(2) Loosen socket head screw on the side of the

latch linkage.

(3) Lift upward on outside door handle and release

it.

(4) Tighten socket head screw on latch.
(5) Verify latch operation.

LATCH STRIKER

REMOVAL

(1) Mark outline of door latch striker on B-pillar to

aid installation.

(2) Remove screws attaching door latch striker to

B-pillar (Fig. 4).

(3) Remove door latch striker from vehicle.

INSTALLATION

(1) Install door latch striker from vehicle.
(2) Install screws attaching door latch striker to

B-pillar.

(3) Align marked outline of door latch striker on

B-pillar to aid installation.

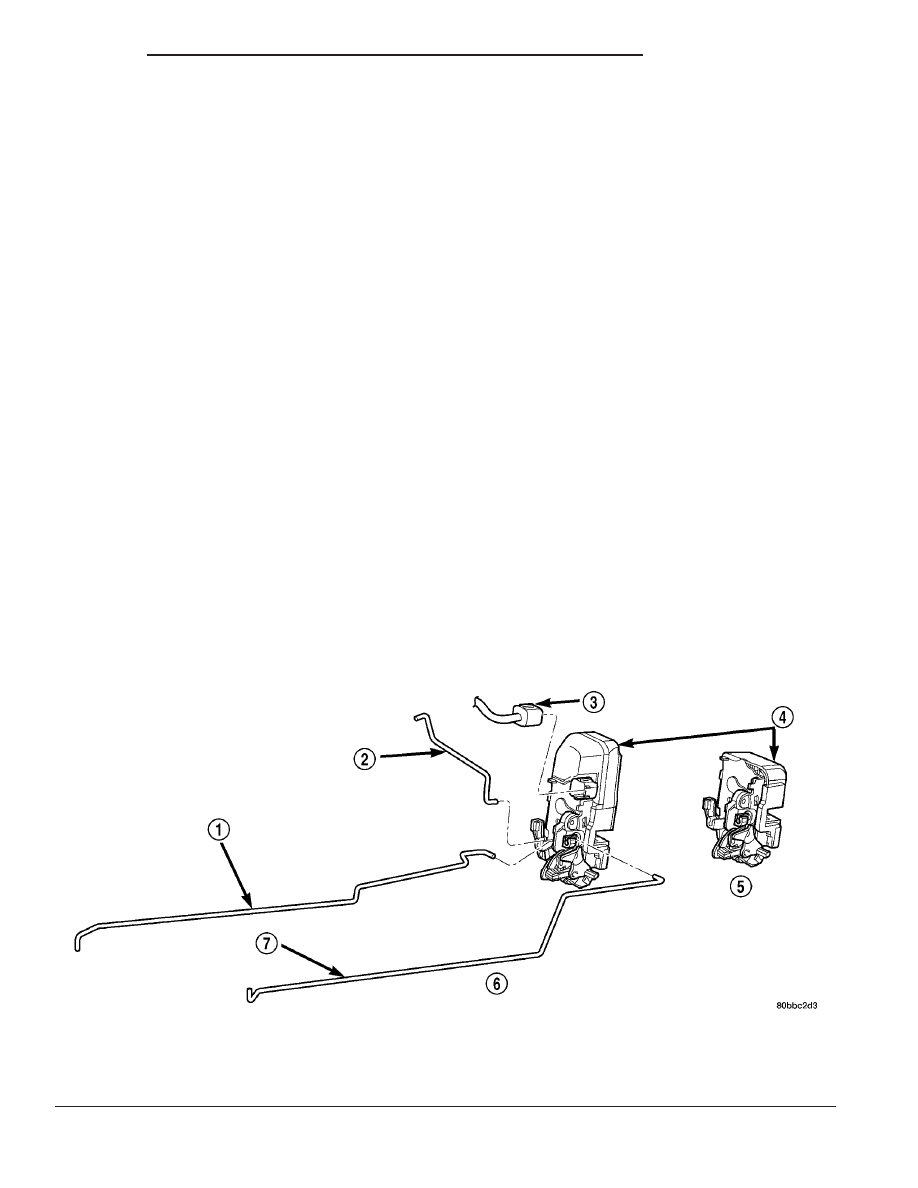

Fig. 6 Rear Door Latch

1 - INSIDE LOCK TO LATCH
2 - OUTSIDE HANDLE TO LATCH
3 - POWER DOOR LOCK CONNECTOR
4 - REAR DOOR LATCH

5 - MANUAL
6 - POWER
7 - INSIDE DOOR HANDLE TO LATCH

PL/SRT-4

DOORS - REAR

23 - 33

TRIM PANEL

REMOVAL

(1) Release door latch and open door.
(2) Lower window glass.
(3) Remove window regulator crank.
(4) Remove screw from inside arm rest pull cup.
(5) Remove screw from behind inside latch release

handle (Fig. 7).

(6) Disengage push in fasteners attaching trim to

door panel around perimeter of trim panel.

(7) Disengage push-in metal spring clip holding

trim in sail flag area.

(8) Lift trim panel up off belt weatherstrip.
(9) Tilt top of trim panel away from door and dis-

engage clip attaching latch rod to handle.

(10) Remove latch rod from handle.
(11) Remove trim panel from door.

INSTALLATION

(1) Replace any damaged or missing push in fas-

teners from around perimeter of door trim panel.

(2) Place trim panel in position on door.
(3) Insert latch rod into handle and engage clip.
(4) Engage trim panel into retainer channel at top

of door.

(5) Locate door trim panel to inner door panel by

aligning locating pins on backside of trim panel to
mating holes in inner door panel.

(6) Engage push in fasteners attaching trim to

door panel around perimeter of trim panel.

(7) Install screw behind inside latch release han-

dle.

(8) Install screw inside arm rest pull cup.
(9) Install window regulator crank.

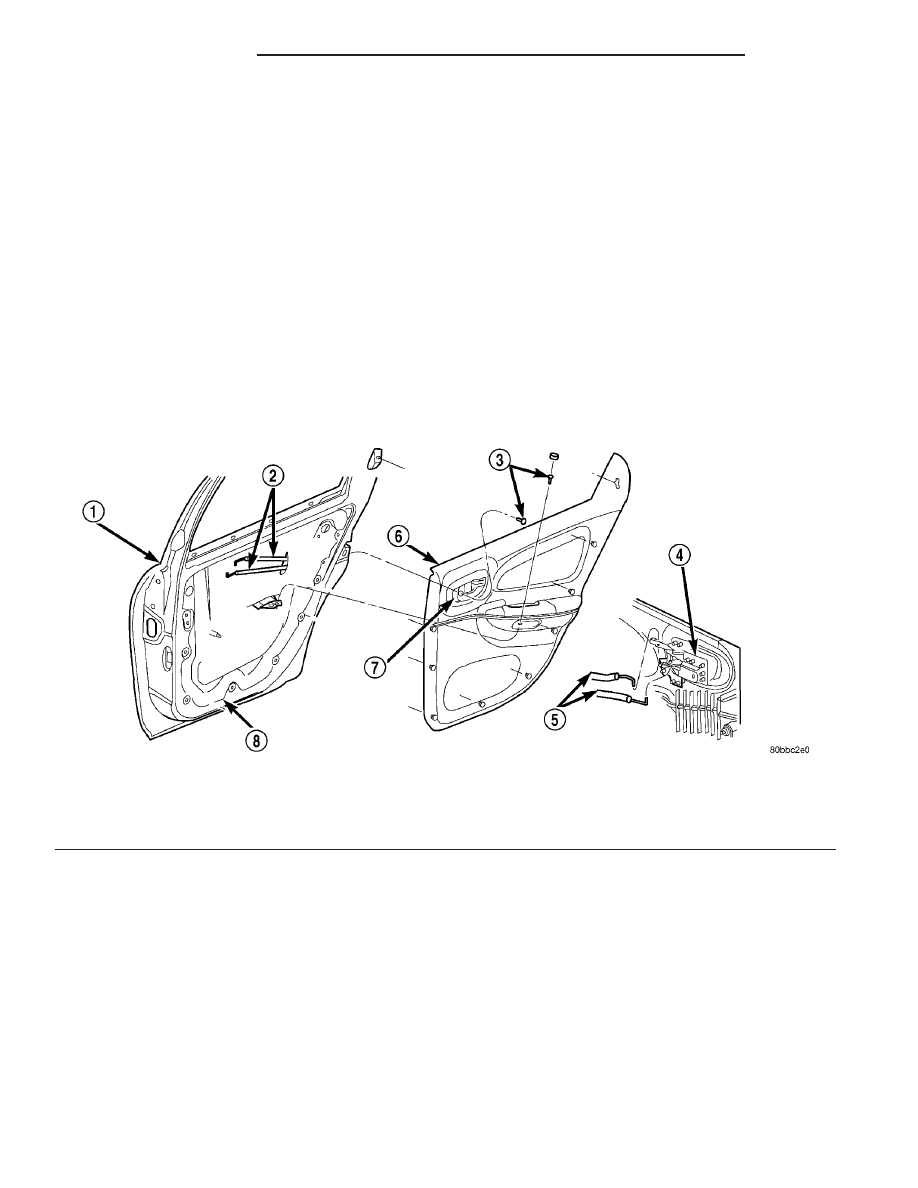

Fig. 7 Rear Door Trim

1 - REAR DOOR
2 - LINK AND SLEEVES
3 - DOOR TRIM SCREWS
4 - POWER DOOR LOCK SWITCH

5 - LINK AND SLEEVES
6 - REAR DOOR TRIM PANEL
7 - INSIDE DOOR HANDLE
8 - WATER DAM

23 - 34

DOORS - REAR

PL/SRT-4

WATERDAM

REMOVAL

(1) Remove door trim panel.
(2) Remove door speaker, if equipped.
(3) Remove door trim pull cup mount bracket.
(4) Disconnect clip attaching lock linkage to lock

button bell-crank.

(5) Peel water dam away from adhesive around

perimeter of inner door panel (Fig. 8).

INSTALLATION

(1) Insure

that

enough

adhesive

remains

to

securely retain the water dam. Replace as necessary.

(2) Place the water dam into position and press

securely to adhesive making sure to properly route
wiring and linkages.

(3) Engage clip attaching lock linkage to lock but-

ton bell-crank.

(4) Install door trim pull cup mount bracket.
(5) Install door speaker, if equipped.
(6) Install door trim panel.

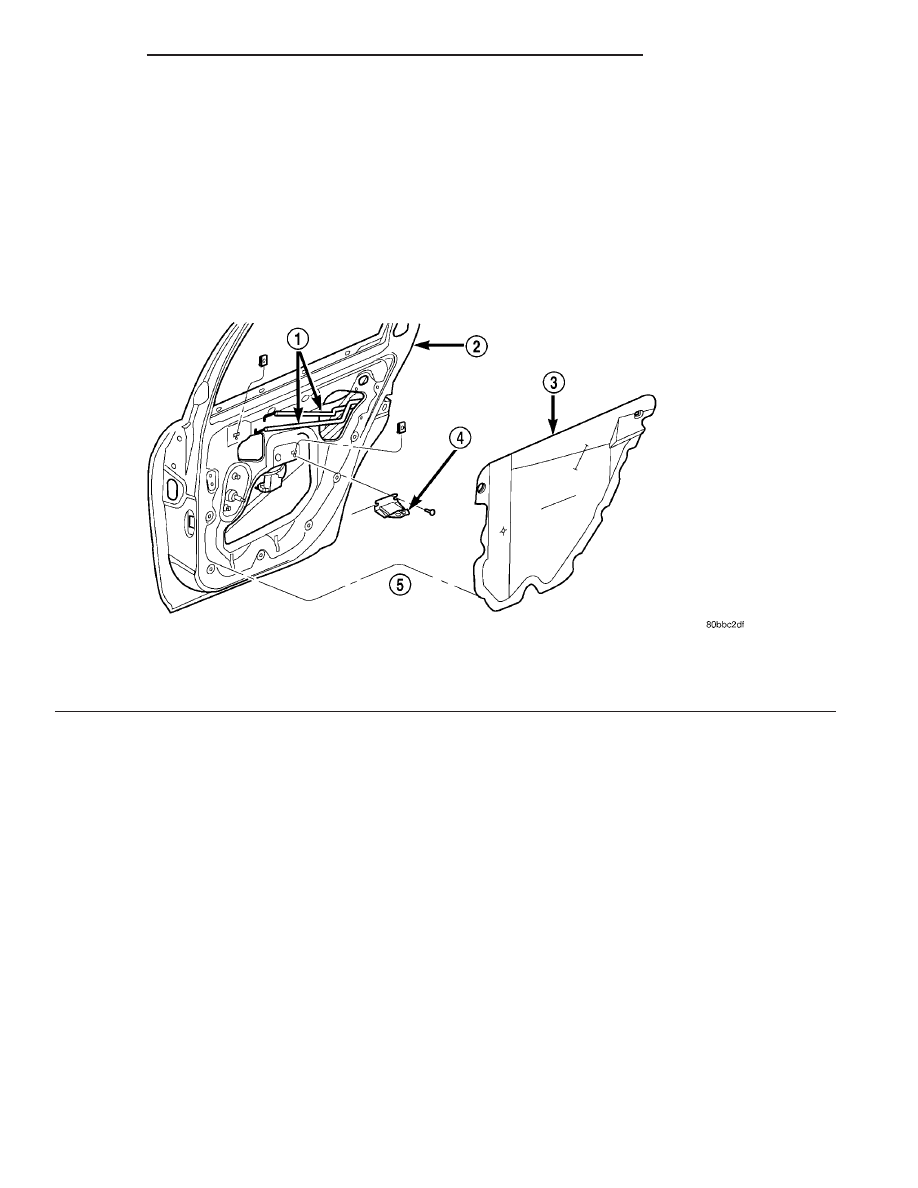

Fig. 8 Water Dam

1 - LINK AND SLEEVES
2 - REAR DOOR
3 - WATER DAM

4 - TRIM ATTACHING BRACKET
5 - REAR DOOR TYPICAL

PL/SRT-4

DOORS - REAR

23 - 35
