(3) Align door latch striker to outline marks on the

B-pillar

(4) Tighten screws attaching door latch striker to

B-pillar.

(5) Check door alignment and adjust as necessary.

LOCK CYLINDER

REMOVAL

(1) Remove door trim panel and water dam.
(2) Close door glass.
(3) Disconnect door lock rod from latch.
(4) Remove clip attaching lock cylinder to door

handle.

(5) Pull lock cylinder from door handle (Fig. 10).

INSTALLATION

(1) Push lock cylinder into door handle.
(2) Install clip attaching lock cylinder to door han-

dle.

(3) Connect door lock rod from latch.
(4) Install door trim panel and water dam.

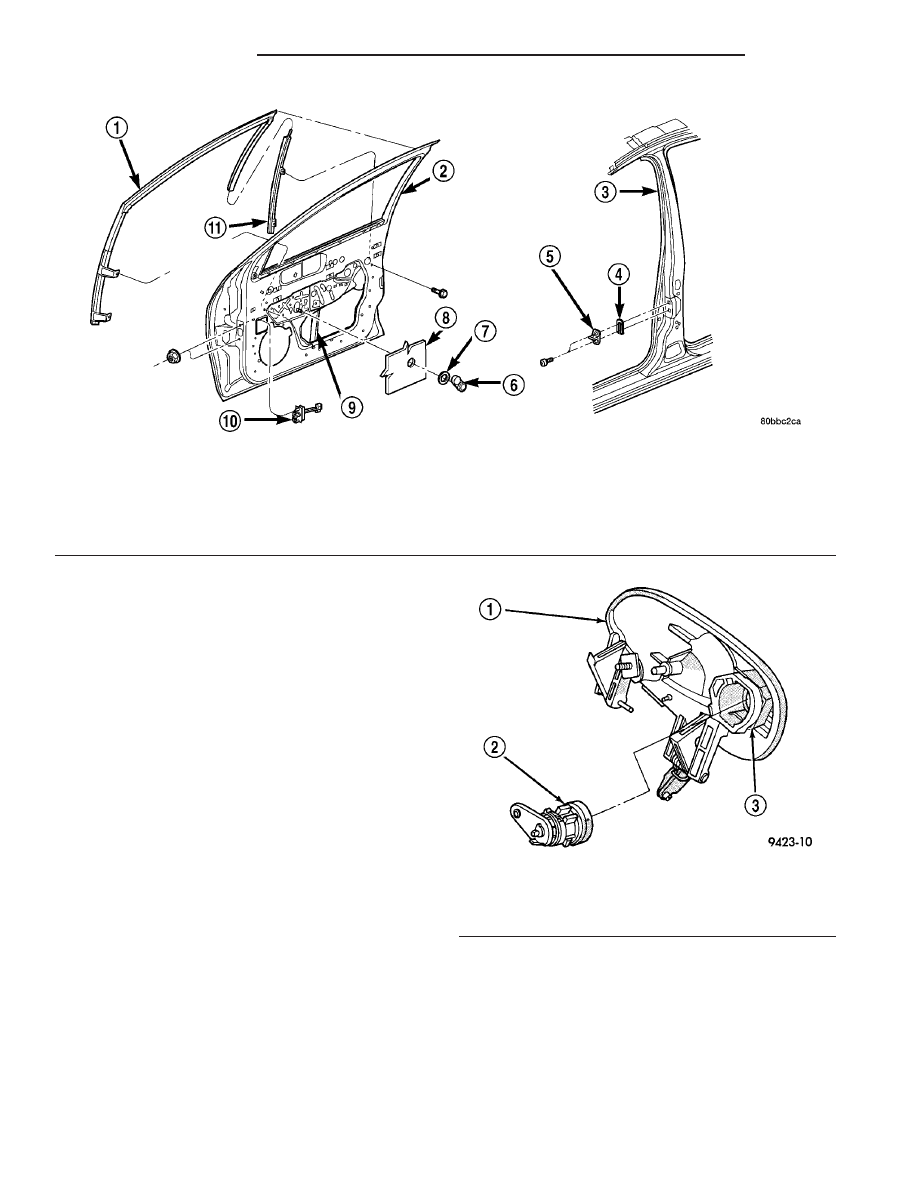

Fig. 9 Front Door Latch Striker

1 - FRONT DOOR GLASS RUN WEATHERSTRIP
2 - FRONT DOOR
3 - B-PILLAR
4 - SPACER
5 - DOOR LATCH STRIKER
6 - WINDOW REGULATOR HANDLE

7 - SPACER
8 - DOOR TRIM PANEL
9 - WINDOW REGULATOR
10 - DOOR CHECK STRAP
11 - FRONT DOOR GLASS RUN BRACKET WEATHER

Fig. 10 Door Lock Cylinder

1 - OUTSIDE DOOR HANDLE
2 - LOCK CYLINDER
3 - RETAINER

23 - 24

DOOR - FRONT

PL/SRT-4

LATCH STRIKER (Continued)

FRONT VERTICAL GUIDE BAR

REMOVAL

(1) Remove door trim panel and water dam.
(2) Remove door speaker, if equipped.
(3) Remove front lift guide.
(4) Remove bolt attaching top of front guide bar to

inner door panel.

(5) Using a Snap-on

t flare-nut socket (FRXM10)

and a hex wrench, remove nut attaching bottom of
guide bar to door panel while holding jack screws.

INSTALLATION

(1) Install nut attaching bottom of guide bar to

door panel.

(2) Install bolt attaching top of front guide bar to

inner door panel.

(3) Install front lift guide.
(4) Install door speaker, if equipped.
(5) Verify door glass alignment, adjust if necessary.
(6) Install door trim panel and water dam.

TRIM PANEL

REMOVAL

(1) Release door latch and open door.
(2) Lower door glass.
(3) Remove window regulator crank, if so equipped

(Fig. 13).

(4) Remove screw from inside arm rest pull cup

(Fig. 11).

(5) Remove screw from behind inside latch release

handle.

(6) Disengage push-in fasteners attaching trim to

door panel around perimeter of trim panel.

(7) Tilt trim panel outward to clear locator pins on

backside of trim panel.

(8) Disconnect trim panel from retainer channel in

inner belt weatherstrip at top of door by lifting while
gently jiggling.

(9) Move trim panel away from door and disengage

clip attaching latch rod to handle.

(10) Remove latch rod from handle.

CAUTION: Do not allow door trim panel to hang by
the wire connector or wiring.

(11) Disconnect wire connector from power door

lock switch, mirror switch, and power window switch
if so equipped.

(12) Remove trim panel from door.

INSTALLATION

(1) Replace any damaged or missing push in fas-

teners from around perimeter of door trim panel.

(2) Place trim panel near door.
(3) Connect wire connector into power door lock

switch, mirror switch, and power window switch , if
so equipped.

(4) Insert latch rod into handle and engage clip.

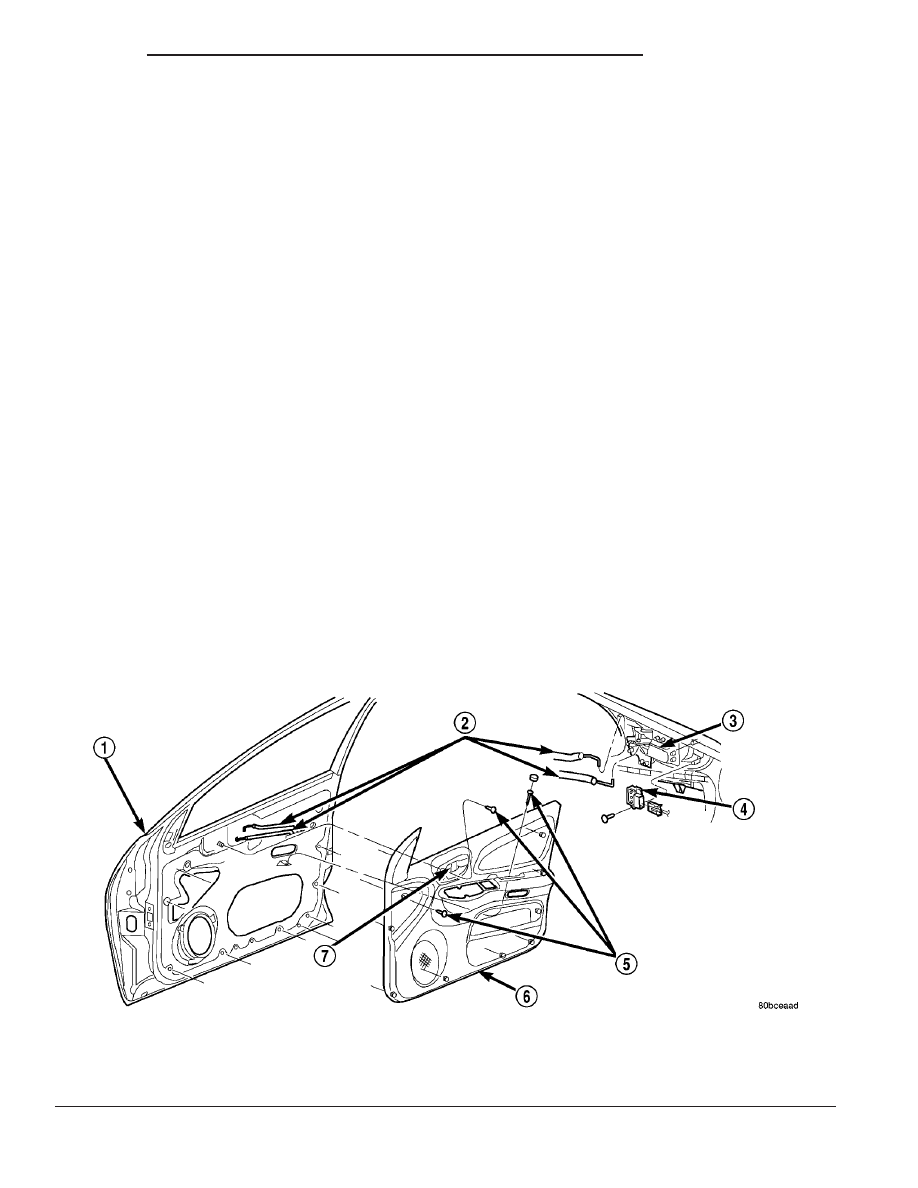

Fig. 11 Front Door Trim

1 - FRONT DOOR
2 - LINK AND SLEEVES
3 - INNER REMOTE HANDLE
4 - POWER DOOR LOCK SWITCH

5 - DOOR TRIM SCREWS
6 - FRONT DOOR TRIM PANEL
7 - INSIDE DOOR HANDLE

PL/SRT-4

DOOR - FRONT

23 - 25

(5) Install trim panel into retainer channel at top

of door and push down to seat.

(6) Locate door trim panel to inner door panel by

aligning locating pins on backside of trim panel to
mating holes in inner door panel.

(7) Install push in fasteners to hold trim to door

panel around perimeter of trim panel.

(8) Install screw inside latch release handle.
(9) Install screw inside arm rest pull cup.
(10) With the window in the down position, orien-

tate the window regulator crank handle appropri-
ately. Install the right handle at the 10 o’clock
position and the left handle at the 2 O’clock position,
if so equipped.

WATERDAM

REMOVAL

(1) Remove door trim panel.
(2) Remove door speaker, if equipped.
(3) Remove door trim pull cup mount bracket.
(4) Disconnect clip attaching lock linkage to lock

button bell-crank.

(5) Peel water dam away from adhesive around

perimeter of inner door panel (Fig. 12).

INSTALLATION

(1) Insure

that

enough

adhesive

remains

to

securely retain the water dam. Replace as necessary.

(2) Place the water dam into position and press

securely to adhesive making sure to properly route
wiring and linkages.

(3) Engage clip attaching lock linkage to lock but-

ton bell-crank.

(4) Install door trim pull cup mount bracket.
(5) Install door speaker, if equipped.
(6) Install door trim panel.

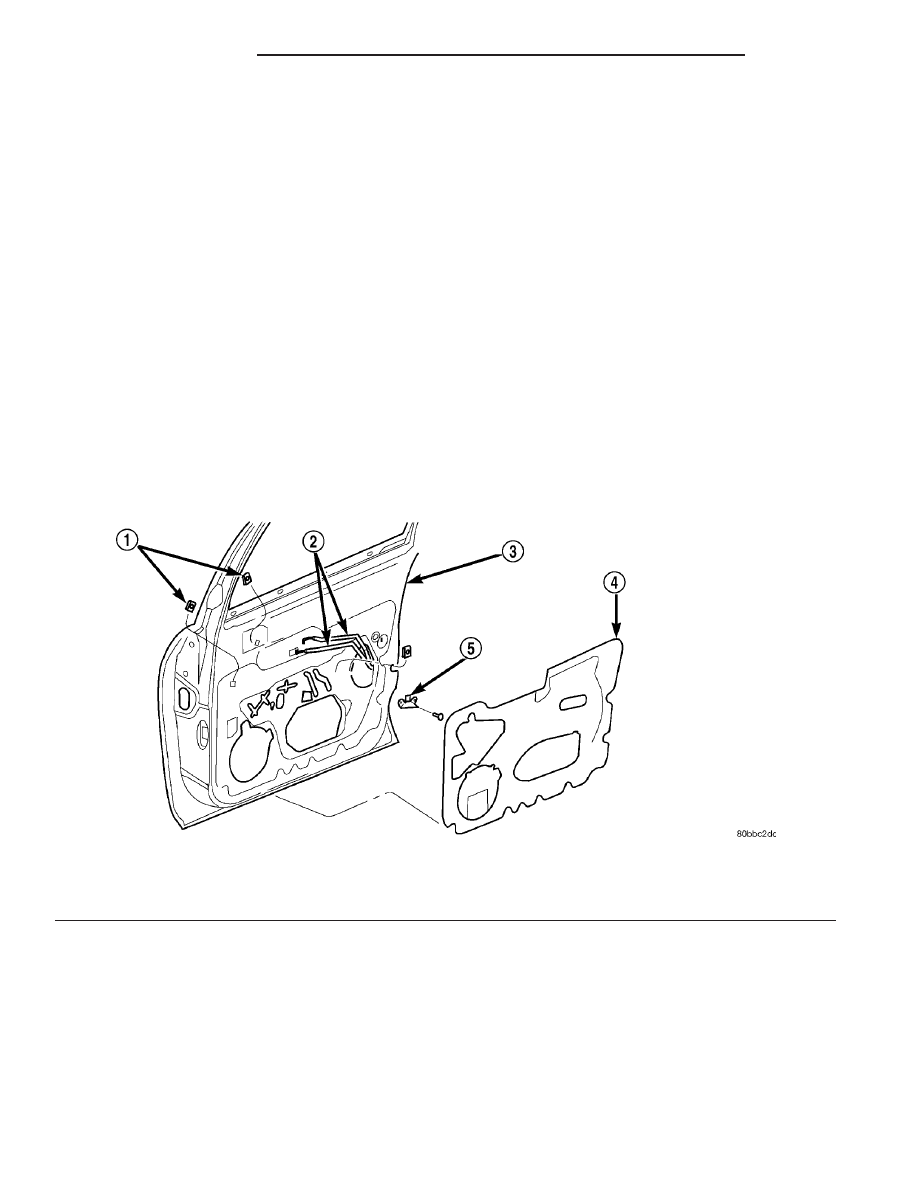

Fig. 12 Water Dam

1 - U NUTS
2 - LINK AND SLEEVES
3 - FRONT DOOR

4 - WATER DAM
5 - TRIM ATTACHING BRACKET

23 - 26

DOOR - FRONT

PL/SRT-4

TRIM PANEL (Continued)

WINDOW CRANK

REMOVAL

(1) Open door.
(2) Slide a window crank removal tool behind the

window crank to release crank handle lock clip (Fig.
13).

(3) Remove handle from regulator shaft.

INSTALLATION

(1) Place the lock clip on the window crank.
(2) Place window crank on regulator shaft with the

window in the down position.

(3) Orientate the window regulator crank handle

appropriately at the 10 o’clock position and the left
handle at the 2 o’clock position.

(4) Push the handle in to the lock position on the

regulator shaft.

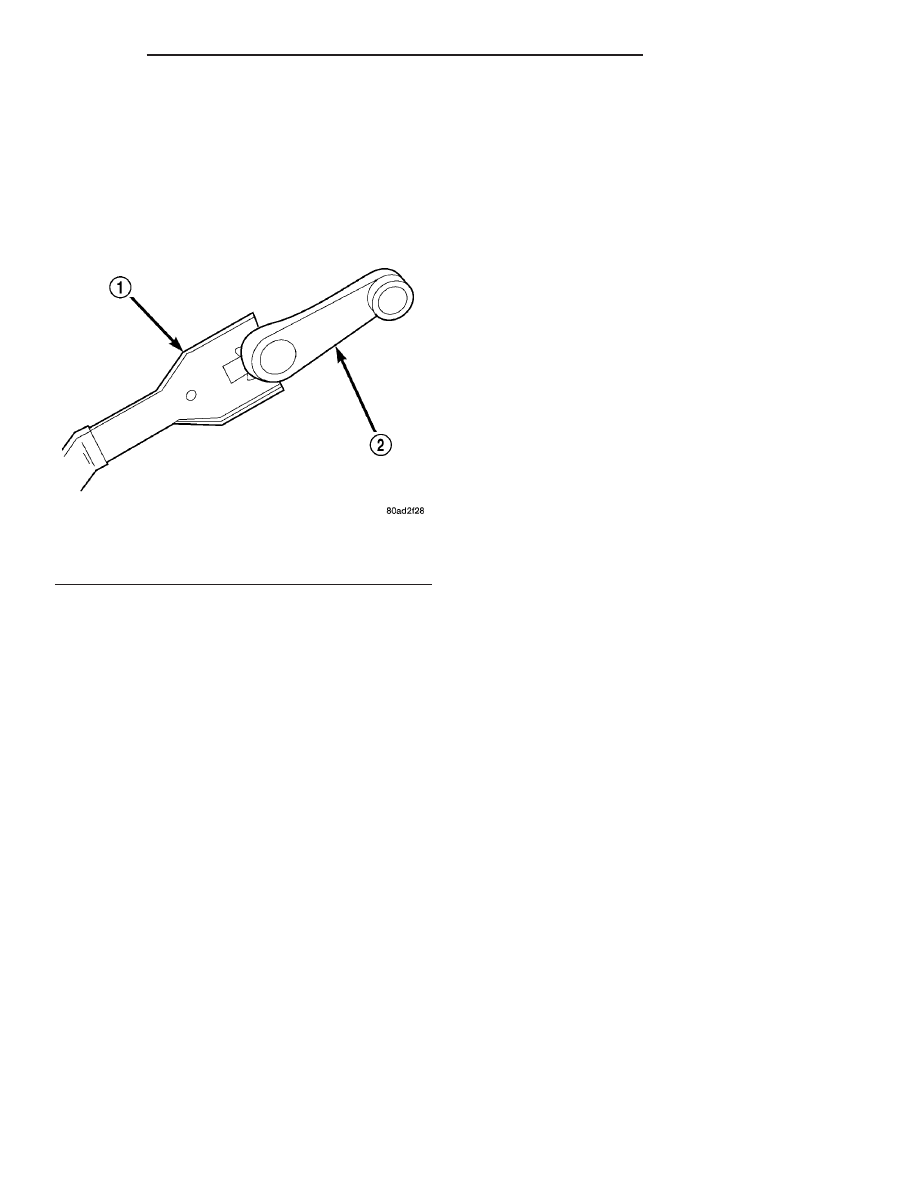

Fig. 13 Window Crank

1 - WINDOW CRANK REMOVAL TOOL
2 - WINDOW CRANK

PL/SRT-4

DOOR - FRONT

23 - 27
