DOOR GLASS

REMOVAL

(1) Remove door trim panel and water dam.
(2) Remove inner door belt weatherstrip.
(3) Loosen window inner belt stabilizer.
(4) Lower door glass to bottom of door to gain

access to attaching bolts.

(5) Remove bolts attaching door glass to window

regulator lift plates (Fig. 5) and (Fig. 6).

(6) Disengage door glass from regulator.
(7) Lift door glass upward out of the opening at

the top of door.

INSTALLATION

(1) Carefully lower door glass through opening in

top of door.

(2) Position door glass into window regulator lift

plates.

(3) Install bolts door glass to lift plates and do not

tighten.

(4) Tighten window inner belt stabilizer.
(5) Raise glass to the full up position and then

tighten the lift plate bolts.

(6) Install inner door belt weatherstrip.
(7) Install door trim panel and water dam.

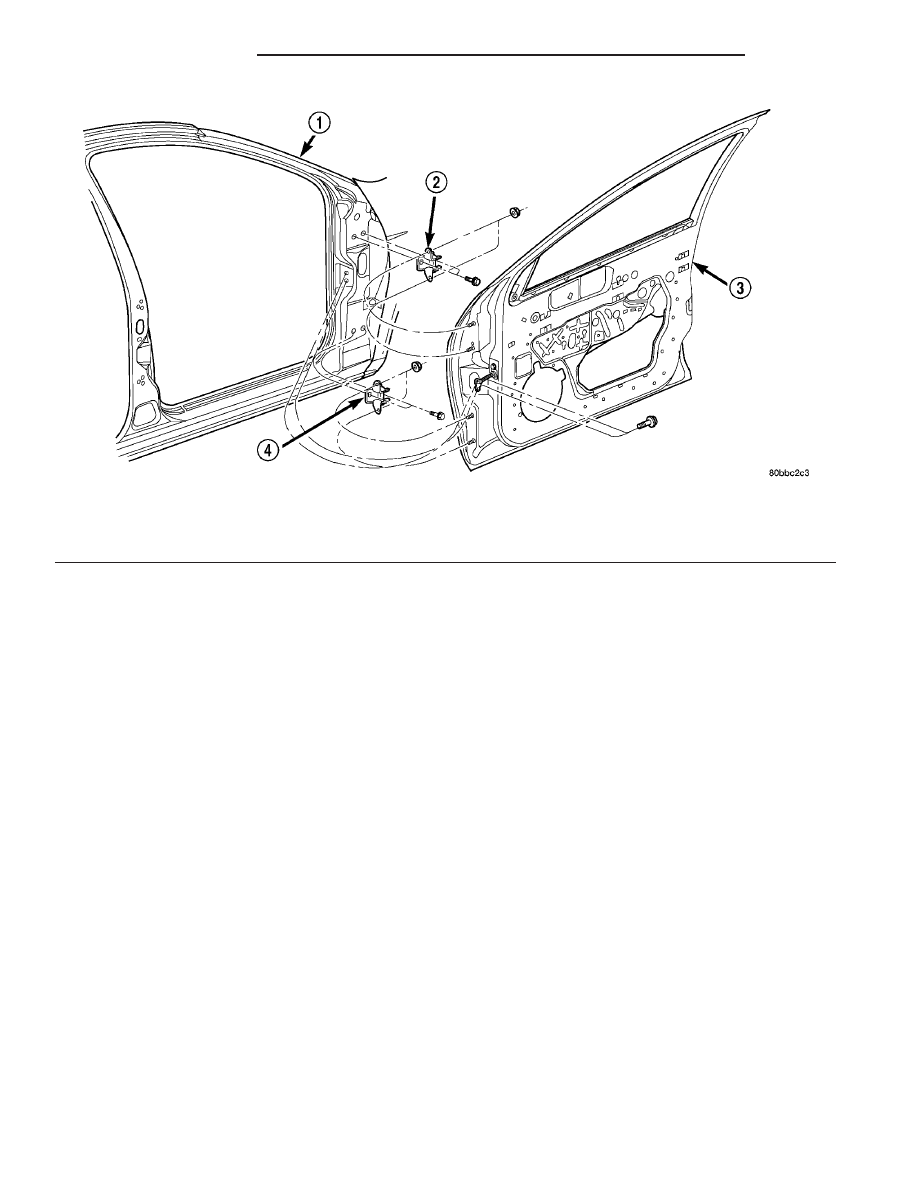

Fig. 4 Front Door

1 - BODY ASSEMBLY
2 - UPPER HINGE

3 - FRONT DOOR
4 - LOWER HINGE

23 - 20

DOOR - FRONT

PL/SRT-4

DOOR (Continued)

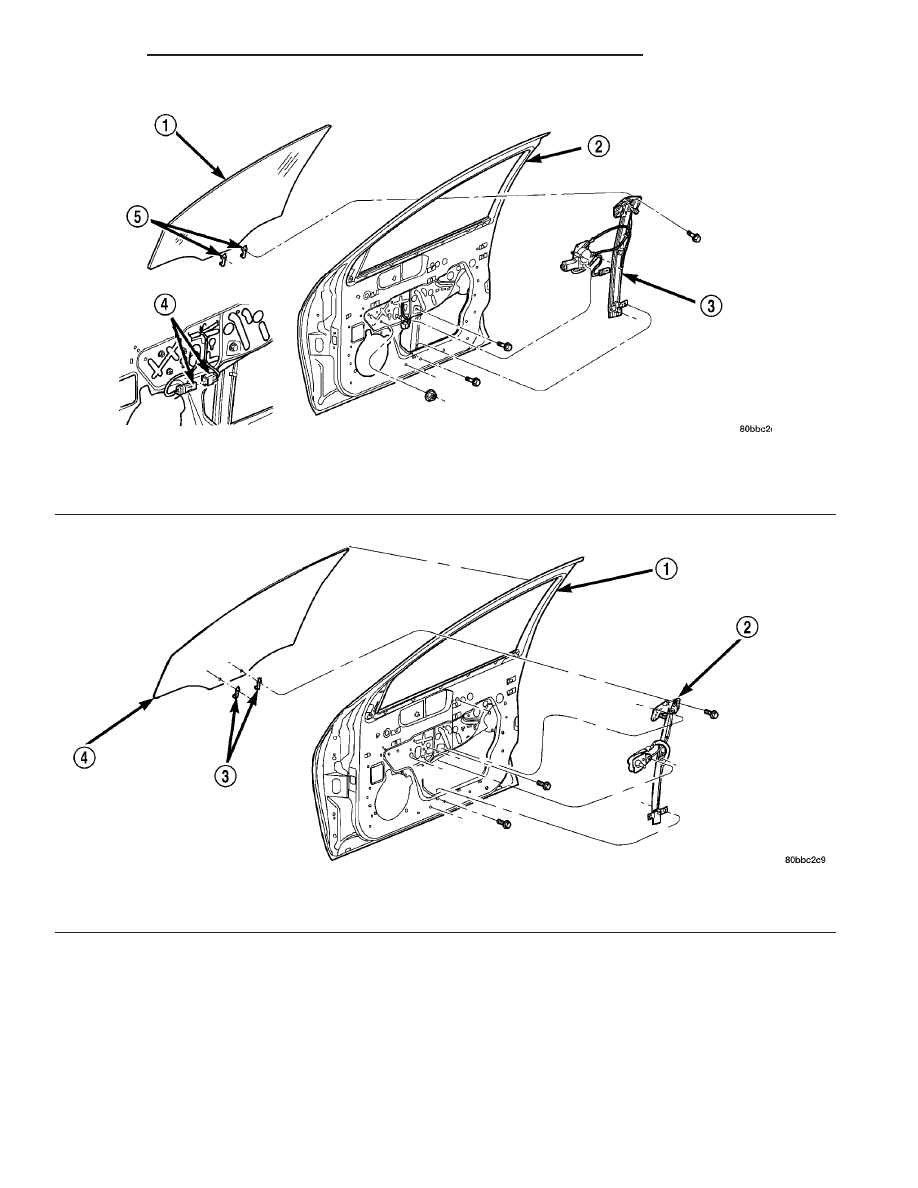

Fig. 5 Front Door Glass – Power Window

1 - FRONT DOOR GLASS
2 - FRONT DOOR
3 - POWER WINDOW REGULATOR

4 - POWER WINDOW CONNECTORS
5 - WINDOW TO REGULATOR FASTENER

Fig. 6 Front Door Glass – Manual Window

1 - FRONT DOOR
2 - FRONT WINDOW MANUAL REGULATOR

3 - WINDOW TO REGULATOR FASTENERS
4 - FRONT DOOR GLASS

PL/SRT-4

DOOR - FRONT

23 - 21

DOOR GLASS (Continued)

EXTERIOR HANDLE

REMOVAL

(1) Remove door trim panel. (Refer to 23 - BODY/

DOOR - FRONT/TRIM PANEL - REMOVAL)

(2) Remove the waterdam as necessary to gain

access to the exterior handle and door latch mecha-
nisms.

(3) Close door glass.
(4) Disconnect lock and latch rods from door latch.
(5) Remove screws attaching door handle retainer

to outer door panel (Fig. 7).

(6) Remove door handle from vehicle.

INSTALLATION

(1) Position door handle into door and install

retainer at back of handle.

(2) Install

the

screws

attaching

door

handle

retainer to outer door panel.

(3) Connect lock and latch rods to door latch.
(4) Place waterdam onto the door and pressurize

at the butyl bead to seal completely.

(5) Install door trim panel. (Refer to 23 - BODY/

DOOR - FRONT/TRIM PANEL - INSTALLATION)

FRONT DOOR HINGE

REMOVAL

(1) Open and support door on a suitable lifting

device.

(2) Remove bolts attaching door check strap to

lower A-pillar for greater access, if necessary.

(3) Mark position of hinge on both the door end

frame and lower A-pillar to ease installation.

(4) Remove bolts attaching hinge to door end

frame (Fig. 4).

(5) Remove bolts attaching hinge to lower A-pillar.
(6) Remove door hinge from vehicle.

INSTALLATION

CAUTION: When installing a new hinge, make sure
that the head of each hinge pin is fully seated into
the door hinge. Also, remove the plastic shipping
clip and replace it with the correct metal retaining
clip once the hinge pin is seated.

(1) If necessary, paint new door hinge prior to

installation.

(2) Position door hinge on vehicle.
(3) Loosely install bolts attaching hinge to lower

A-pillar.

(4) Loosely install bolts attaching hinge to door

end frame.

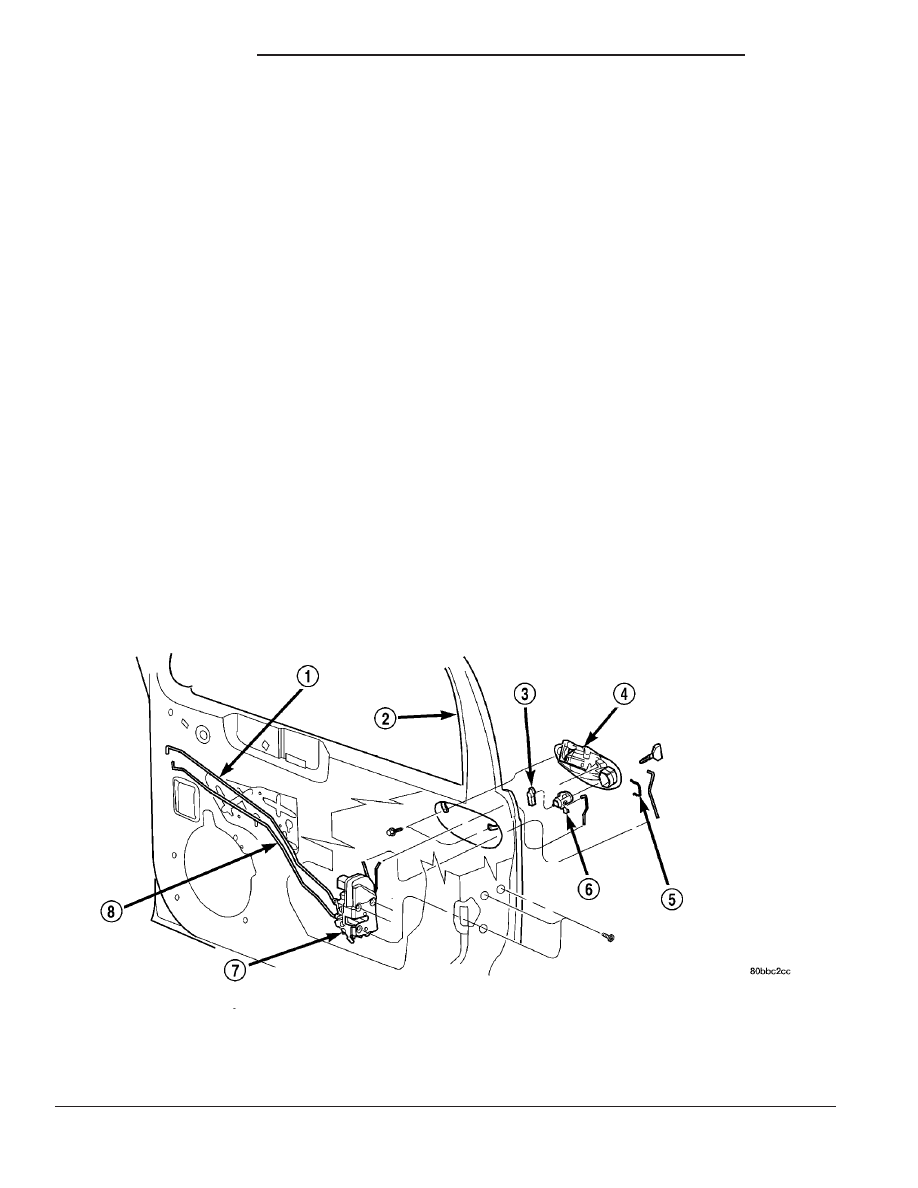

Fig. 7 Front Door Outside Handle

1 - LOCK TO LATCH LINK & SLEEVE
2 - FRONT DOOR
3 - CENTRAL LOCKING SWITCH
4 - OUTSIDE DOOR HANDLE

5 - LOCK CYLINDER RETAINING CLIP
6 - LOCK CYLINDER
7 - FRONT DOOR LATCH
8 - INSIDE DOOR HANDLE LINK & SLEEVE

23 - 22

DOOR - FRONT

PL/SRT-4

(5) Align hinge to marks made previously and

tighten all bolts.

(6) Install bolts attaching door check strap to

lower A-pillar, if removed previously.

(7) Verify door fit and operation. Adjust door hinge

for proper door alignment, if necessary.

LATCH

REMOVAL

(1) Remove door trim panel and water shield.
(2) Close door glass.
(3) Disconnect lock and latch rods from door latch

(Fig. 8).

(4) Disengage wire connector from power door lock

motor, if equipped.

(5) Remove screws holding latch to door end

frame.

(6) Remove door latch from vehicle.

INSTALLATION

CAUTION: Do not close door before adjusting the
door latch. Door may fail to open.

(1) Position door latch inside door and install

screws holding latch to door end frame.

(2) Engage wire connector into power door lock

motor, if so equipped.

(3) Connect latch and lock rods to door latch.
(4) Install door trim panel and water shield.

(5) Adjust door latch using procedure in this sec-

tion.

ADJUSTMENTS

ADJUSTMENT

(1) Insert a hex-wrench through the elongated hole

in the door end frame near the latch striker opening.

(2) Loosen socket head screw on the side of the

latch linkage.

(3) Lift upward on outside door handle and release

it.

(4) Tighten socket head screw on latch.
(5) Verify latch operation.

LATCH STRIKER

REMOVAL

(1) Mark outline of door latch striker on B-pillar to

aid installation.

(2) Remove screws attaching door latch striker to

B-pillar (Fig. 9).

(3) Remove door latch striker from vehicle.

INSTALLATION

(1) Install door latch striker into the door.
(2) Install screws attaching door latch striker to

B-pillar loosely.

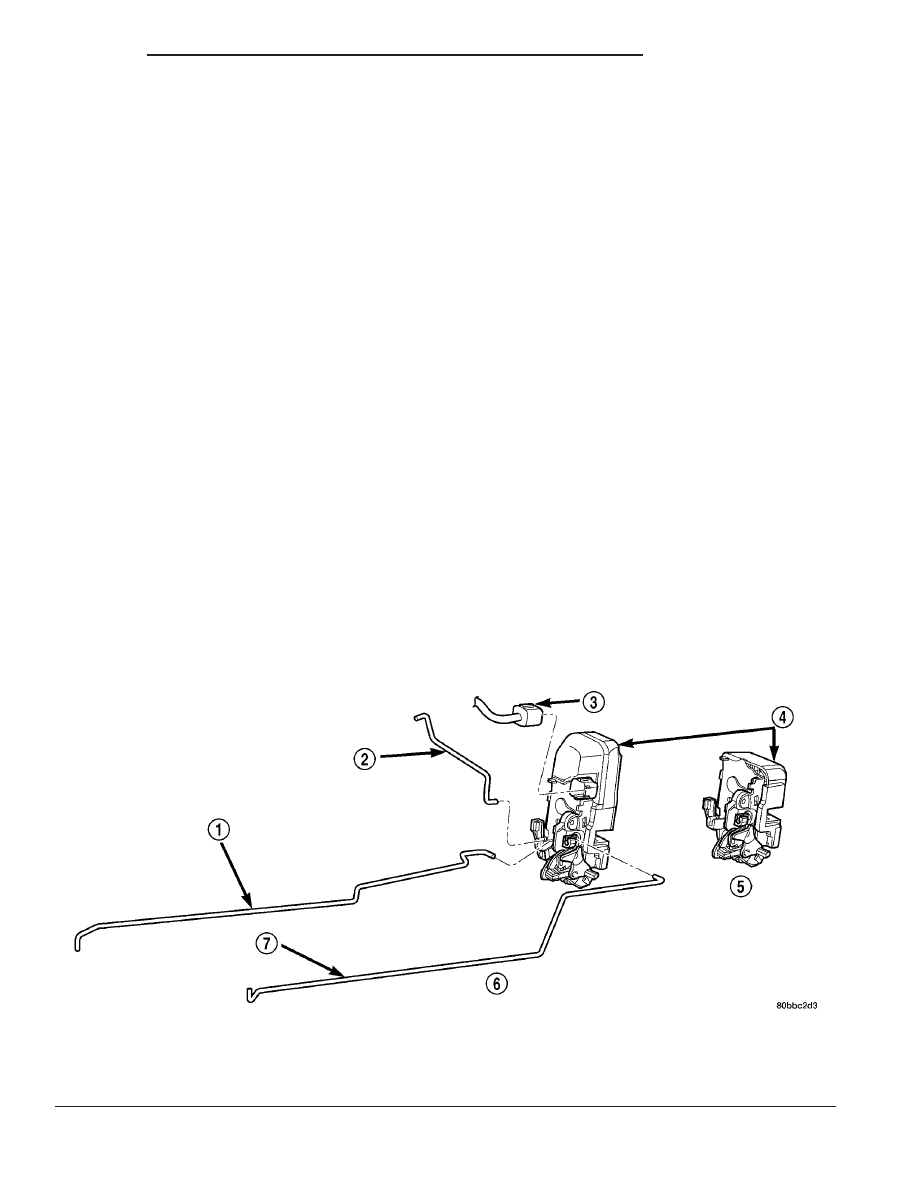

Fig. 8 Front Door Latch

1 - INSIDE LOCK TO LATCH
2 - OUTSIDE HANDLE TO LATCH
3 - POWER DOOR LOCK CONNECTOR
4 - REAR DOOR LATCH

5 - MANUAL
6 - POWER
7 - INSIDE DOOR HANDLE TO LATCH

PL/SRT-4

DOOR - FRONT

23 - 23

FRONT DOOR HINGE (Continued)
