surface of vehicle. Use a 3M Scotch-Brite™ Molding
Adhesive and Stripe Removal Disc, or equivalent, to
clean adhesive residue from painted surfaces. These
products are available from automotive paint suppli-

ers. Refer to instructions supplied with the specific
product for proper usage.

INSTALLATION

INSTALLATION - FRONT AND REAR DOORS

(1) Place applique into position on door (Fig. 1).
(2) Install the screws attaching door applique.

INSTALLATION - LOWER FRONT DOOR

(1) If applique is to be reused (Fig. 2);

(a) Remove tape residue from applique.
(b) Clean back of applique with Mopar

t Super

Kleen, or equivalent.

t TPO Molding

Prep to tape side of molding and allow to dry thor-
oughly.

(e) Apply new body side molding (double sided)

tape to back of applique.

PL/SRT-4

DOOR - FRONT

23 - 17

(2) Clean front door surface with Mopar

t Super

Kleen, or equivalent. Wipe surface dry with lint free
cloth.

(3) Remove protective cover from tape on back of

applique.

(4) Apply molding to front door from front to rear.
(5) Using a roller tool, roll applique onto front door

panel with enough force to assure adhesion. Do not
apply excessive force, or damage to body panels may
result.

CHECK STRAP

REMOVAL

(1) Remove door trim panel and water dam.
(2) Remove bolt attaching check strap to hinge pil-

lar.

(3) Remove door speaker.
(4) Remove glass run.
(5) Remove bolts attaching check strap to door end

frame (Fig. 3).

(6) Remove check strap from vehicle.

INSTALLATION

NOTE: Do not grease check strap.

(1) Position door check on vehicle and install bolts

attaching strap to door end frame.

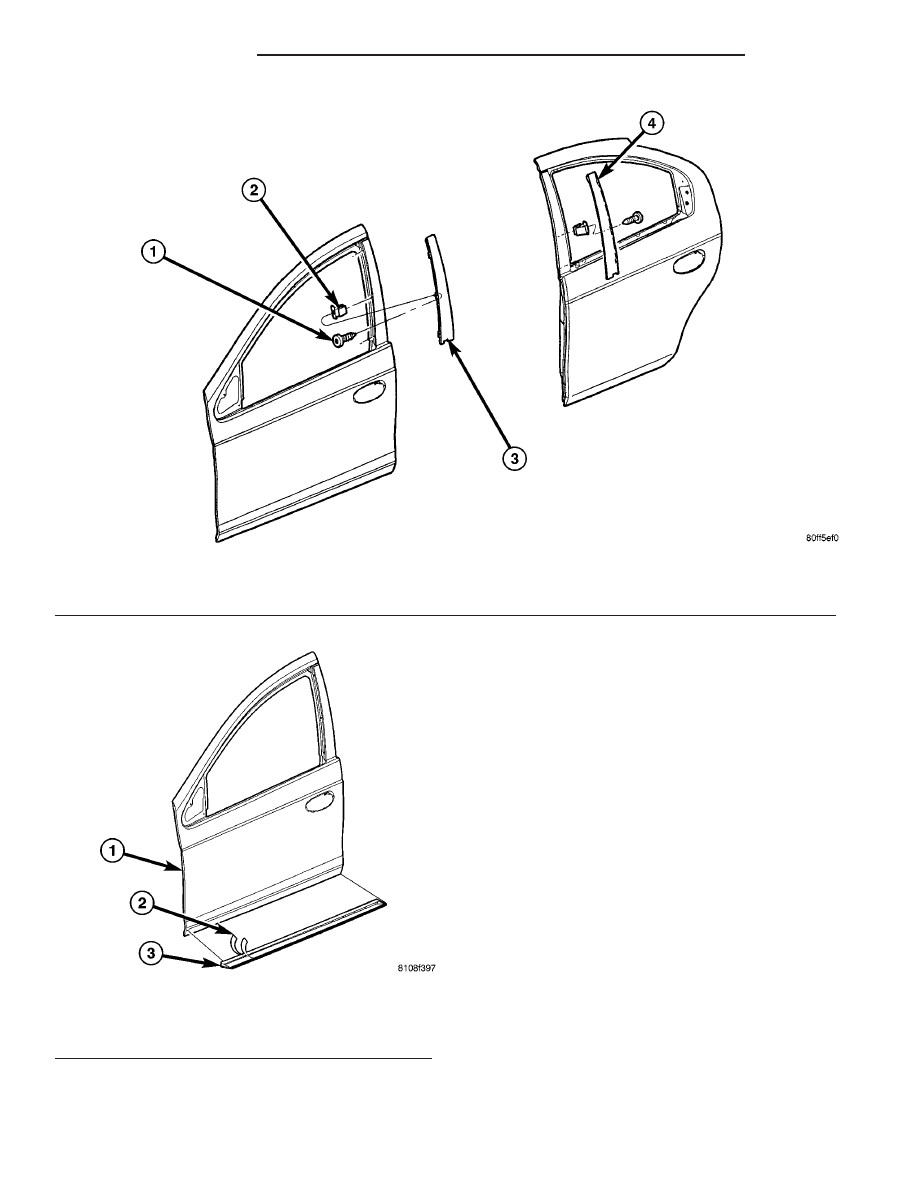

Fig. 1 FRONT AND REAR DOOR APPLIQUE

1 - SCREWS (3 PER APPLIQUE)
2 - SNAP IN SPRING NUTS (3 PER APPLIQUE)

3 - FRONT DOOR APPLIQUE
4 - REAR ROOD APPLIQUE

Fig. 2 LOWER FRONT DOOR APPLIQUE

1 - FRONT DOOR
2 - REMOVING ADHESIVE COVER FROM DOUBLE SIDED TAPE
3 - FRONT DOOR APPLIQUE

23 - 18

DOOR - FRONT

PL/SRT-4

APPLIQUE (Continued)

(2) Install glass run.
(3) Install door speaker, if so equipped.
(4) Install bolt attaching door check strap to hinge

pillar.

(5) Install door trim panel and water dam.

DOOR

REMOVAL

NOTE: The retaining clips used on the door hinge
pins are not to be reused. Verify availability prior to
proceeding.

(1) Open and support door on a suitable lifting

device.

(2) Disconnect wire connector at hinge pillar, if

necessary.

(3) Remove bolts attaching door check strap to

hinge pillar.

(4) Remove bolts attaching lower hinge to door.
(5) Remove bolts attaching upper hinge to door.

(Fig. 4).

(6) Remove door from vehicle.

INSTALLATION

(1) Apply Mopar

t Multi-purpose Grease to inside

of door hinge bushings.

(2) Position door to the hinges on vehicle.
(3) Install bolt into hinge top hole on the right side

or bottom hole left side (smallest hole).

(4) Install bolt into hinge bottom hole on the right

side or top hole left side (slotted hole).

(5) Install bolts attaching door check strap to

hinge pillar.

(6) Connect wire connector at hinge pillar, if nec-

essary.

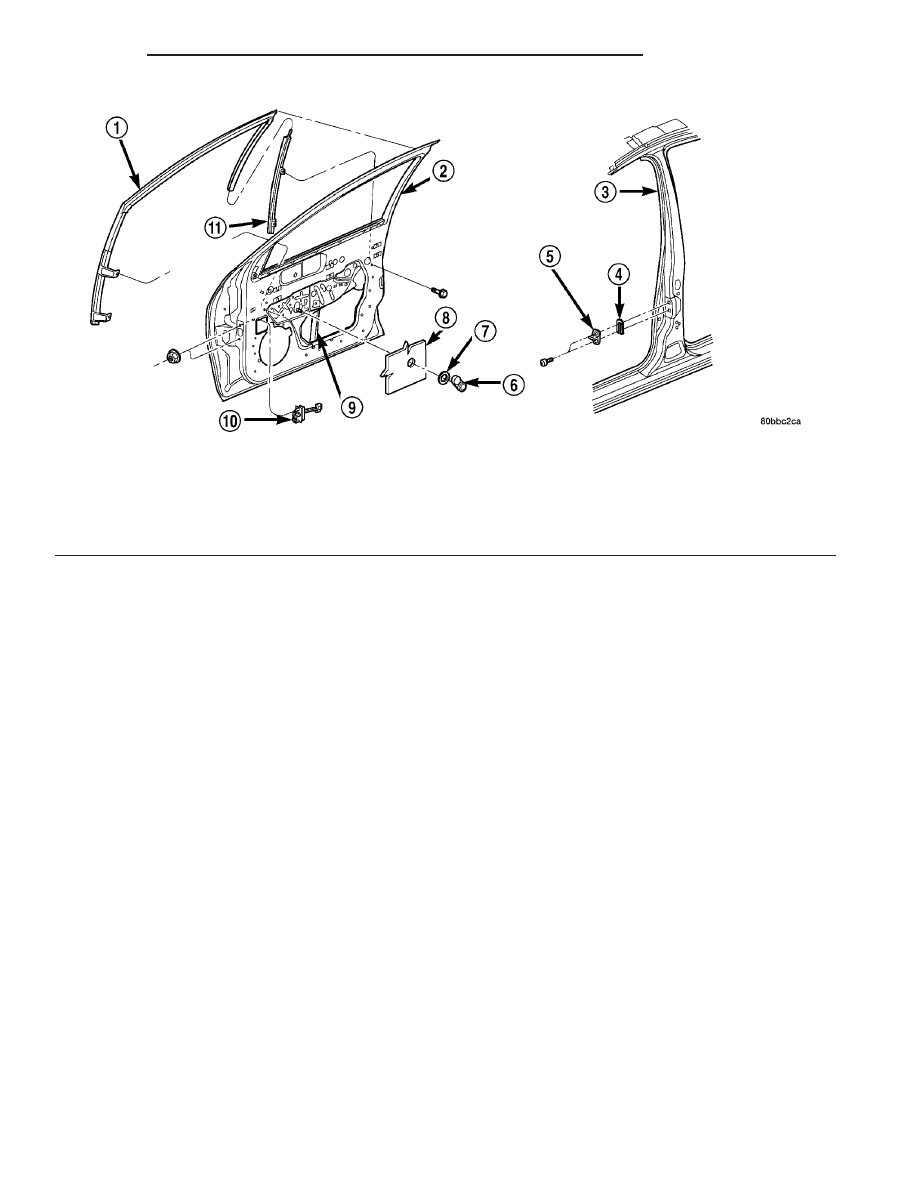

Fig. 3 Front Door Check Strap

1 - FRONT DOOR GLASS RUN WEATHERSTRIP
2 - FRONT DOOR
3 - B-PILLAR
4 - SPACER
5 - DOOR LATCH STRIKER
6 - WINDOW REGULATOR HANDLE

7 - SPACER
8 - DOOR TRIM PANEL
9 - WINDOW REGULATOR
10 - DOOR CHECK STRAP
11 - FRONT DOOR GLASS RUN BRACKET WEATHER

PL/SRT-4

DOOR - FRONT

23 - 19

CHECK STRAP (Continued)
