Dodge Neon / Neon SRT-4. Manual - part 86





HEATED SYSTEMS

TABLE OF CONTENTS

page

page

HEATED GLASS . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

HEATED MIRRORS . . . . . . . . . . . . . . . . . . . . . . . . . 6

HEATED GLASS

TABLE OF CONTENTS

page

page

HEATED GLASS

DESCRIPTION

. . . . . . . . . . . . . . . . . . . . . . . . . . 1

OPERATION

. . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

DIAGNOSIS AND TESTING

ELECTRIC BACKLIGHT (EBL) SYSTEM

. . . . . 2

REAR WINDOW DEFOGGER SWITCH

DESCRIPTION

. . . . . . . . . . . . . . . . . . . . . . . . . . 3

OPERATION

. . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

DIAGNOSIS AND TESTING

REAR WINDOW DEFOGGER SWITCH

. . . . . . 4

REAR WINDOW DEFOGGER GRID

STANDARD PROCEDURE

GRID LINE AND TERMINAL REPAIR

. . . . . . . . 5

HEATED GLASS

DESCRIPTION

CAUTION: Grid lines can be damaged or scraped
off with sharp instruments. Care should be taken in
cleaning

glass

or

removing

foreign

materials,

decals or stickers. Normal glass cleaning solvents
or hot water used with rags or toweling is recom-
mended.

The rear window defogger system, also known as

electric backlight (EBL), consists of two vertical bus
bars linked by a series of grid lines fired onto the
inside surface of the rear window (Fig. 1).

The EBL system is turned On or Off by a control

switch and a timing circuit, which are combined into
a single push-button switch located on the accessory
switch bezel at the center of the instrument panel
(Refer to 8 - ELECTRICAL/HEATED GLASS/DE-
FOGGER SWITCH - DESCRIPTION).

Circuit protection is provided by a fuse located in

the power distribution center (PDC) for the heated
grid circuit, and by a fuse in the junction block (JB)
for the control circuit.

OPERATION

The electric backlight (EBL) system is controlled

by a momentary switch located in the accessory

switch bezel on the instrument panel (Fig. 2). When
the rear window defogger switch is pressed to the On
position, the switch energizes the integral rear win-
dow defogger relay and battery current is then

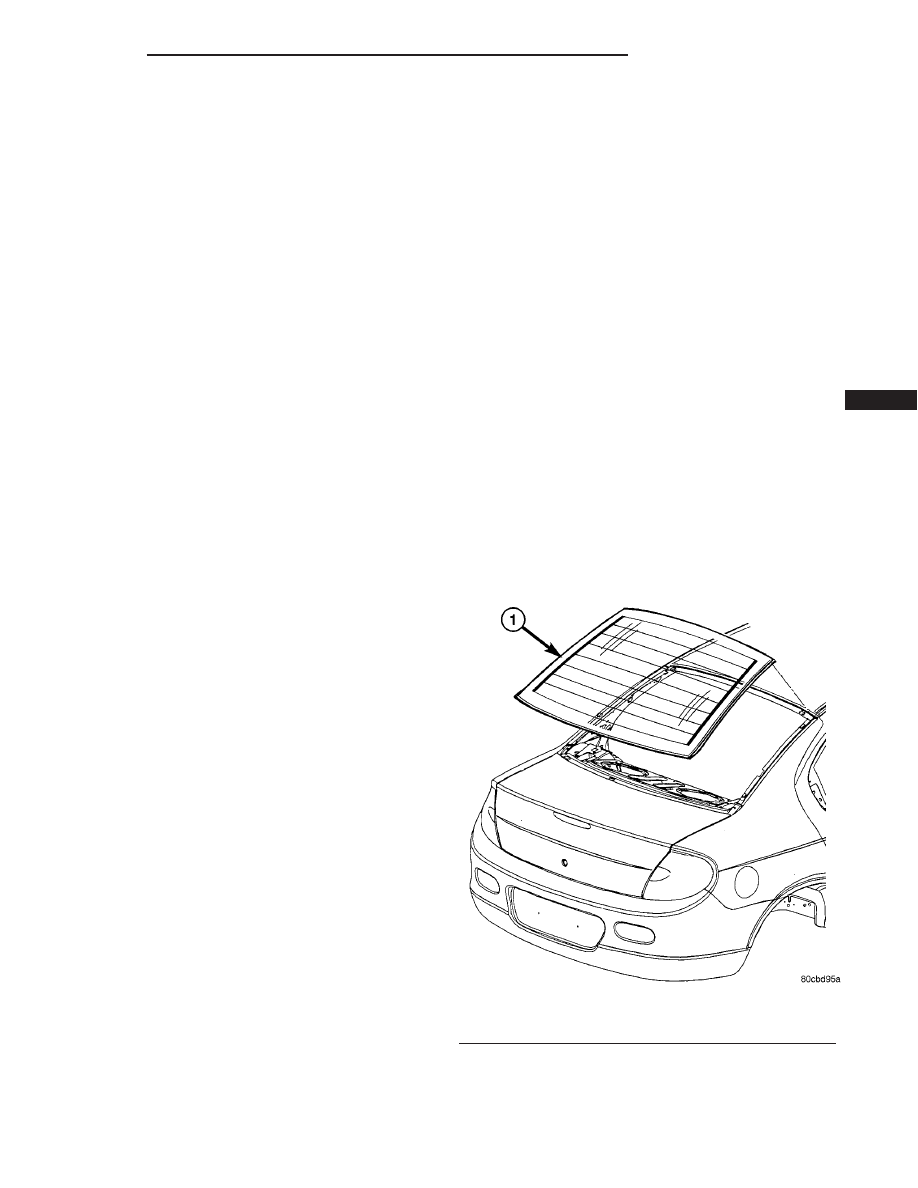

Fig. 1 Rear Window Defogger- Typical

1 - REAR WINDOW DEFOGGER

PL/SRT-4

HEATED SYSTEMS

8G - 1

directed through the integral relay and to the rear
window defogger grid lines and the heated side view
mirrors (if equipped). The grid lines heat the glass to
help clear the rear window and side mirror surfaces
of fog or frost.

An amber indicator in the rear window defogger

switch will illuminate to indicate when the EBL sys-
tem is turned on. The rear window defogger switch
contains the EBL system control circuitry including
the timer logic and the defogger relay.

NOTE: The EBL system turns off automatically after
ten minutes of initial operation. Each following acti-
vation cycle of the EBL system will last five min-
utes.

The EBL system will be automatically turned off

after an initial programmed time interval of about
ten minutes. After the initial time interval has
expired, if the rear window defogger switch is turned
on again during the same ignition cycle, the EBL sys-
tem will automatically turn off after about five min-
utes. The EBL system will automatically shut off if
the ignition switch is turned to the Off position, or it
can be turned off manually by pressing the rear win-
dow defogger switch a second time.

Repair of the rear window defogger grid lines, bus

bars, terminals or pigtail wires can be accomplished
using the Mopar Rear Window Defogger Repair Kit
(Part Number 04549275) or equivalent (Refer to 8 -
ELECTRICAL/HEATED

GLASS/REAR

WINDOW

DEFOGGER GRID - STANDARD PROCEDURE -
GRID LINE AND TERMINAL REPAIR).

DIAGNOSIS AND TESTING

ELECTRIC BACKLIGHT (EBL) SYSTEM

NOTE: Illumination of the defogger switch indicator
lamp does not necessary mean that electrical cur-
rent is reaching the rear glass heating grid lines.

NOTE: For circuit descriptions and diagrams of the
rear window defogger system, refer to 8W - WIRING
DIAGRAM INFORMATION.

Operation of the electric backlight (EBL) system

can be confirmed by the following:

(1) Turn the ignition switch to the On position. Set

the rear window defogger switch to the On position.
The rear window defogger operation can be checked
by feeling the rear window glass surface. A distinct
difference in temperature between the grid lines and
the adjacent clear glass should be detected within
three to four minutes of operation.

(2) If a temperature difference is not detected, use

a 12-volt DC voltmeter and contact the rear glass
heating grid terminal B with the negative lead, and
terminal A with the positive lead (Fig. 3). The volt-
meter should read battery voltage. If the voltmeter
does not read battery voltage, check the following:

• Confirm that the ignition switch is in the On

position.

• Make sure that the rear glass heating grid feed

wire and ground wire are connected to the terminals.
Confirm that the ground wire has continuity to
ground.

• Check the circuit fuse located in the power dis-

tribution center (PDC) and the control circuit fuse in
the junction block (JB). The fuses must be tight in
their receptacles and all electrical connections must
be secure.

(3) When the above steps have been completed and

the rear glass heating grid is still inoperative, one or
more of the following is faulty:

• Rear window defogger switch.

• Check for a loose wire connector or a wire

pushed out of a connector.

• Rear window grid lines (all grid lines would

have to be broken, or the power feed or ground wire
not connected, for the entire heating grid to be inop-
erative).

(4) If EBL system operation has been verified but

rear window defogger switch LED indicator does not
illuminate, replace the switch.

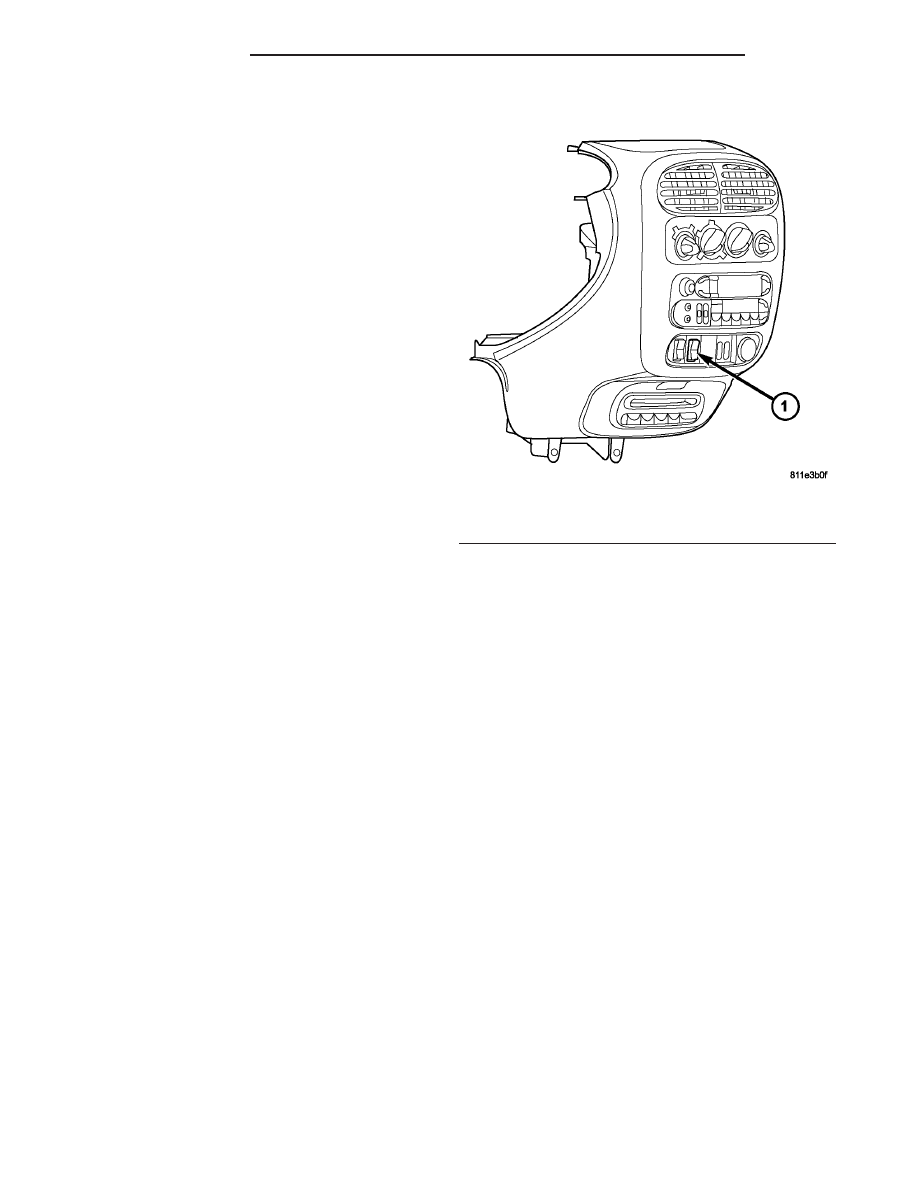

Fig. 2 Rear Window Defogger Switch - Typical

1 - ACCESSORY SWITCH BEZEL

8G - 2

HEATED GLASS

PL/SRT-4

HEATED GLASS (Continued)

(5) If broken defogger grid lines are suspected, use

a 12-volt DC voltmeter and contact terminal B with
the negative lead and each rear glass heating grid
line at its mid-point with the positive lead. The volt-
meter should read approximately 6 volts at each grid
line mid-point C. If the voltmeter does not read
approximately 6 volts, repair the open grid line(s)
(Refer to 8 - ELECTRICAL/HEATED GLASS/REAR
WINDOW DEFOGGER GRID - STANDARD PROCE-
DURE).

REAR WINDOW DEFOGGER
SWITCH

DESCRIPTION

The switch for the rear window defogger (EBL)

system is located in the accessory switch bezel (Fig.
4). When the rear window defogger switch is acti-
vated, the timing circuit and relay integral to the
switch operate the EBL system.

When the integral relay is activated, current is

directed to the rear defogger grid lines and to the
heated side view mirrors (if equipped). The grid lines
heat the glass to help clear the surface of fog or frost.

OPERATION

An LED indicator will illuminate when the rear

window defogger switch is activated. When the
switch is activated, it energizes the integral timing

circuit, which then activates the integral rear win-
dow defogger relay. The integral relay controls the
current flow to the grids of the rear window defogger
and to the heated side view mirrors, when equipped.

NOTE: The EBL system turns off automatically after
ten minutes of initial operation. Each following acti-
vation cycle of the EBL system will last five min-
utes.

The EBL system will initially be on for approxi-

mately ten minutes or until the rear window defog-
ger switch or the ignition switch is turned off. After
the initial time interval has expired, if the defogger
switch is turned On again during the same ignition
cycle, the EBL system will automatically turn off
after about five minutes.

The rear window defogger switch and the rear win-

dow defogger LED indicator cannot be repaired and,
if faulty or damaged, the switch must be replaced.

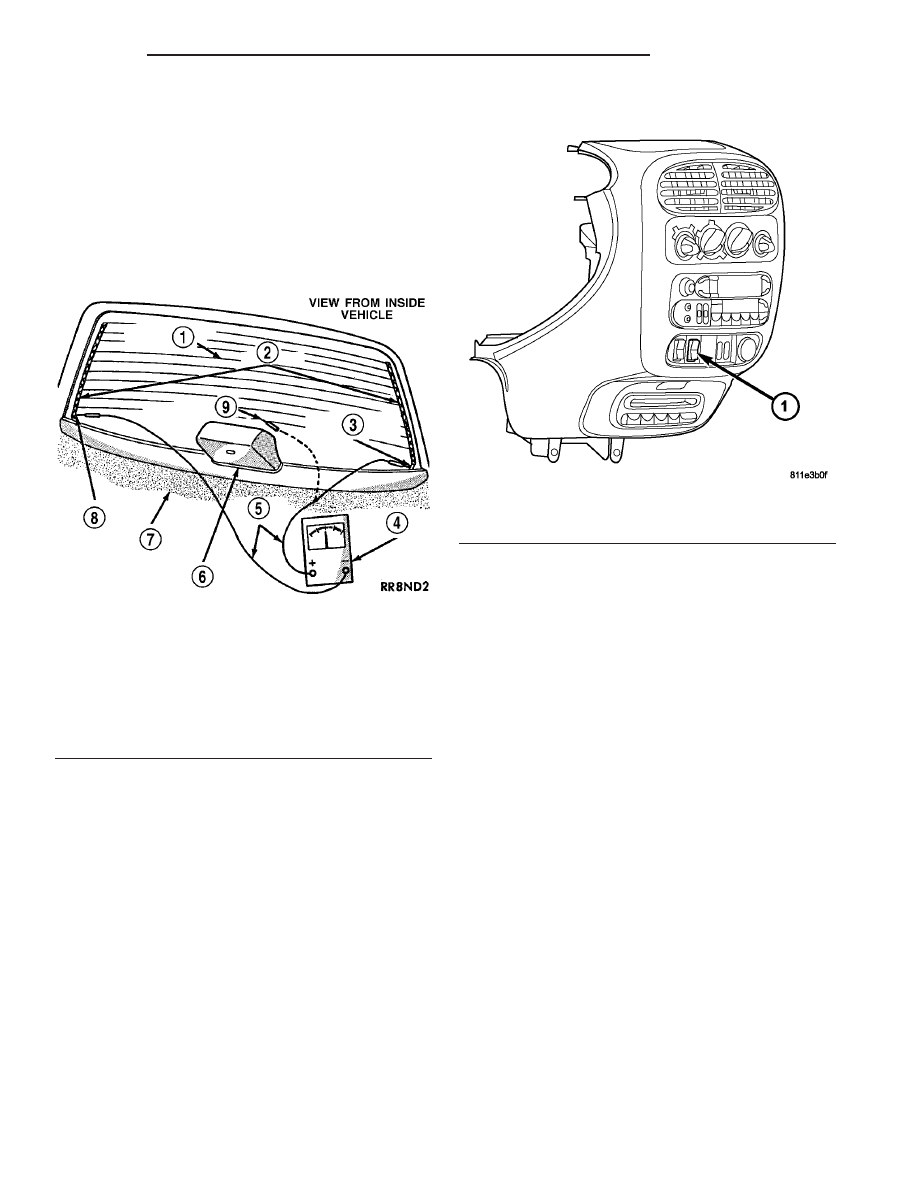

Fig. 3 Grid Line Test - Typical

1 - REAR WINDOW DEFOGGER
2 - BUS BARS
3 - VOLTAGE FEED “A”
4 - VOLTMETER
5 - PICK-UP LEADS
6 - C.H.M.S.L. TRIM COVER
7 - PARCEL SHELF
8 - GROUND “B”
9 - MID-POINT “C”

Fig. 4 Rear Window Defogger Switch - Typical

1 - ACCESSORY SWITCH BEZEL

PL/SRT-4

HEATED GLASS

8G - 3

HEATED GLASS (Continued)
