Dodge Caliber. Manual - part 823





3.

CAMSHAFT 1/2 POSITION SENSOR

Turn the ignition off.

Disconnect the Camshaft 1/2 Position Sensor harness connector.

Turn the ignition on.

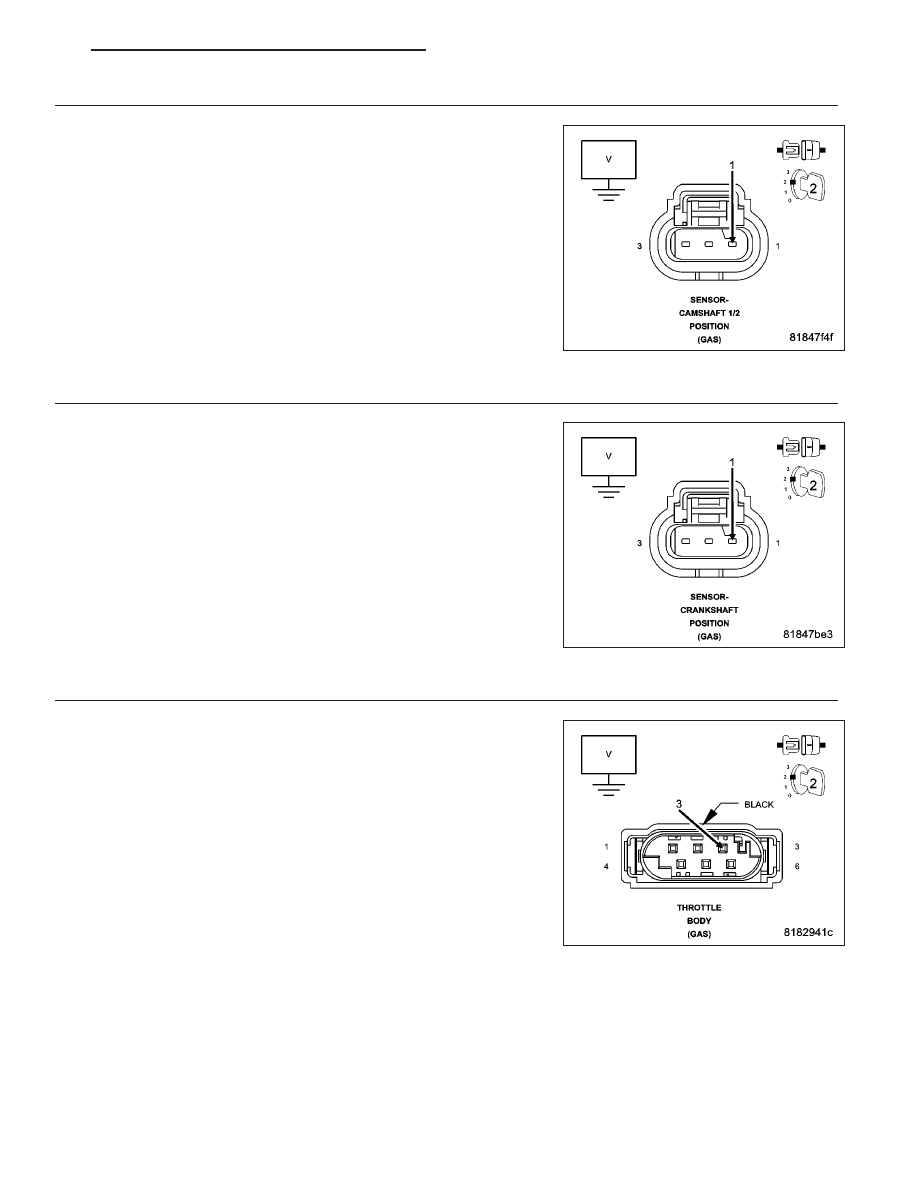

Measure the voltage of the (F855) 5 Volt Supply circuit.

Is the voltage above 4.6 volts?

Yes

>> Replace the Camshaft 1/2 Position Sensor.

Perform the PCM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING)

No

>> Go to 4

4.

CRANKSHAFT POSITION SENSOR

Turn the ignition off.

Disconnect the Crankshaft Position Sensor harness connector.

Turn the ignition on.

Measure the voltage of the (F855) 5 Volt Supply circuit.

Is the voltage above 4.6 volts?

Yes

>> Replace the Crankshaft Position Sensor.

Perform the PCM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING)

No

>> Go to 5

5.

THROTTLE POSITION SENSOR

Turn the ignition off.

Disconnect the Throttle Body harness connector.

Turn the ignition on.

Measure the voltage of the (F855) 5 Volt Supply circuit.

Is the voltage above 4.6 volts?

Yes

>> Replace the Throttle Body in accordance with the Service

Information.

Perform the PCM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING)

No

>> Go to 6

PM

ENGINE ELECTRICAL DIAGNOSTICS - GPEC

9 - 579

6.

VEHICLE EQUIPPED WITH MANUAL TRANSMISSION

Is the vehicle equipped with a manual transmission?

Yes

>> Go to 7

No

>> Go to 8

7.

VEHICLE SPEED SENSOR

NOTE: Only vehicles equipped with a manual transmission will use a Vehicle Speed Sensor.
Turn the ignition off.

Disconnect the Vehicle Speed Sensor harness connector.

Turn the ignition on.

Measure the voltage of the (F856) 5 Volt Supply circuit.

Is the voltage above 4.6 volts?

Yes

>> Replace the Vehicle Speed Sensor.

Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING)

No

>> Go to 8

8.

5-VOLT SUPPLY CIRCUIT SHORTED TO GROUND

Turn the ignition off.

Disconnect the PCM harness connectors.

Measure the resistance between ground and the (F855) 5 Volt Supply
circuit.

Measure the resistance between ground and the (F856) 5 Volt Supply
circuit.

Is the resistance above 1000 ohms for both circuits?

Yes

>> Go to 9

No

>> Repair the 5 Volt Supply circuit for a short to ground.

Perform the PCM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING)

9 - 580

ENGINE ELECTRICAL DIAGNOSTICS - GPEC

PM

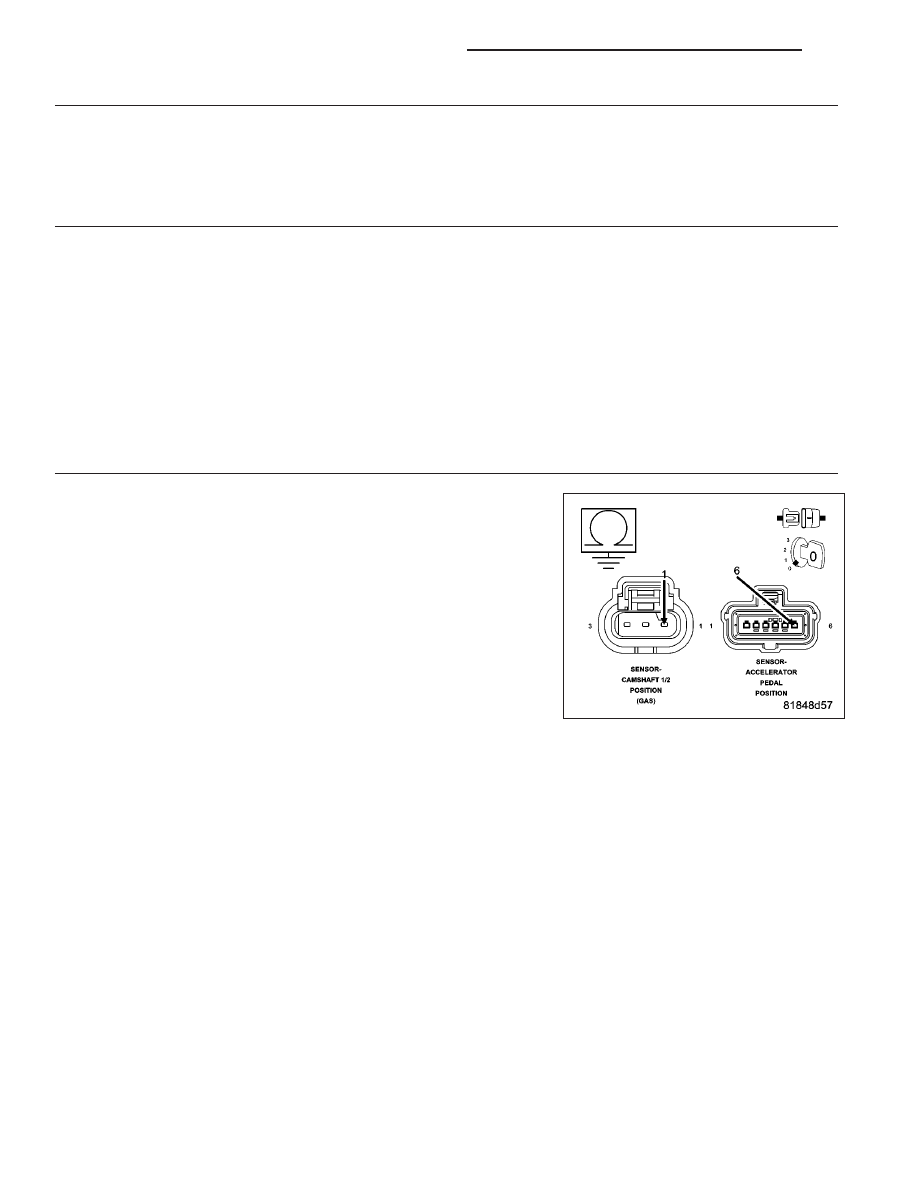

9.

POWERTRAIN CONTROL MODULE (PCM)

Inspect the (F855) 5 Volt Supply circuit between the Camshaft 1/2 Position Sensor harness connector and the PCM
harness connector.

Inspect the (F855) 5 Volt Supply circuit between the Crankshaft Position Sensor harness connector and the PCM
harness connector.

Inspect the (F855) 5 Volt Supply circuit between the Throttle Body harness connector and the PCM harness con-
nector.

Inspect the (F856) 5 Volt Supply circuit between the Accelerator Pedal Position Sensor harness connector and the
PCM harness connector.

If the vehicle is equipped with a manual transmission, inspect the (F856) 5 Volt Supply circuit between the Vehicle
Speed Sensor harness connector and the PCM harness connector.

Look for any chafed, pierced, pinched, or partially broken wires.

Look for broken, bent, pushed out or corroded terminals.

Refer to any Technical Service Bulletins that may apply.

Were any problems found?

Yes

>> Repair as necessary.

Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING)

No

>> Replace the PCM in accordance with the Service Information.

Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING)

PM

ENGINE ELECTRICAL DIAGNOSTICS - GPEC

9 - 581

P0643-SENSOR REFERENCE VOLTAGE 1 CIRCUIT HIGH

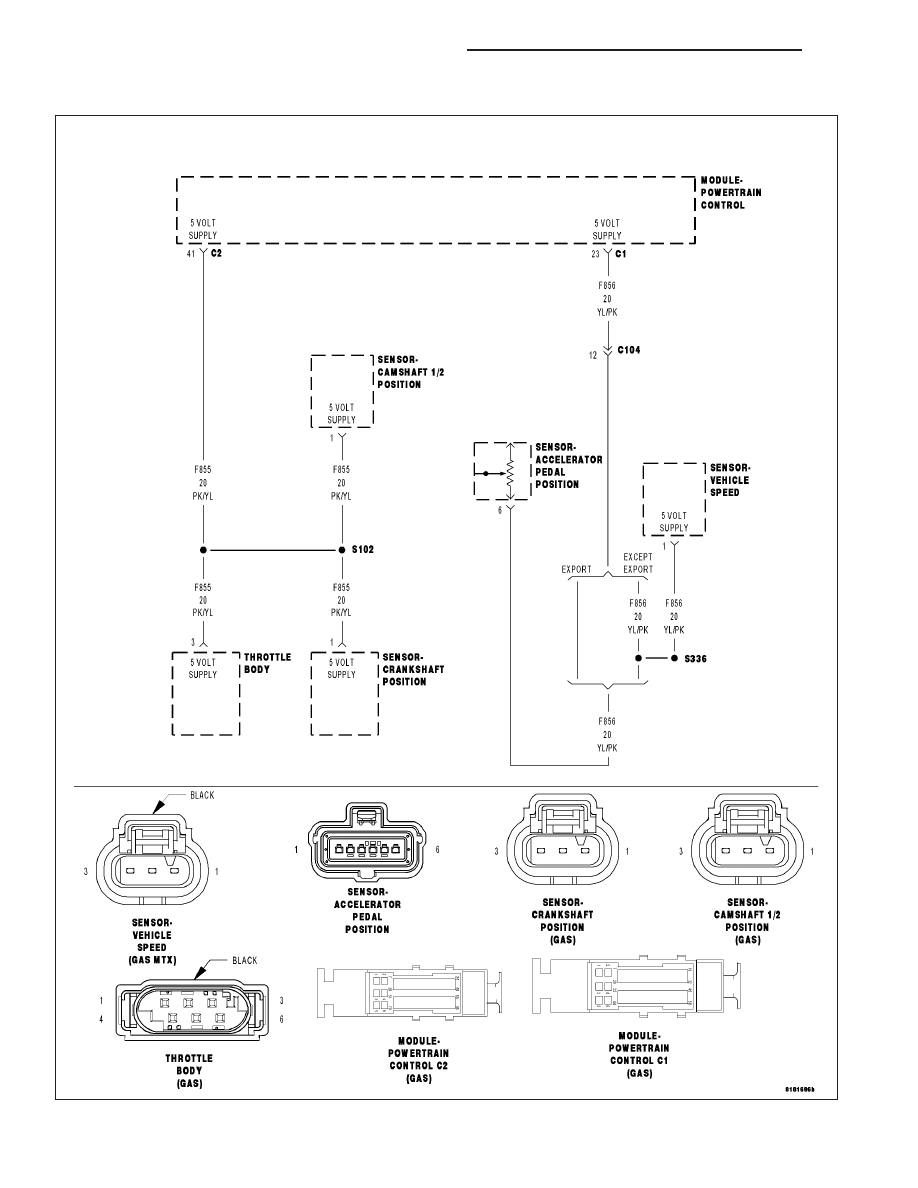

For a complete wiring diagram Refer to Section 8W
