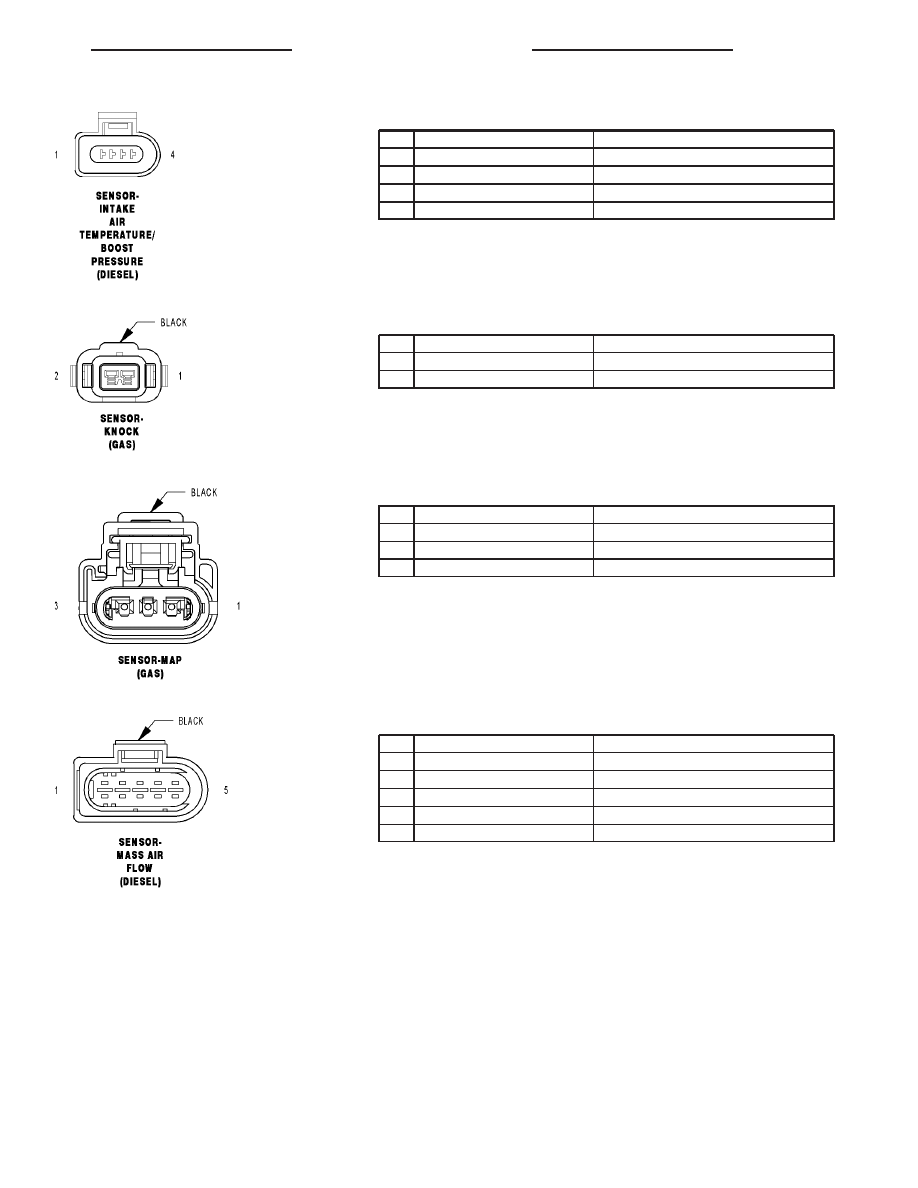

SENSOR-INTAKE AIR TEMPERATURE/BOOST PRESSURE (DIESEL) - BLACK 4 WAY

CAV

CIRCUIT

FUNCTION

1

K656 20GY/BR

SENSOR GROUND

2

K48 20DB/WT

IAT SENSOR SIGNAL

3

K854 20VT/BR

5 VOLT SUPPLY

4

K37 20BR/OR

BOOST PRESSURE SENSOR SIGNAL

SENSOR-KNOCK (GAS) - BLACK 2 WAY

CAV

CIRCUIT

FUNCTION

1

K42 20DB/LG

KS SIGNAL

2

K942 20WT/BR

KS RETURN

SENSOR-MAP (GAS) - BLACK 3 WAY

CAV

CIRCUIT

FUNCTION

1

K1 20VT/BR

MAP SIGNAL

2

K900 20DB/DG

SENSOR GROUND

3

K857 20BR/LG

5 VOLT SUPPLY

SENSOR-MASS AIR FLOW (DIESEL) - BLACK 5 WAY

CAV

CIRCUIT

FUNCTION

1

-

-

2

K344 18BR/GY

FUSED MAIN RELAY OUTPUT

3

K957 20BR/OR

MAF SENSOR GROUND

4

F855 20PK/YL

5 VOLT SUPPLY

5

K157 20BR/OR

MAF SENSOR SIGNAL

PM

8W-80 CONNECTOR PIN-OUTS

8W - 80 - 89

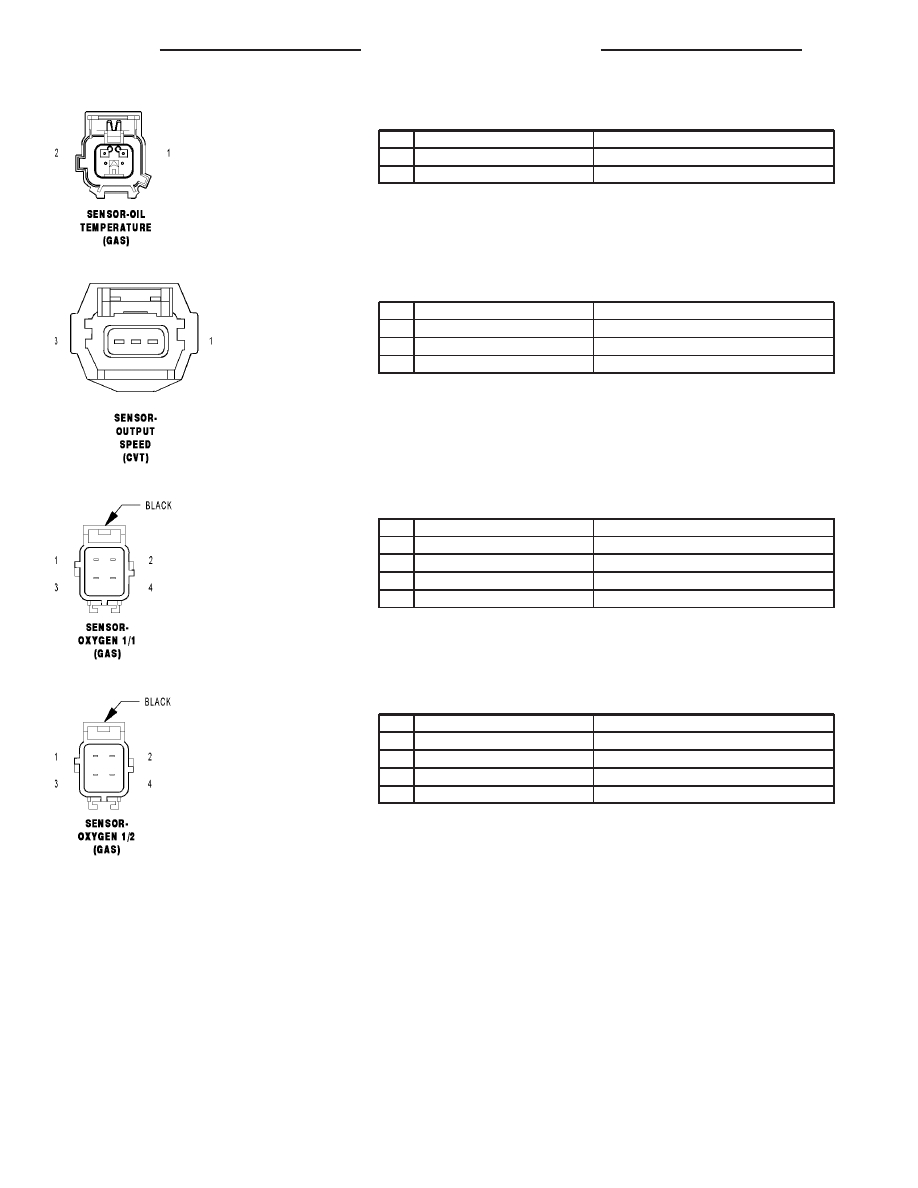

SENSOR-OIL TEMPERATURE (GAS) - BLACK 2 WAY

CAV

CIRCUIT

FUNCTION

1

G24 20VT/BR

EOT SIGNAL

2

K915 20BR/WT

SENSOR GROUND

SENSOR-OUTPUT SPEED (CVT) - BLACK 3 WAY

CAV

CIRCUIT

FUNCTION

1

T16 18YL/OR

TRANSMISSION CONTROL OUTPUT

2

T52 18DG/WT

OUTPUT SPEED SENSOR SIGNAL

3

T130 18TN/DG

OUTPUT SPEED SENSOR GROUND

SENSOR-OXYGEN 1/1 (GAS) - GRAY 4 WAY

CAV

CIRCUIT

FUNCTION

1

Z916 18BK

GROUND

2

K99 20BR/OR

O2 1/1 HEATER CONTROL

3

K902 20BR/DG

O2 1/1 RETURN

4

K41 20BK/DG

O2 1/1 SIGNAL

SENSOR-OXYGEN 1/2 (GAS) - BLACK 4 WAY

CAV

CIRCUIT

FUNCTION

1

Z924 18BK/LB

GROUND

2

K299 20BR/RD

O2 1/2 HEATER CONTROL

3

K904 20DB/DG

O2 1/2 RETURN

4

K141 20DB/YL

O2 1/2 SIGNAL

8W - 80 - 90

8W-80 CONNECTOR PIN-OUTS

PM

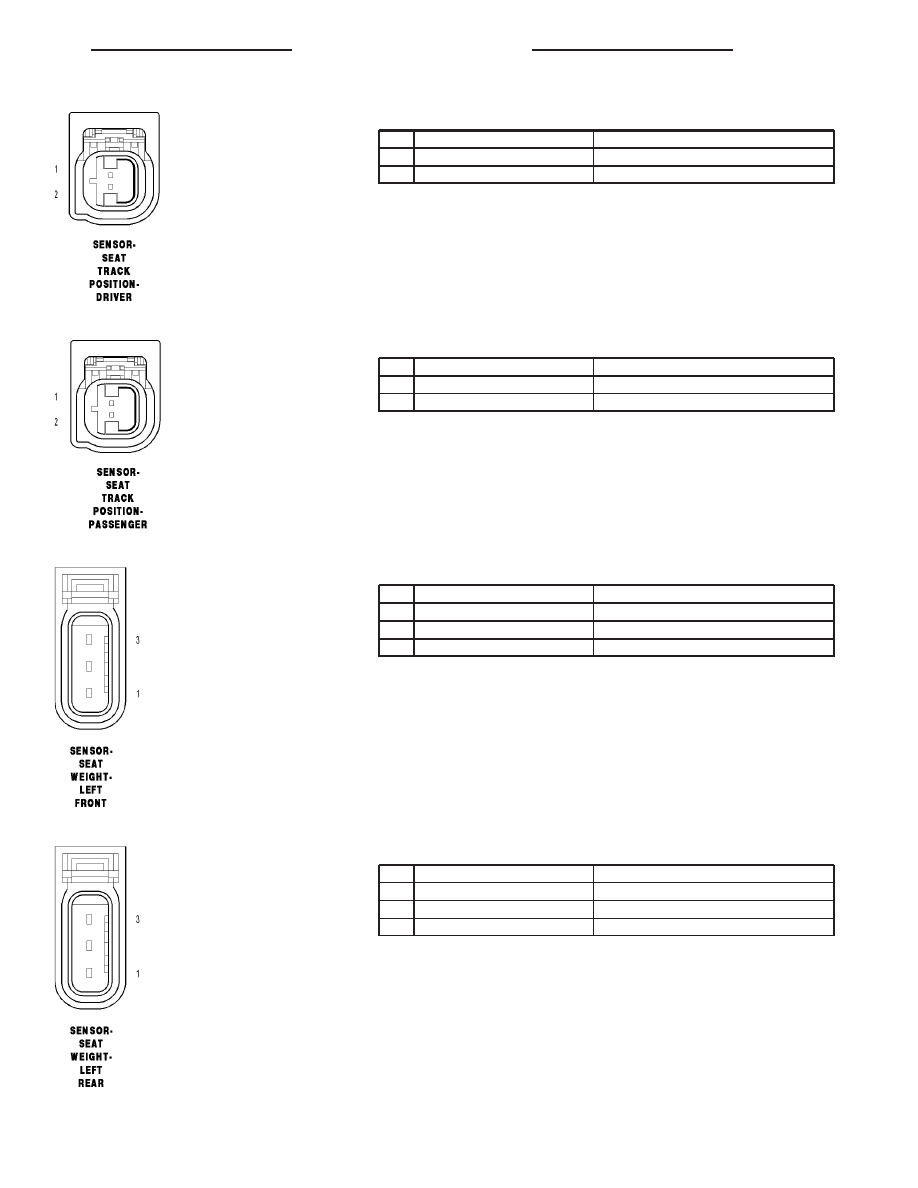

SENSOR-SEAT TRACK POSITION-DRIVER - DK. GRAY 2 WAY

CAV

CIRCUIT

FUNCTION

1

R261 20LB/WT

DRIVER SEAT POSITION SENSOR DATA

2

R263 20LB/VT

DRIVER SEAT POSITION SENSOR VOLTAGE

SENSOR-SEAT TRACK POSITION-PASSENGER - DK. GRAY 2 WAY

CAV

CIRCUIT

FUNCTION

1

R262 20WT/LB

PASSENGER SEAT POSITION SENSOR DATA

2

R264 20VT/LB

PASSENGER SEAT POSITION SENSOR VOLTAGE

SENSOR-SEAT WEIGHT-LEFT FRONT - BLACK 3 WAY

CAV

CIRCUIT

FUNCTION

1

R728 20LB/YL

SEAT WEIGHT SENSOR GROUND

2

R717 20LG/DG

SEAT WEIGHT LEFT FRONT SENSOR SIGNAL

3

R701 20LG

SEAT WEIGHT SENSOR 5 VOLT

SENSOR-SEAT WEIGHT-LEFT REAR - BLACK 3 WAY

CAV

CIRCUIT

FUNCTION

1

R728 20LB/YL

SEAT WEIGHT SENSOR GROUND

2

R705 20LG/OR

SEAT WEIGHT LEFT REAR SENSOR SIGNAL

3

R701 20LG

SEAT WEIGHT SENSOR 5 VOLT

PM

8W-80 CONNECTOR PIN-OUTS

8W - 80 - 91

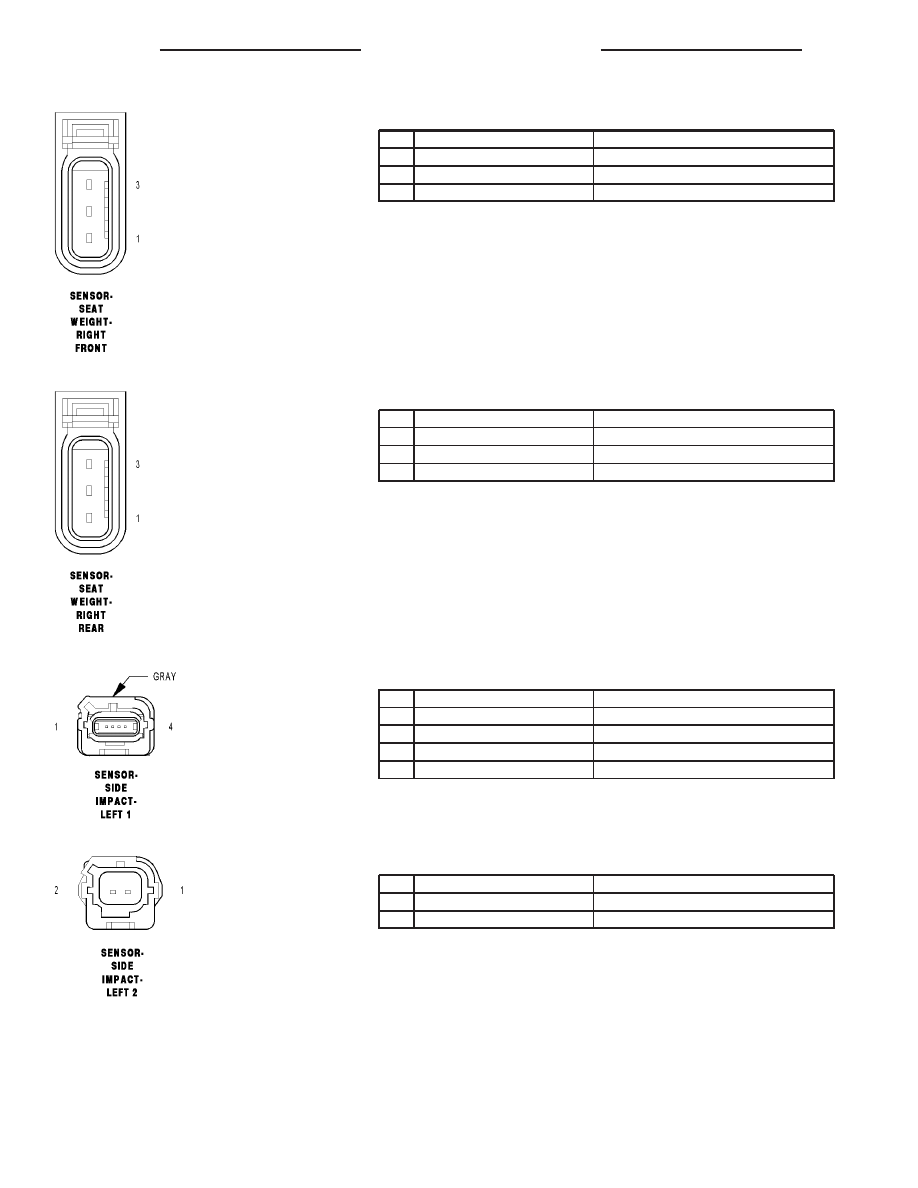

SENSOR-SEAT WEIGHT-RIGHT FRONT - BLACK 3 WAY

CAV

CIRCUIT

FUNCTION

1

R728 20LB/YL

SEAT WEIGHT SENSOR GROUND

2

R718 20LB/DG

SEAT WEIGHT RIGHT FRONT SENSOR SIGNAL

3

R701 20LG

SEAT WEIGHT SENSOR 5 VOLT

SENSOR-SEAT WEIGHT-RIGHT REAR - BLACK 3 WAY

CAV

CIRCUIT

FUNCTION

1

R728 20LB/YL

SEAT WEIGHT SENSOR GROUND

2

R706 20LB/OR

SEAT WEIGHT RIGHT REAR SENSOR SIGNAL

3

R701 20LG

SEAT WEIGHT SENSOR 5 VOLT

SENSOR-SIDE IMPACT-LEFT 1 - YELLOW 4 WAY

CAV

CIRCUIT

FUNCTION

1

R13 20LG/TN

LEFT SIDE IMPACT SENSOR 1 SIGNAL

2

R15 20LG/BR

LEFT SIDE IMPACT SENSOR 1 GROUND

3

R19 20LG/WT

LEFT SIDE IMPACT SENSOR 2 GROUND

4

R17 20LG

LEFT SIDE IMPACT SENSOR 2 SIGNAL

SENSOR-SIDE IMPACT-LEFT 2 - YELLOW 2 WAY

CAV

CIRCUIT

FUNCTION

1

R19 20LG/WT

LEFT SIDE IMPACT SENSOR 2 GROUND

2

R17 20LG

LEFT SIDE IMPACT SENSOR 2 SIGNAL

8W - 80 - 92

8W-80 CONNECTOR PIN-OUTS

PM
