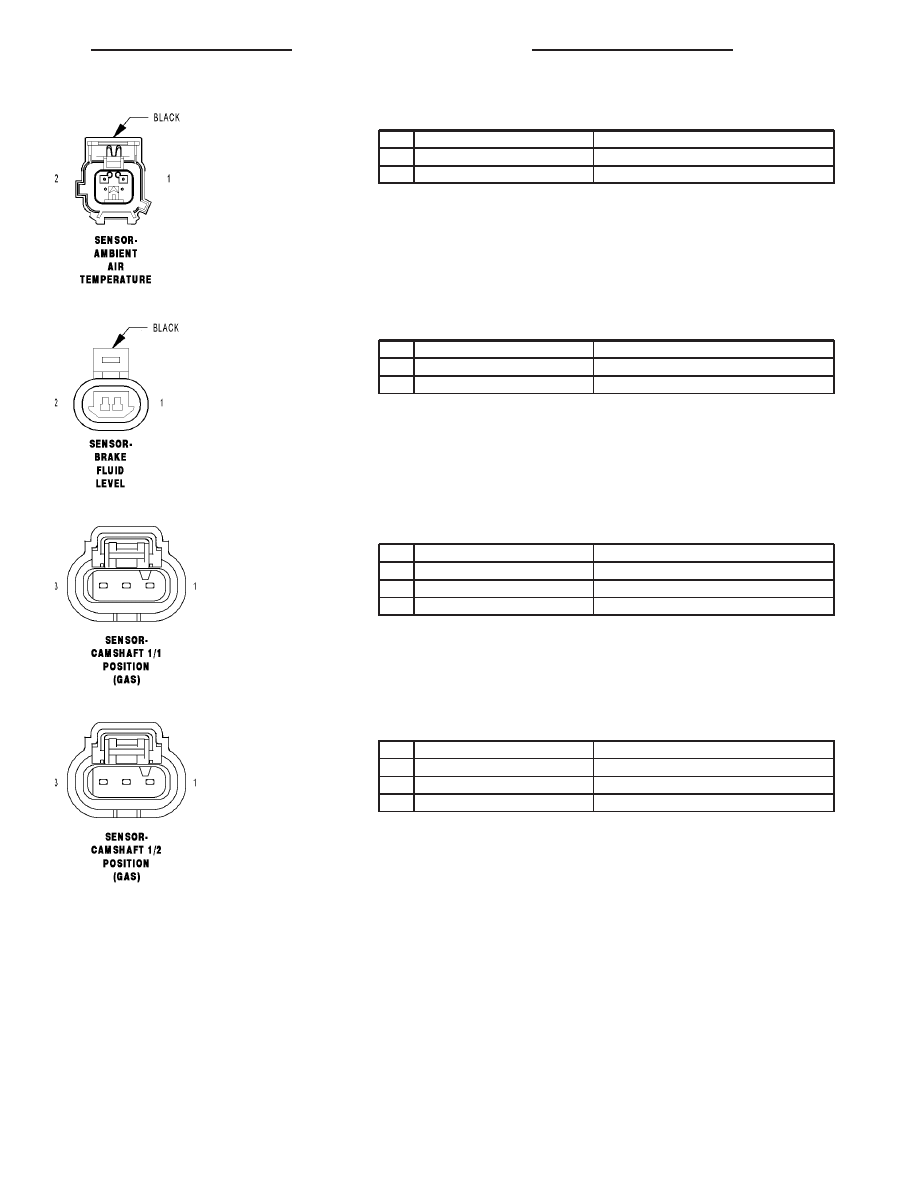

SENSOR-AMBIENT AIR TEMPERATURE - BLACK 2 WAY

CAV

CIRCUIT

FUNCTION

1

G31 20VT/LG

AAT SIGNAL

2

G931 20VT/DB

AAT RETURN

SENSOR-BRAKE FLUID LEVEL - BLACK 2 WAY

CAV

CIRCUIT

FUNCTION

1

B20 20DG/RD

BRAKE FLUID LEVEL SWITCH SENSE

2

Z925 20BK/YL

GROUND

SENSOR-CAMSHAFT 1/1 POSITION (GAS) - BLACK 3 WAY

CAV

CIRCUIT

FUNCTION

1

K857 20BR/LG

5 VOLT SUPPLY

2

K900 20DB/DG

SENSOR GROUND

3

K44 20DB/GY

CMP 1/1 SIGNAL

SENSOR-CAMSHAFT 1/2 POSITION (GAS) - BLACK 3 WAY

CAV

CIRCUIT

FUNCTION

1

F855 20PK/YL

5 VOLT SUPPLY

2

K915 20BR/WT

SENSOR GROUND

3

K441 20DB/BR

CMP 1/2 SIGNAL

PM

8W-80 CONNECTOR PIN-OUTS

8W - 80 - 85

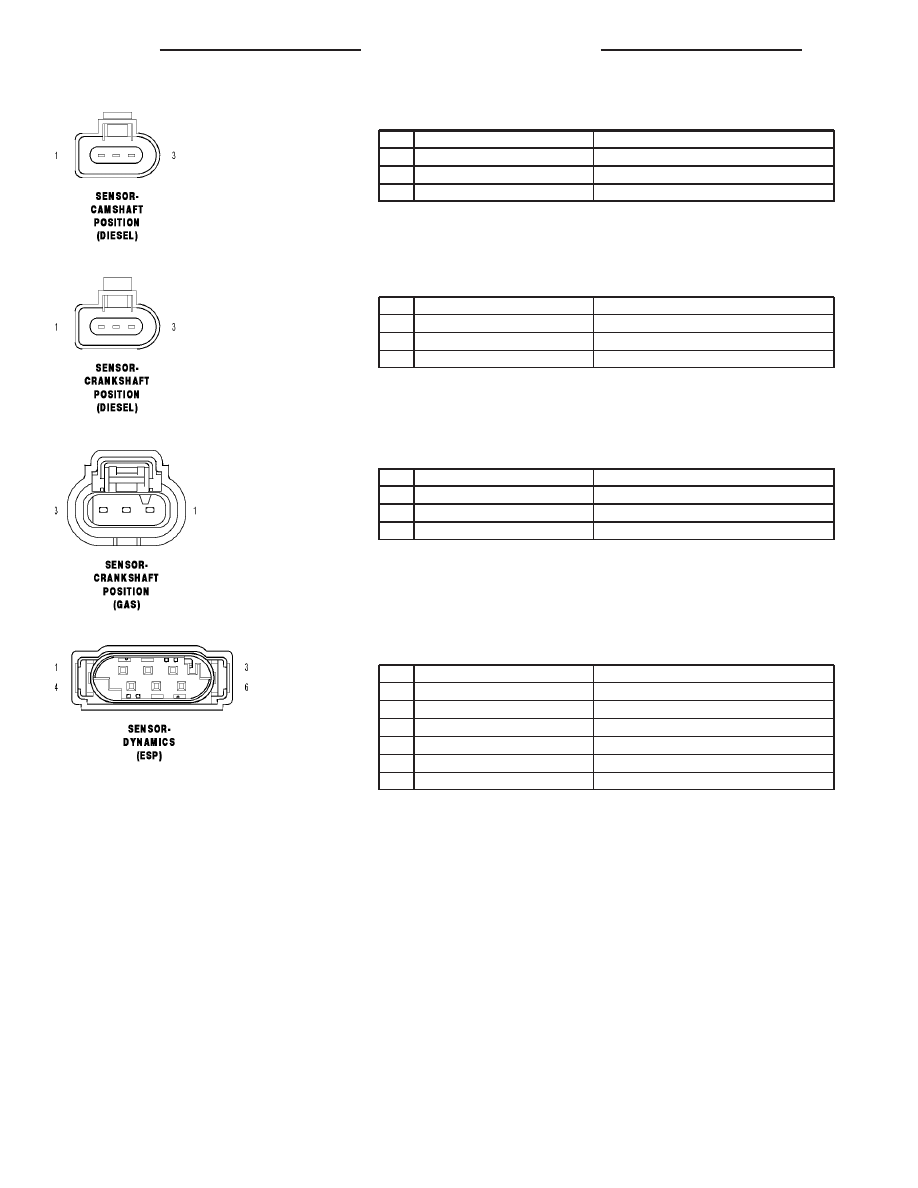

SENSOR-CAMSHAFT POSITION (DIESEL) - BLACK 3 WAY

CAV

CIRCUIT

FUNCTION

1

K844 20DB/YL

CMP SENSOR 5 VOLT SUPPLY

2

K44 20DB/GY

CMP 1/1 SIGNAL

3

K944 20BK/GY

CMP SENSOR GROUND

SENSOR-CRANKSHAFT POSITION (DIESEL) - BLACK 3 WAY

CAV

CIRCUIT

FUNCTION

1

K853 20DB/BR

CKP SENSOR 5 VOLT SUPPLY

2

K24 20BR/LB

CKP SENSOR SIGNAL

3

K925 20DB/WT

CKP SENSOR GROUND

SENSOR-CRANKSHAFT POSITION (GAS) - 3 WAY

CAV

CIRCUIT

FUNCTION

1

F855 20PK/YL

5 VOLT SUPPLY

2

K900 20DB/DG

SENSOR GROUND

3

K24 20BR/LB

CKP SIGNAL

SENSOR-DYNAMICS (ESP) - BLACK 6 WAY

CAV

CIRCUIT

FUNCTION

1

D464 20WT/YL

DYNAMICS SENSOR LOW DATA LINK

2

D465 20WT/DB

DYNAMICS SENSOR HIGH DATA LINK

3

G4 18VT/LB

DYNAMICS SENSOR SUPPLY

4

-

-

5

G94 18VT/DB

DYNAMICS SENSOR GROUND

6

-

-

8W - 80 - 86

8W-80 CONNECTOR PIN-OUTS

PM

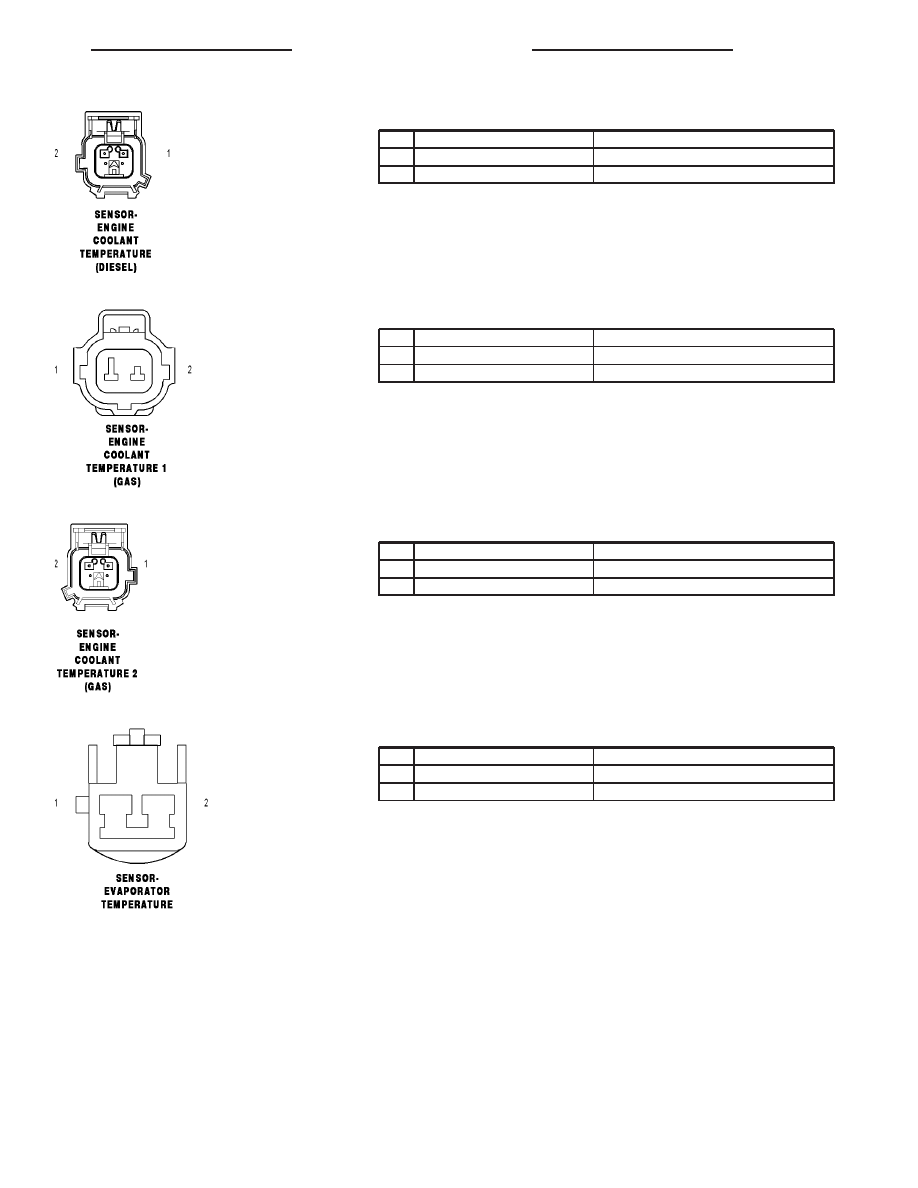

SENSOR-ENGINE COOLANT TEMPERATURE (DIESEL) - BLACK 2 WAY

CAV

CIRCUIT

FUNCTION

1

K2 20VT/OR

ECT 1 SIGNAL

2

K915 20BR/WT

SENSOR GROUND

SENSOR-ENGINE COOLANT TEMPERATURE 1 (GAS) - DK. GRAY 2 WAY

CAV

CIRCUIT

FUNCTION

1

K900 20DB/DG

SENSOR GROUND

2

K2 20VT/OR

ECT 1 SIGNAL

SENSOR-ENGINE COOLANT TEMPERATURE 2 (GAS) - BLACK 2 WAY

CAV

CIRCUIT

FUNCTION

1

K915 20BR/WT

SENSOR GROUND

2

K222 20BR/YL

ECT 2 SIGNAL

SENSOR-EVAPORATOR TEMPERATURE - NATURAL 2 WAY

CAV

CIRCUIT

FUNCTION

1

C21 20DB/LG

EVAPORATOR TEMPERATURE SENSOR SIGNAL

2

C121 20DB/DG

SENSOR GROUND

PM

8W-80 CONNECTOR PIN-OUTS

8W - 80 - 87

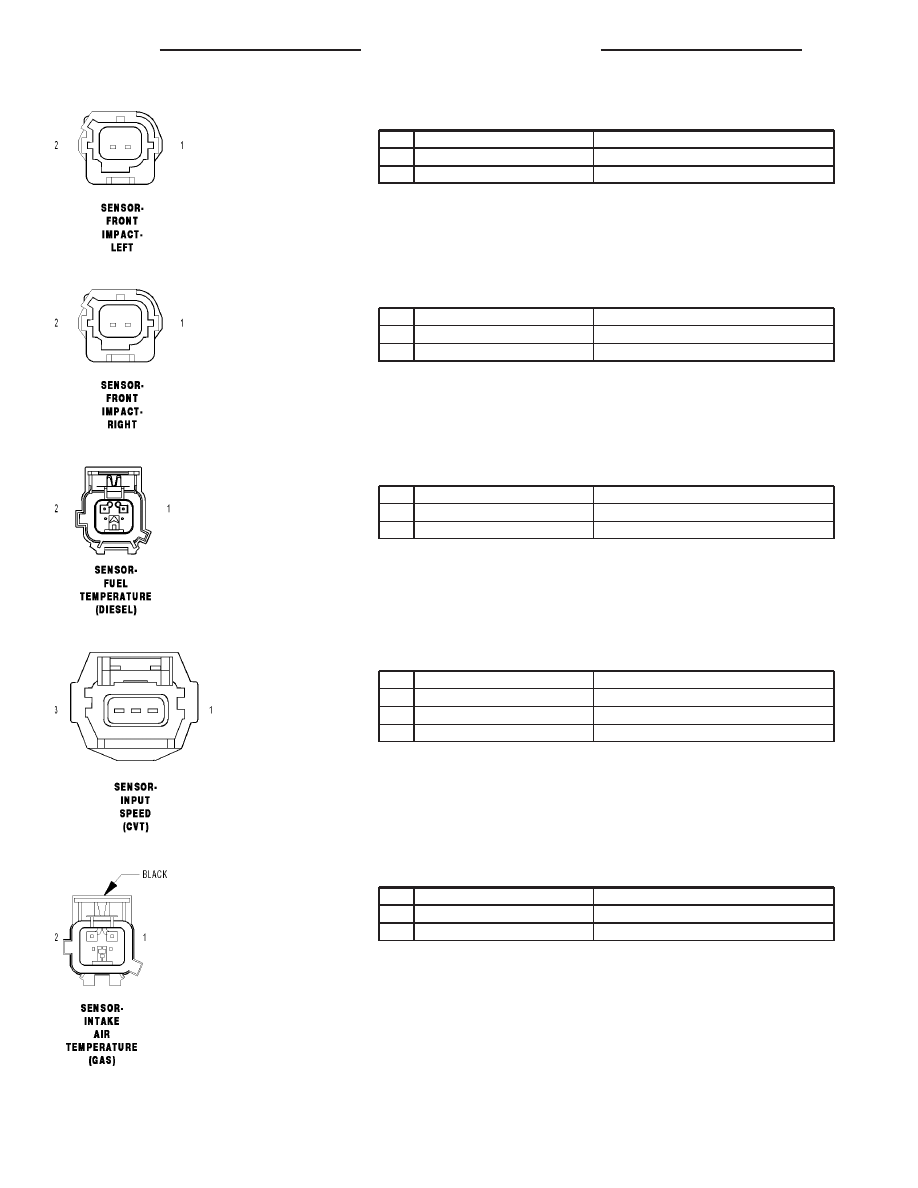

SENSOR-FRONT IMPACT-LEFT - YELLOW 2 WAY

CAV

CIRCUIT

FUNCTION

1

R81 20LB/WT

LEFT FRONT IMPACT SENSOR GROUND

2

R79 20LB/VT

LEFT FRONT IMPACT SENSOR SIGNAL

SENSOR-FRONT IMPACT-RIGHT - YELLOW 2 WAY

CAV

CIRCUIT

FUNCTION

1

R82 20WT/OR

RIGHT FRONT IMPACT SENSOR GROUND

2

R80 20VT/LB

RIGHT FRONT IMPACT SENSOR SIGNAL

SENSOR-FUEL TEMPERATURE (DIESEL) - BLACK 2 WAY

CAV

CIRCUIT

FUNCTION

1

K900 20DB/DG

SENSOR GROUND

2

K156 20BR/YL

FUEL TEMPERATURE SENSOR SIGNAL

SENSOR-INPUT SPEED (CVT) - BLACK 3 WAY

CAV

CIRCUIT

FUNCTION

1

T16 18YL/OR

TRANSMISSION CONTROL OUTPUT

2

T14 18DG/BK

INPUT SPEED SENSOR SIGNAL

3

T13 18DG/TN

SENSOR GROUND

SENSOR-INTAKE AIR TEMPERATURE (GAS) - BLACK 2 WAY

CAV

CIRCUIT

FUNCTION

1

K21 20BK/RD

IAT SIGNAL

2

K915 20BR/WT

SENSOR GROUND

8W - 80 - 88

8W-80 CONNECTOR PIN-OUTS

PM
