1. Disconnect and isolate the battery negative cable.

WARNING: Wait two minutes for the system
reserve capacitor to discharge before servicing
any airbag components.

2. Remove the passenger front seat from the vehicle

as a unit (Refer to 23 - BODY/SEATS/SEAT -
FRONT - REMOVAL)

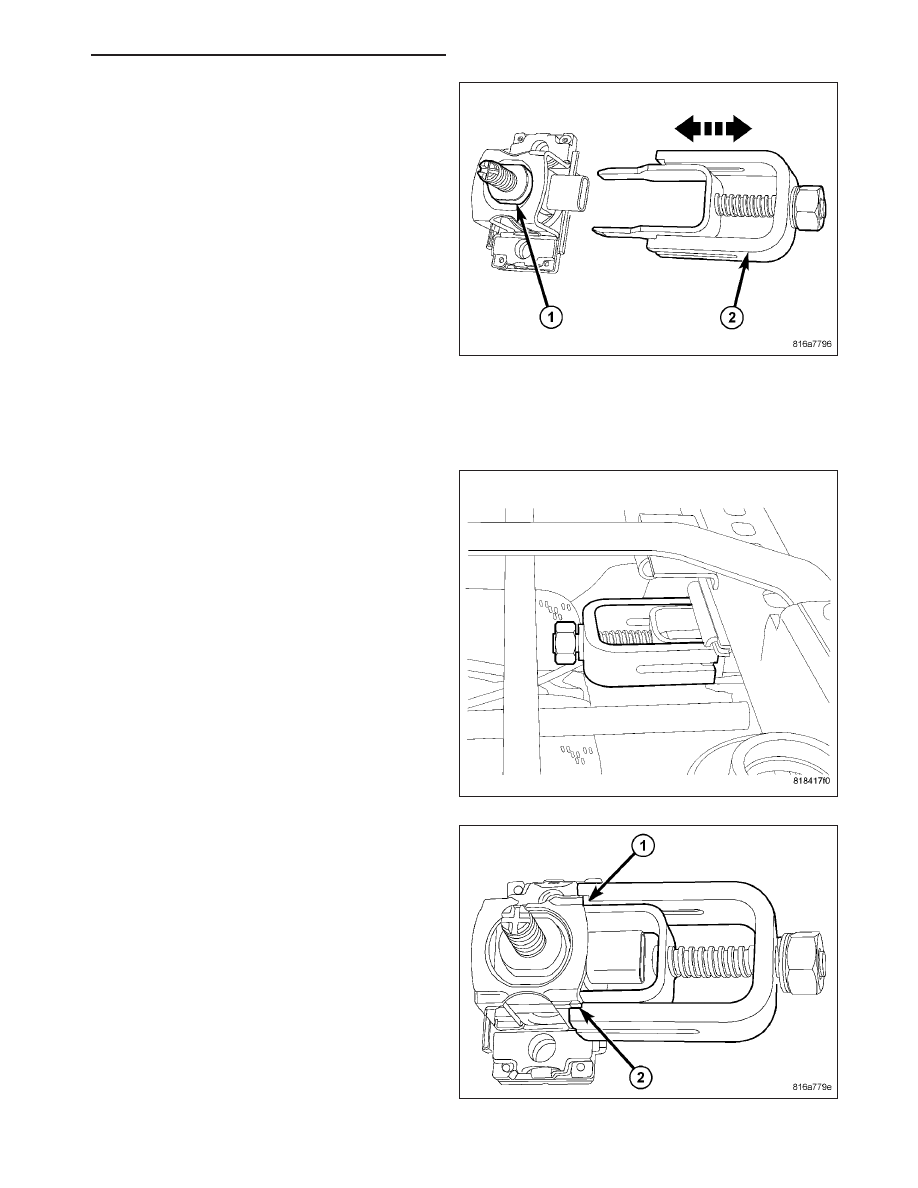

CAUTION: Strain gauge alignment tool 9689 (2)
must be used to secure the body of the seat
weight

sensor

(1)

from

any

rotation

during

removal or installation of the nut that secures the
sensor stud to the seat adjuster riser. In addition,
the sensor fasteners should always be serviced
using hand tools ONLY, and not electric or pneu-
matic power tools. Failure to observe these precautions may result in irreversible sensor damage and
require sensor replacement.

3. Remove the passenger front seat riser from the seat (Refer to 23 - BODY/SEATS/SEAT RISER - REMOVAL).

4. Disconnect each weight sensor electrical connector

and install strain gauge alignment tool 9689.

5. Insert the fork (1) into weight sensor and seat the

support yoke (2) firmly against the weight sensor
cage.

6. Remove center stud nut and repeat these steps for

each of the four weight sensors.

7. Separate the seat track from the seat risers.

8. Remove the nuts securing the seat weight sensor

to the adjuster track and remove the seat weight
sensor.

PM

RESTRAINTS - SERVICE INFORMATION

8O - 409

INSTALLATION

WARNING: To avoid personal injury or death, never strike or drop a seat weight sensor or the passenger
side front seat assembly to which the sensors are secured as it can damage the sensors or affect their
calibration. The seat weight sensors and the passenger side front seat assembly must be handled with care
to avoid damage to the sensors. Do not sit upon or place any loads upon a passenger side front seat while
it is removed from its mounts in or outside of the vehicle. If an individual sensor is dropped or damaged,
replace the sensor with a new and unused unit. If a seat has been dropped during removal or loaded while
removed from its mounts, replace each of the seat weight sensors with new and unused units. Failure to
observe this warning could result in an accidental, incomplete, or improper passenger side front supple-
mental restraint deployment.

WARNING: To avoid personal injury or death on vehicles equipped with the Occupant Classification System
(OCS), any time the passenger side front seat assembly has been removed or loosened from the vehicle for
service of any vehicle component or system the Occupant Classification System Verification Test must be
performed using a diagnostic scan tool and the Occupant Classification Seat Weight special tool following
reinstallation. Refer to the appropriate diagnostic procedures. Failure to observe this warning could result
in an accidental, incomplete, or improper passenger side front supplemental restraint deployment.

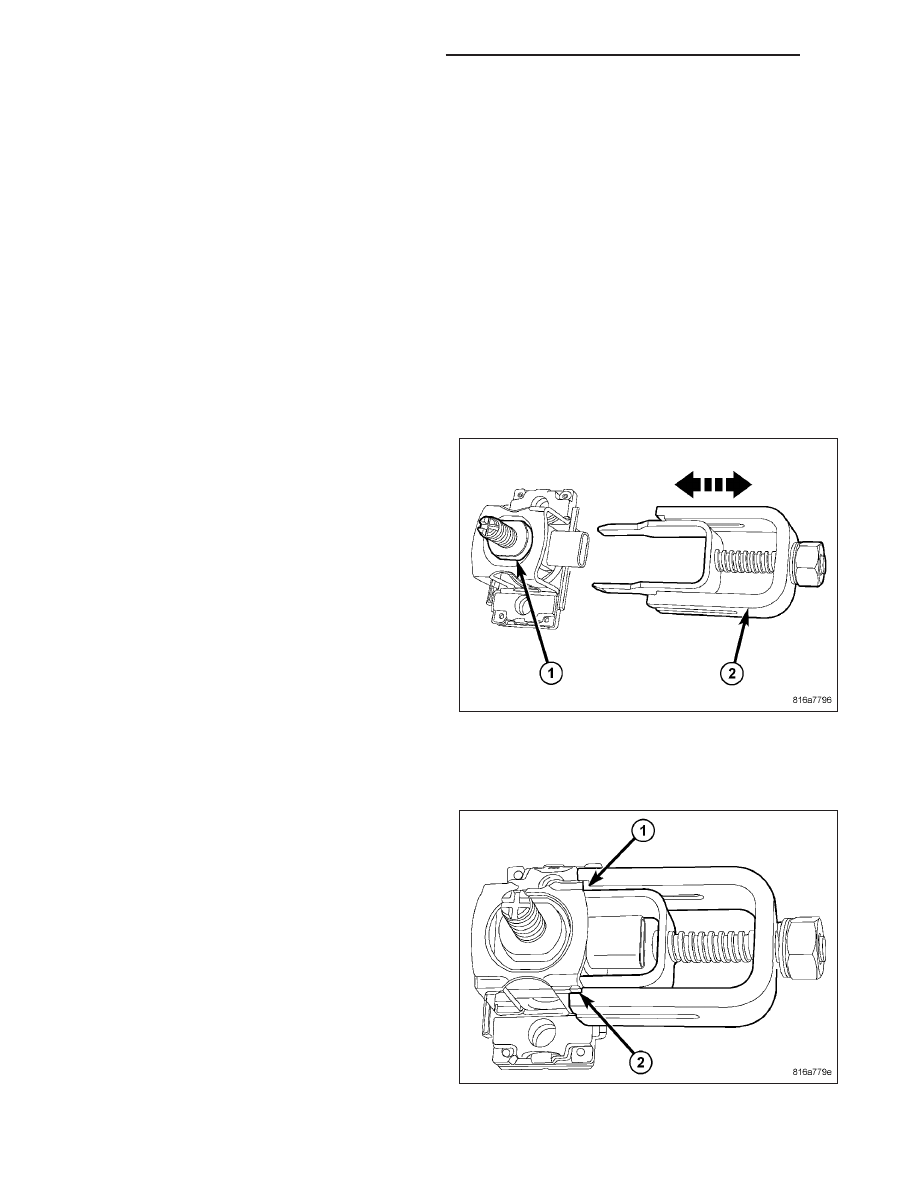

CAUTION: Strain gauge alignment tool 9689 (2)
must be used to secure the body of the seat
weight

sensor

(1)

from

any

rotation

during

removal or installation of the nut that secures the
sensor stud to the seat adjuster riser. In addition,
the sensor fasteners should always be serviced
using hand tools ONLY, and not electric or pneu-
matic power tools. Failure to observe these pre-
cautions may result in irreversible sensor damage
and require sensor replacement.

1. Install the seat weight sensor and install the nuts

securing the seat weight sensor to the adjuster
track. Tighten nuts to 28 N·m (21 ft. lbs.).

2. Place the seat track onto the seat riser.

3. Install the nut on the center stud and repeat for each of the four weight sensors.

CAUTION: Do not tighten the center nut to the seat weight sensors without the use of strain gauge align-
ment tool 9689.

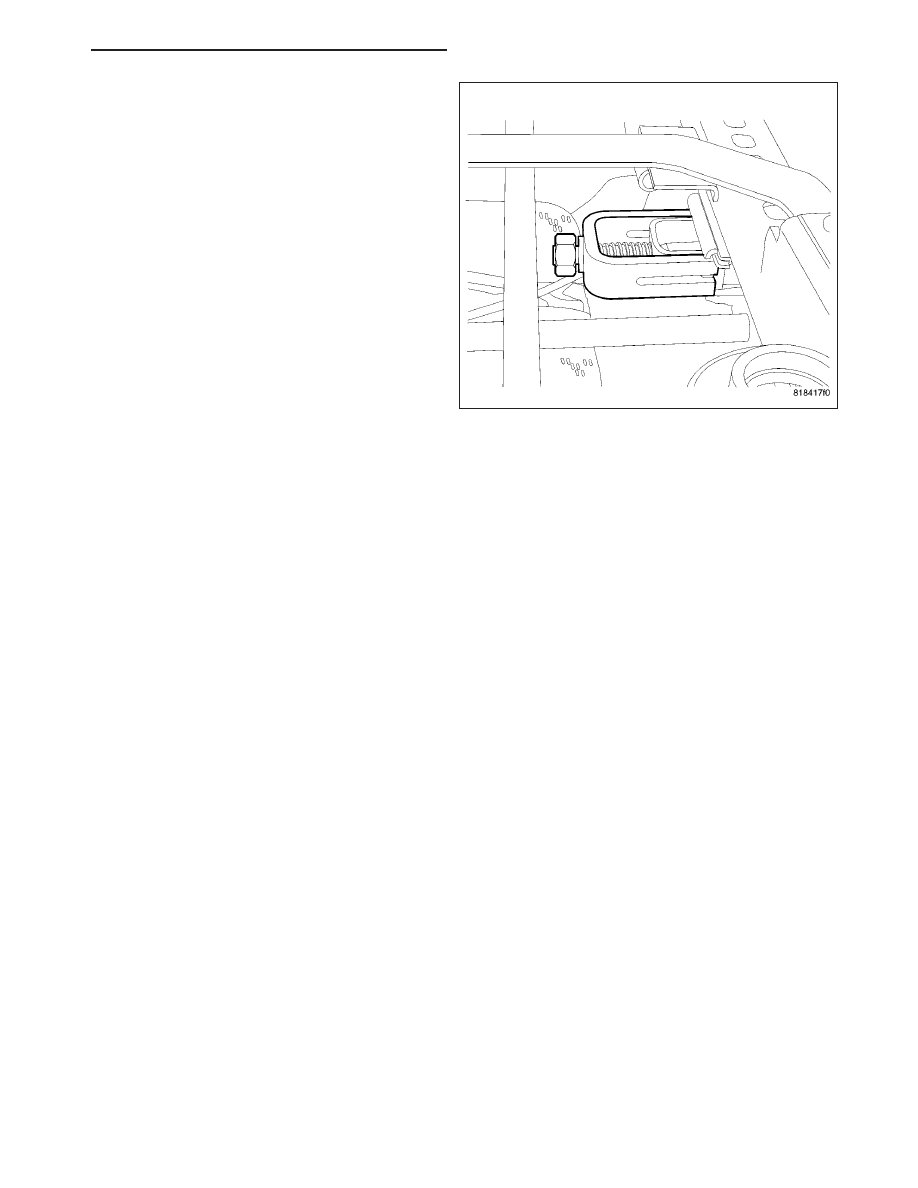

4. Insert the fork (1) into weight sensor and seat the

support yoke (2) firmly against the weight sensor
cage. Tighten nut to 45 N·m (33 ft. lbs.). Repeat for
all four sensors.

8O - 410

RESTRAINTS - SERVICE INFORMATION

PM

5. Connect each weight sensor electrical connector.

6. Reinstall the passenger front seat (Refer to 23 -

BODY/SEATS/SEAT - INSTALLATION).

WARNING: Do not connect the battery negative
cable (REFER TO 8 - ELECTRICAL/RESTRAINTS -
DIAGNOSIS AND TESTING - AIRBAG SYSTEM).
Personal injury or death may result if the system
test is not performed first.

WARNING: Following successful completion of the
Airbag System verification test procedure, perform
the Occupant Classification System Verification
Test using a diagnostic scan tool and the Occu-
pant Classification Seat Weight special tool 9077.
Refer to the appropriate diagnostic information.

PM

RESTRAINTS - SERVICE INFORMATION

8O - 411
