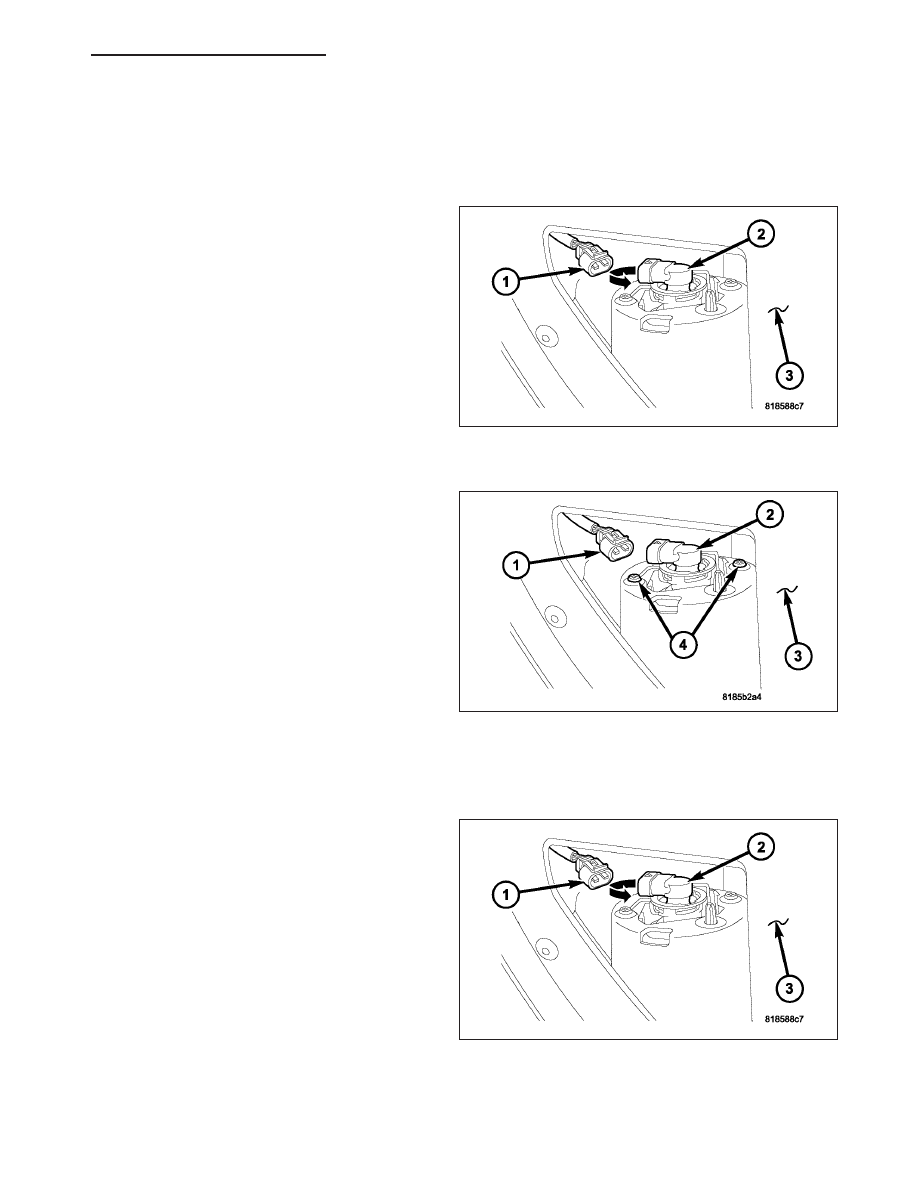

FOG LAMP

REMOVAL

BULB

1. Disconnect and isolate the battery negative cable.

2. Reach up through the lower fascia (3) cutout.

3. Disconnect the fog lamp connector (1).

4. Twist the bulb (2) counterclockwise to remove from

lamp unit.

UNIT

1. Disconnect and isolate the battery negative cable.

2. Reach up through the lower fascia (3) cutout.

3. Disconnect electrical connector from fog lamp (1).

NOTE: It may be necessary to twist out the fog
lamp bulb (2) to release fog lamp unit from fascia.

4. Remove screws attaching fog lamp to fascia (4).

5. Push fog lamp forward to remove from fascia.

INSTALLATION

BULB

1. Reach up through the lower fascia (3) cutout.

2. Place bulb (2) into lamp unit and twist clockwise

until stops, approximately 90 degrees.

3. Connect the fog lamp bulb electrical connector (1).

4. Connect the battery negative cable.

PM

LAMPS/LIGHTING - EXTERIOR - SERVICE INFORMATION

8L - 85

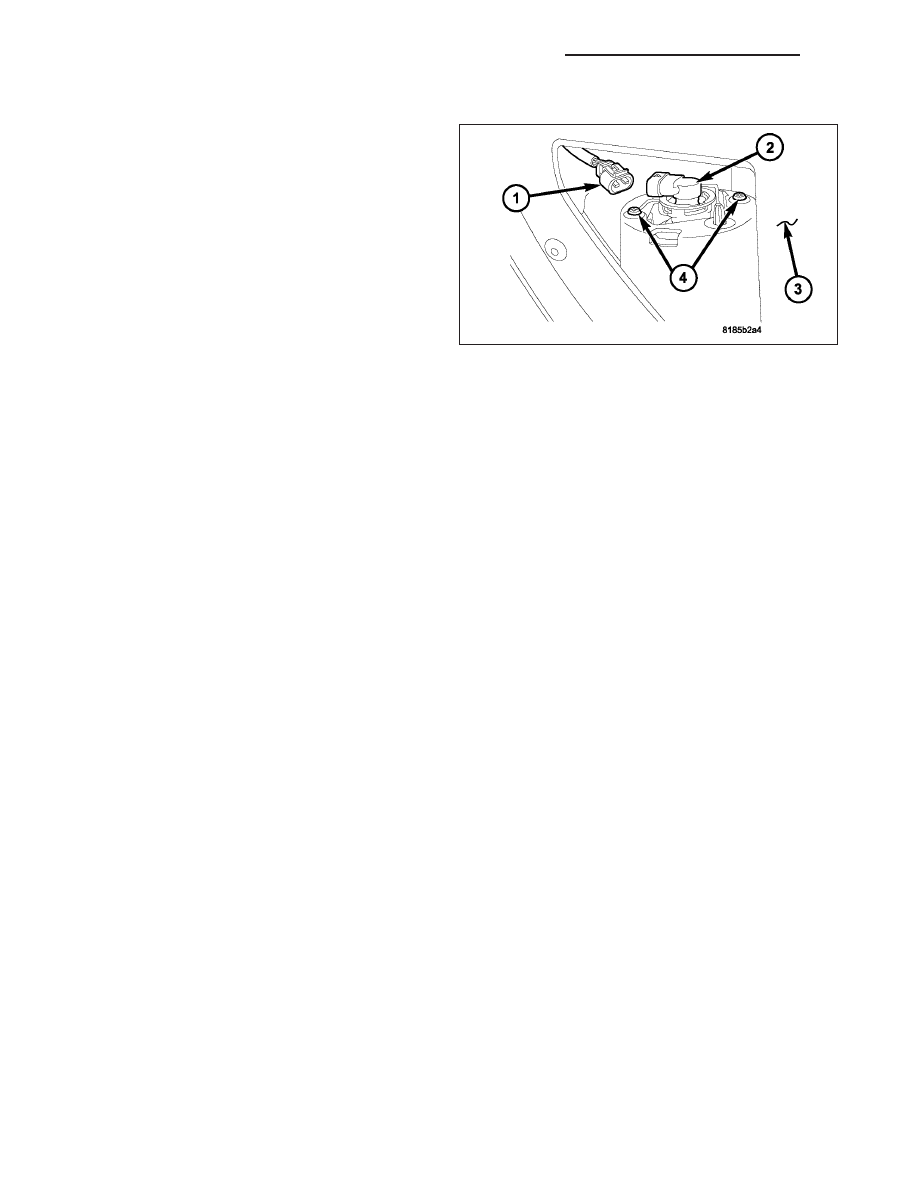

UNIT

CAUTION: Do not touch the glass of halogen
bulbs with fingers or other possibly oily surface,
reduced bulb life will result.

1. Place fog lamp into fascia opening and push rear-

ward to position into fascia.

2. Reach up through the lower fascia (3) cutout.

3. Install two screws attaching fog lamp to fascia (4).

NOTE: It may be necessary to install the fog lamp
bulb (2) if it was removed to access the fog lamp
unit.

4. Connect electrical connector to fog lamp (1).

5. Connect the battery negative cable.

8L - 86

LAMPS/LIGHTING - EXTERIOR - SERVICE INFORMATION

PM

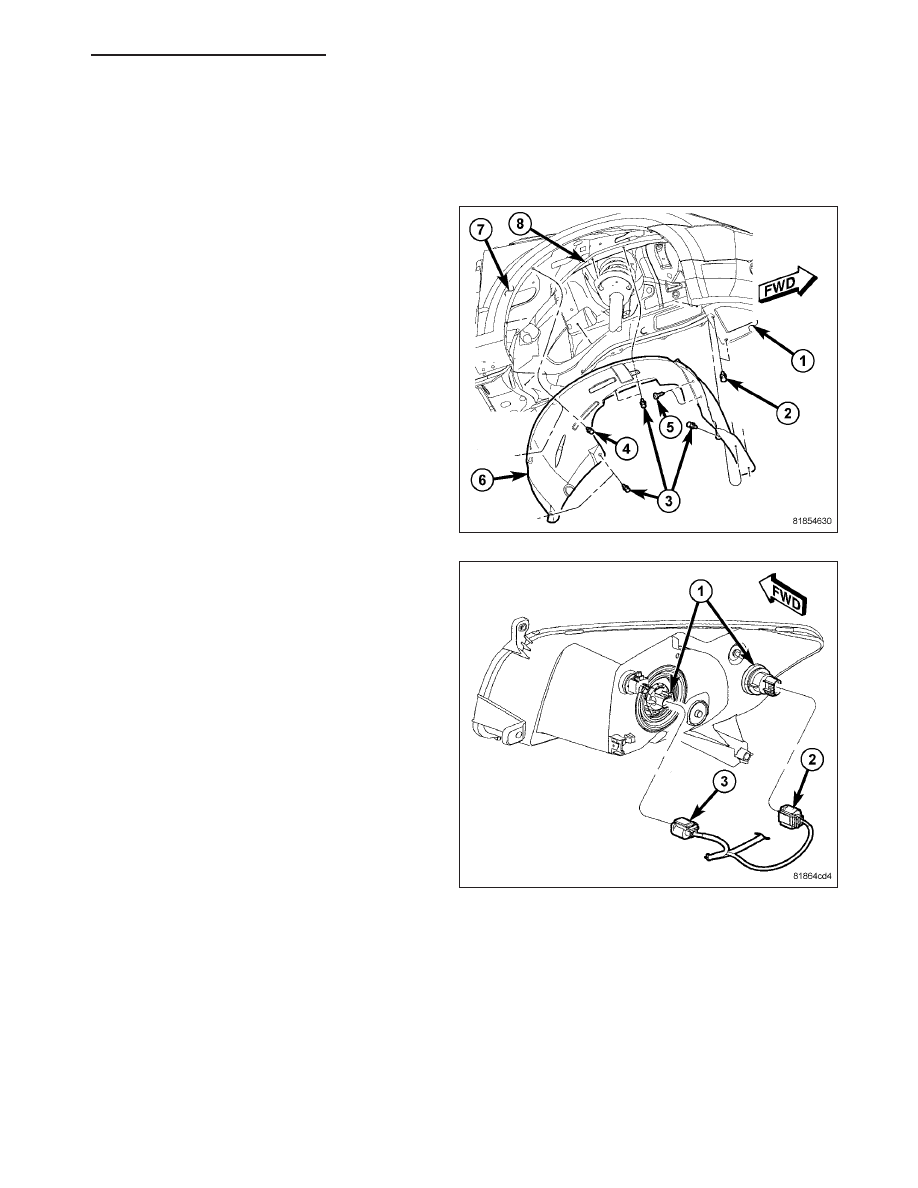

FRONT LAMP UNIT

REMOVAL

BULBS

1. Disconnect and isolate the battery negative cable.

2. Hoist vehicle.

3. Working in the appropriate wheel well, loosen up

the front of the splash shield, but don’t fully remove
it.

4. Looking up through the front wheel well, locate the

bulb (1) in which needs replacing. The headlamp
bulb is the inboard bulb and the park/turn signal
bulb is the outboard bulb.

5. Disconnect the bulb electrical connector (2 or 3).

NOTE: EXPORT ONLY - If removing/replacing the
headlamp bulb on export vehicles there is a rub-
ber cover over the rear of the lamp housing that
must be removed to access the bulb. Then a
spring clip must be removed and the bulb pulled
straight rearward.

6. Grasp the bulb (1), twist 1/4 turn counterclockwise

and pull straight out of front lamp unit.

PM

LAMPS/LIGHTING - EXTERIOR - SERVICE INFORMATION

8L - 87

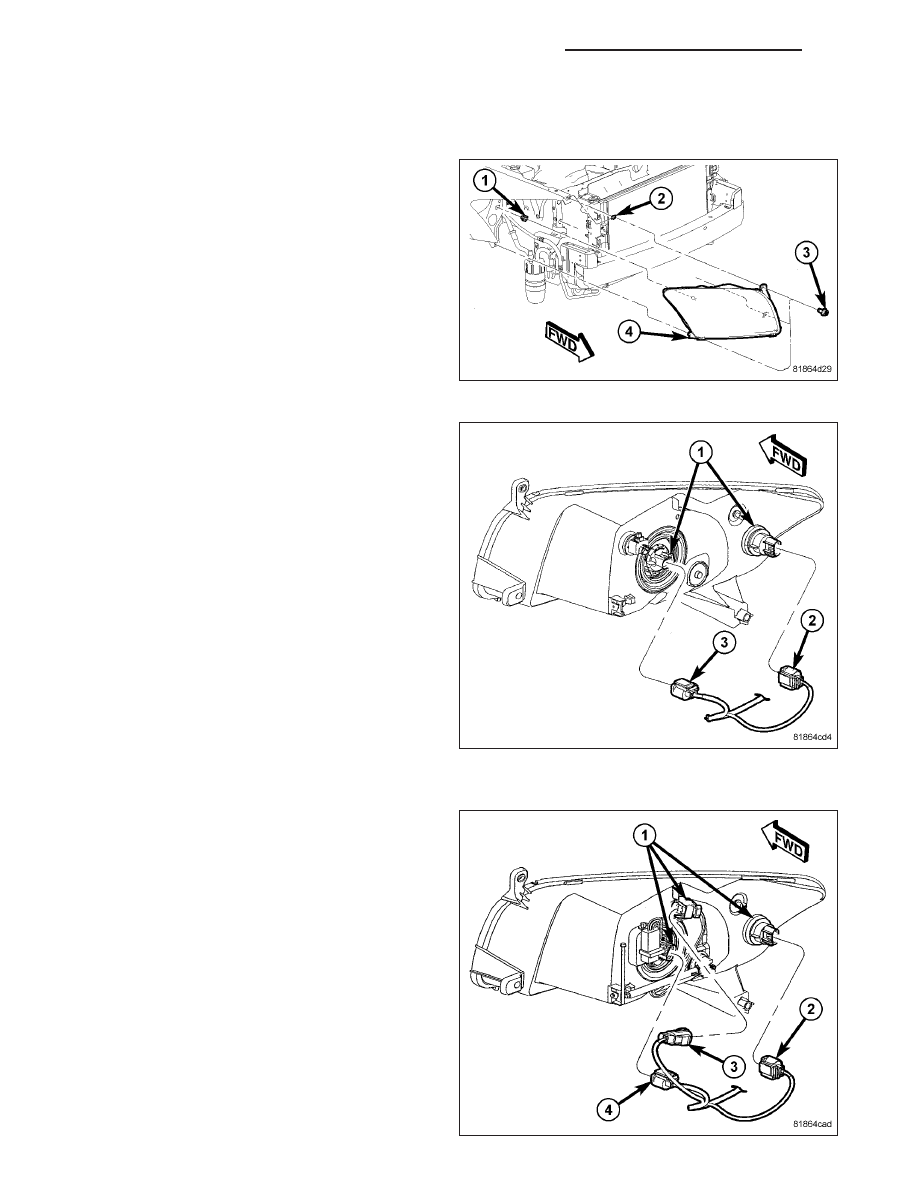

UNIT

DOMESTIC

1. Open hood.

2. Disconnect and isolate the battery negative cable.

3. Loosen the fascia on the side you’re taking the

front lamp unit out on (Refer to 13 - FRAME &
BUMPERS/BUMPERS/FRONT

FASCIA

-

REMOVAL). The fasteners along the radiator clo-
sure panel, the splash shield to fascia screws, and
the bolt holding the fascia to the fender at the
wheel well opening.

4. Remove the three screws (3) to the front lamp unit

(4) to body.

5. Pull the front lamp unit (4) straight back to unsnap

the ball and socket pivots from the retainer (1).

6. Maneuver the front lamp unit out of its mounting

pocket, enough to expose the individual lamp (1)
electrical connectors (2 and 3).

7. Disconnect the two electrical connectors (2 and 3).

EXPORT

1. Use the Domestic Removal procedure to remove

the BUX front lamp unit. Refer to Step 1.

2. For BUX markets, there are three electrical con-

nectors (2, 3, and 4) to disconnect.

8L - 88

LAMPS/LIGHTING - EXTERIOR - SERVICE INFORMATION

PM
