Dodge Caliber. Manual - part 1334





24. Install manual or automatic shifter bezel. (Refer to 23 - BODY/INTERIOR/SHIFT BEZEL - INSTALLATION)

25. Connect steering column wire harness.

26. Connect steering column. (Refer to 19 - STEERING/COLUMN - INSTALLATION)

27. Install steering cover shrouds. (Refer to 23 - BODY/INSTRUMENT PANEL/IP STEERING COLUMN SUPPORT

BKT - INSTALLATION)

28. If equipped, install left and right airbag covers.

29. Install left and right end caps. (Refer to 23 - BODY/INSTRUMENT PANEL/INSTRUMENT PANEL END CAP -

INSTALLATION)

30. Connect the negative battery cable.

PM

INSTRUMENT PANEL

23 - 73

BEZEL-CENTER

REMOVAL

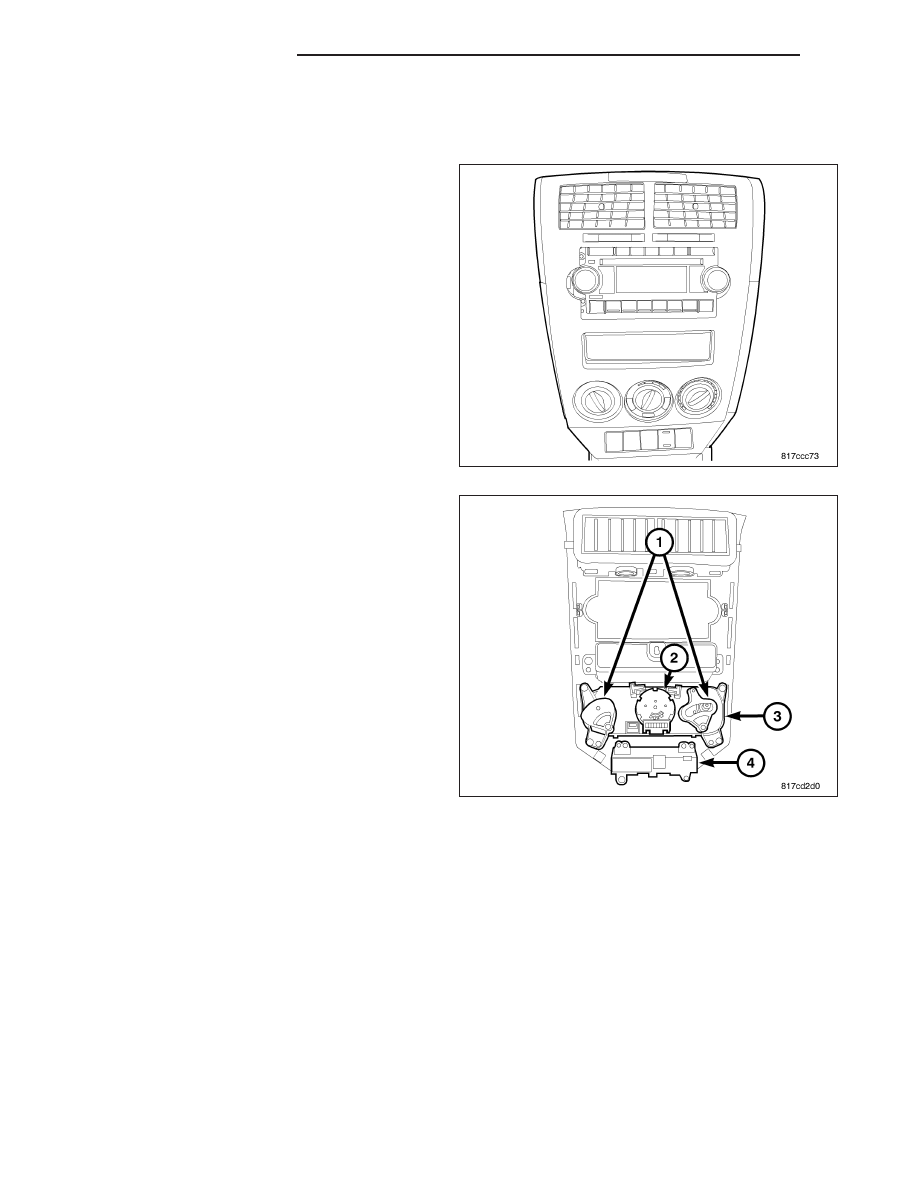

1. Remove shifter bezel.

2. Using trim stick C-4755, remove center bezel.

3. Disconnect wire harness from accessory switch

bank (2).

4. Disconnect HVAC control cables (1).

5. Remove fasteners attaching HVAC control head (3)

to bezel.

6. Remove switch bank (4) from bezel.

23 - 74

INSTRUMENT PANEL

PM

INSTALLATION

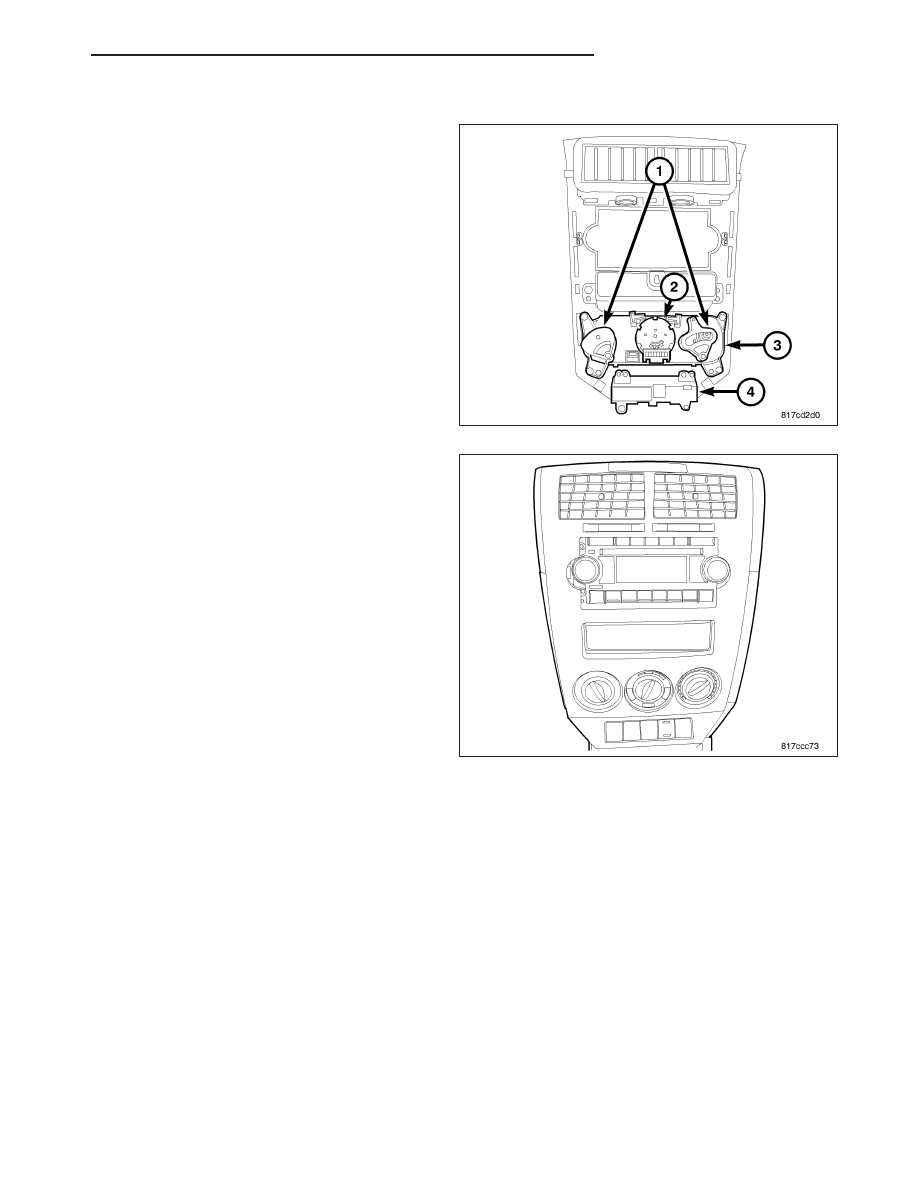

1. Install switch bank (4) onto bezel).

2. Route cables through center bezel and connect to

HVAC control head (3).

3. Connect control head (3) to center bezel.

4. Connect wire harness connectors to accessory

switch bank (2).

5. Hand tap center bezel on to instrument panel to

ensure proper seating.

PM

INSTRUMENT PANEL

23 - 75

BEZEL-CLUSTER

REMOVAL

1. Remove A - pillar trim.

2. Remove top cover. (Refer to 23 - BODY/INSTRUMENT PANEL/INSTRUMENT PANEL TOP COVER -

REMOVAL)

3. Remove fasteners and upper panel. (Refer to 23 - BODY/INSTRUMENT PANEL/INSTRUMENT PANEL TOP

COVER - REMOVAL)

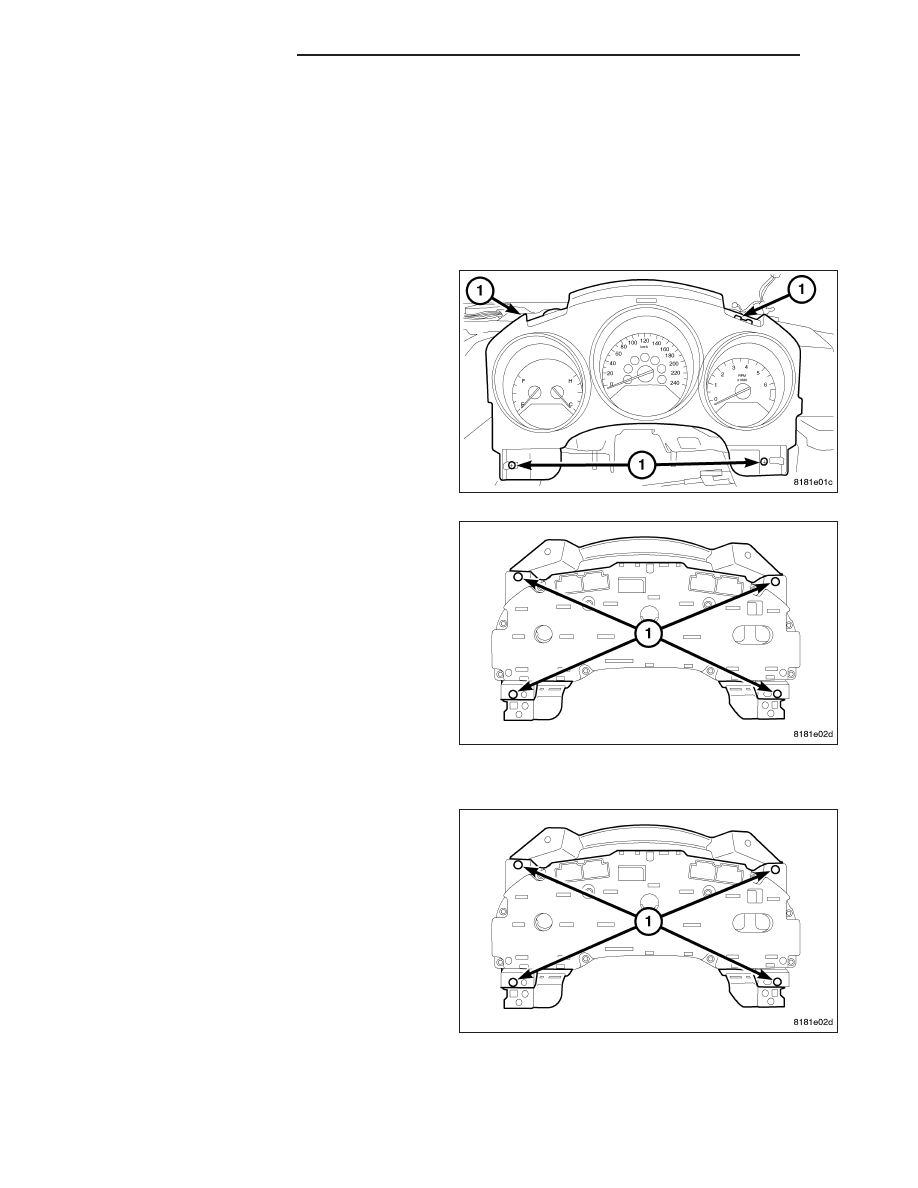

4. Remove cluster bezel fasteners (1).

5. Pull instrument cluster rearward to expose the four

electrical connectors.

6. Disconnect electrical connectors.

7. Remove cluster assembly with cluster attached.

8. Remove fasteners (1) attaching cluster to bezel.

INSTALLATION

1. Install cluster to bezel by installing four fasteners

(1).

2. Position cluster into instrument panel opening.

3. Connect wire connectors.

23 - 76

INSTRUMENT PANEL

PM
