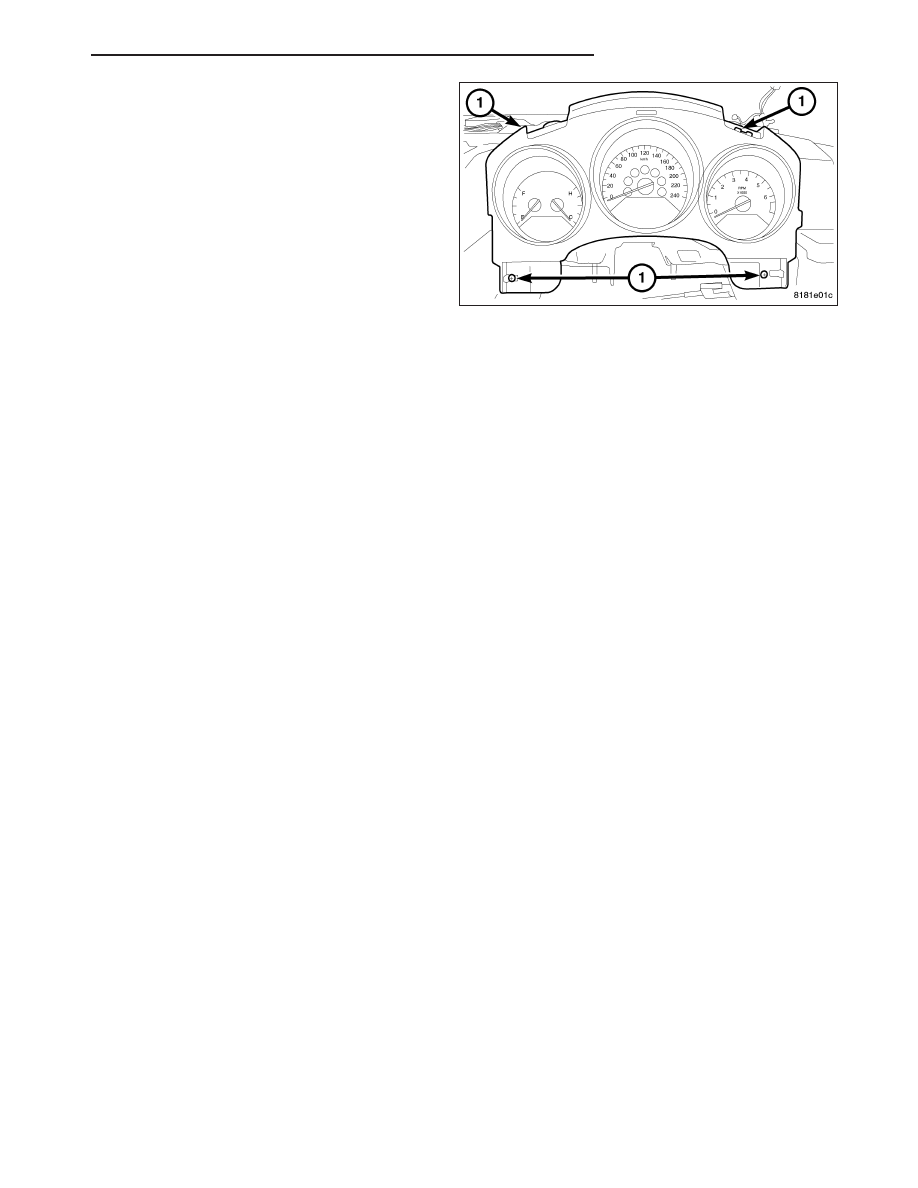

4. Install four fasteners (1) fastening cluster to instru-

ment panel.

5. Install instrument panel upper panel. (Refer to 24 -

HEATING & AIR CONDITIONING/DISTRIBUTION/
FLOOR DISTRIBUTION DUCTS - REMOVAL)

PM

INSTRUMENT PANEL

23 - 77

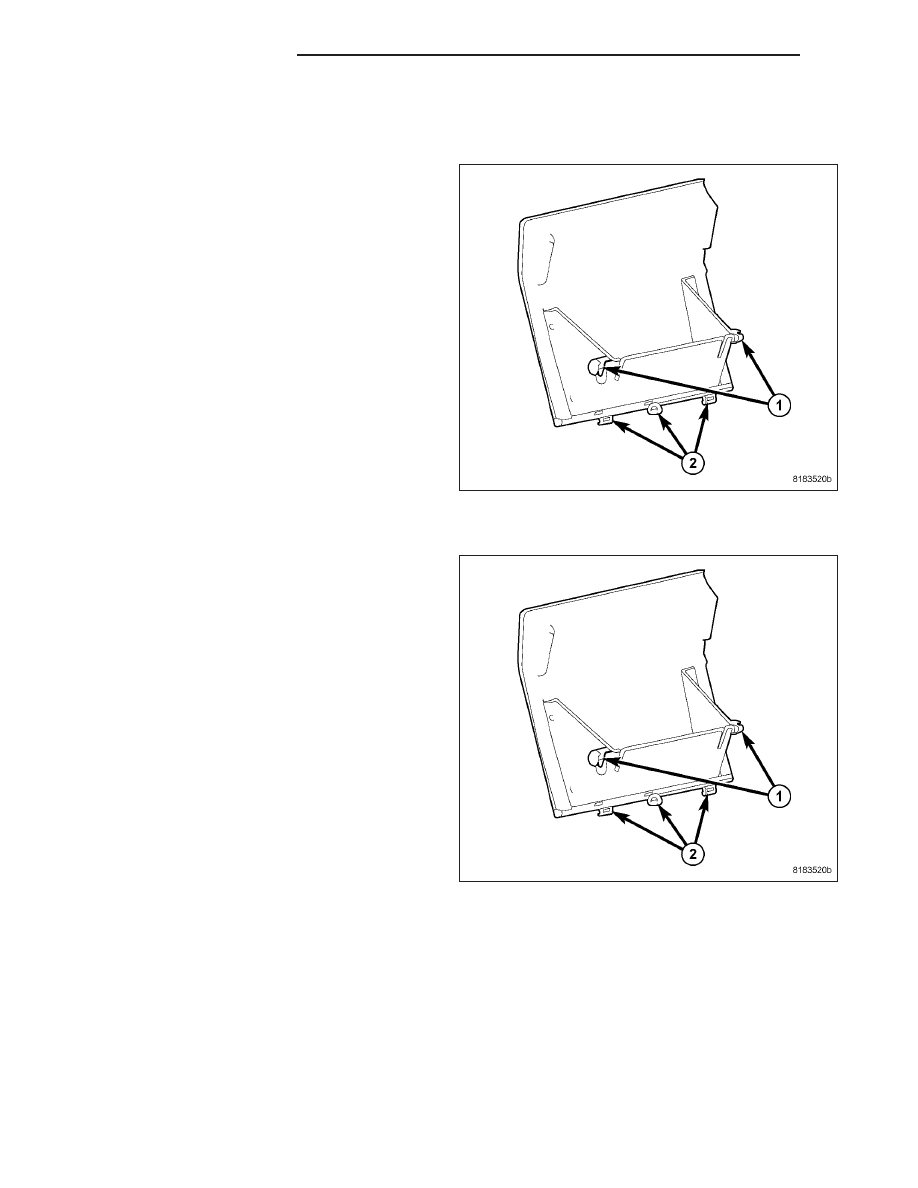

BIN-GLOVE BOX

REMOVAL

1. Open glove box latch.

2. Unsnap glove box damper from glove box bin.

3. Flex glove box open position stops (1) inboard and

rotate past stops.

4. Unsnap glove box door from base panel lower

hinge pins (2).

INSTALLATION

1. Align glove box door with glove box opening.

2. Snap glove box door hinge pins (2) to lower base

panel hinges.

3. Flex glove box inboard and rotate inward past

stops (1).

4. Close glove box.

23 - 78

INSTRUMENT PANEL

PM

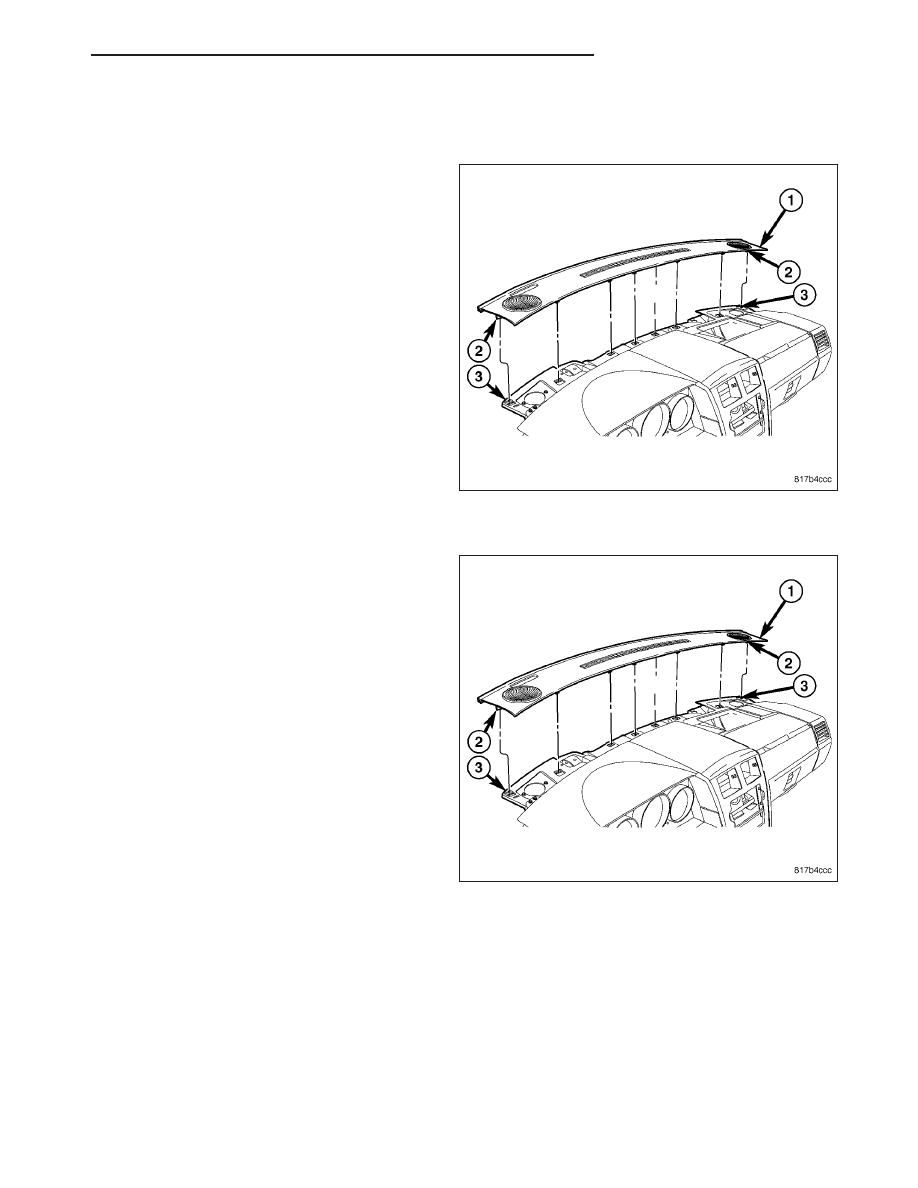

COVER-INSTRUMENT PANEL TOP

REMOVAL

1. Remove A- pillar trim. (Refer to 23 - BODY/INTE-

RIOR/A-PILLAR TRIM - REMOVAL)

2. Using trim stick C-4755, pry up on panel cover (1)

disengaging panel clip (2) from instrument panel
inner (3).

3. Remove from vehicle.

INSTALLATION

1. Place instrument panel cover (1) over instrument

panel aligning instrument panel cover clips over
instrument panel inner.

2. Tap on clip locations ensuring instrument panel

clips seat.

3. Install A - Pillar trim. (Refer to 23 - BODY/INTERI-

OR/A-PILLAR TRIM - INSTALLATION)

PM

INSTRUMENT PANEL

23 - 79

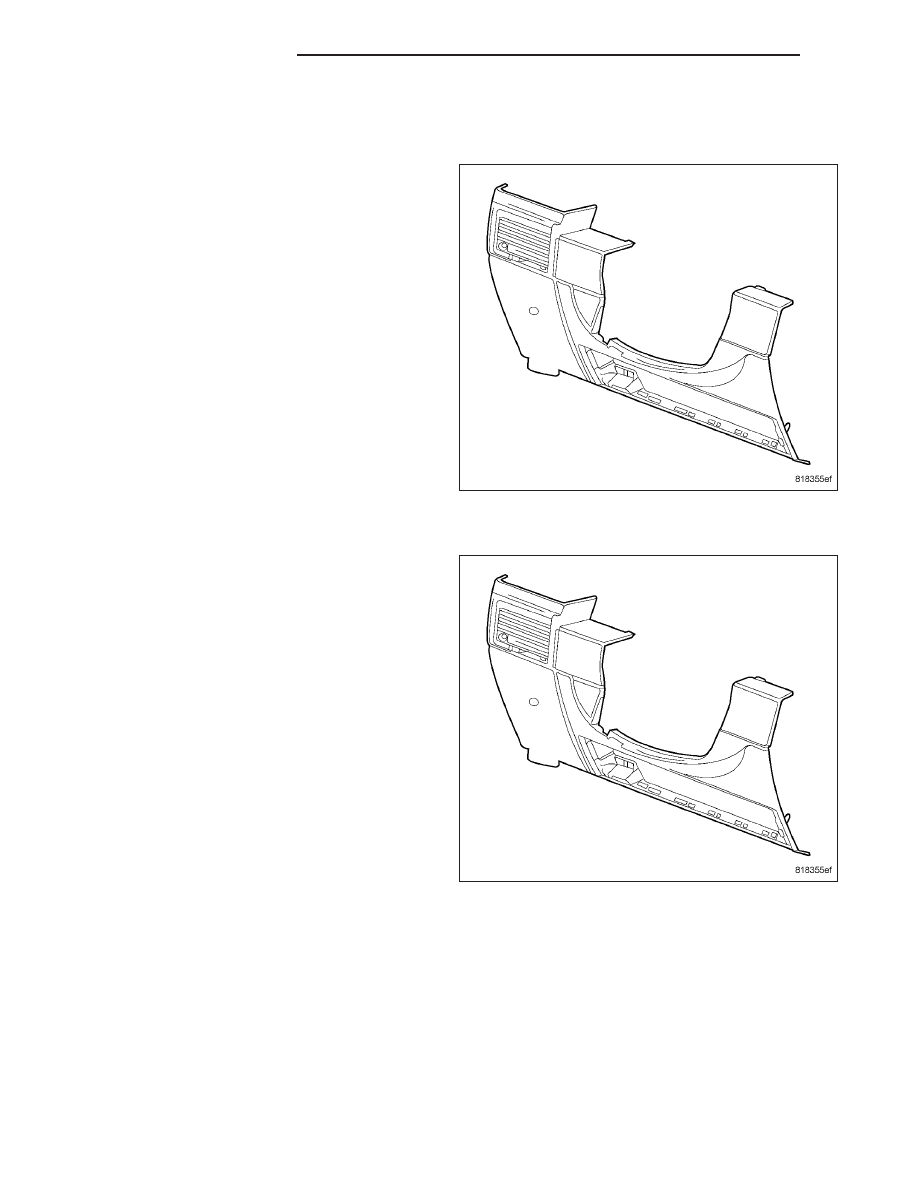

STEERING COLUMN COVER I/P

REMOVAL

1. Using trim stick C–4755, disengage clips on col-

umn cover top edge.

2. Remove from vehicle.

INSTALLATION

1. Align top of column cover tabs with instrument

panel.

2. Hand tap top of column cover ensuring column

cover tabs seat.

23 - 80

INSTRUMENT PANEL

PM
