9. Remove the nut holding the manual lever (1) to the

manual shaft.

10. Remove the manual lever from the manual shaft.

CAUTION: Tilt the valve body assembly away from
the transaxle case on the manual shaft side to
ease removal. Pay attention to completely remove
the terminal body from the transaxle case.

11. Remove the valve body assembly from the trans-

axle case as follows:

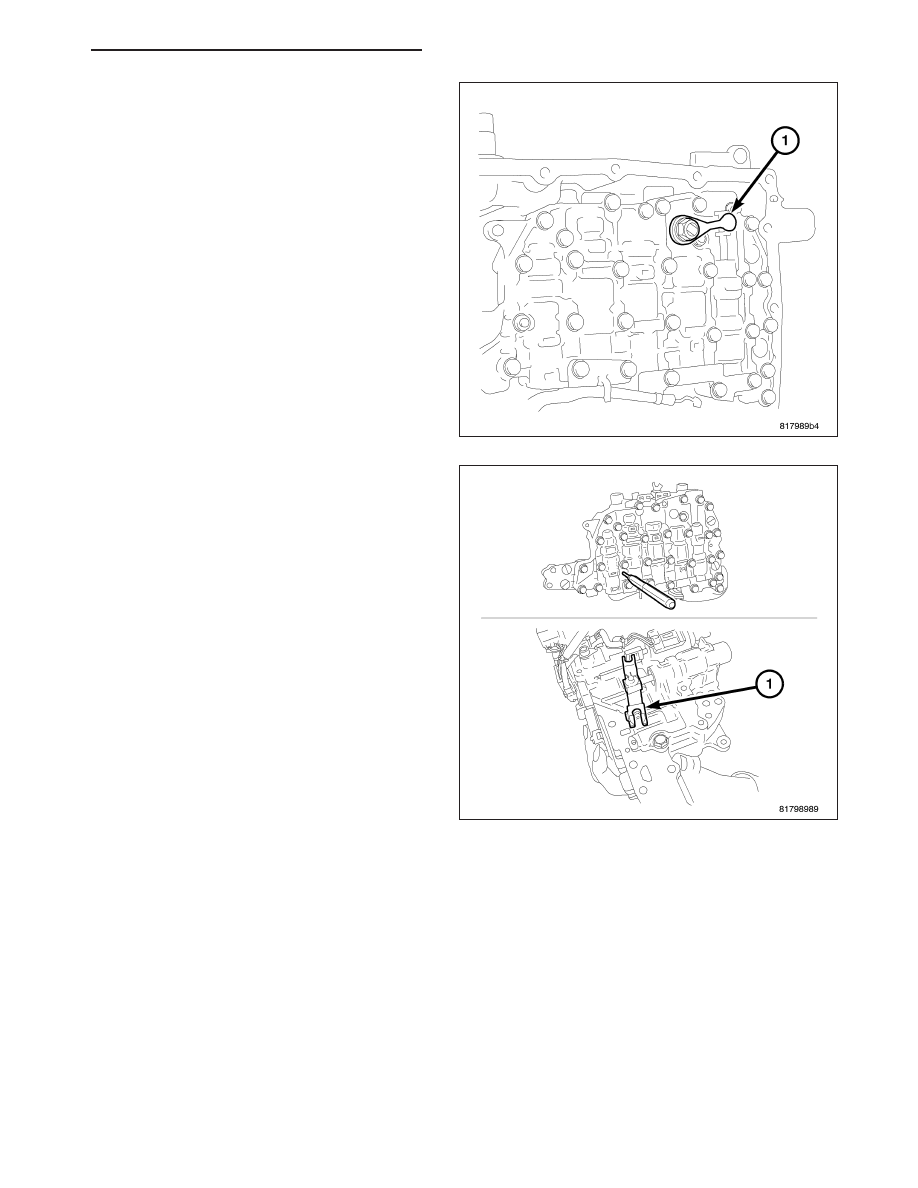

a. Insert a 75 mm (3 in.) long 3 mm (0.118 in.)

rod or wire into the linkage stopper hole of the
valve body assembly to fix the pulley ratio link-
age (1).

b. Remove the bolts holding the valve body

assembly to the transaxle case.

c. Remove the valve body assembly from the

transaxle case.

PM

AUTOMATIC - CVT-SERVICE INFORMATION

21 - 427

DISASSEMBLY

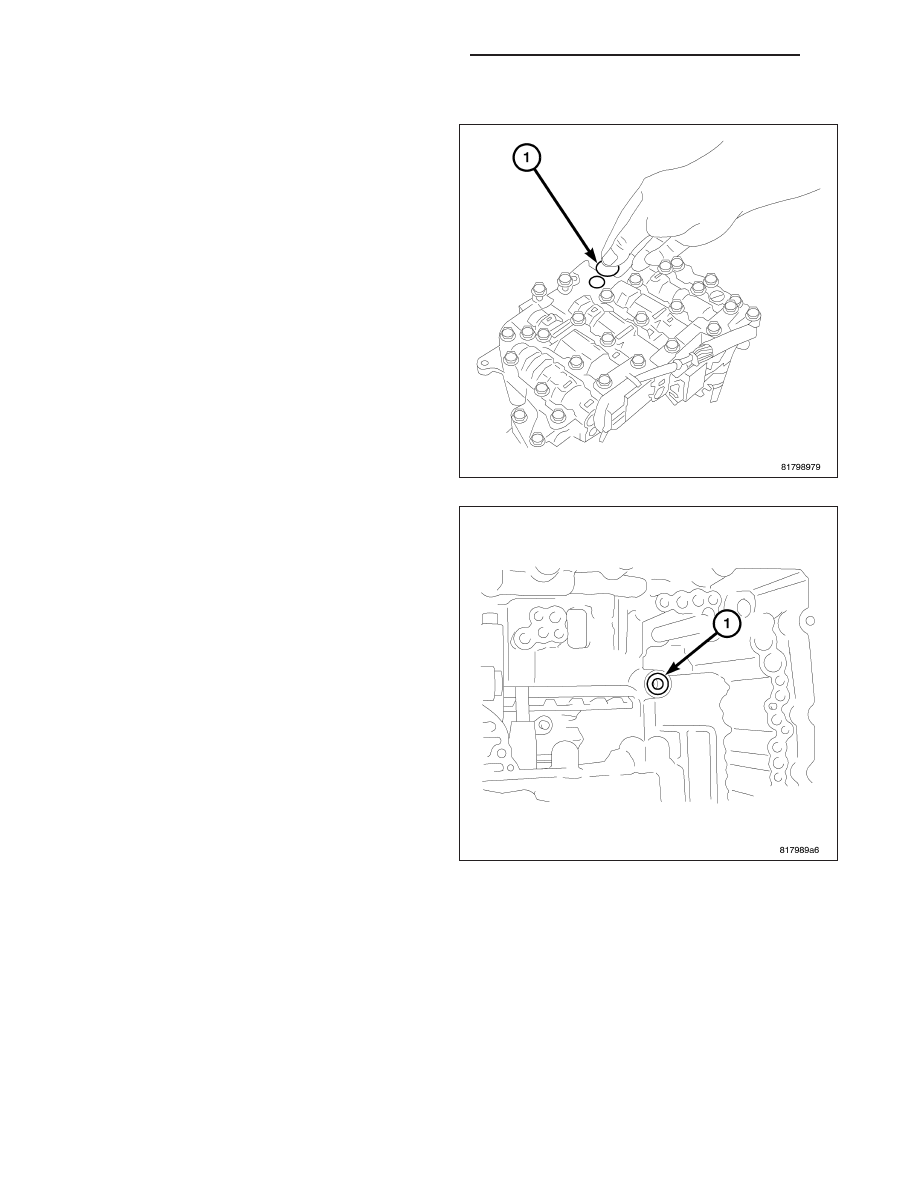

1. Remove and discard the bushing (1) from the valve

body.

2. Remove and discard the lip seal (1) from the trans-

axle case.

21 - 428

AUTOMATIC - CVT-SERVICE INFORMATION

PM

CAUTION: Do not drop the pulley ratio linkage.

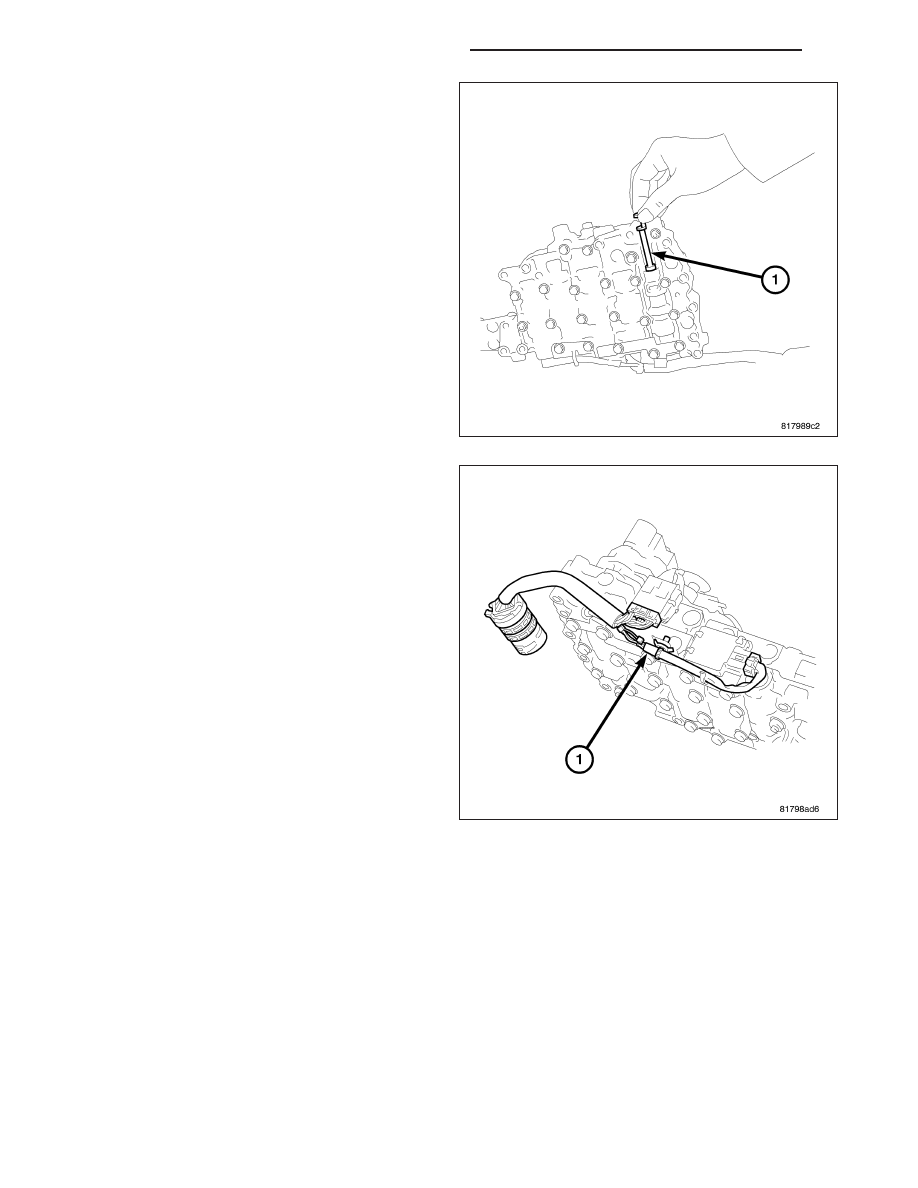

3. Remove the pulley ratio linkage (1) from the valve

body.

4. Remove the return spring (1) from the valve body.

PM

AUTOMATIC - CVT-SERVICE INFORMATION

21 - 429

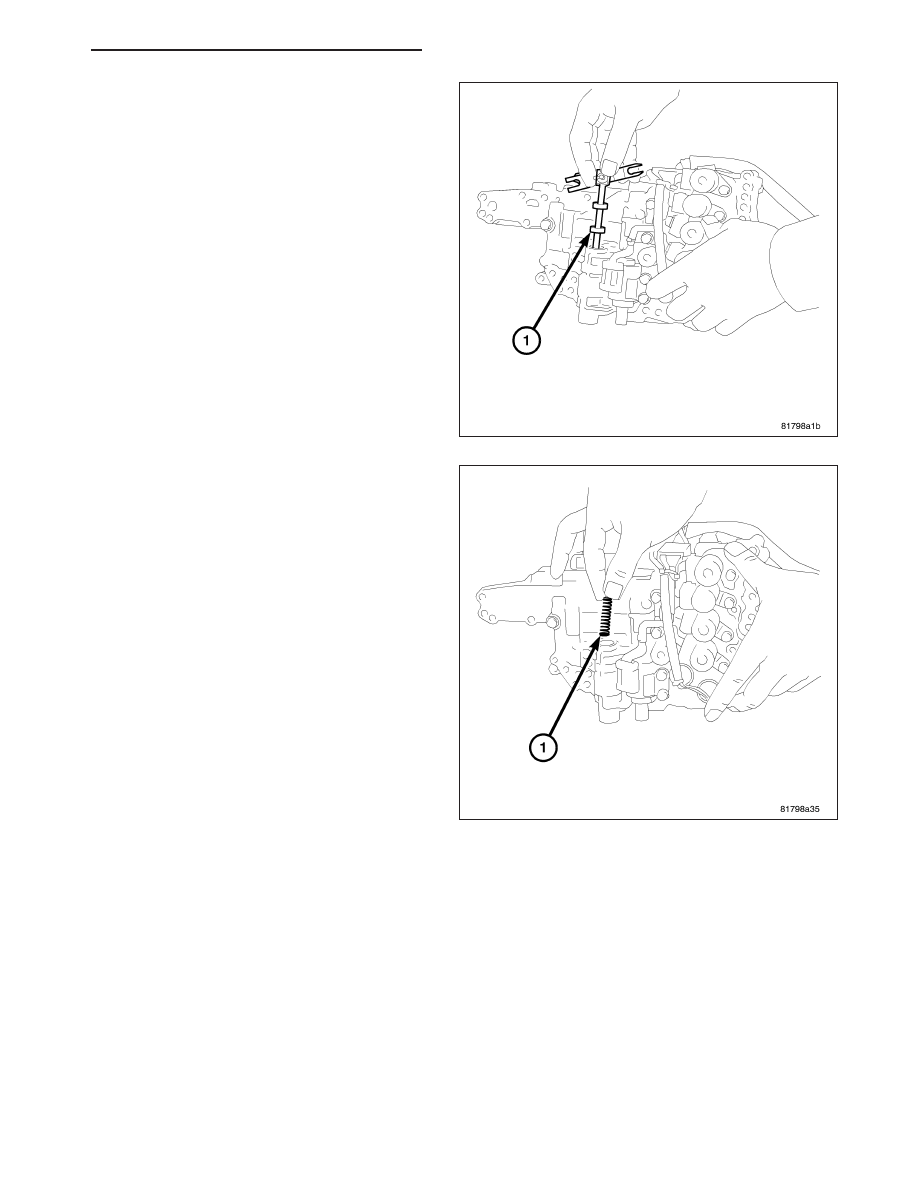

CAUTION: Do not drop the manual valve.

5. Remove the manual valve (1) from the valve body.

6. Remove the valve body harness (1) from the valve

body.

21 - 430

AUTOMATIC - CVT-SERVICE INFORMATION

PM
