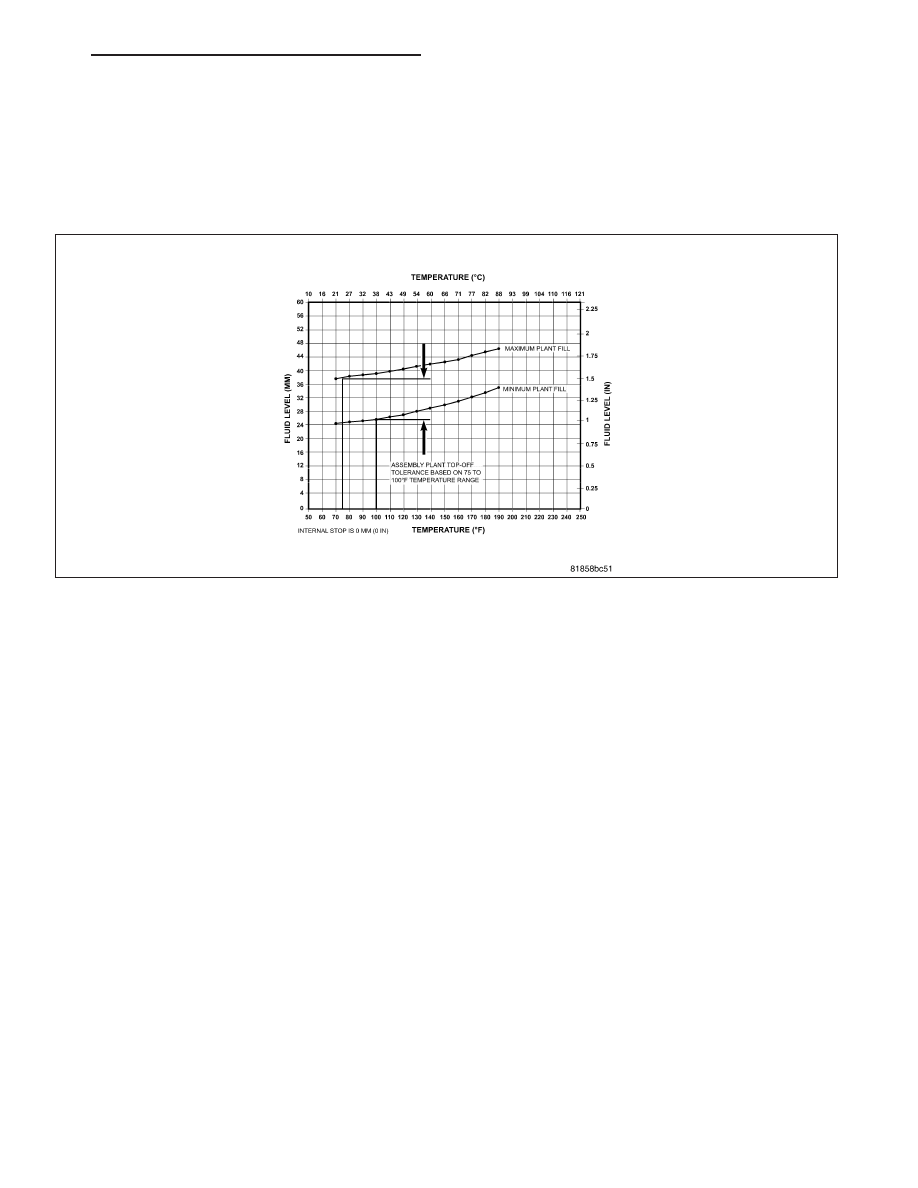

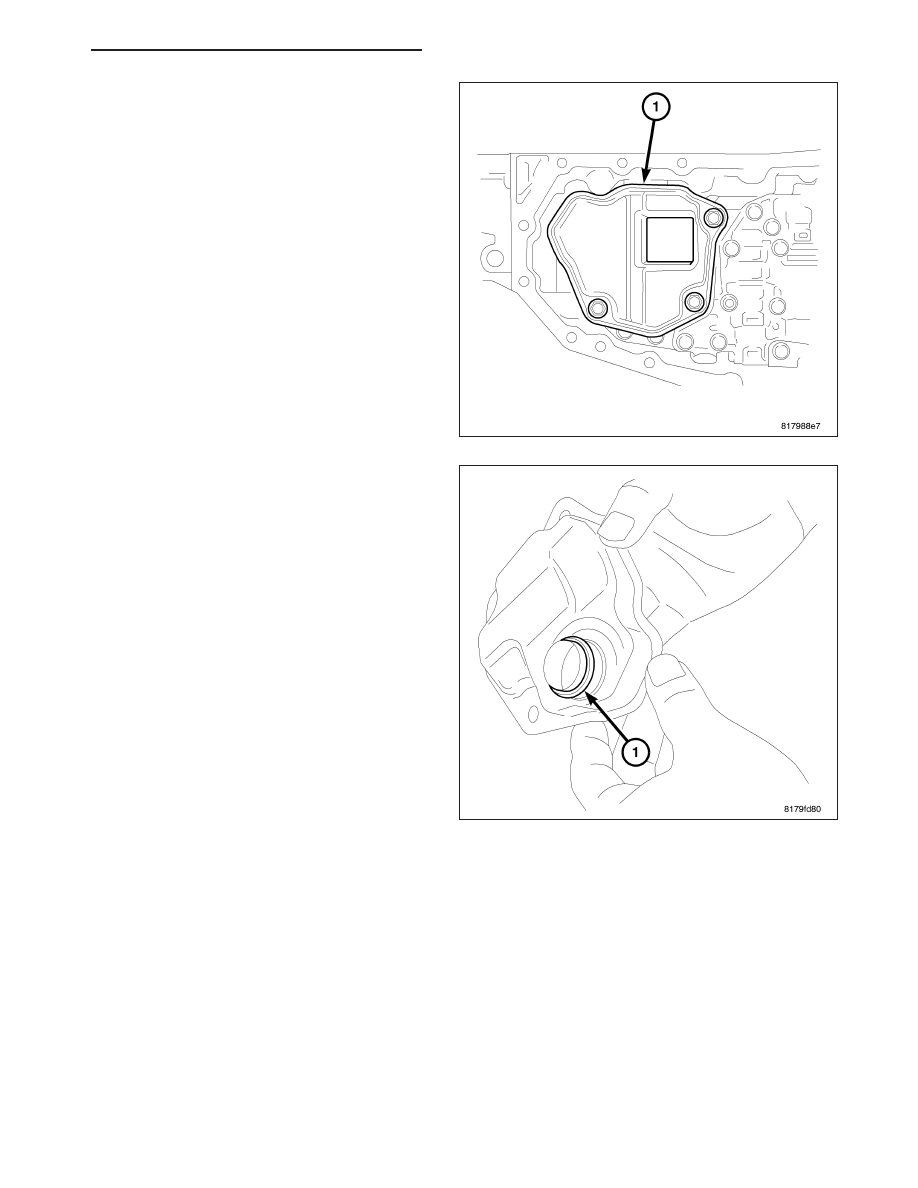

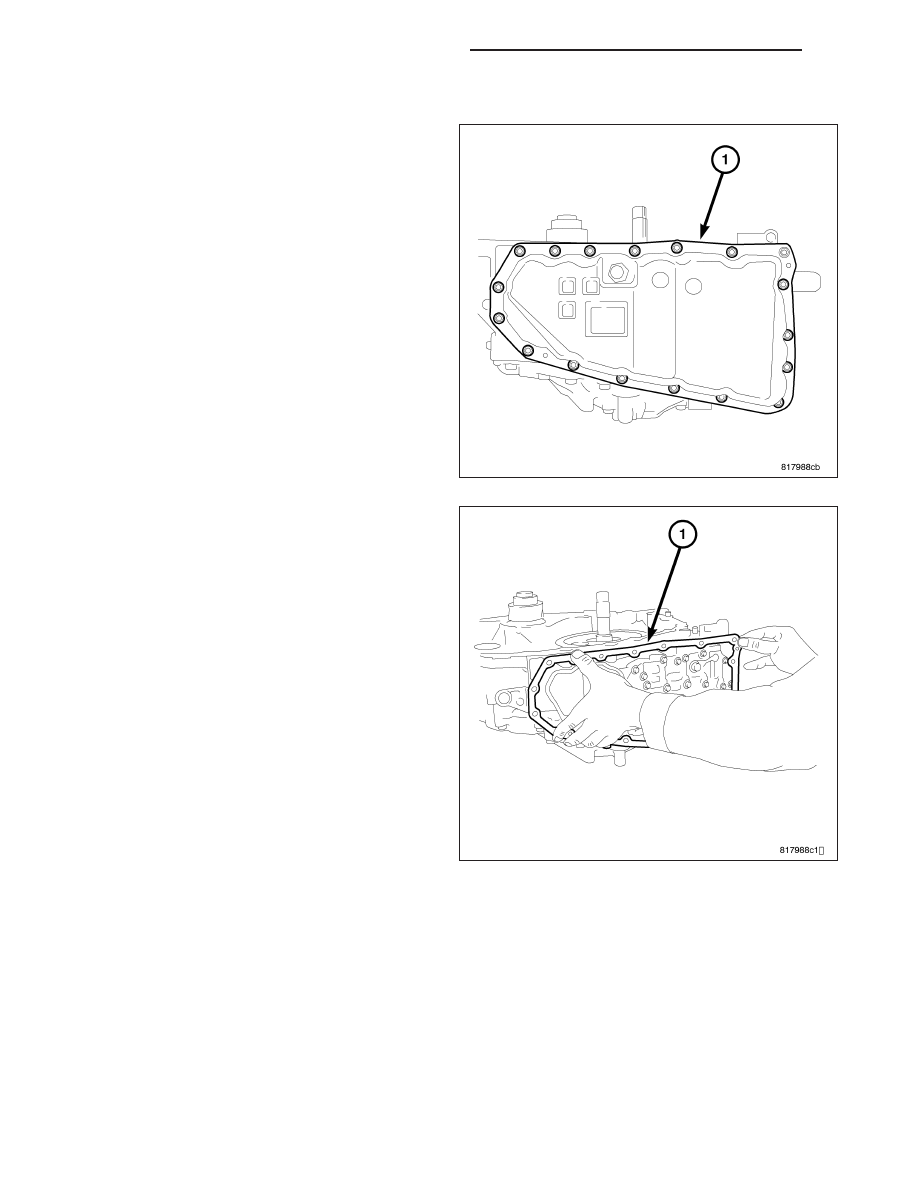

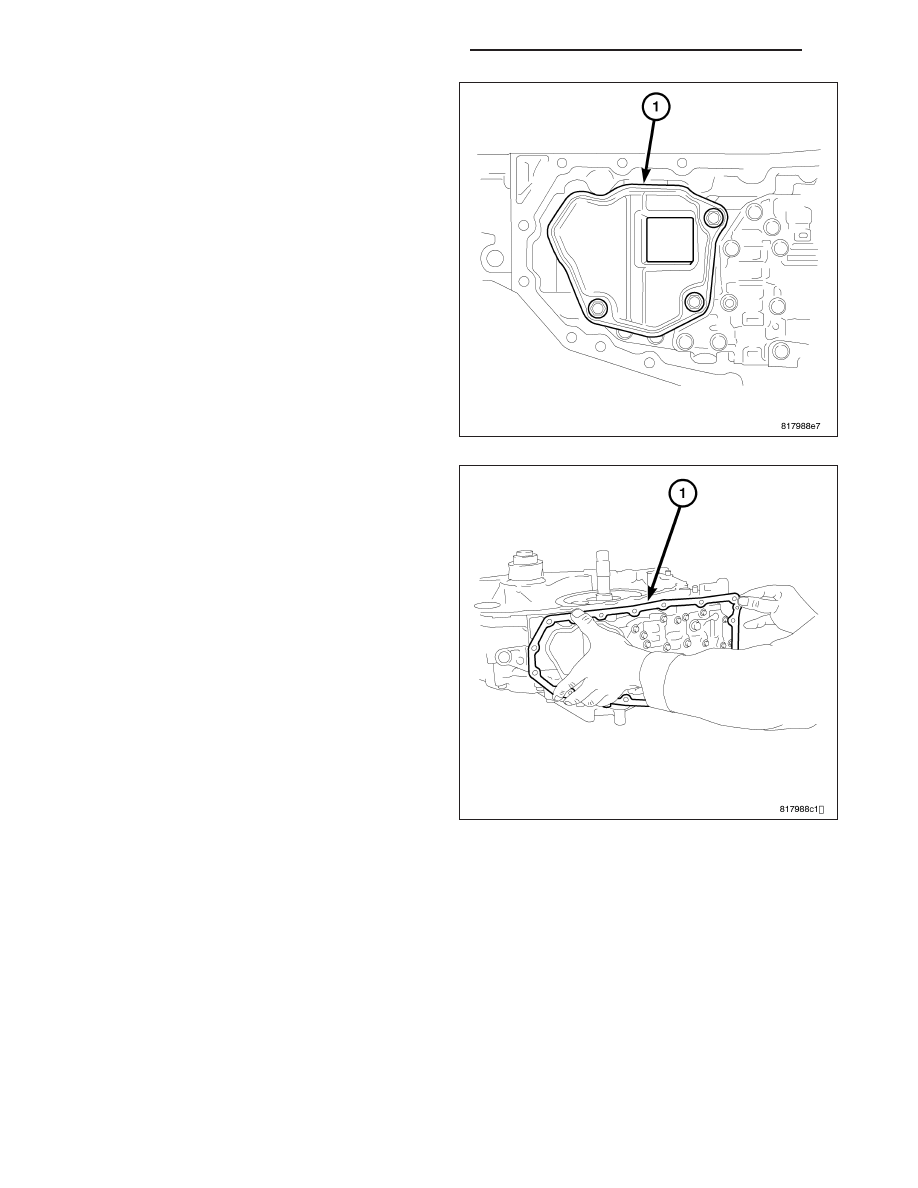

3. Actuate the service brake. Start engine and let it run at idle speed in selector lever position 9 P 9 . 4. Shift through the transmission modes several times with the vehicle stationary and the engine idling 5. Warm up the transmission, wait at least 2 minutes and check the oil level with the engine running. Push the Oil Dipstick 9336 into transmission fill tube until the dipstick tip contacts the oil pan and pull out again, read off oil NOTE: The dipstick will protrude from the fill tube when installed. 6. Check transmission oil temperature using the appropriate scan tool. 7. The transmission Oil Dipstick 9336 has indicator marks every 10 mm. Determine the height of the oil level on the dipstick and using the height, the transmission temperature, and the Transmission Fluid Graph, determine if the 8. Add or remove oil as necessary and recheck the oil level. 9. Once the oil level is correct, install the dipstick tube cap. TRANSMISSION FILL To avoid overfilling transmission after a fluid change or overhaul, perform the following procedure: 1. Verify that the vehicle is parked on a level surface. 2. Remove the dipstick tube cap. 3. Add following initial quantity of MOPAR T CVT+4, Automatic Transmission Fluid, to the transmission: a. If only fluid and filter were changed, add 7.0 L (14.8 pts.) of transmission fluid to transmission. b. If the transmission was completely overhauled or the torque converter was replaced or drained, add 8.1 L (17.1 pts.) of transmission fluid to transmission. 4. Check the transmission fluid (Refer to 21 - TRANSMISSION/TRANSAXLE/AUTOMATIC - CVT/FLUID - STAN- DARD PROCEDURE) and adjust as required. CVT TRANSMISSION FILL GRAPH PM AUTOMATIC - CVT-SERVICE INFORMATION 21 - 419 |
