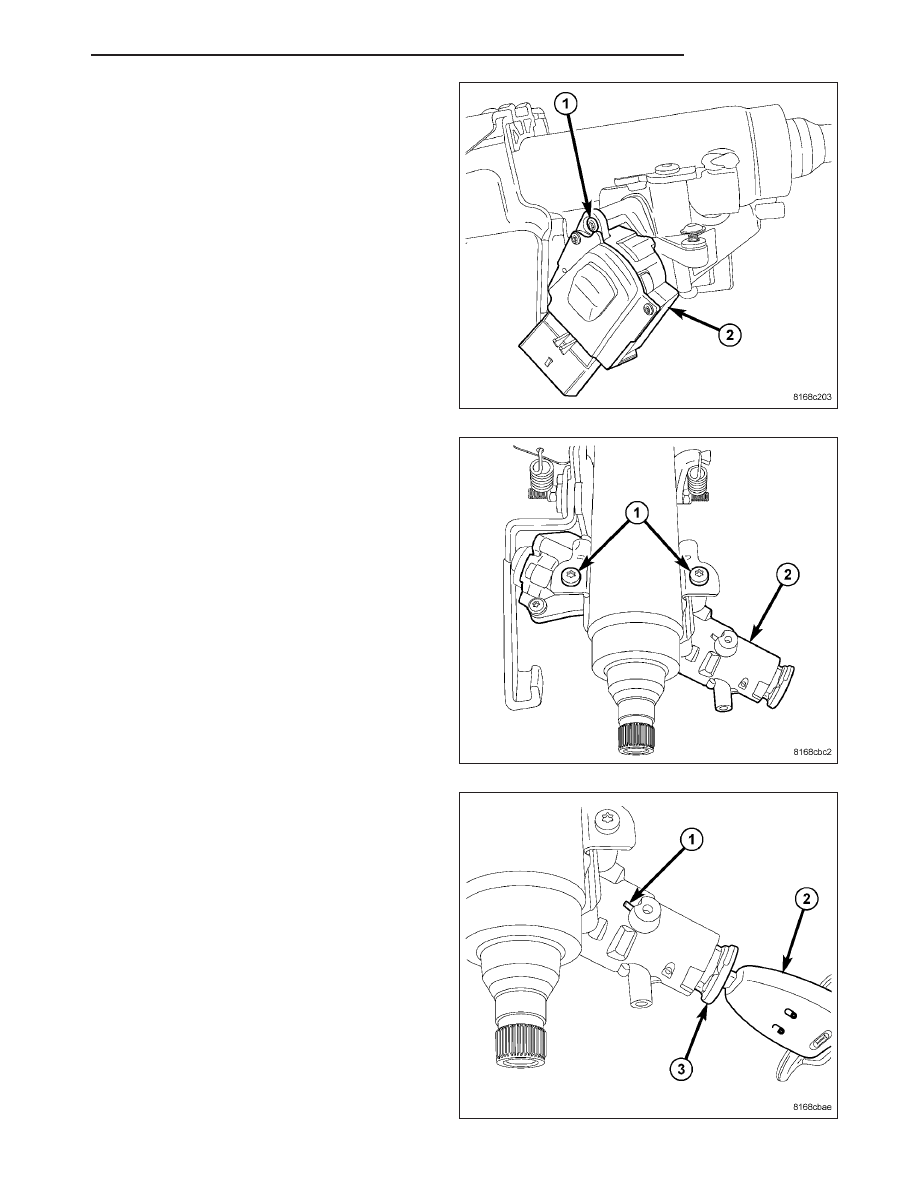

3. Install the ignition switch (2) mounting screw (1).

Tighten the screw to 2 N·m (18 in. lbs.).

NOTE: Ignition switch needs to be installed on
lock cylinder housing before housing installation
to clear tilt lever.

4. Position the lock cylinder housing in the RUN posi-

tion.

5. Align the lock cylinder housing (2) with the steering

column.

6. Install the two screws (1) fastening the lock cylin-

der housing (2) to the column. Tighten the screws
to 12 N·m (110 in. lbs.).

7. Place the actuator in the lock cylinder housing to

the RUN position (if not already there).

8. Insert the key into the key cylinder and turn the key

cylinder to the RUN position.

9. Align the retaining tab on the key cylinder with the

slot in the top of the lock cylinder housing.

10. Slide the key cylinder into the lock cylinder hous-

ing until the key cylinder retaining tab locks the
cylinder into place.

11. Rotate the key back and forth (OFF to START),

then remove and reinstall it, making sure the key
cylinder

and

lock

cylinder

housing

operate

properly.

PM

COLUMN

19 - 35

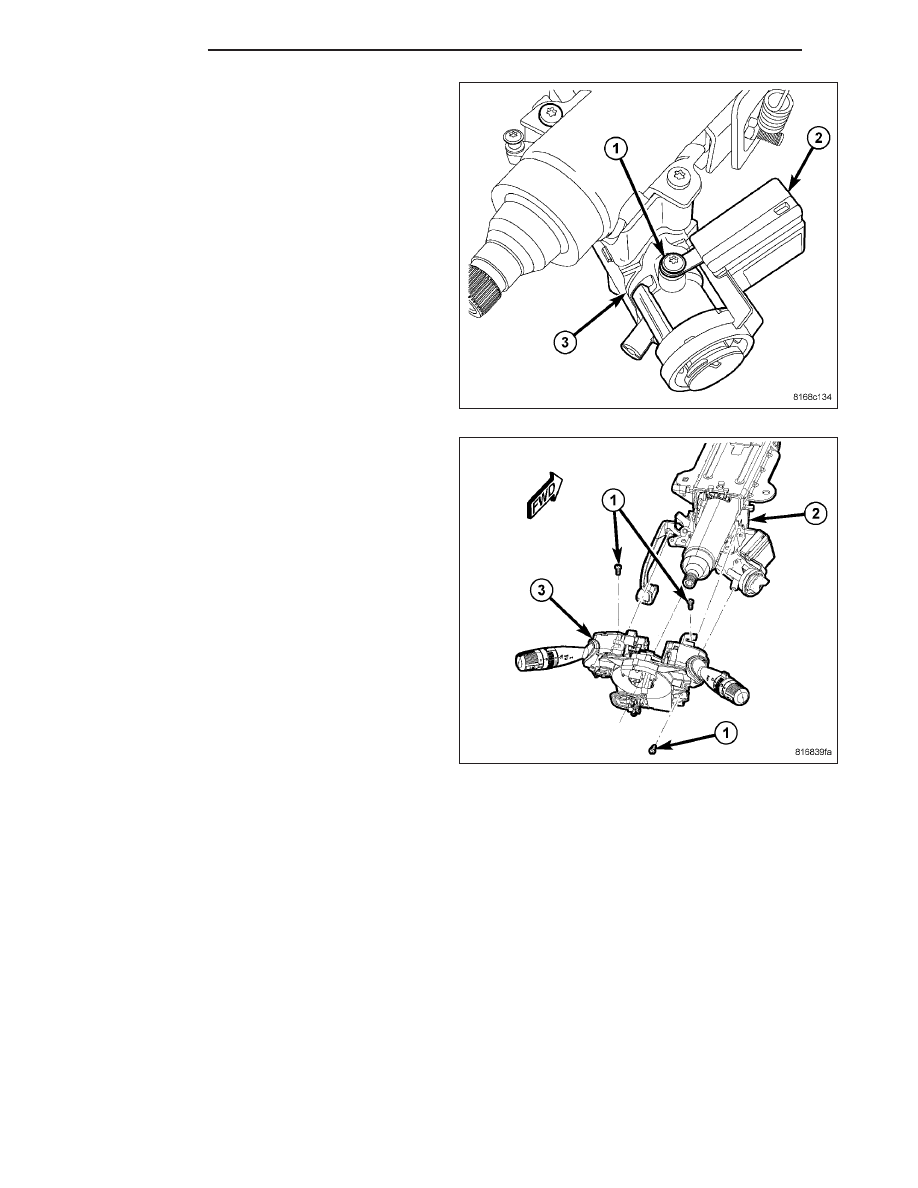

12. Slide the ring of the SKREEM/WCM (2) over the

lock cylinder housing (3) and engage the retainer
fingers in the recesses formed on the lock cylin-
der housing.

13. Install the screw (1) fastening the SKREEM/WCM

(2) to the lock cylinder housing (3). Tighten the
screw to 2.5 N·m (22 in. lbs.).

14. Install

the

Steering

Column

Control

Module

(SCCM) (3) and all components removed to
access it. (Refer to 19 - STEERING/COLUMN/
STEERING

COLUMN

CONTROL MODULE

-

INSTALLATION)

15. Check operation of all steering column mounted

components.

19 - 36

COLUMN

PM

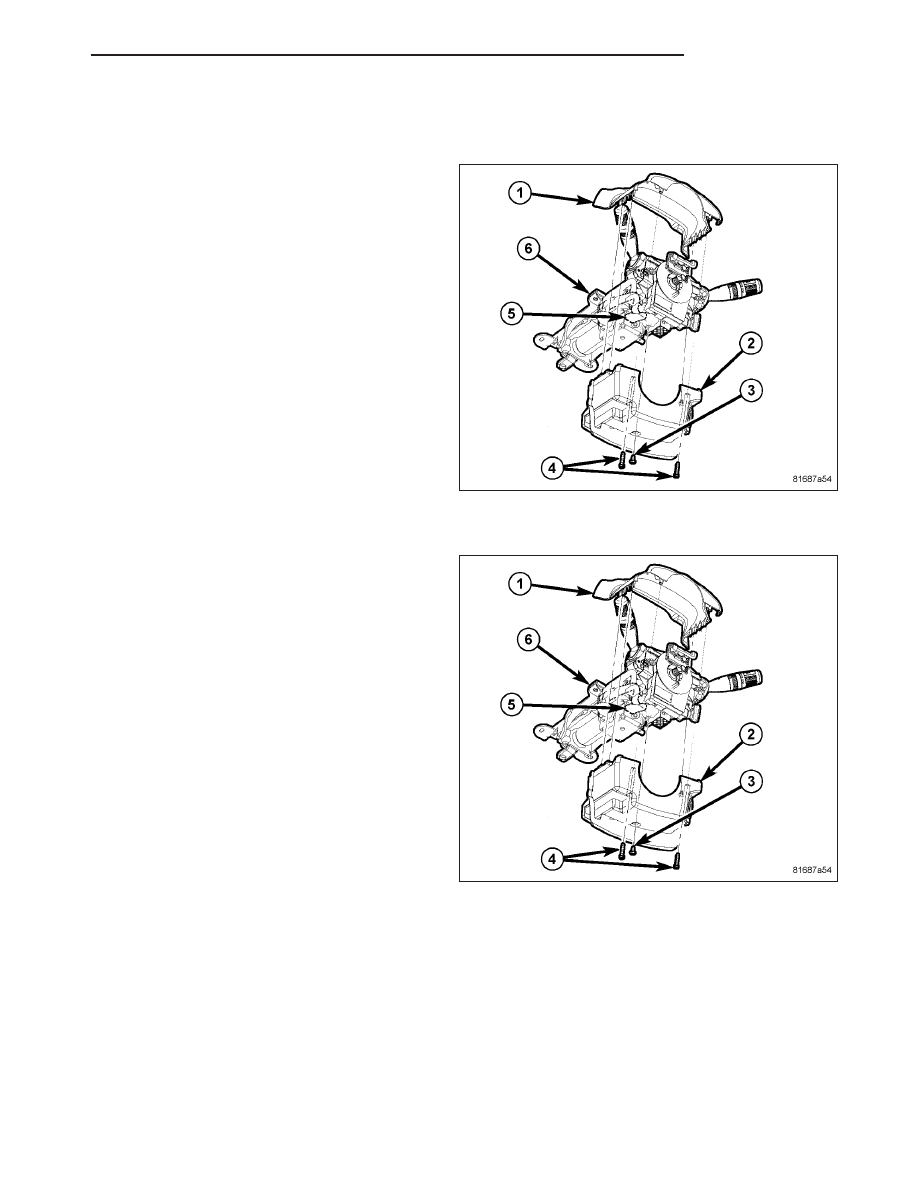

SHROUD-LOWER

REMOVAL

1. Position the column tilt at the full-downward posi-

tion.

2. Remove the two screws (4) attaching the upper

shroud (1) to the lower shroud (2). After removing
the screws, unclip the shrouds from each other by
applying hand pressure along the seams where the
shrouds connect on the sides, then remove the
upper shroud.

3. Push the tilt lever (5) downward.

4. Remove the screw (3) attaching the lower shroud

(2) to the steering column (6). Remove the lower
shroud.

INSTALLATION

1. Push the tilt lever (5) downward.

2. Install the lower shroud (2) over the tilt lever and

onto the column.

3. Position the column tilt (5) at the full-upward posi-

tion.

4. Push the tilt lever (5) upward, locking it in place.

5. Install the screw (3) attaching the lower shroud (2)

to the steering column (6).

6. Position the column tilt at the full-downward posi-

tion and lock it in place.

7. Install the upper shroud over the lower shroud, clip-

ping the shrouds to one another.

8. Install the two screws (4) attaching the upper

shroud (1) to the lower shroud (2).

PM

COLUMN

19 - 37

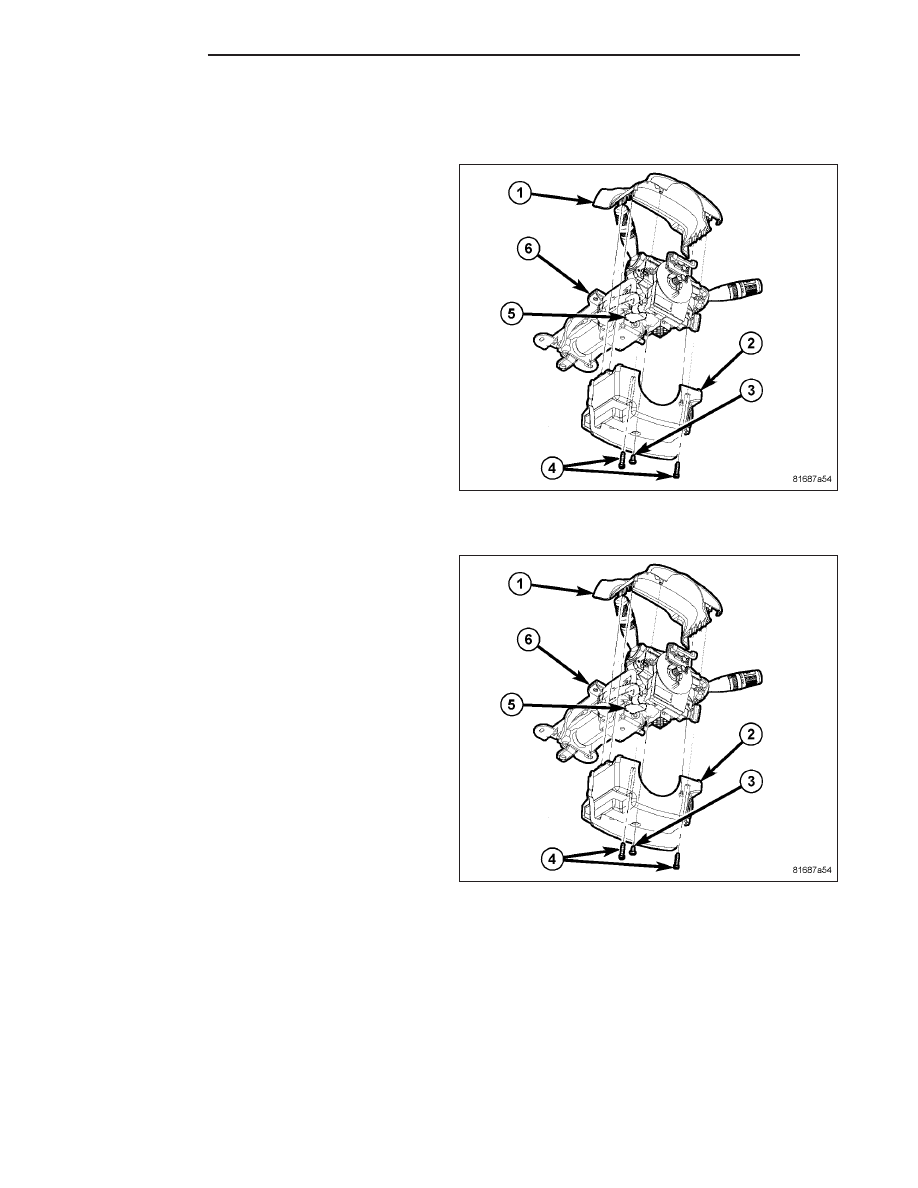

SHROUD-UPPER

REMOVAL

1. Position the column tilt at the full-downward posi-

tion.

2. Remove the two screws (4) attaching the upper

shroud (1) to the lower shroud (2). After removing
the screws, unclip the shrouds from each other by
applying hand pressure along the seams where the
shrouds connect on the sides, then remove the
upper shroud.

INSTALLATION

1. Position the column tilt at the full-downward posi-

tion and lock it in place.

2. Install the upper shroud over the lower shroud, clip-

ping the shrouds to one another.

3. Install the two screws (4) attaching the upper

shroud (1) to the lower shroud (2).

19 - 38

COLUMN

PM
