WARNING: Do not connect the battery ground cable without following the proper procedure as indicated in
the following step. Personal injury or death may result if the Airbag System Test is not performed first.

30. Reconnect the battery ground terminal following the Airbag System Test found in Restraints. (Refer to 8 - ELEC-

TRICAL/RESTRAINTS - DIAGNOSIS AND TESTING)

31. Test the operation of the all column mounted components. If applicable, reset the radio and the clock as nec-

essary.

32. Road test the vehicle to ensure proper operation of the steering system.

SPECIFICATIONS

STEERING COLUMN FASTENER TORQUE

DESCRIPTION

N·m

Ft. Lbs.

In. Lbs.

Coupling Pinch Bolt Nut

28

21

250

Lock Cylinder Housing Mounting Screws

12

110

SKREEM/WCM Mounting Screws

2.5

22

Steering Column Mounting Nuts

28

21

250

Steering Wheel Retaining Bolt

43

32

PM

COLUMN

19 - 31

HOUSING-LOCK CYLINDER

REMOVAL

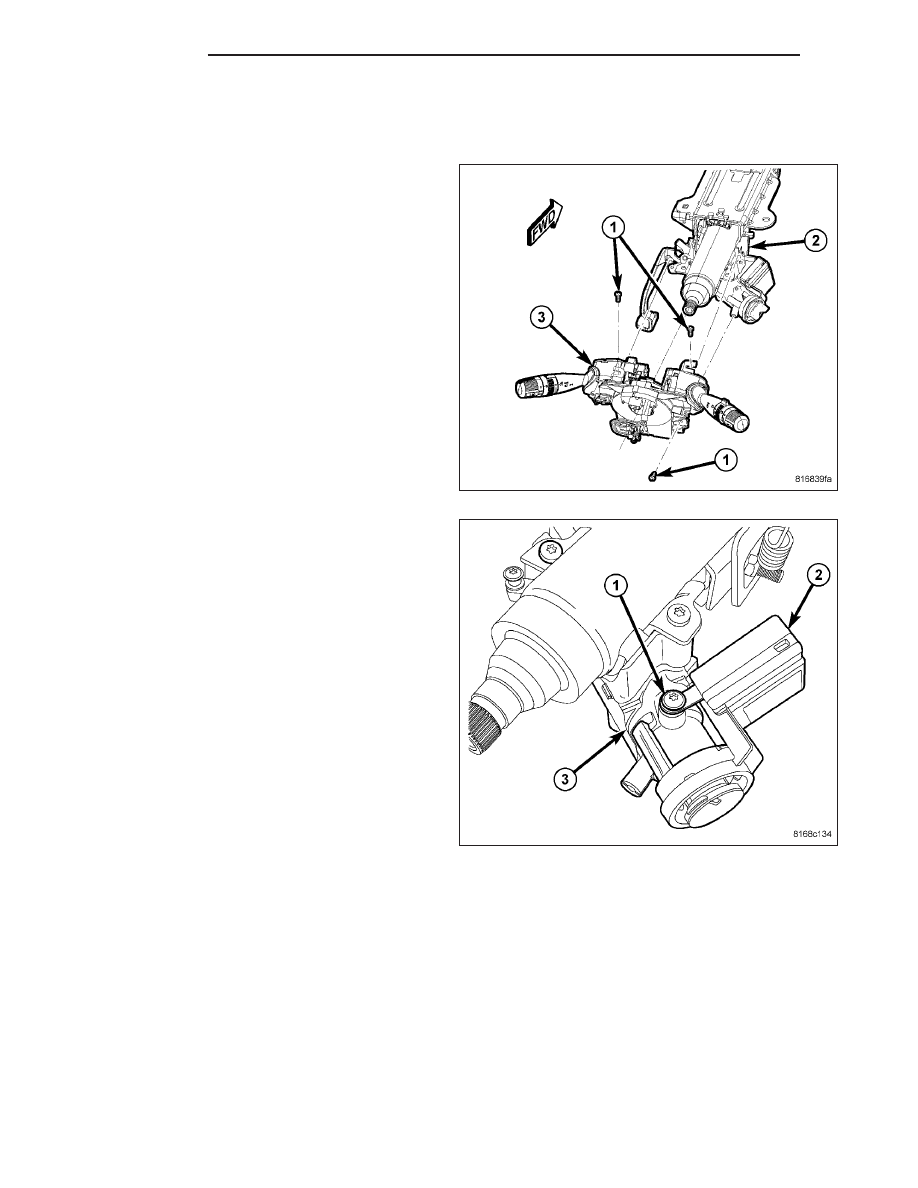

1. Access and remove the Steering Column Control

Module (SCCM) (3) from the steering column (2).
(Refer to 19 - STEERING/COLUMN/STEERING
COLUMN CONTROL MODULE - REMOVAL)

2. Remove the screw (1) fastening the SKREEM/

WCM (2) to the lock cylinder housing (3).

3. Unhook the SKREEM/WCM (2) retainer fingers

from the lock cylinder housing (3) and remove it.

19 - 32

COLUMN

PM

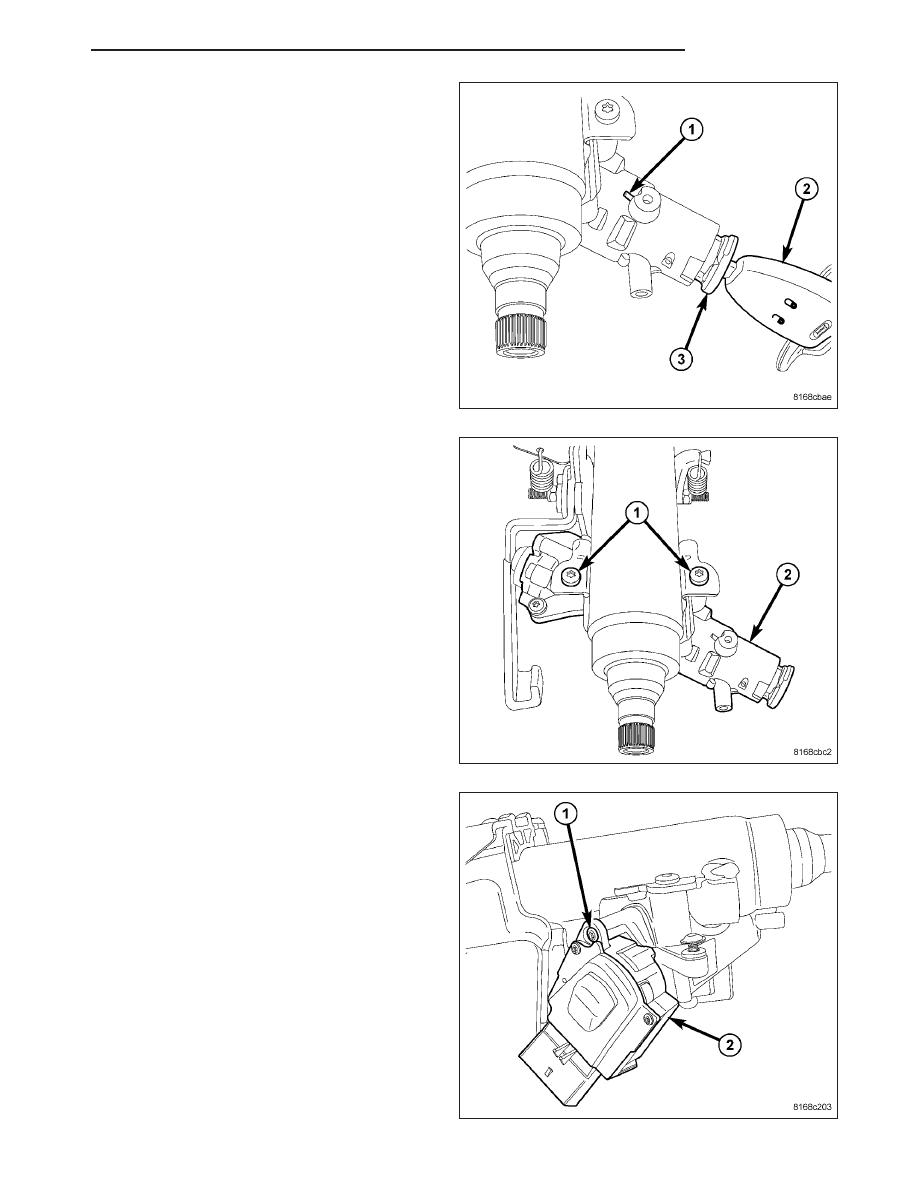

4. Insert the key (2) and turn the key cylinder (3) to

the RUN position.

5. Insert an appropriate tool into the slot (1) formed

into the lock cylinder housing depressing the key
cylinder retaining tab.

6. Pull the key cylinder and key straight out of the

lock cylinder housing as one unit.

7. Using a Tamper-Proof Torx

T

Plus (five point) 30 bit,

remove the two screws (1) fastening the lock cylin-
der housing (2) to the column.

8. Remove the lock cylinder housing from the steering

column.

9. Remove the ignition switch (2) mounting screw (1).

PM

COLUMN

19 - 33

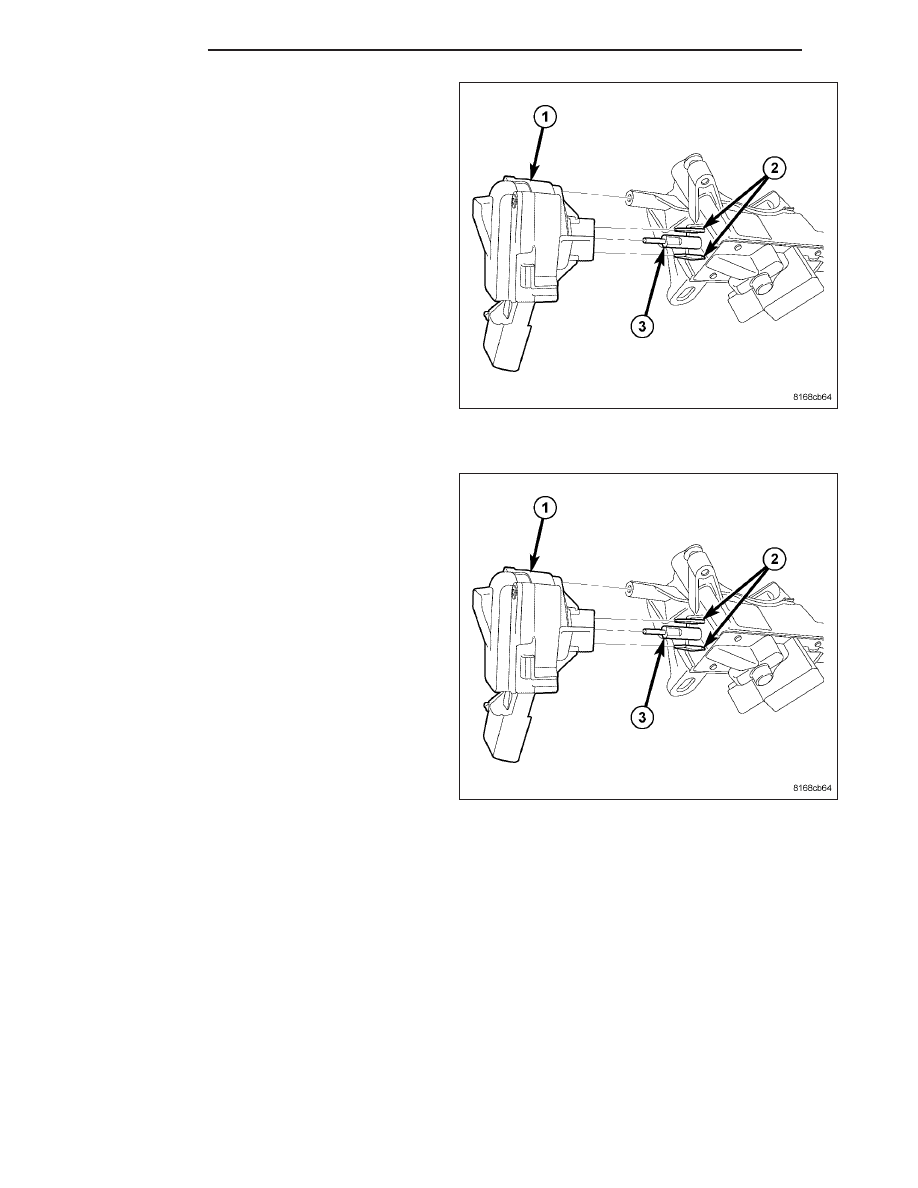

10. Pull the switch (1) straight out and off the retain-

ing tabs (2) located on the lock cylinder housing.

INSTALLATION

NOTE: Ignition switch must be installed prior to
lock housing installation on column. Otherwise,
the tilt lever will obstruct installation of ignition
switch.

1. Ensure the ignition switch is in the RUN position

and the actuator shaft in the lock housing is in the
RUN position.

2. Align the ignition switch with the pin (3), actuator

shaft and retaining tabs (2) located on the lock cyl-
inder housing. Carefully install the switch, snapping
it into place over the retaining tabs.

19 - 34

COLUMN

PM
