Dodge Caliber. Manual - part 50

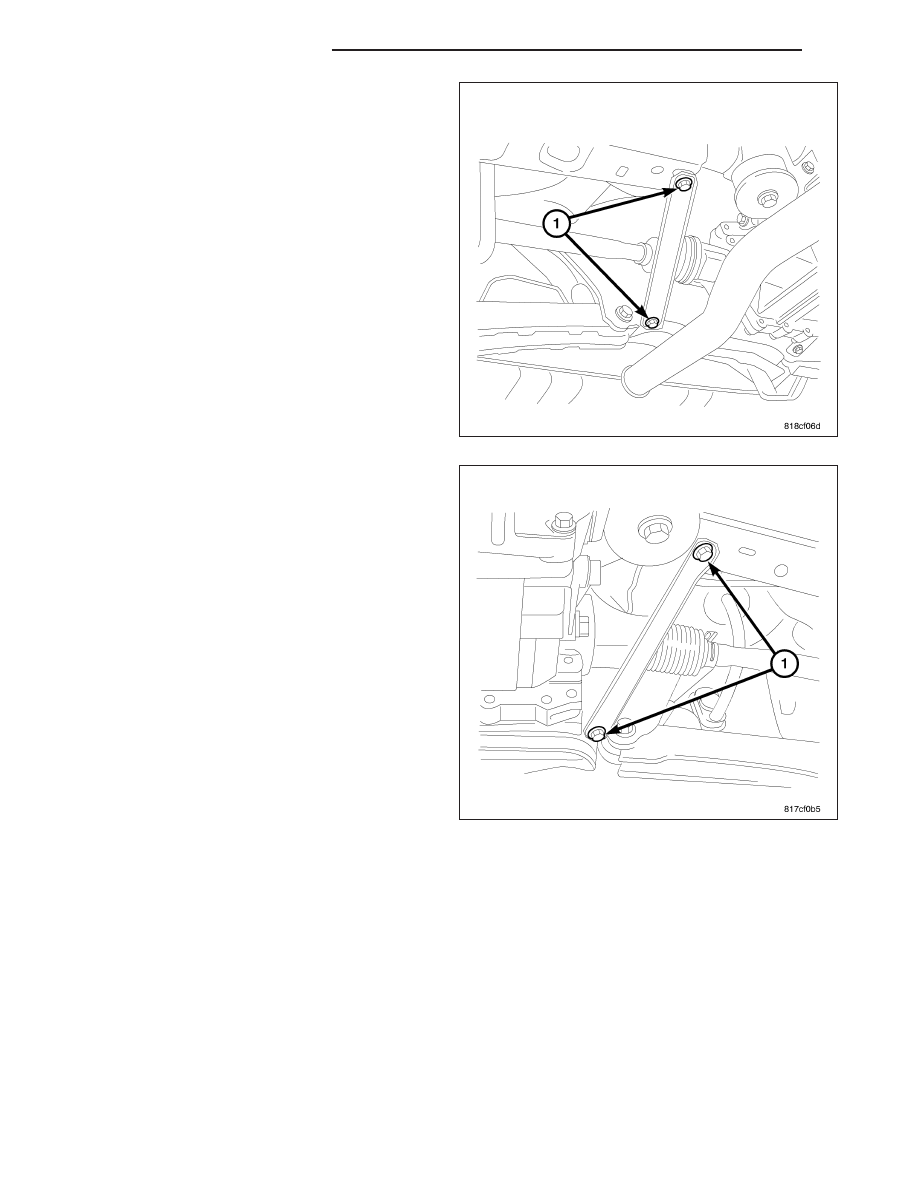

5. Install the two driveline module side mounting bolts

(1) and torque to 102 N·m (75 ft. lbs.).

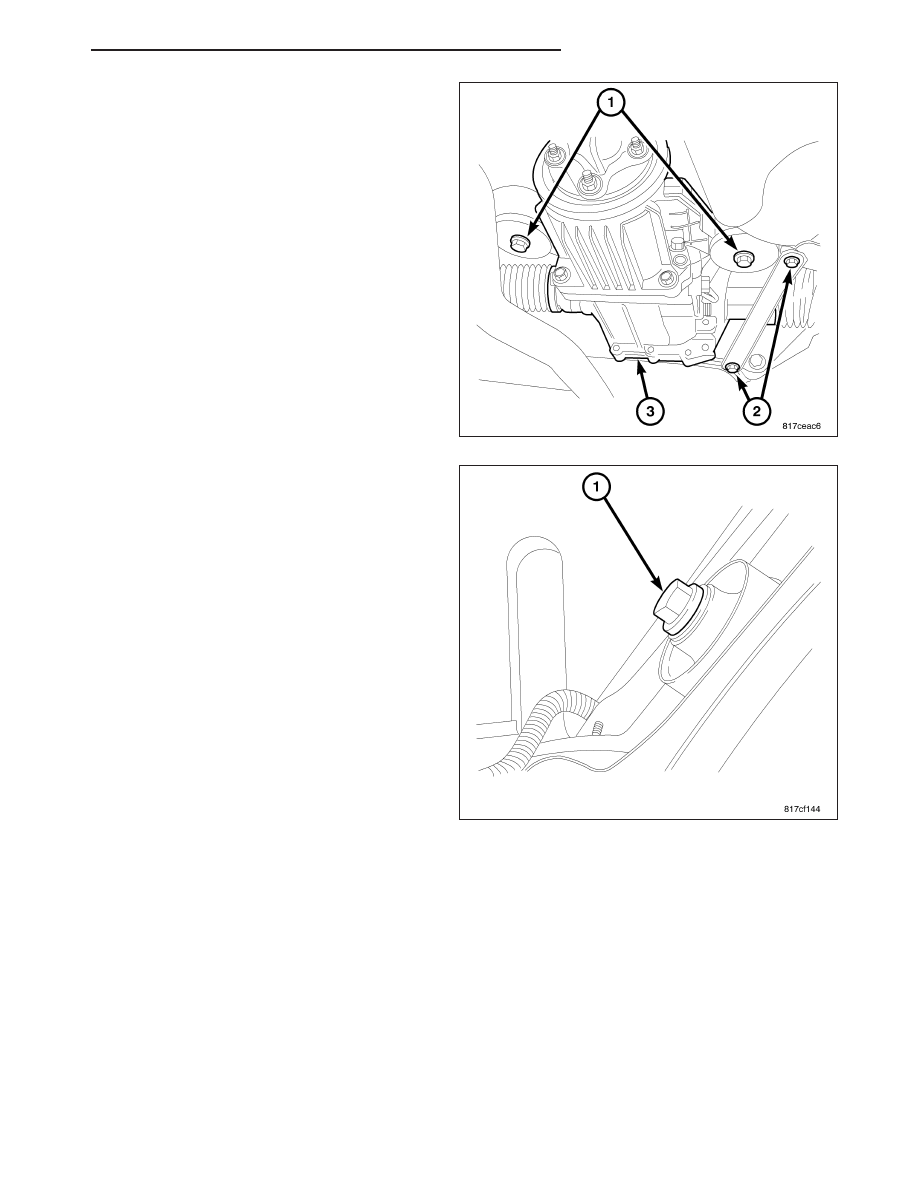

6. Install the one rear driveline module mounting bolt

(1) and torque to 102 N·m (75 ft. lbs.).

PM

MODULE-REAR DRIVELINE

3 - 75

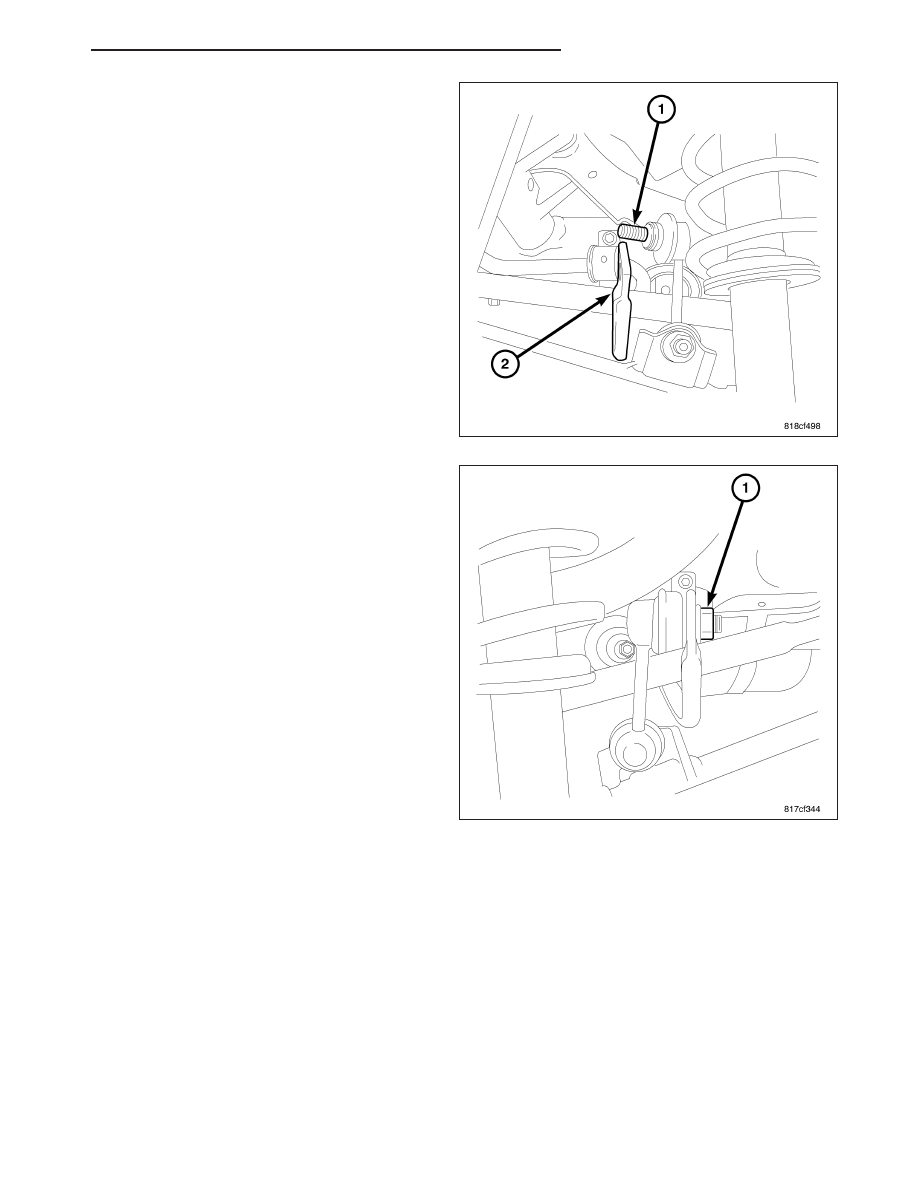

7. Install the right side stay bracket and bolts, (1)

torque to 61 N·m (45 ft. lbs.)

8. Install the left side stay bracket and bolts, (1) and

torque to 61 N·m (45 ft. lbs.).

9. Install the propeller shaft (Refer to 3 - DIFFERENTIAL & DRIVELINE/PROPELLER SHAFT - INSTALLATION).

10. Fill the rear axle with fluid.

3 - 76

MODULE-REAR DRIVELINE

PM

11. Roll sway bar into place (2) (if equipped).

12. Install left side sway bar nut and torque to 61 N·m

(45 ft. lbs) (1) (if equipped).

PM

MODULE-REAR DRIVELINE

3 - 77

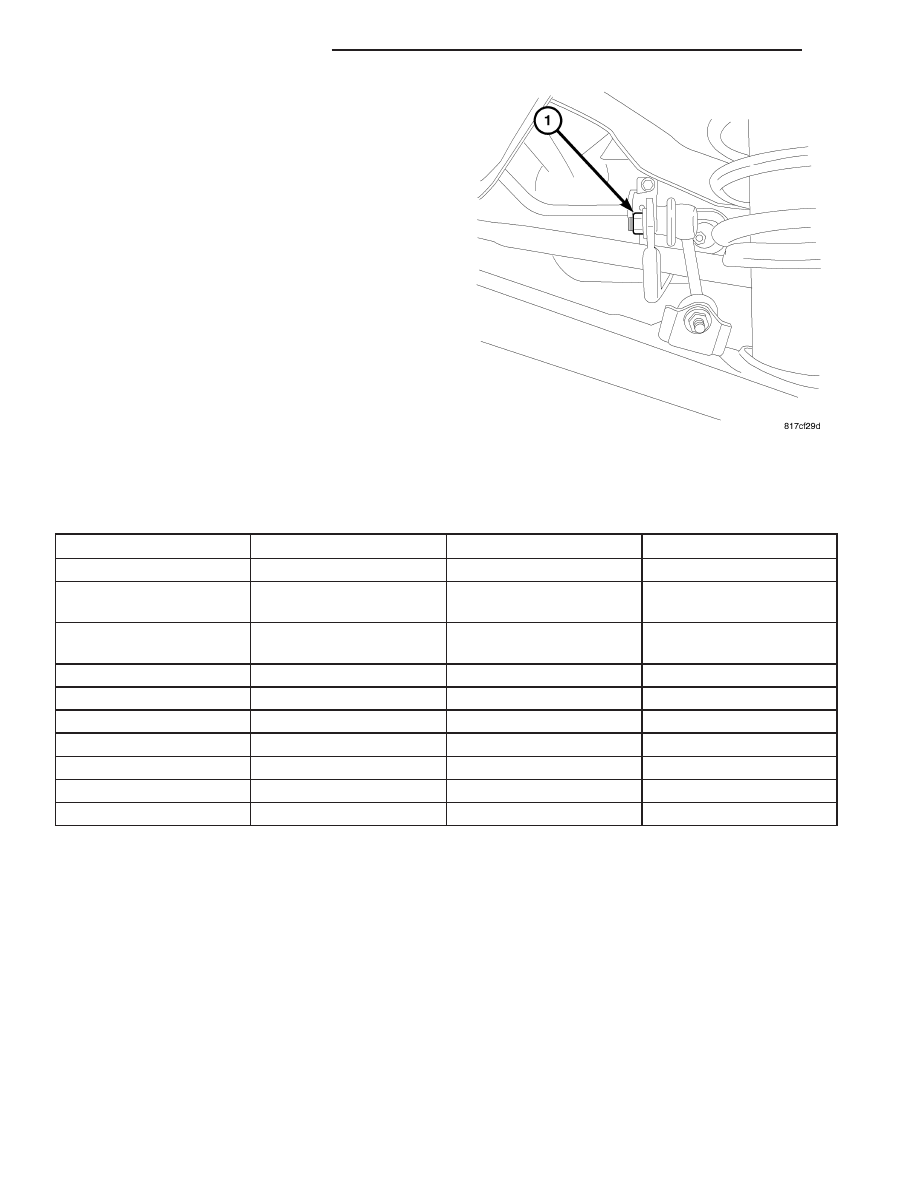

13. Install right side sway bar nut and torque to 61

N·m (45 ft. lbs) (1) (if equipped).

14. Install the exhaust (Refer to 11 - EXHAUST SYS-

TEM/MUFFLER - INSTALLATION).

15. Install the wheels (Refer to 22 - TIRES/WHEELS -

DIAGNOSIS AND TESTING).

SPECIFICATIONS -

TORQUE SPECIFICATIONS

DESCRIPTION

N·m

Ft. Lbs.

In. Lbs.

Bolts, Harness Bracket

45

33

-

Bolts, Driveline Module

Side Mounting

102

75

-

Bolt, Rear Driveline

Module

102

75

-

Bolts, Stay Bracket

61

45

-

Nut, Sway Bar

61

45

-

Nut, Pinion

74

133

-

Bolts, Ring Gear

41

30

-

Bolts, Carrier Cap

48

35

-

Bolts, Deferential Cover

23

16

-

Bolts, ECC to RDA

78

58

-
