LINK-TRAILING

REMOVAL

1. Raise and support the vehicle. (Refer to LUBRICATION & MAINTENANCE/HOISTING - STANDARD PROCE-

DURE)

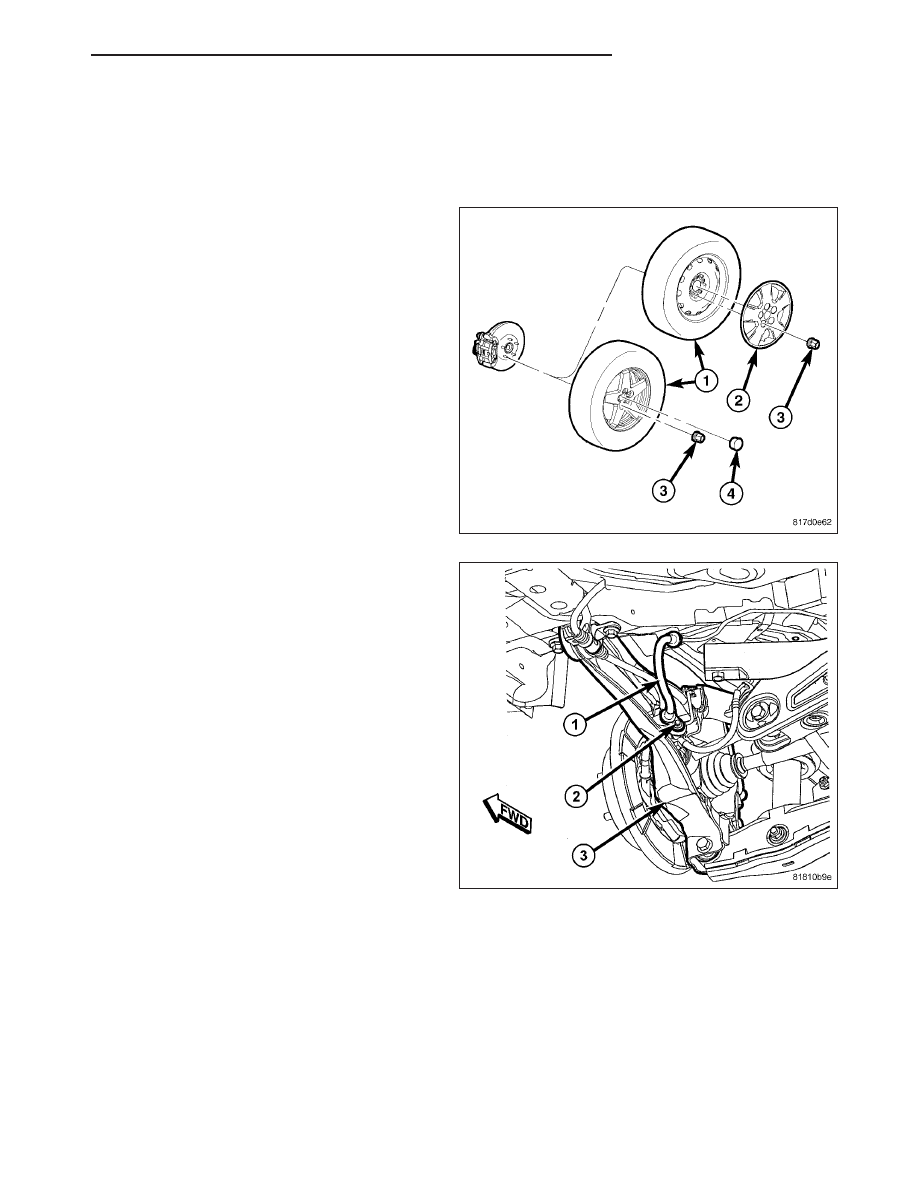

2. Remove the wheel mounting nuts (3), then the tire

and wheel assembly (1).

3. Remove the screw (2) securing the brake flex hose

(1) to the trailing link (3).

PM

REAR SUSPENSION

2 - 49

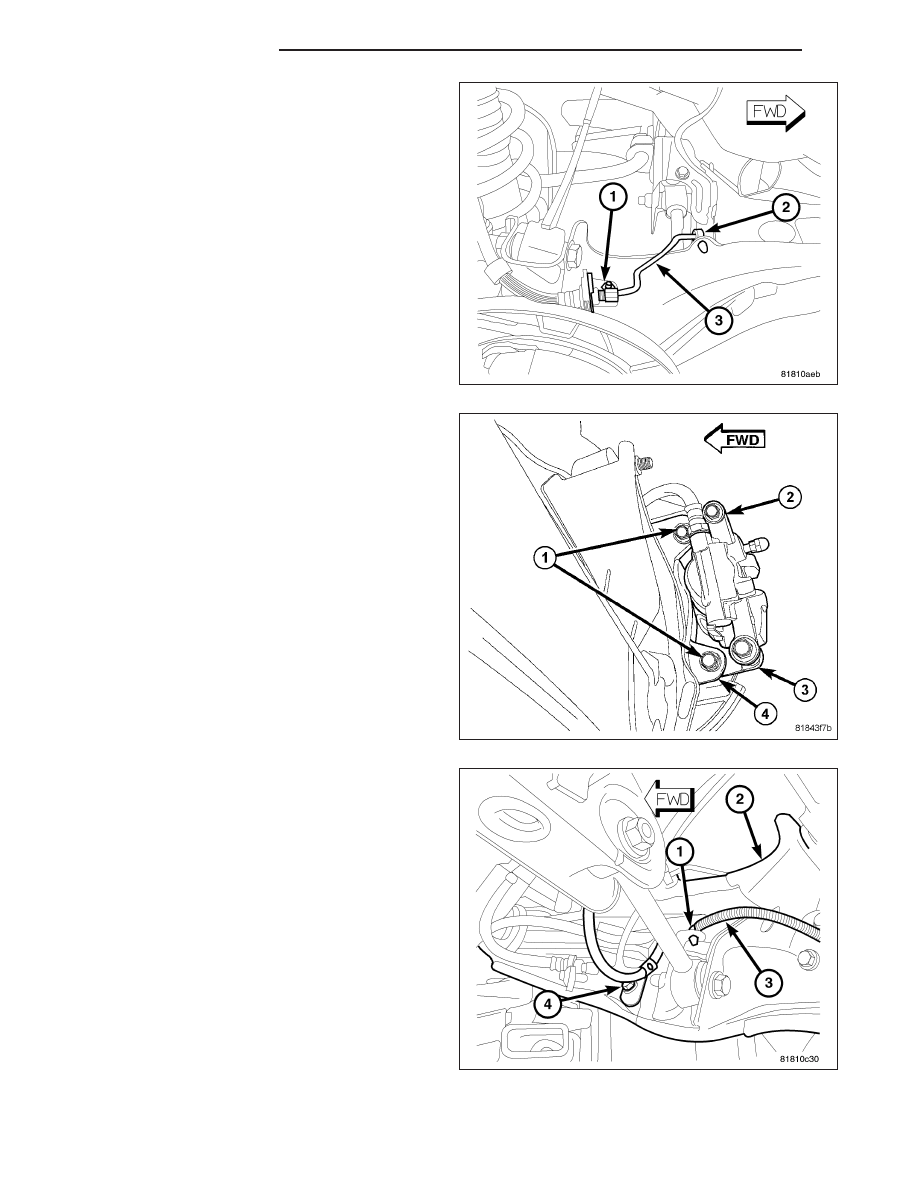

4. Remove the nut (1) securing the brake tube routing

bracket to the trailing link.

5. Remove the brake tube (3) from the routing clip (2)

on the trailing link.

6. Remove the two bolts (1) securing disc brake cali-

per adapter (3) to the brake support plate (4).

7. Remove the disc brake caliper (2) and adapter (3)

as an assembly. Hang the assembly out of the way
using wire or a bungee cord. Use care not to over-
extend the brake hose and tubing when doing this.

8. If equipped, remove the screw (4) fastening the

wheel speed sensor (3) to the trailing link (2).

9. If equipped, remove the routing clip (1) fastening

the wheel speed sensor (3) to the trailing link (2).

10. Remove the brake rotor, then hub and bearing.

(Refer to 2 - SUSPENSION/REAR/HUB / BEAR-
ING - REMOVAL)

2 - 50

REAR SUSPENSION

PM

11. Remove the parking brake cable from the lever on

the parking brake shoe.

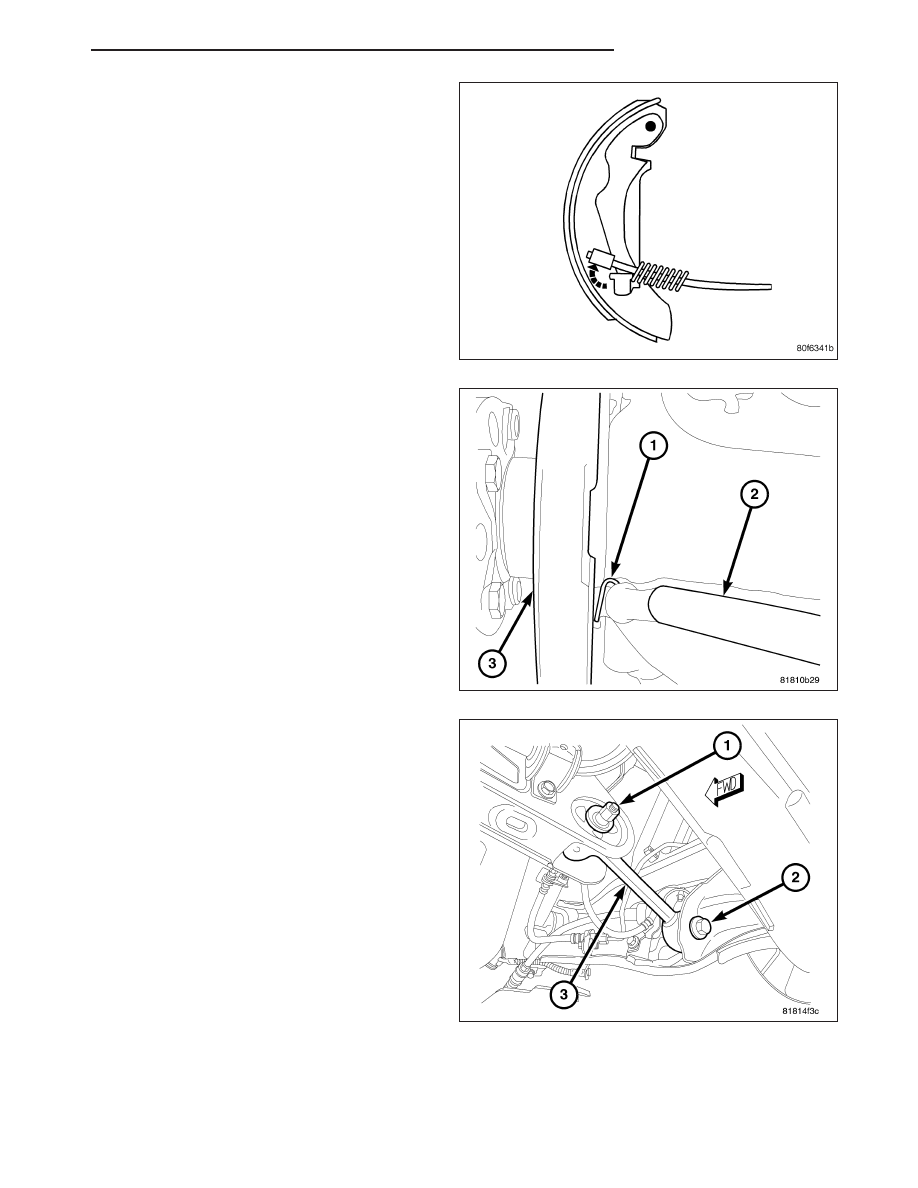

12. Remove the hair pin (1) securing the parking

brake cable (2) to the brake support plate (3).

13. Slide the brake support plate (3) with parking

brake shoes off the end of the parking brake
cable (2) and remove.

14. Pull the parking brake cable from the trailing link.

15. Remove the bolt (2) securing the toe link (3) to

the trailing link.

PM

REAR SUSPENSION

2 - 51

16. Remove the nut (2) and bolt securing the lower

control arm to the trailing link (3).

17. Remove the nut (1) and bolt securing the upper

control arm to the trailing link (3).

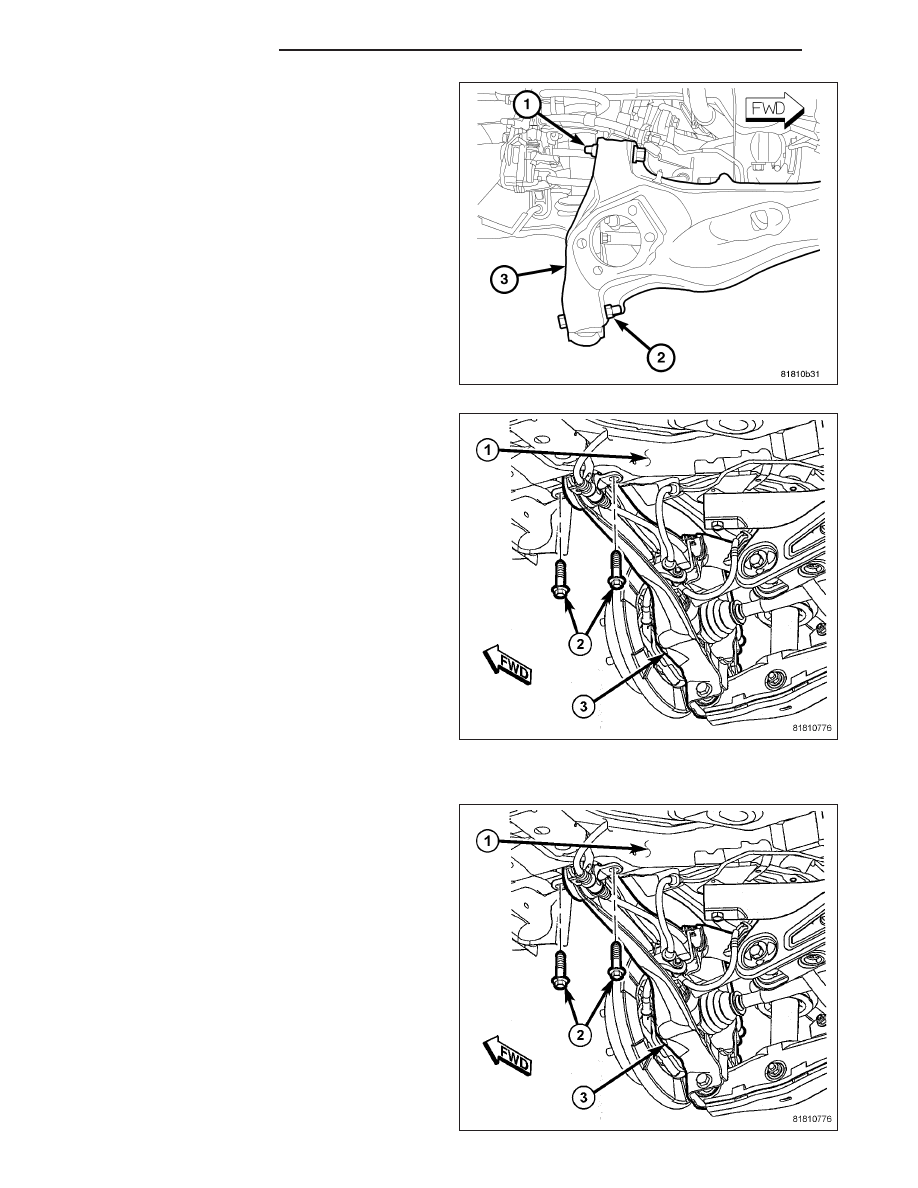

18. Remove the two bolts (2) fastening the leading

end of the trailing link (3) to the body (1).

19. Remove the trailing link.

INSTALLATION

1. Position the trailing link and install the two bolts (2)

fastening the leading end of the trailing link (3) to
the body (1). Tighten the two mounting bolts to 60
N·m (44 ft. lbs.).

2 - 52

REAR SUSPENSION

PM
