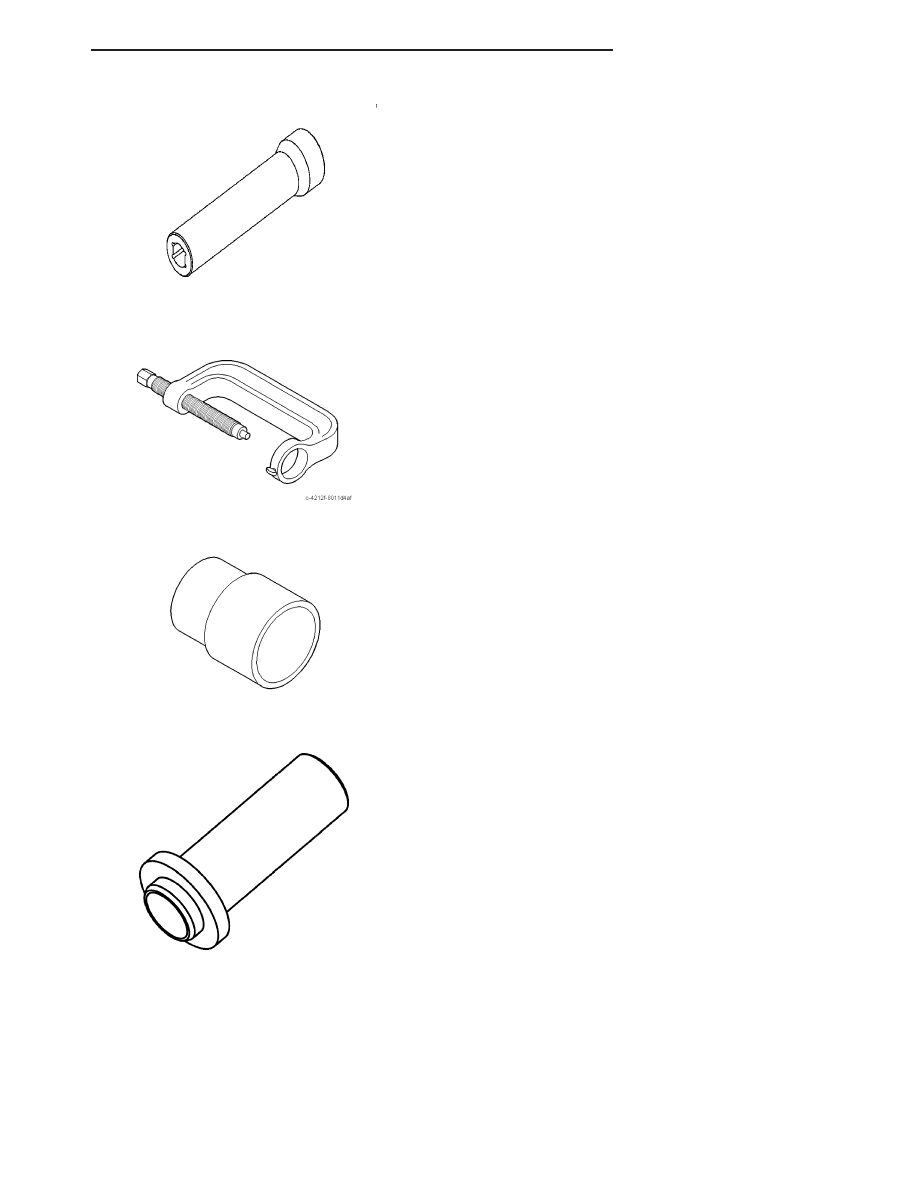

Socket, Strut Nut 9894

Press, Ball Joint C-4212F

Remover/Installer MB-990799

Installer MD998334

PM

FRONT SUSPENSION

2 - 5

HUB / BEARING

DESCRIPTION

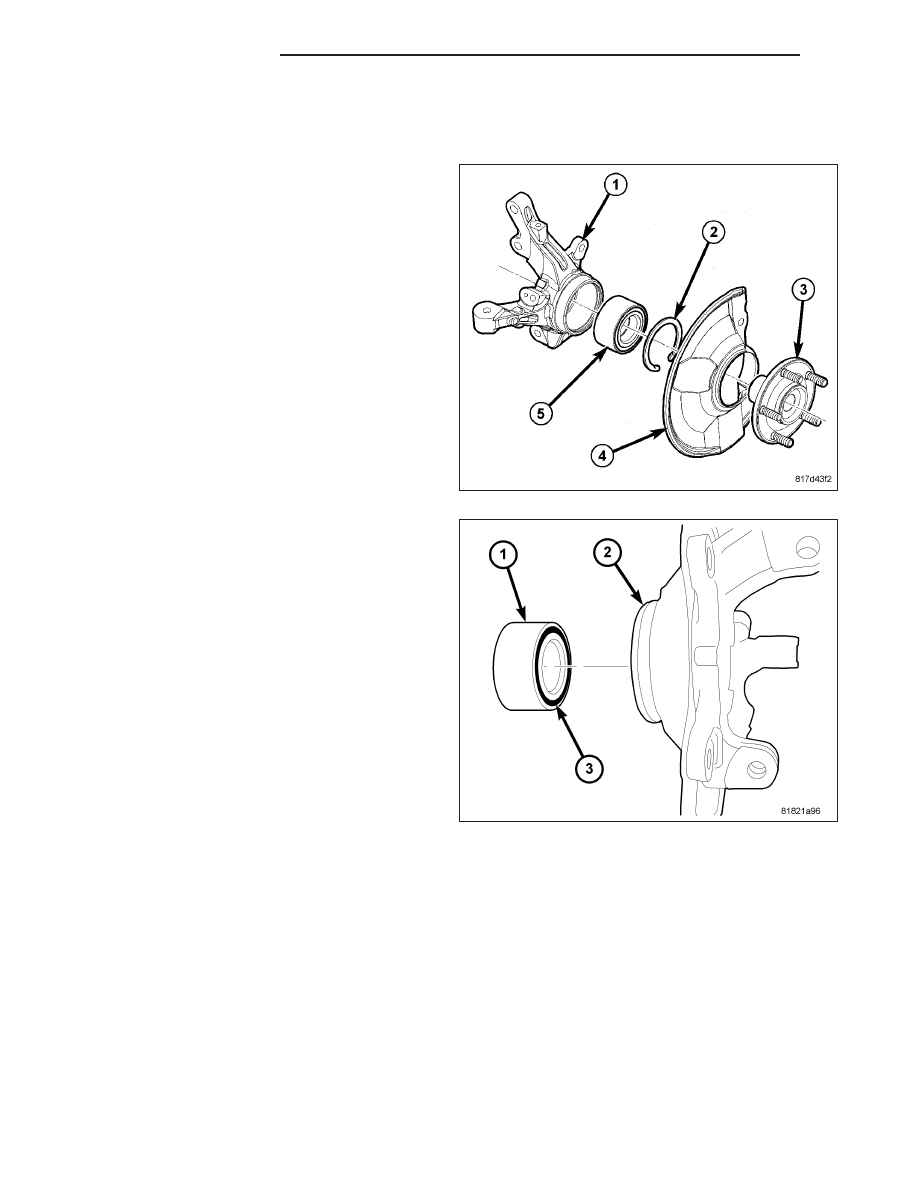

The wheel bearing (5) and hub (3) are pressed into
the knuckle (1). The wheel bearing is secured in place
using a snap ring.

One side of the wheel bearing has an integrated mag-
netic encoder ring for wheel speed sensor usage as
equipped. It is important that the wheel speed sensor
magnetic encoder ring (dark band) (3) be positioned to
the inside of the knuckle or the wheel speed sensor
will not operate correctly.

The wheel bearing is a Unit 1 type cartridge bearing
that requires no maintenance. The wheel bearing can
be serviced separately from the hub.

The hub supports the driveline halfshaft outer constant velocity (C/V) joint. Each is splined and meshes in the center
of the hub. The outer C/V joint is retained to the hub using a nut. The nut is locked to the outer C/V stub shaft using
a cotter pin.

The hub has five studs pressed into its flange.

DIAGNOSIS AND TESTING

WHEEL BEARING AND HUB

NOTE: The wheel bearing is designed to last for the life of the vehicle and requires no type of periodic
maintenance.

The following procedure may be used for diagnosing the condition of the wheel bearing and hub.

1. Remove the wheel and tire assembly, disc brake caliper and brake rotor. (Refer to 5 - BRAKES/HYDRAULIC/

MECHANICAL/ROTORS - REMOVAL)

2. Rotate the wheel hub checking for resistance or roughness.

2 - 6

FRONT SUSPENSION

PM

Any roughness or resistance to rotation may indicate dirt intrusion or a failed hub bearing. If the bearing exhibits any
of these conditions, the hub bearing will require replacement. Do not attempt to disassemble the bearing for repair.
If the wheel bearing is disassembled for any reason, it must be replaced.

Damaged bearing seals and the resulting excessive grease loss may also require bearing replacement. Moderate
grease weeping from the bearing is considered normal and should not require replacement of the wheel bearing.

To diagnose a bent hub, measure hub runout. (Refer to 5 - BRAKES/HYDRAULIC/MECHANICAL/ROTORS - DIAG-
NOSIS AND TESTING)

REMOVAL

NOTE: The removal and installation of the wheel bearing and hub from the knuckle is only to be done with
the knuckle removed from the vehicle.

1. Remove the steering knuckle from the vehicle. (Refer to 2 - SUSPENSION/FRONT/KNUCKLE - REMOVAL)

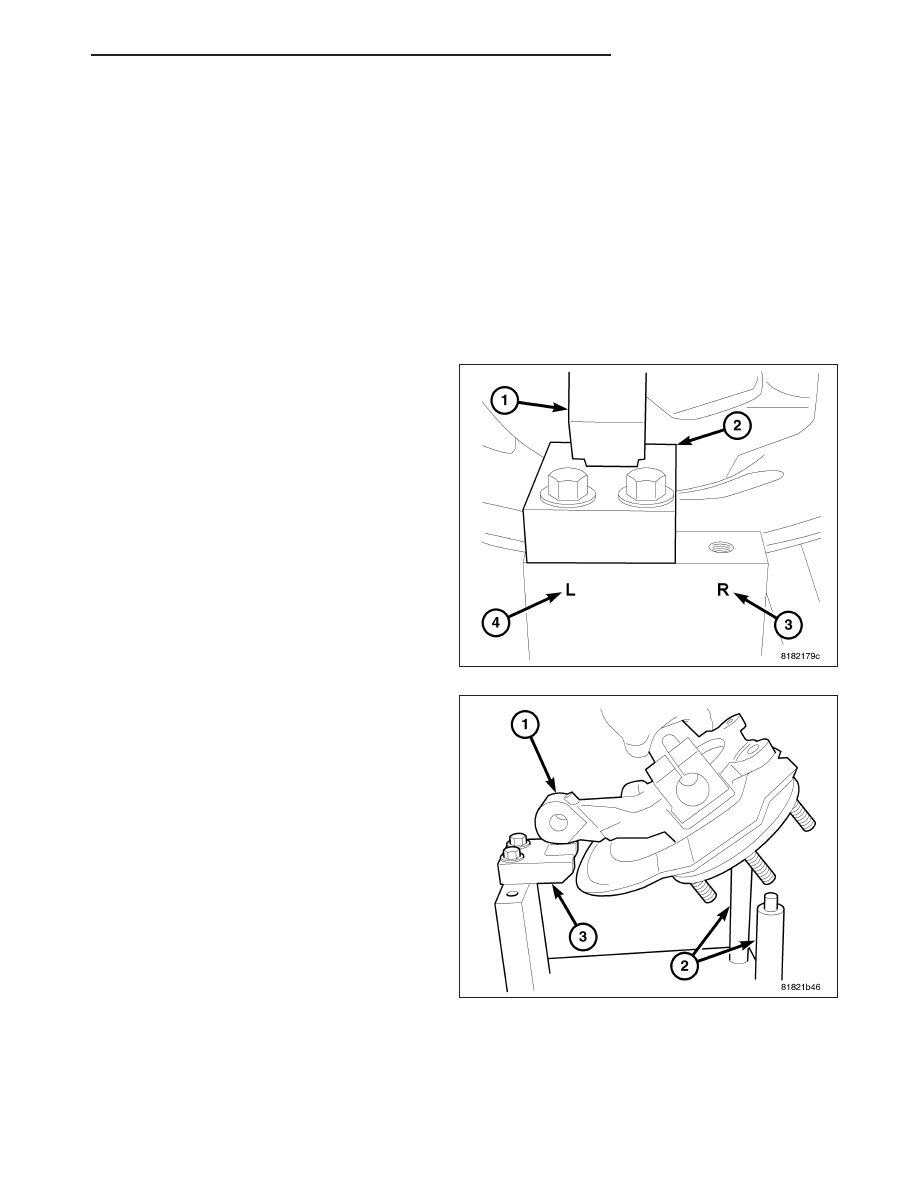

2. Position the locator block (2) for Fixture, Special

Tool 9712, as follows:

a. For left side knuckles, place the locator block

(2) to the left side (4) on the Fixture. The side
of the locator block with the angle cut goes
downward,

toward

the

Fixture.

Install

the

mounting screws and tighten them to approxi-
mately 54 N·m (40 ft. lbs.).

b. For right side knuckles, place the locator block

(2) to the right side (3) on the Fixture. The side
of the locator block with the angle cut goes
downward,

toward

the

Fixture.

Install

the

mounting screws and tighten them to approxi-
mately 54 N·m (40 ft. lbs.).

3. Install the knuckle in the Fixture as shown, guiding

the steering arm (1) to rest on the locator block (3)
and the brake caliper mounting bosses on the two
Fixture pins (2).

PM

FRONT SUSPENSION

2 - 7

4. Place the Fixture (3) with knuckle in an arbor

press.

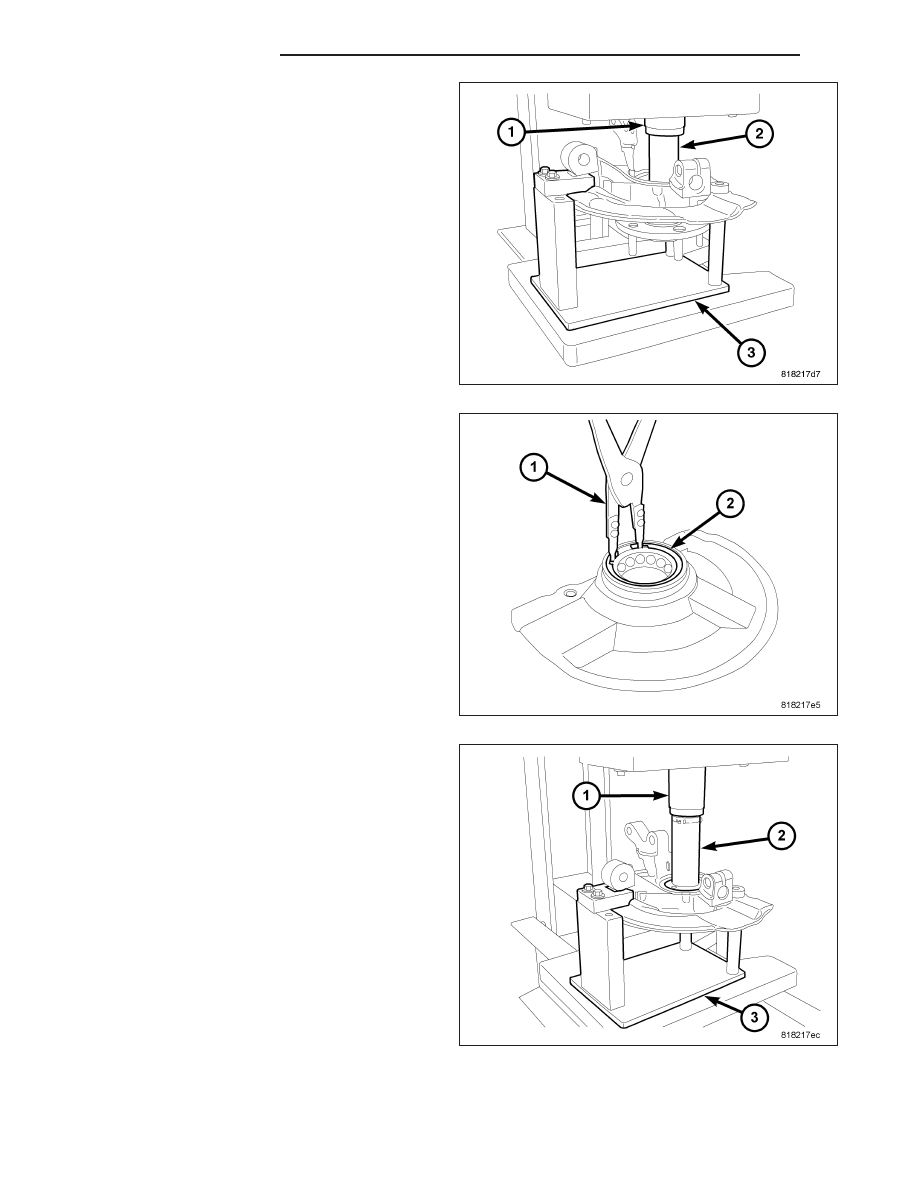

5. Position Remover/Installer, Special Tool 9712-2 (2),

in the small end of the hub. Lower the arbor press
ram (1) and remove the hub from the wheel bear-
ing and knuckle. The bearing race will normally
come out of the wheel bearing with the hub as it is
pressed out of the bearing.

6. Remove the knuckle from the Fixture and turn it

over.

7. Remove the snap ring (2) from the knuckle using

an appropriate pair of snap ring pliers (1).

8. Place the knuckle back in the Fixture (3) in the

arbor press ram.

9. Place Installer (2), Special Tool MD-998334, on the

outer race of the wheel bearing. Lower the arbor
press ram (1) and remove the wheel bearing from
the knuckle.

10. Remove the knuckle and tools from arbor press.

2 - 8

FRONT SUSPENSION

PM
