Dodge Caliber. Manual - part 9





SUSPENSION

TABLE OF CONTENTS

page

page

FRONT SUSPENSION

. . . . . . . . . . . . . . . . . . . . . . 1

REAR SUSPENSION

. . . . . . . . . . . . . . . . . . . . . . 37

WHEEL ALIGNMENT

. . . . . . . . . . . . . . . . . . . . . 77

FRONT SUSPENSION

TABLE OF CONTENTS

page

page

FRONT SUSPENSION

DESCRIPTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
WARNING

WARNINGS AND CAUTIONS . . . . . . . . . . . . . . . . . . 2

STANDARD PROCEDURE

LUBRICATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

SPECIFICATIONS

FRONT SUSPENSION FASTENER TORQUE . . . 3

SPECIAL TOOLS

FRONT SUSPENSION . . . . . . . . . . . . . . . . . . . . . . . . 4

HUB / BEARING

DESCRIPTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
DIAGNOSIS AND TESTING

WHEEL BEARING AND HUB . . . . . . . . . . . . . . . . . . 6

REMOVAL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

KNUCKLE

DESCRIPTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
DIAGNOSIS AND TESTING

KNUCKLE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

REMOVAL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

SEAL-LOWER BALL JOINT

REMOVAL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

ARM-LOWER CONTROL

DIAGNOSIS AND TESTING

LOWER CONTROL ARM . . . . . . . . . . . . . . . . . . . . . 19

REMOVAL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

BAR-STABILIZER

REMOVAL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

STRUT ASSEMBLY

DESCRIPTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
OPERATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
DIAGNOSIS AND TESTING

STRUT ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . 29

REMOVAL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
DISASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

PM

SUSPENSION

2 - 1

FRONT SUSPENSION

DESCRIPTION

This vehicle has a gas pressurized MacPherson strut type front suspension design.

Each side of the front suspension consists of these major components:

Hub (pressed into Bearing)

Bearing (pressed into Knuckle)

Knuckle

Lower Control Arm

Stabilizer Bar

Strut Assembly

The front suspension also includes a crossmember to support the lower half of the suspension. Service procedures
for the front suspension crossmember can be found in the Frame & Bumpers Group.

WARNING

WARNINGS AND CAUTIONS

WARNING: Dust and dirt accumulating on brake parts during normal use may contain asbestos fibers from
production or aftermarket linings. Breathing excessive concentrations of asbestos fibers can cause serious
bodily harm. Exercise care when servicing brake parts. Do not sand, or grind brake lining unless equipment
used is designed to contain the dust residue. Do not clean brake parts with compressed air or by dry
brushing. Cleaning should be done by dampening the brake components with a fine mist of water, then
wiping the brake components clean with a dampened cloth. Dispose of cloth and all residue containing
asbestos fibers in an impermeable container with the appropriate label. Follow practices prescribed by the
Occupational Safety And Health Administration (OSHA) and the Environmental Protection Agency (EPA) for
the handling, processing, and disposition of dust or debris that may contain asbestos fibers.

WARNING: Do not remove the strut shaft nut while strut assembly is installed in vehicle, or before the coil
spring is compressed with a compression tool. The spring is held under high pressure.

CAUTION: Only frame contact hoisting equipment can be used on this vehicle. It cannot be hoisted using
equipment designed to lift a vehicle by the rear axle. If this type of hoisting equipment is used, damage to
rear suspension components will occur.

CAUTION: At no time when servicing a vehicle can a sheet metal screw, bolt, or other metal fastener be
installed in the shock tower to take the place of an original plastic clip. It may come into contact with the
strut or coil spring.

CAUTION: Wheel bearing damage will result if after loosening the hub nut, the vehicle is rolled on the
ground or the weight of the vehicle is allowed to be supported by the tires for a length of time.

STANDARD PROCEDURE

LUBRICATION

There are no serviceable lubrication points on the front suspension. The ball joints and tie rod ends are sealed for
life and require no maintenance.

2 - 2

FRONT SUSPENSION

PM

SPECIFICATIONS

FRONT SUSPENSION FASTENER TORQUE

DESCRIPTION

N·m

Ft. Lbs.

In. Lbs.

Hub Nut

245

181

Lower Ball Joint Stud Pinch Bolt

82

60

Lower Control Arm Front Pivot Bolt

183

135

Lower Control Arm Rear Pivot Bolt

183

135

Stabilizer Bar Cushion Retainer Bolts

30

22

Stabilizer Bar Link Nuts

58

43

Strut Clevis-to-Knuckle Nuts

84

62

Strut Rod Nut

60

44

Strut-to-Tower Nuts

48

35

230

Tie Rod Adjuster Jam Nut

75

55

Tie Rod End-to-Knuckle Nut

102

75

Wheel Mounting (Lug) Nuts

135

100

PM

FRONT SUSPENSION

2 - 3

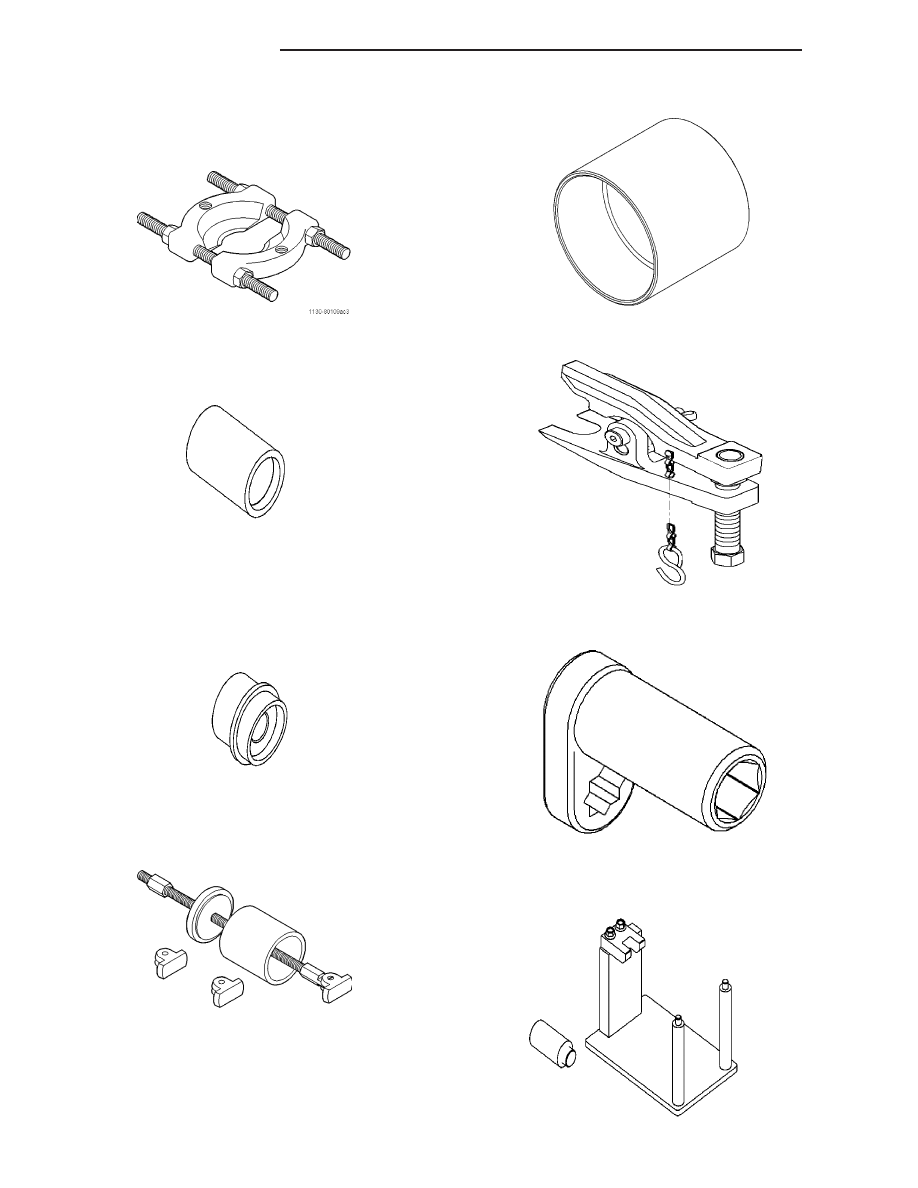

SPECIAL TOOLS

FRONT SUSPENSION

Splitter, Bearing/Gear 1130

Remover/Installer 6289-4

Remover/Installer 6289-6

Remover 6310

Receiver 8498

Remover, Ball Joint 9360

Wrench, Strut Nut 9362

Fixture, Knuckle Support 9712

2 - 4

FRONT SUSPENSION

PM
