Dodge Nitro. Manual - part 945

Fig. 30: Removing/Installing Mode Hub and Retainer
Courtesy of CHRYSLER LLC

13. Install the mode hub (2) onto the differential assembly (1).

1 - DIFFERENTIAL ASSEMBLY



2007 Dodge Nitro R/T

2007 TRANSFER CASE MP140 - Service Information - Nitro



Fig. 31: Removing/Installing Differential
Courtesy of CHRYSLER LLC

14. Install the differential assembly (1) onto the mainshaft (2).

1 - DIFFERENTIAL ASSEMBLY
2 - MAINSHAFT



2007 Dodge Nitro R/T

2007 TRANSFER CASE MP140 - Service Information - Nitro



Fig. 32: Removing/Installing Differential Snap-Ring
Courtesy of CHRYSLER LLC

15. Install the differential snap-ring (1). See Fig. 32.

1 - DIFFERENTIAL SNAP-RING



2007 Dodge Nitro R/T

2007 TRANSFER CASE MP140 - Service Information - Nitro



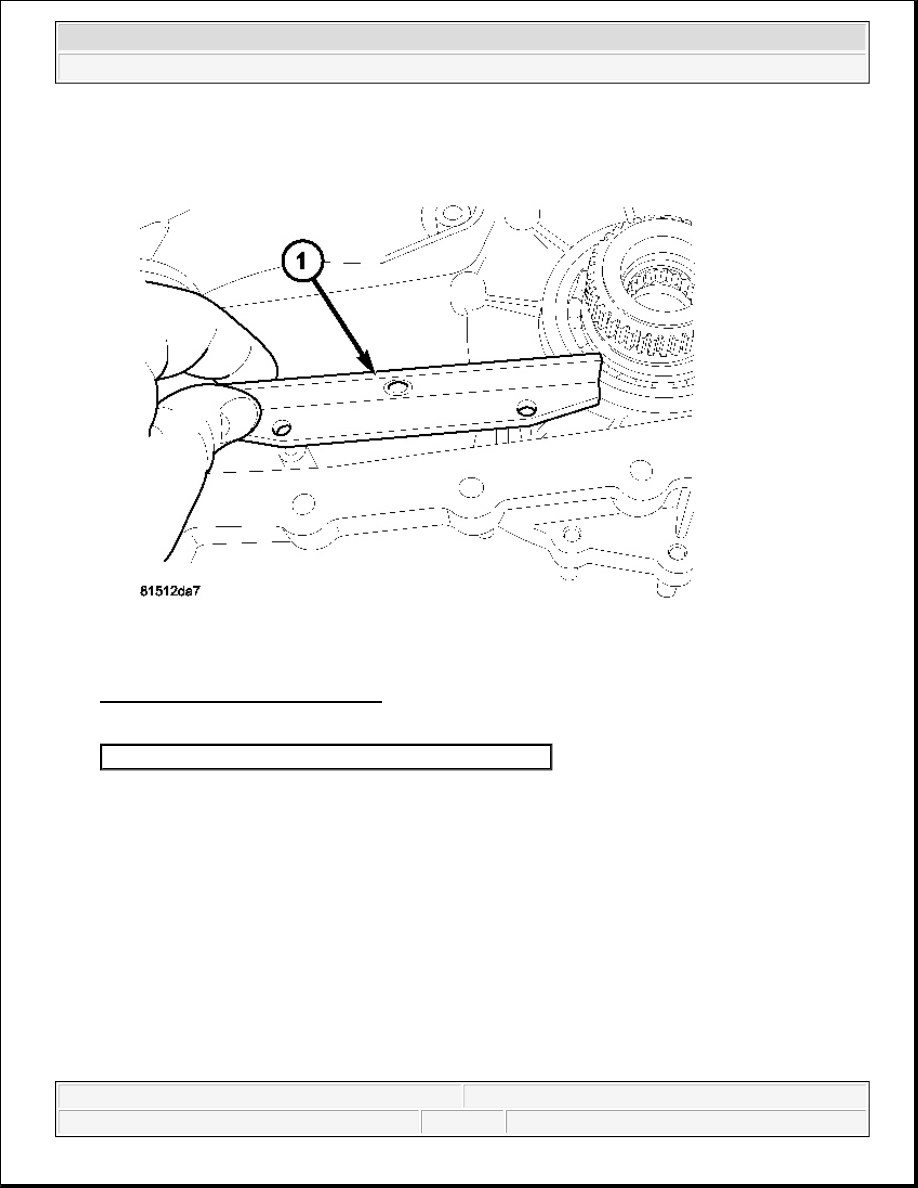

Fig. 33: Remove/Install Chain Guide
Courtesy of CHRYSLER LLC

16. Install both drive chain guide (1) onto the transfer case.

1 - DRIVE CHAIN GUIDE



2007 Dodge Nitro R/T

2007 TRANSFER CASE MP140 - Service Information - Nitro
