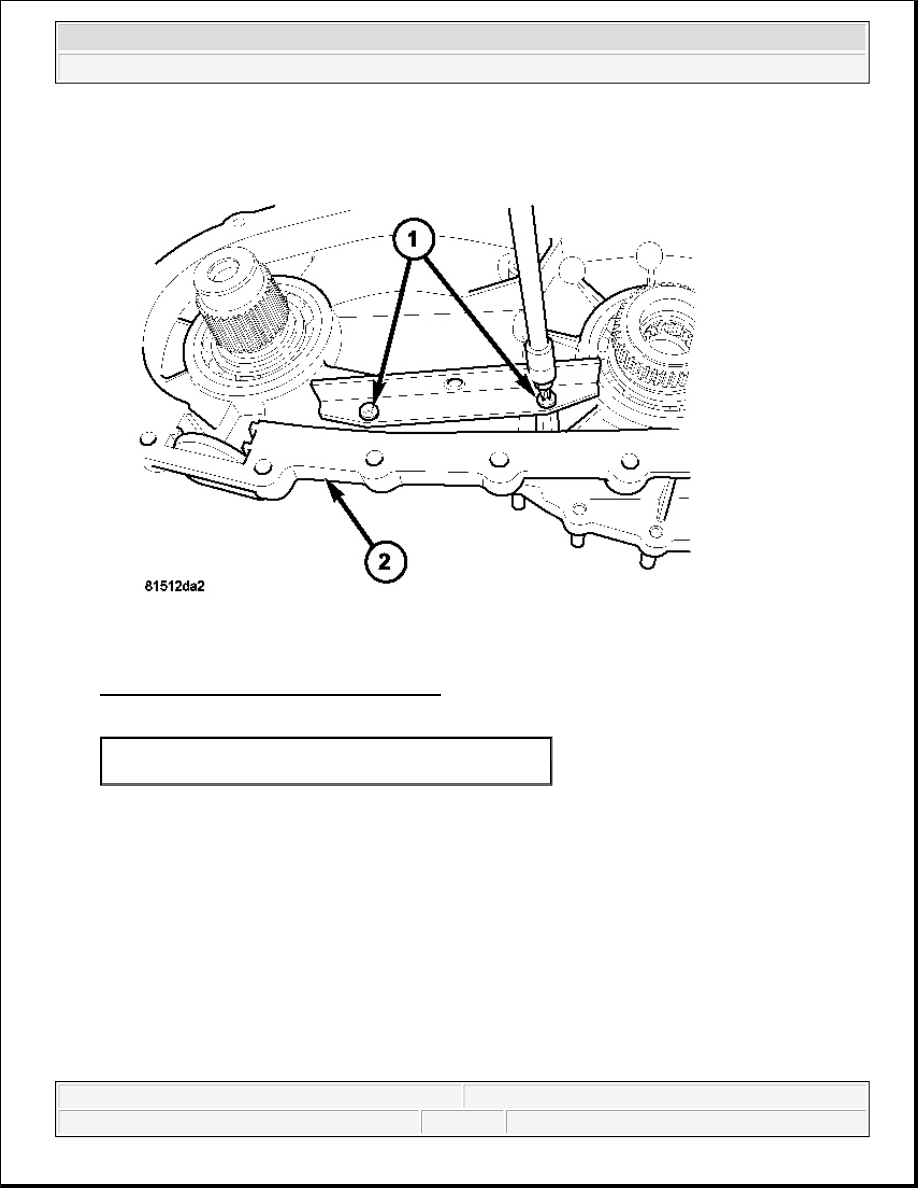

Fig. 34: Remove/Install Chain Guide Screws
Courtesy of CHRYSLER LLC

17. Install the screws (1) to hold both chain guide rail to the front case (2). Tighten the screws to 5-8 N.m

(44-71 in.lbs.).

1 - SCREWS
2 - FRONT CASE



2007 Dodge Nitro R/T

2007 TRANSFER CASE MP140 - Service Information - Nitro



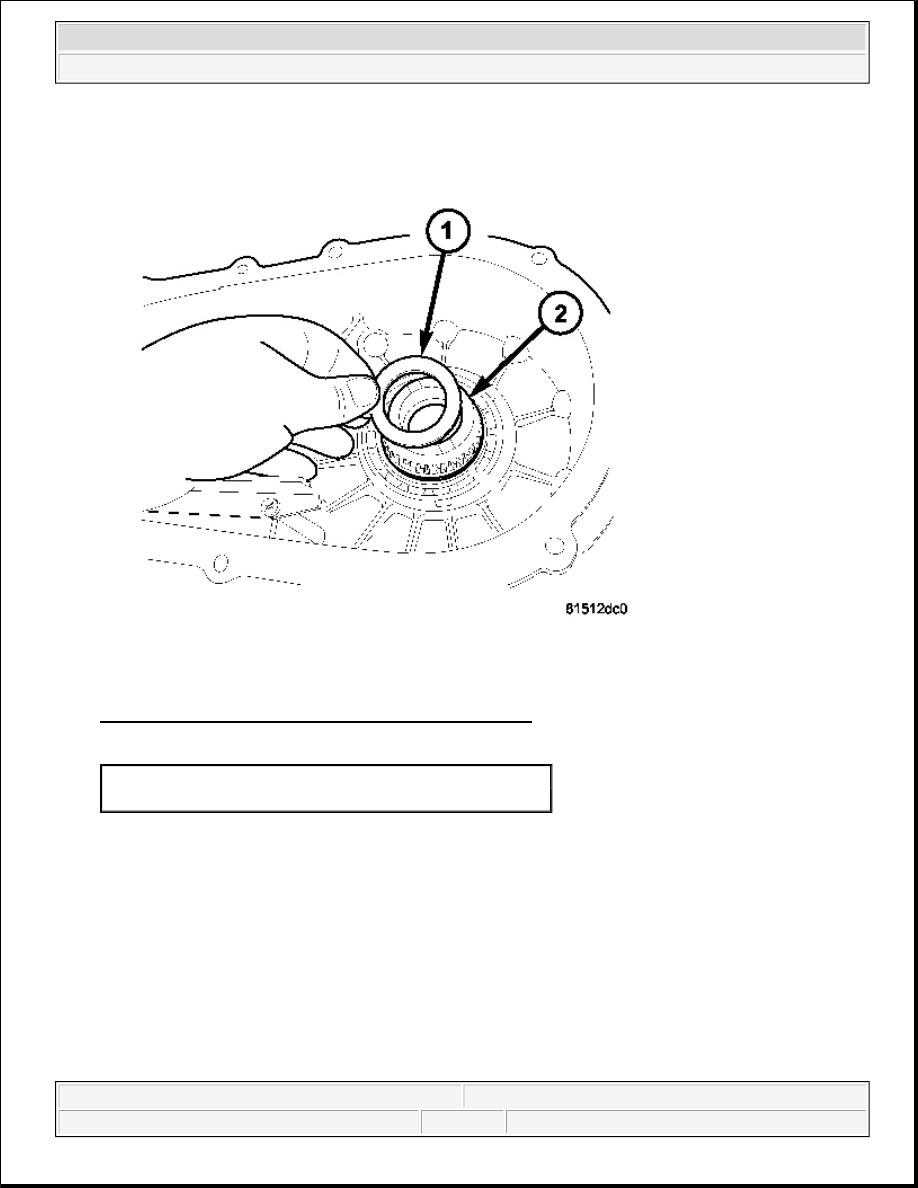

Fig. 35: Removing/Installing Input Gear Thrust Washer
Courtesy of CHRYSLER LLC

18. Install the input gear thrust washer (1) onto the input gear (2).

1 - THRUST WASHER
2 - INPUT GEAR



2007 Dodge Nitro R/T

2007 TRANSFER CASE MP140 - Service Information - Nitro



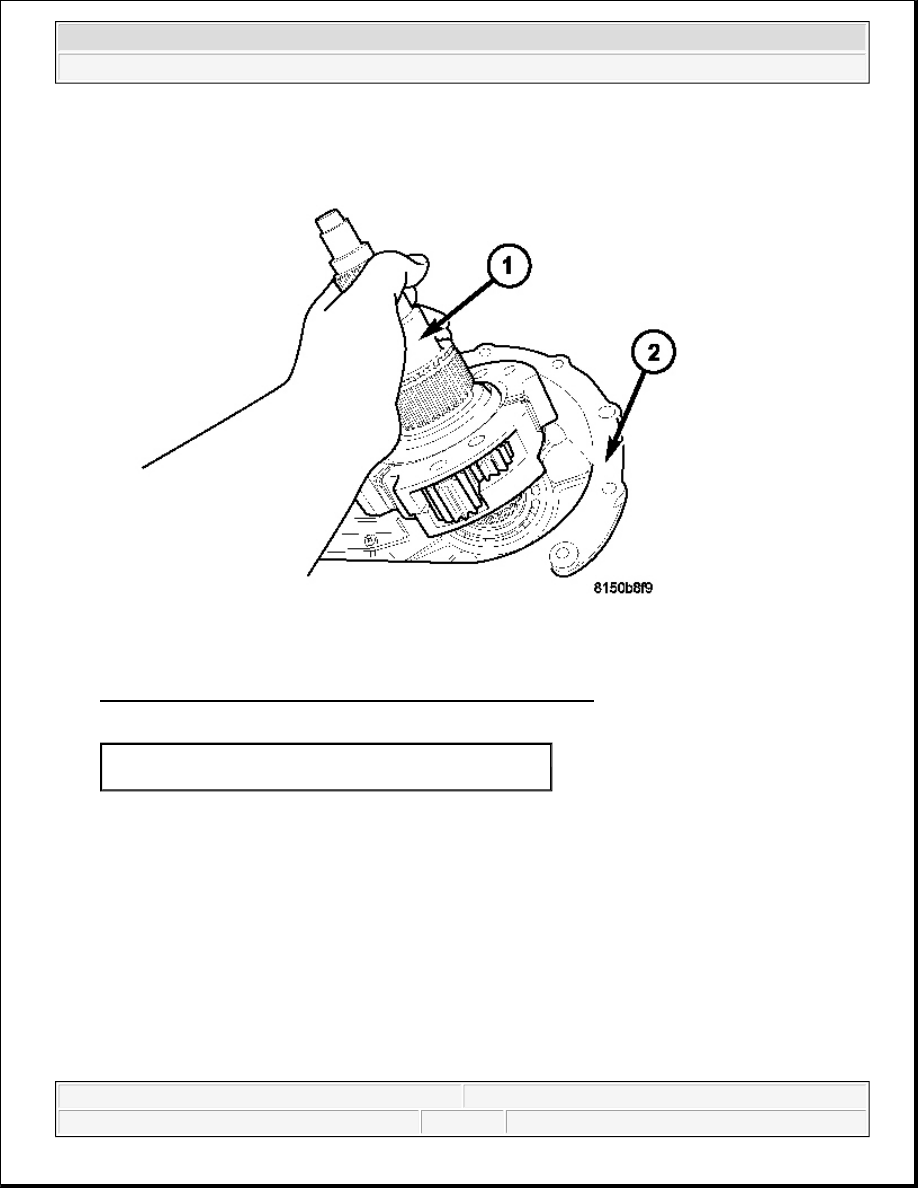

Fig. 36: Removing/Installing Mainshaft & Differential Assembly
Courtesy of CHRYSLER LLC

19. Install the mainshaft and differential assembly (1) into the front case (2) and input gear.

1 - MAINSHAFT AND DIFFERENTIAL ASSEMBLY
2 - FRONT HOUSING

NOTE:

Be sure that the input spline is engaged with the differential assembly.



2007 Dodge Nitro R/T

2007 TRANSFER CASE MP140 - Service Information - Nitro



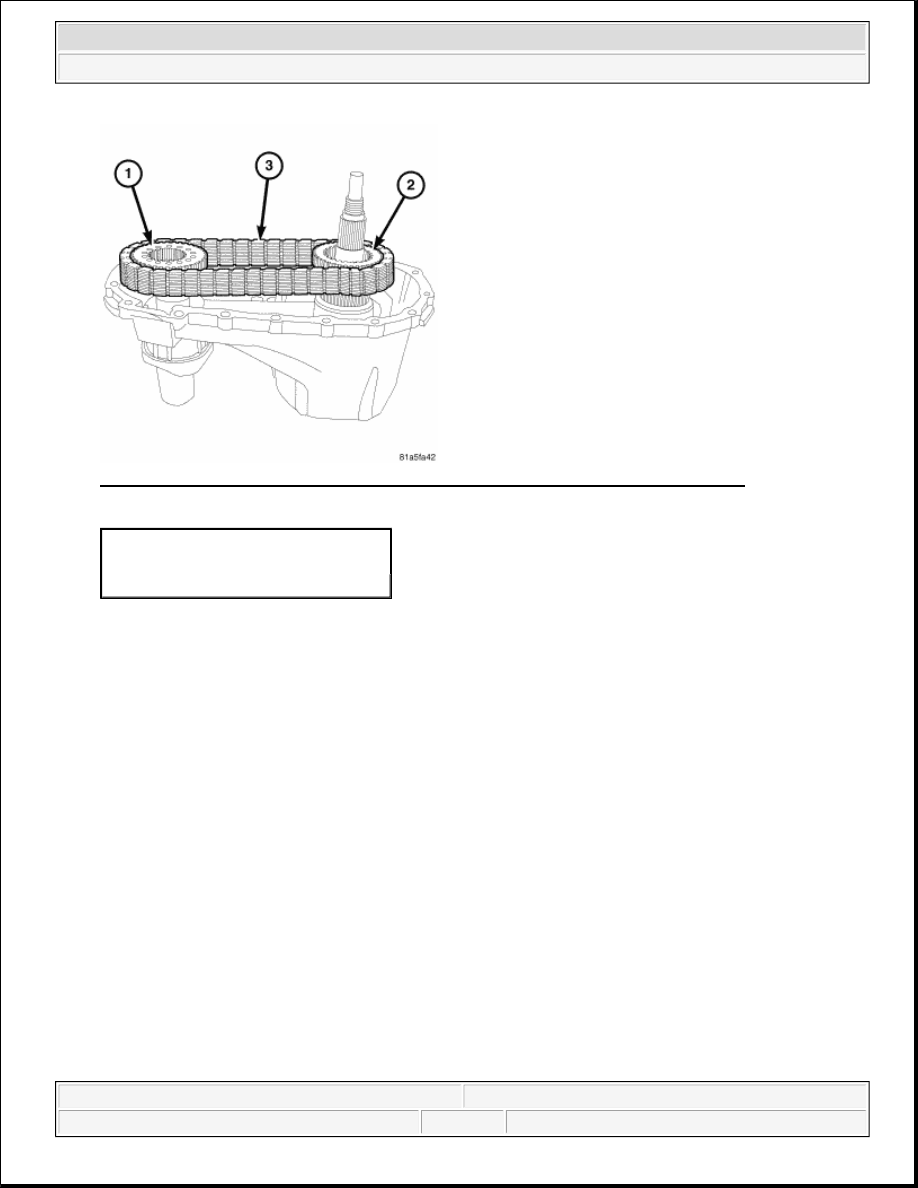

Fig. 37: Identifying Front Drive Sprocket, Mainshaft Drive Sprocket & Drive Chain
Courtesy of CHRYSLER LLC

20. Install the drive sprockets (1, 2) and drive chains (3) as one.

1 - FRONT DRIVE SPROCKET
2 - MAINSHAFT DRIVE SPROCKET
3 - DRIVE CHAIN
