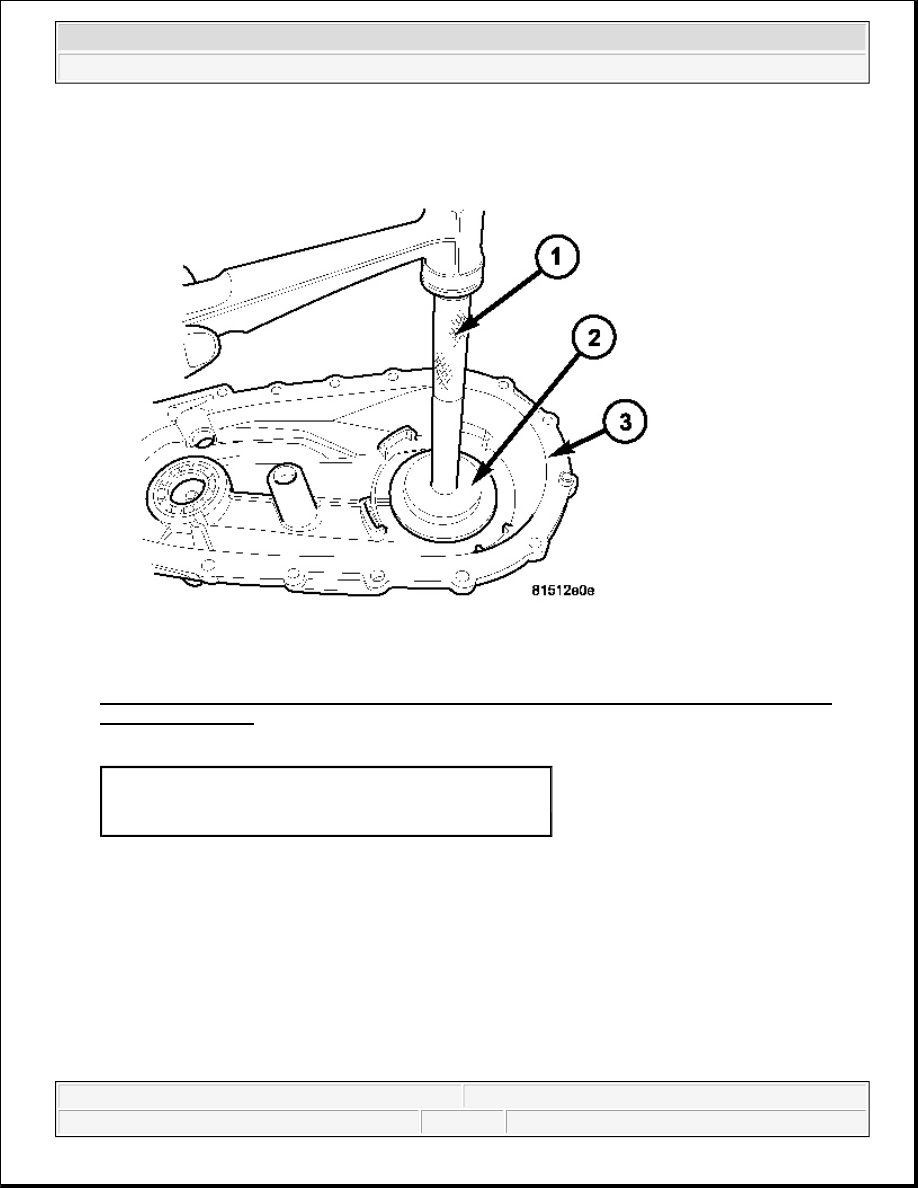

Fig. 26: Installing New Main Shaft Rear Bearing Into Rear Case Using Installer 8152, Inverted,
And Handle C-4171
Courtesy of CHRYSLER LLC

5. Remove the main shaft rear bearing from the rear case using Installer 5066 and Handle C-4171.

6. Install the new main shaft rear bearing into the rear case (3) using Installer 8152 (2), inverted, and Handle

C-4171 (1).

7. Install a new rear output seal into the rear case with Installer C-3972A.

1 - HANDLE C-4171
2 - INSTALLER 8152
3 - REAR HOUSING



2007 Dodge Nitro R/T

2007 TRANSFER CASE MP140 - Service Information - Nitro



Fig. 27: Installing Front Output Shaft Assembly Into Front Case And Front Output Shaft Front
Bearing
Courtesy of CHRYSLER LLC

8. Install a new front output shaft seal with Installer 6560.

9. Install the front output shaft assembly (2) into the front case (1) and the front output shaft front bearing.

1 - FRONT HOUSING
2 - FRONT OUTPUT SHAFT



2007 Dodge Nitro R/T

2007 TRANSFER CASE MP140 - Service Information - Nitro



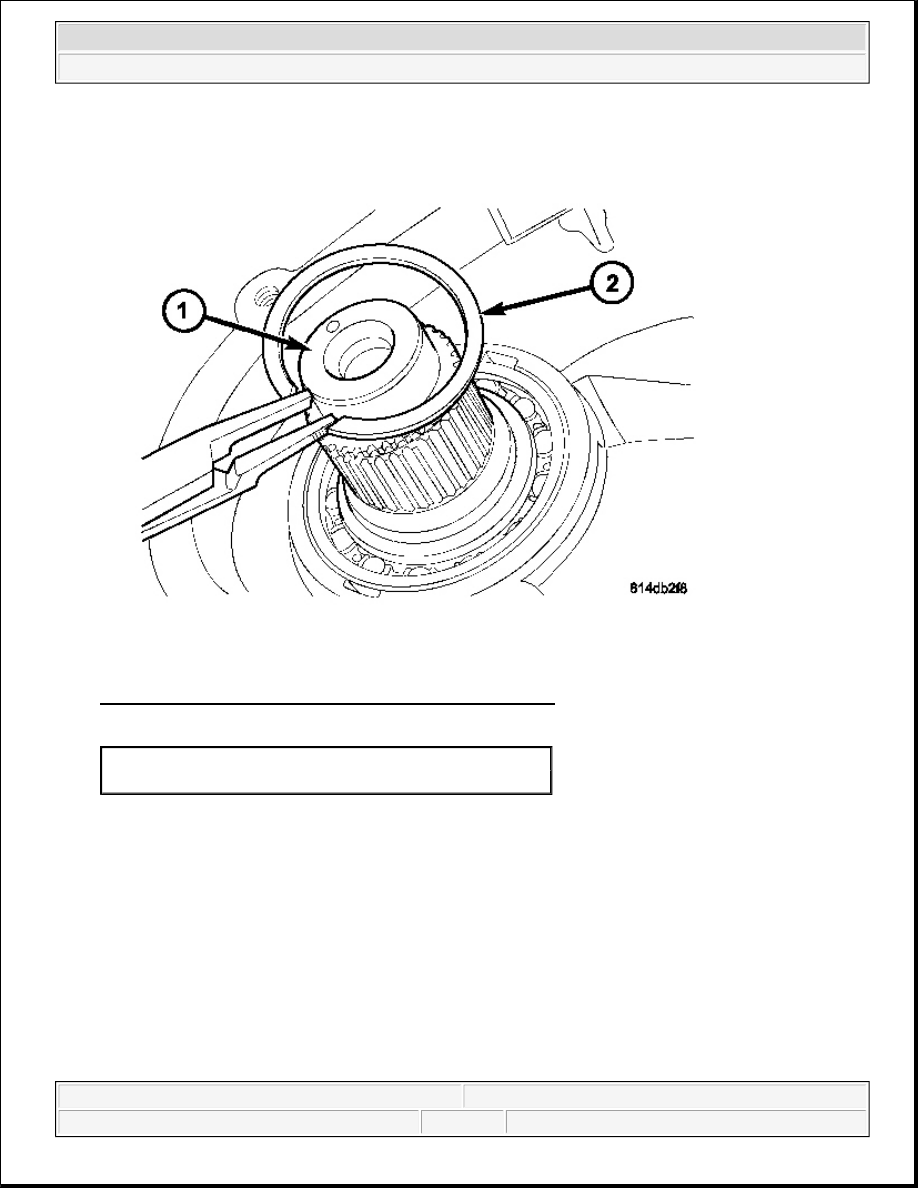

Fig. 28: Remove/Install Front Output Shaft Retaining Ring
Courtesy of CHRYSLER LLC

10. Install the retaining ring (2) onto the front output shaft (1).

1 - FRONT OUTPUT SHAFT
2 - RETAINING RING



2007 Dodge Nitro R/T

2007 TRANSFER CASE MP140 - Service Information - Nitro



Fig. 29: Removing/Installing Input Gear
Courtesy of CHRYSLER LLC

11. Install the input gear (2) into the front case (1).

12. Install the new input shaft seal with Installer 9672 and Handle C-4171.

1 - FRONT HOUSING
2 - INPUT GEAR
