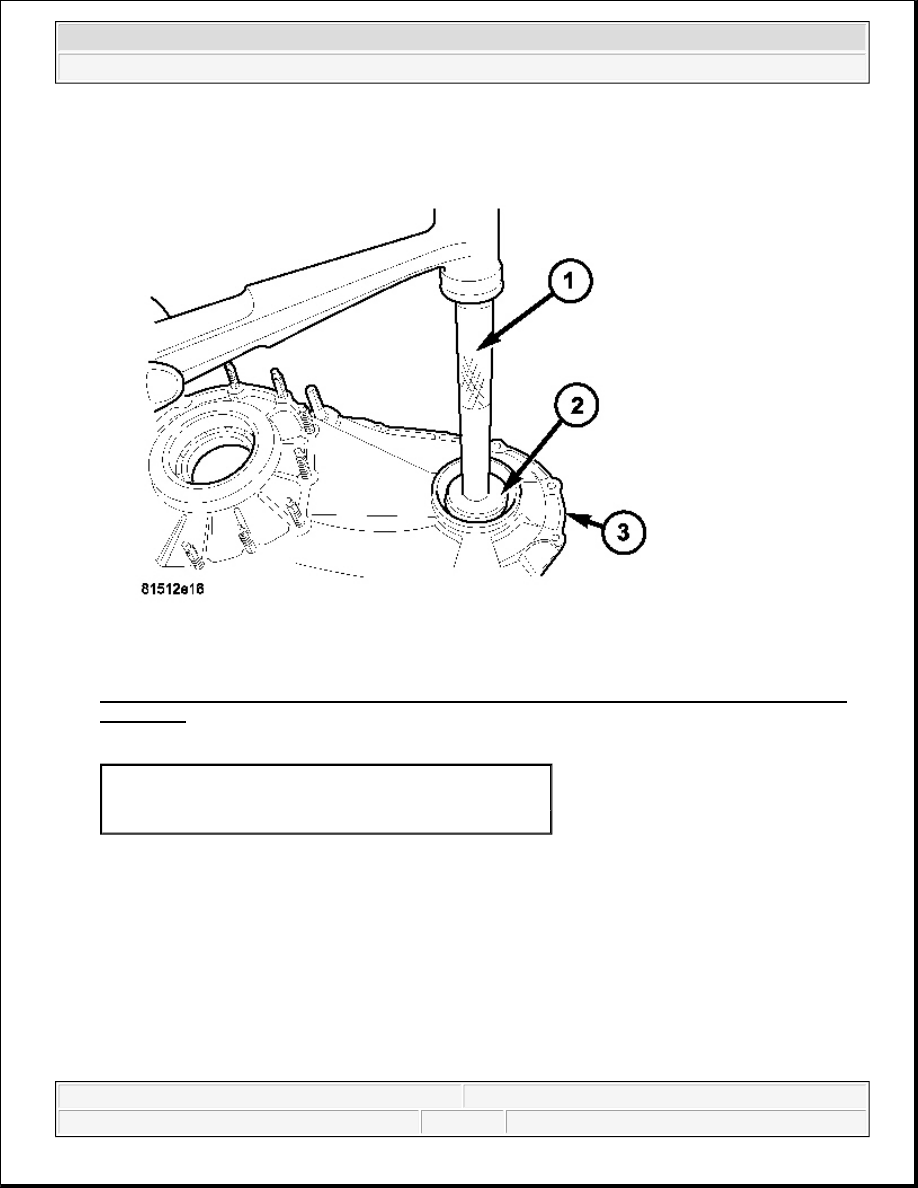

Fig. 22: Removing Input Shaft Bearing From Front Case With Handle C-4171 And Installer 8693A
Courtesy of CHRYSLER LLC

1. Remove the input shaft bearing from the front case (3) with Handle C-4171 (1) and Installer 8693A (2).

1 - HANDLE C-4171
2 - INSTALLER 8693A
3 - FRONT HOUSING



2007 Dodge Nitro R/T

2007 TRANSFER CASE MP140 - Service Information - Nitro



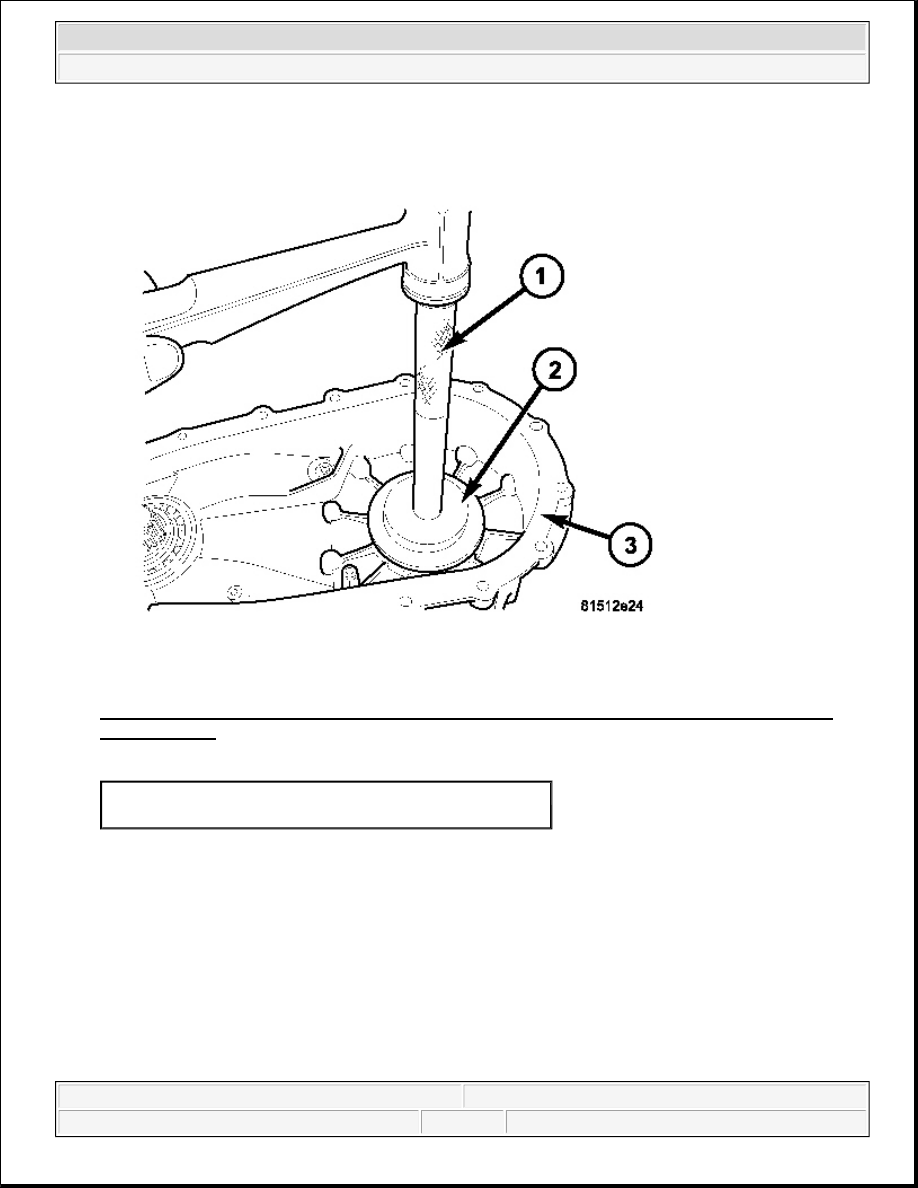

Fig. 23: Installing New Input Gear Bearing Into Front Case Using Installer 8152, Inverted, And
Handle C-4171
Courtesy of CHRYSLER LLC

2. Install the new input gear bearing into the front case (3) using Installer 8152 (2), inverted, and Handle C-

4171 (1).

1 - INPUT GEAR BEARING
2 - FRONT CASE



2007 Dodge Nitro R/T

2007 TRANSFER CASE MP140 - Service Information - Nitro



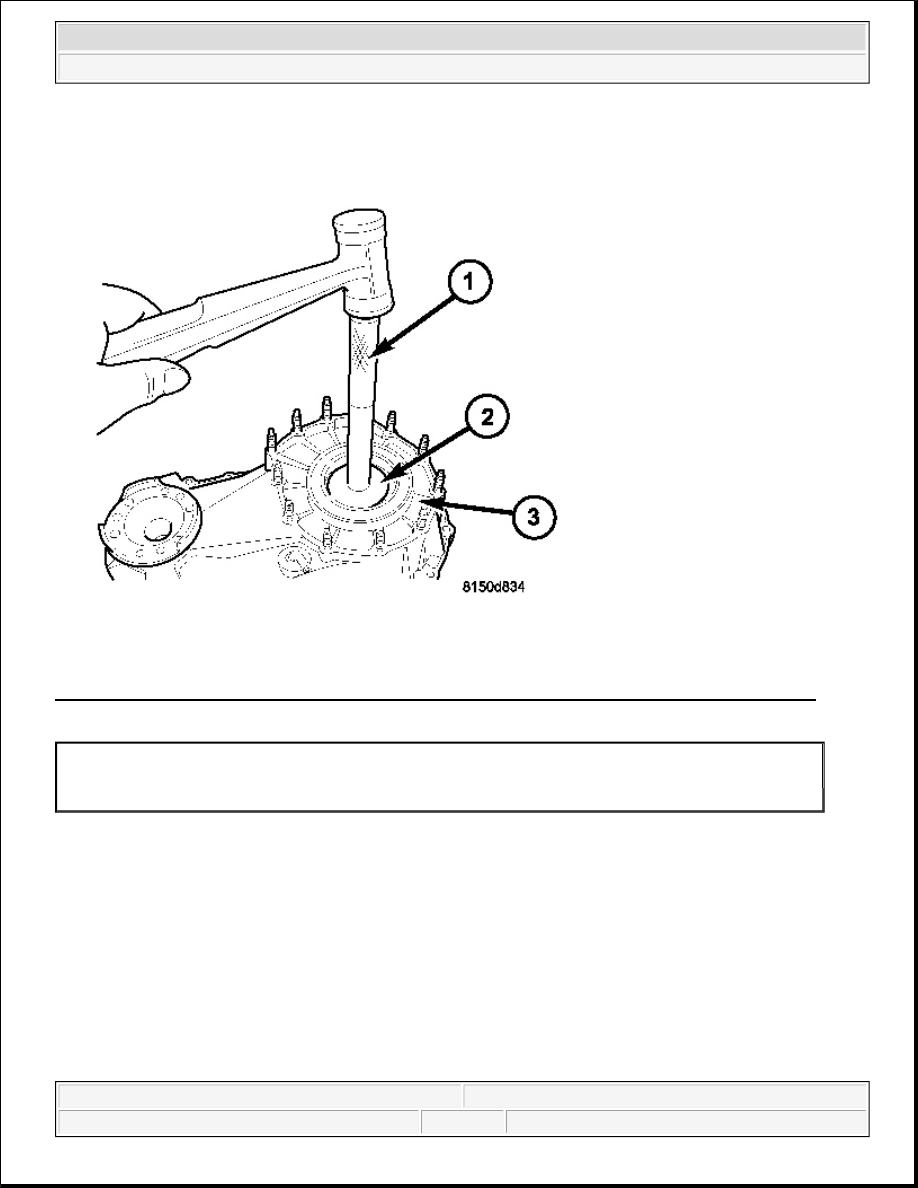

Fig. 24: Using Installer 7829A And Handle C-4171 To Remove Front Output Shaft Bearing From
Front Case
Courtesy of CHRYSLER LLC

3. Using Installer 7829A (2) and Handle C-4171 (1), remove front output shaft bearing from the front case

(3).

1 - HANDLE C-4171
2 - INSTALLER 7829A
3 - FRONT HOUSING



2007 Dodge Nitro R/T

2007 TRANSFER CASE MP140 - Service Information - Nitro



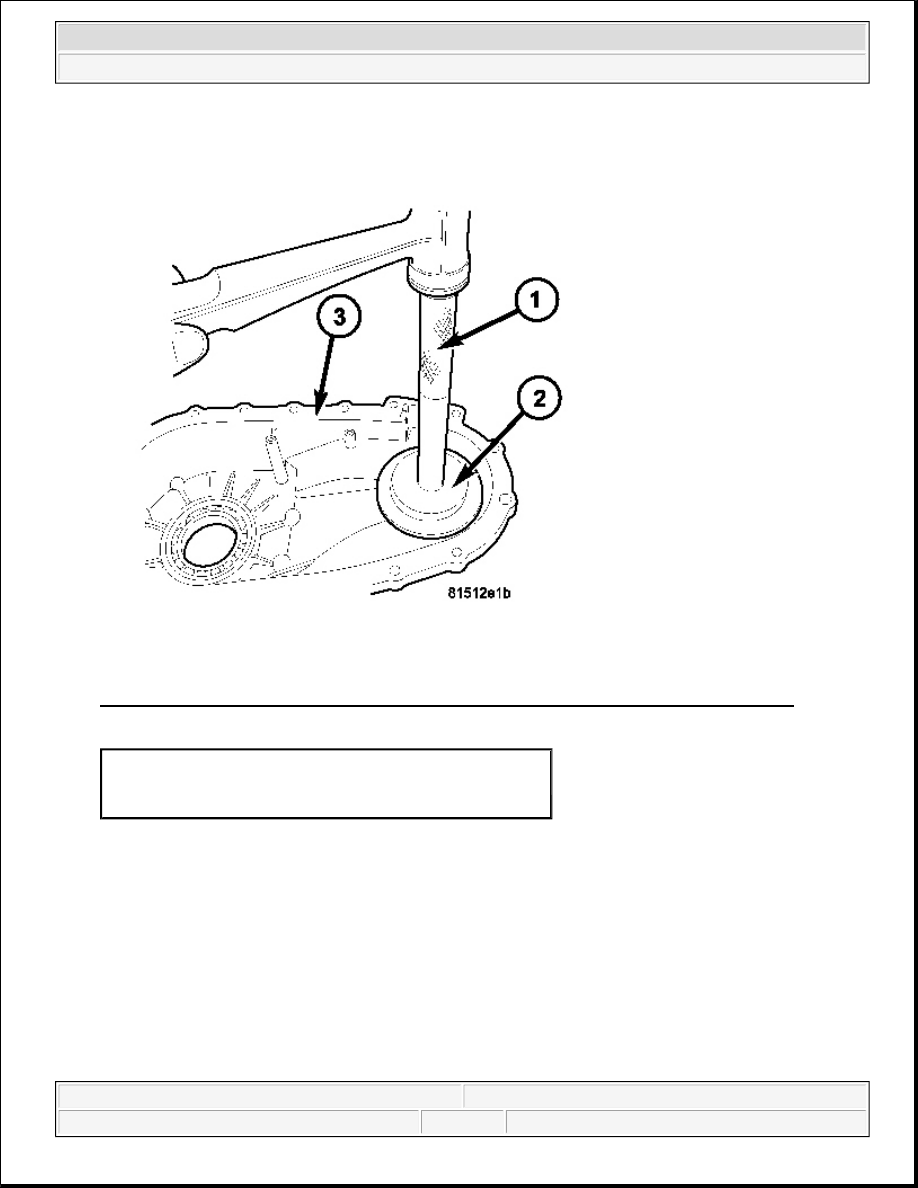

Fig. 25: Using Installer 8152, Inverted, And Handle C-4171 To Seat Bearing In Front Case
Courtesy of CHRYSLER LLC

4. Start front output shaft bearing in the front case. Using Installer 8152 (2), inverted, and Handle C-4171

(1), seat the bearing in the front case (3).

1 - HANDLE C-4171
2 - INSTALLER 8152
3 - FRONT HOUSING



2007 Dodge Nitro R/T

2007 TRANSFER CASE MP140 - Service Information - Nitro
