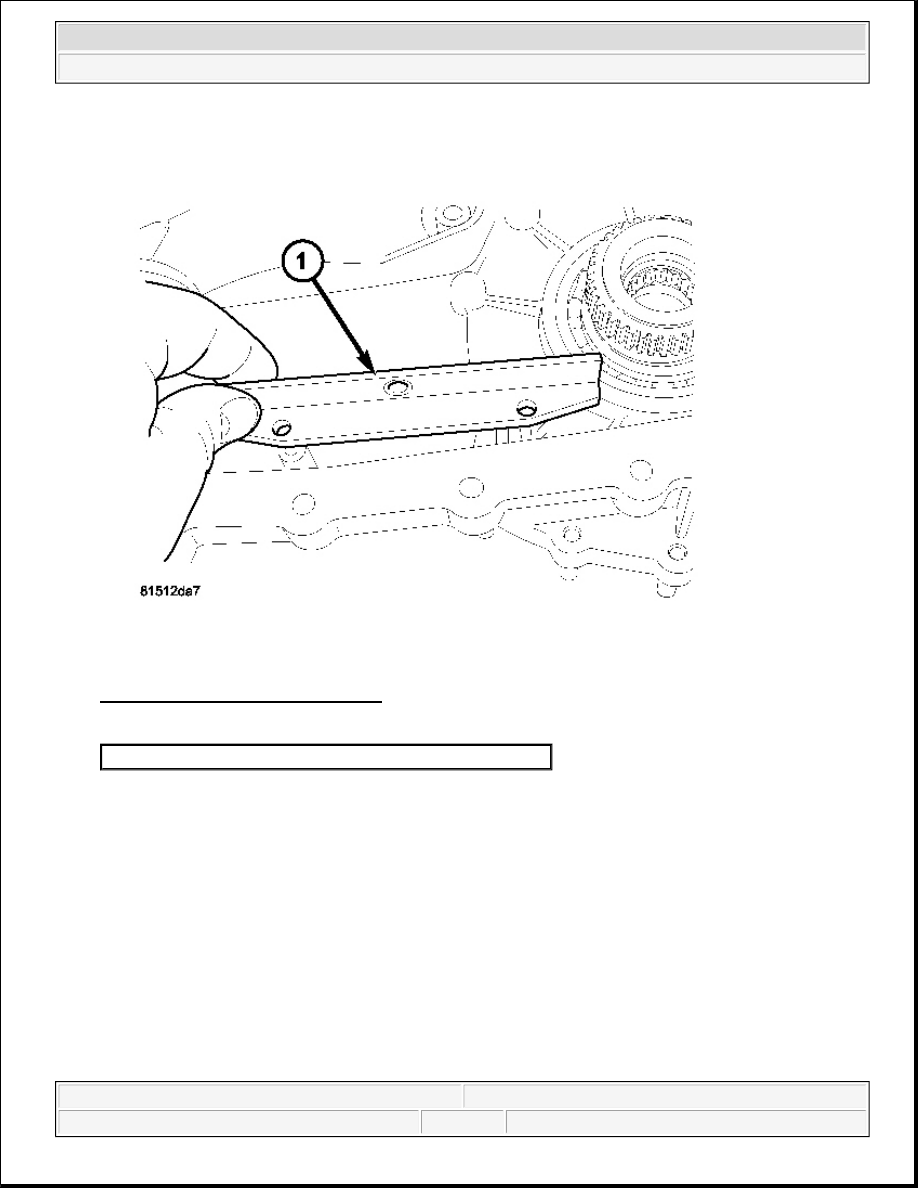

Fig. 15: Remove/Install Chain Guide
Courtesy of CHRYSLER LLC

16. Remove both drive chain guide rails(1) from the transfer case.

1 - DRIVE CHAIN GUIDE



2007 Dodge Nitro R/T

2007 TRANSFER CASE MP140 - Service Information - Nitro



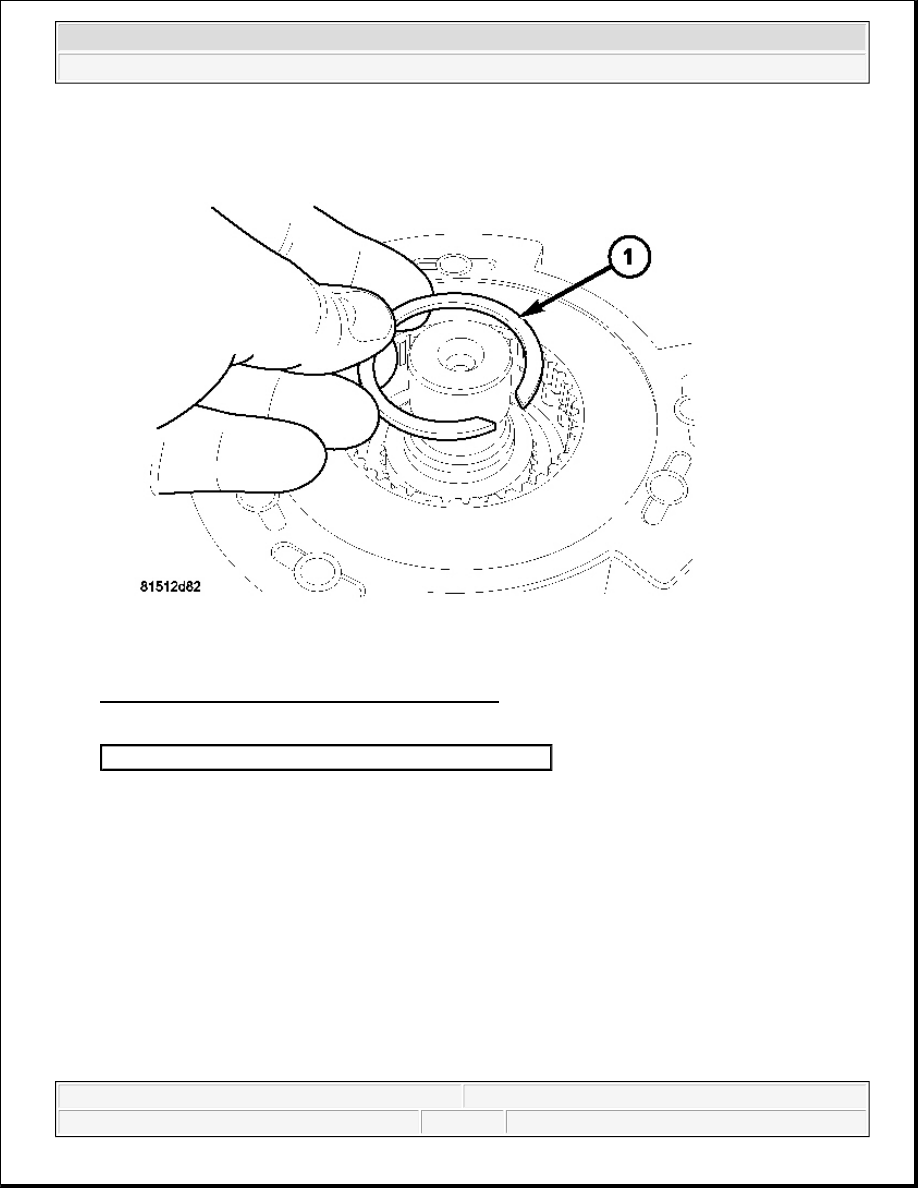

Fig. 16: Removing/Installing Differential Snap-Ring
Courtesy of CHRYSLER LLC

17. Remove the differential snap-ring (1).

1 - DIFFERENTIAL SNAP-RING



2007 Dodge Nitro R/T

2007 TRANSFER CASE MP140 - Service Information - Nitro



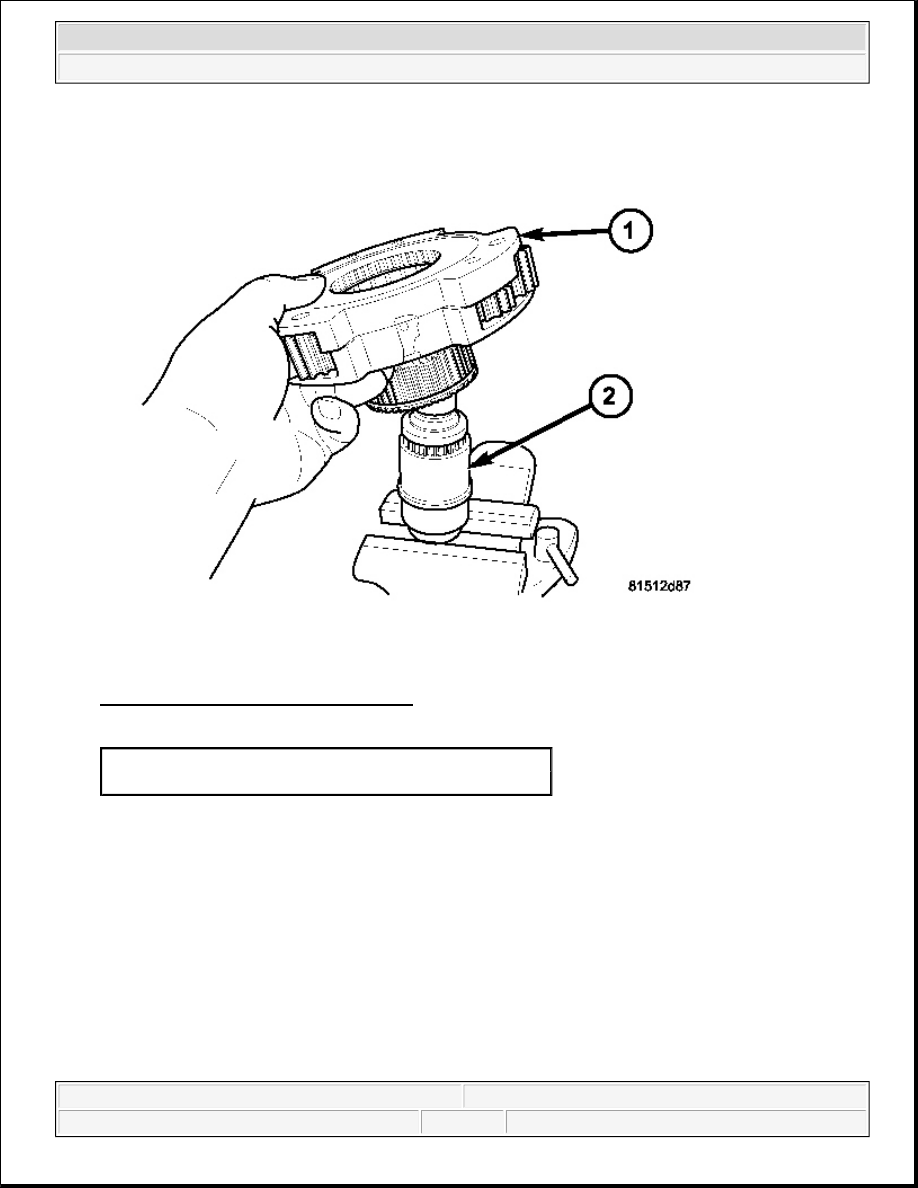

Fig. 17: Removing/Installing Differential
Courtesy of CHRYSLER LLC

18. Remove the differential assembly (1) from the mainshaft (2).

1 - DIFFERENTIAL ASSEMBLY
2 - MAINSHAFT



2007 Dodge Nitro R/T

2007 TRANSFER CASE MP140 - Service Information - Nitro



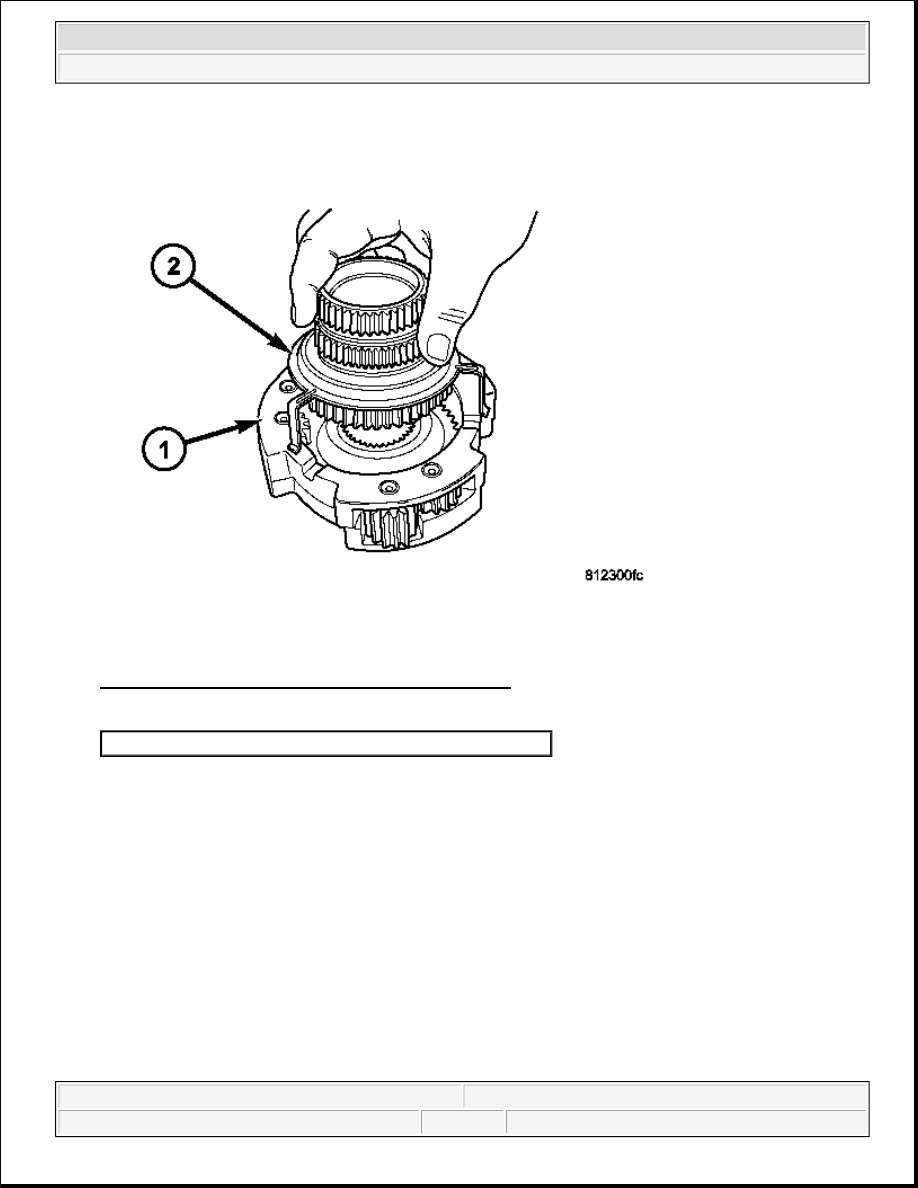

Fig. 18: Removing/Installing Mode Hub and Retainer
Courtesy of CHRYSLER LLC

19. Remove the mode hub (2) and mode hub retainer from the differential assembly (1).

20. Remove the mode hub retainer (2) from the mode hub (1).

1 - DIFFERENTIAL ASSEMBLY



2007 Dodge Nitro R/T

2007 TRANSFER CASE MP140 - Service Information - Nitro
