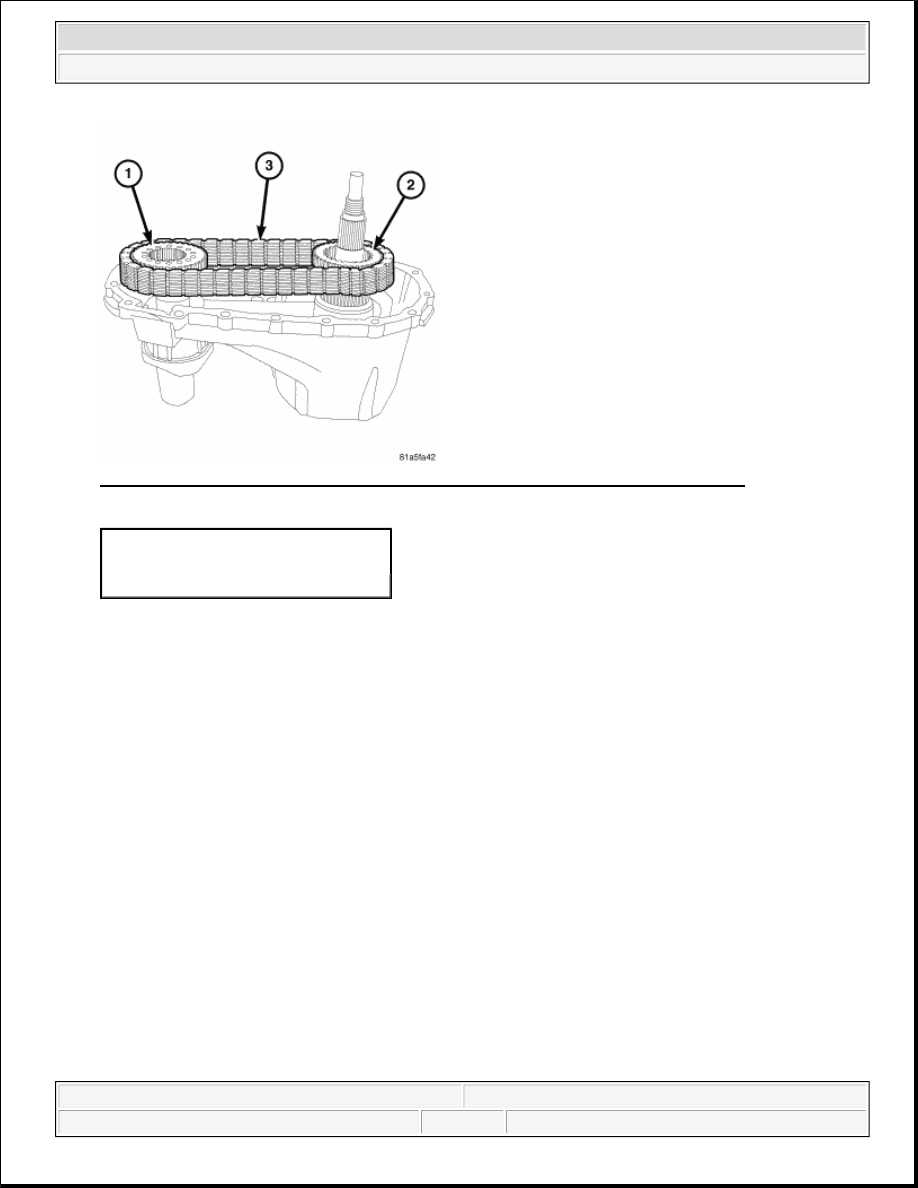

Fig. 11: Identifying Front Drive Sprocket, Mainshaft Drive Sprocket & Drive Chain
Courtesy of CHRYSLER LLC

12. Remove the drive sprockets (1, 2) and the drive chains (3) as one.

1 - FRONT DRIVE SPROCKET
2 - MAINSHAFT DRIVE SPROCKET
3 - DRIVE CHAIN



2007 Dodge Nitro R/T

2007 TRANSFER CASE MP140 - Service Information - Nitro



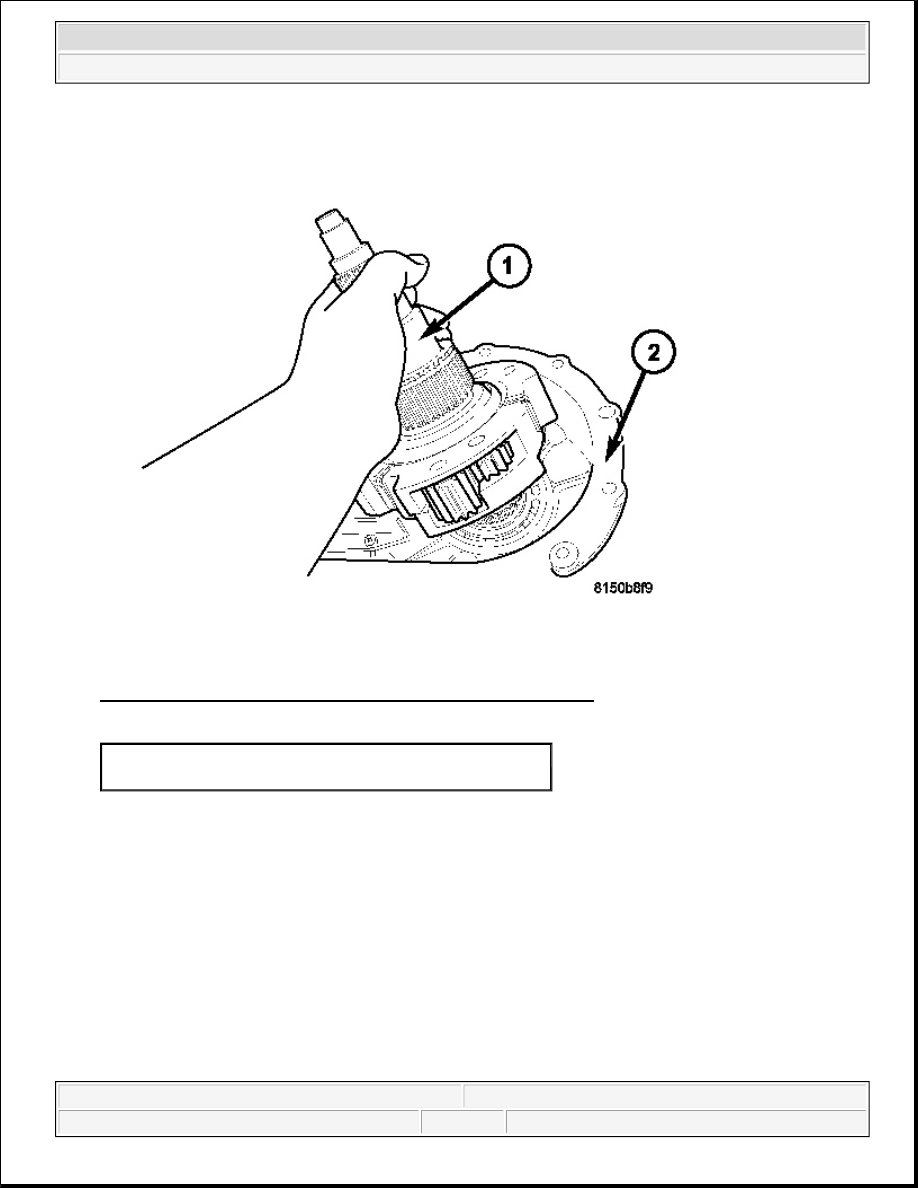

Fig. 12: Removing/Installing Mainshaft & Differential Assembly
Courtesy of CHRYSLER LLC

13. Remove the mainshaft and differential assembly (1) from the front case (2).

1 - MAINSHAFT AND DIFFERENTIAL ASSEMBLY
2 - FRONT HOUSING



2007 Dodge Nitro R/T

2007 TRANSFER CASE MP140 - Service Information - Nitro



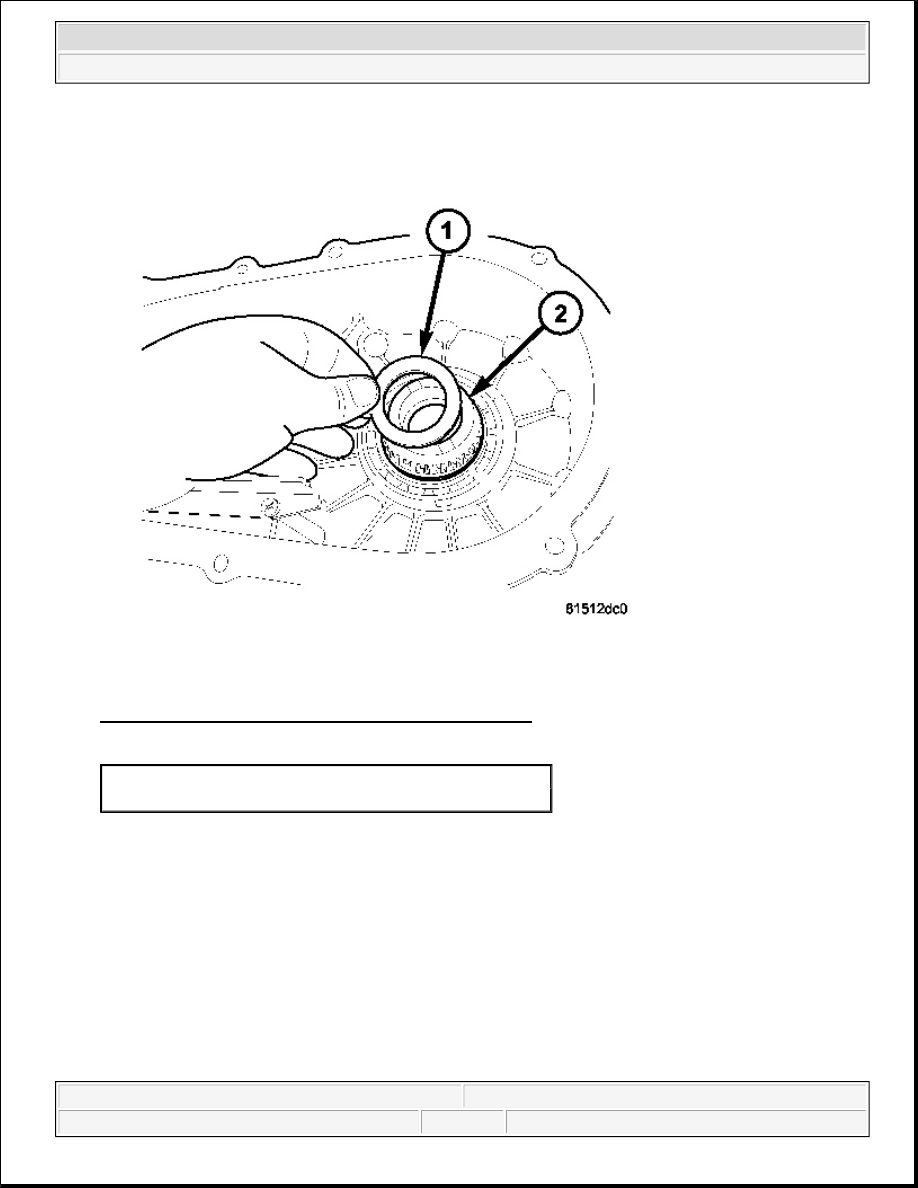

Fig. 13: Removing/Installing Input Gear Thrust Washer
Courtesy of CHRYSLER LLC

14. Remove the input gear thrust washer (1) from the input gear (2).

1 - THRUST WASHER
2 - INPUT GEAR



2007 Dodge Nitro R/T

2007 TRANSFER CASE MP140 - Service Information - Nitro



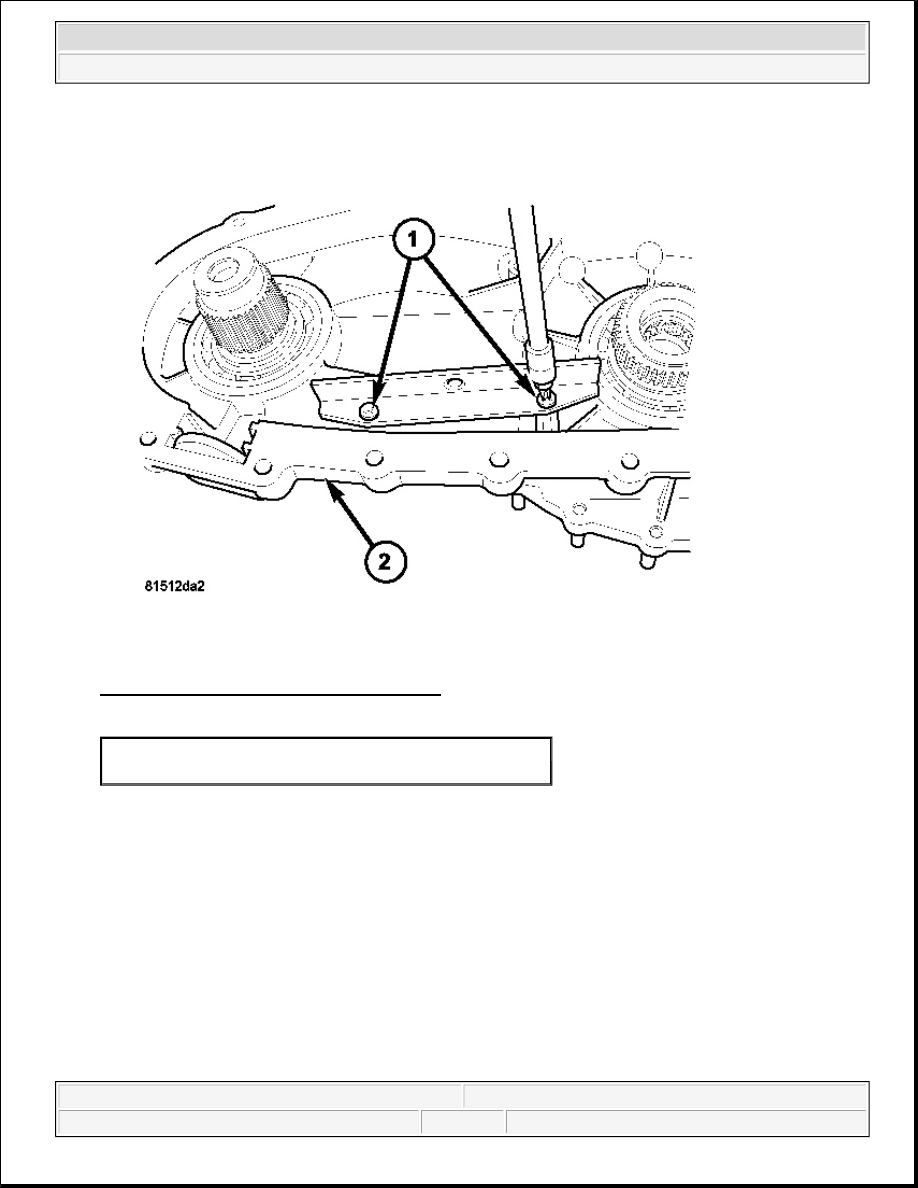

Fig. 14: Remove/Install Chain Guide Screws
Courtesy of CHRYSLER LLC

15. Remove the screws (1) holding both chain guide rails to the front case (2).

1 - SCREWS
2 - FRONT CASE
