Dodge Nitro. Manual - part 833





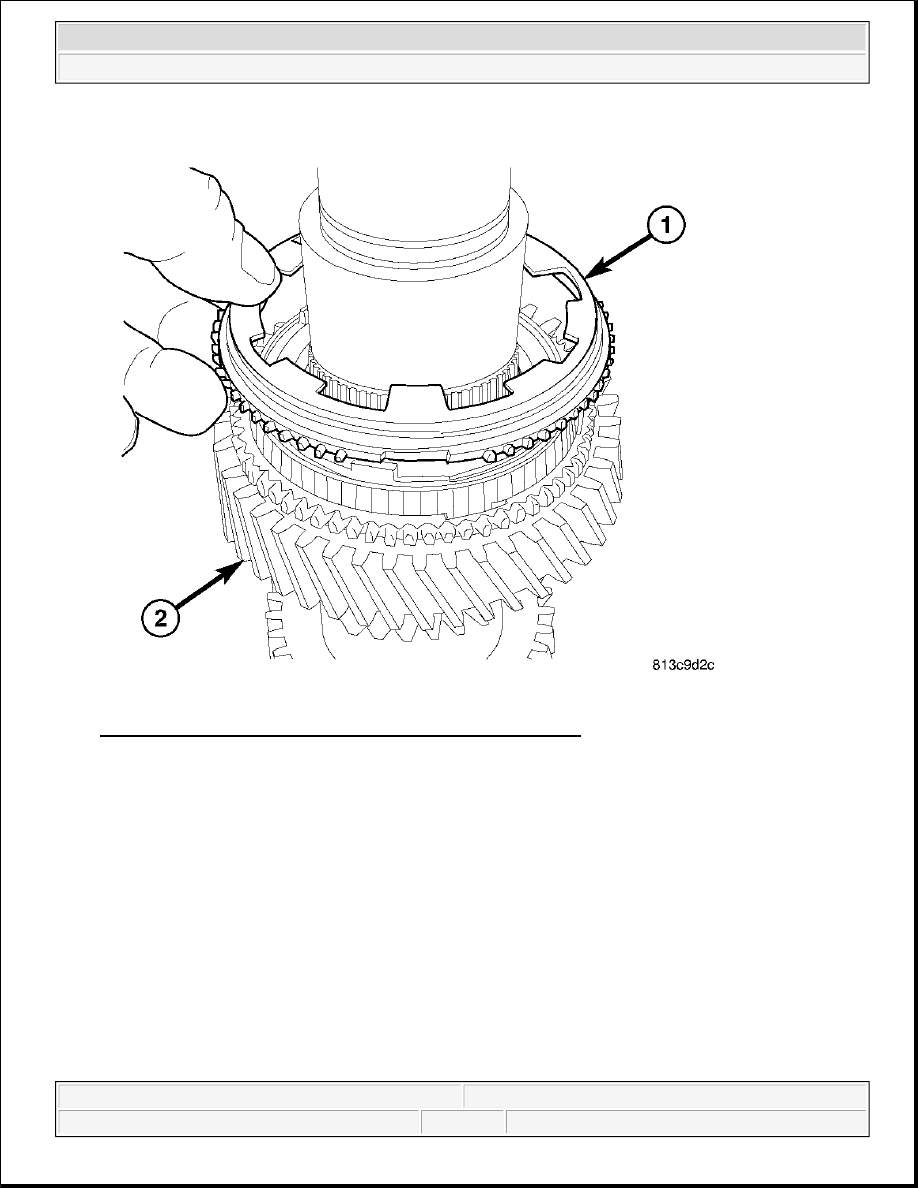

Fig. 69: Installing Synchronizer Blocker Ring On Second Gear
Courtesy of CHRYSLER LLC

6. Install synchronizer blocker ring (1) on second gear (2).



2007 Dodge Nitro R/T

2007 MANUAL TRANSMISSION NSG370 - Diagnosis & Overhaul - Nitro



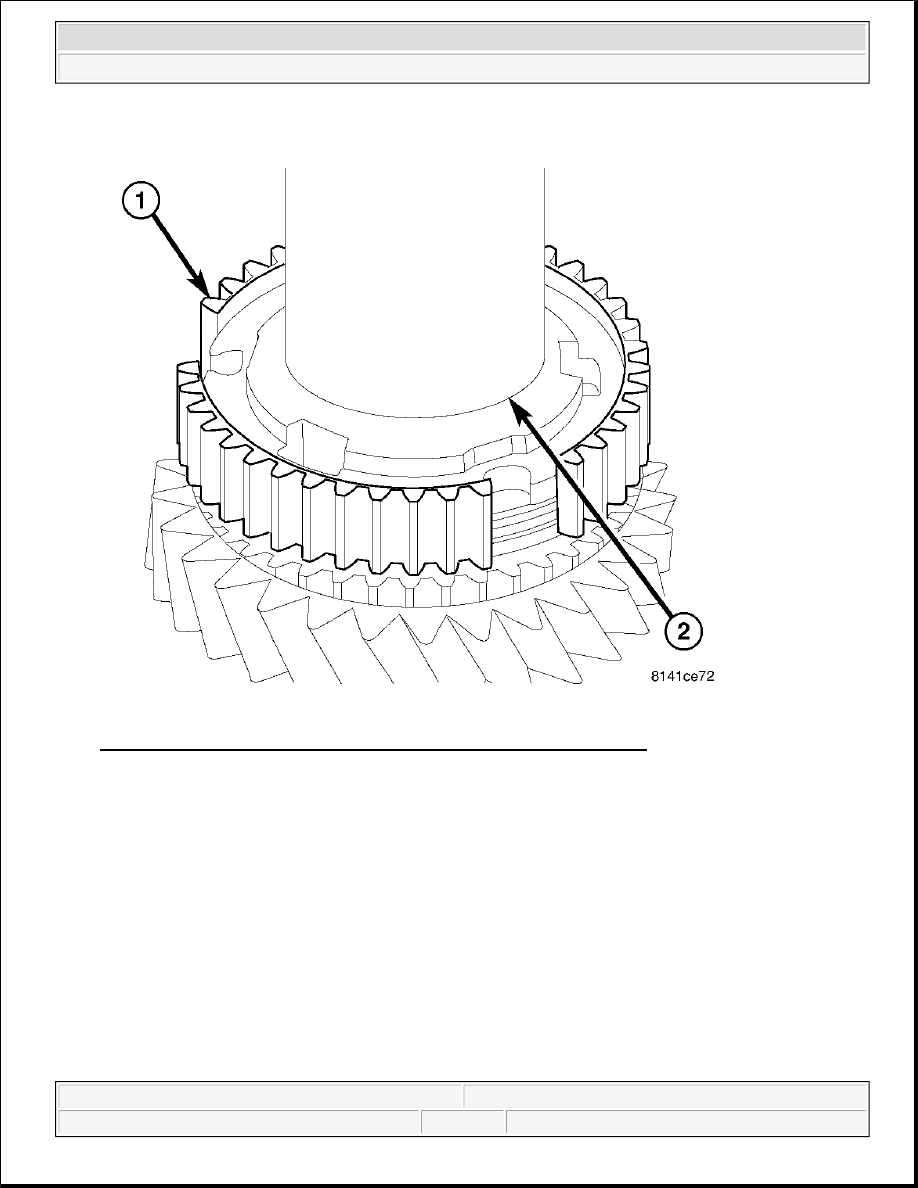

Fig. 70: Installing 1-2 Synchronizer Hub With Installer 8228 And Press
Courtesy of CHRYSLER LLC

7. Install 1-2 synchronizer hub (1) with Installer 8228 (2) and a press. Align hub detent openings with

synchronizer rings.



2007 Dodge Nitro R/T

2007 MANUAL TRANSMISSION NSG370 - Diagnosis & Overhaul - Nitro



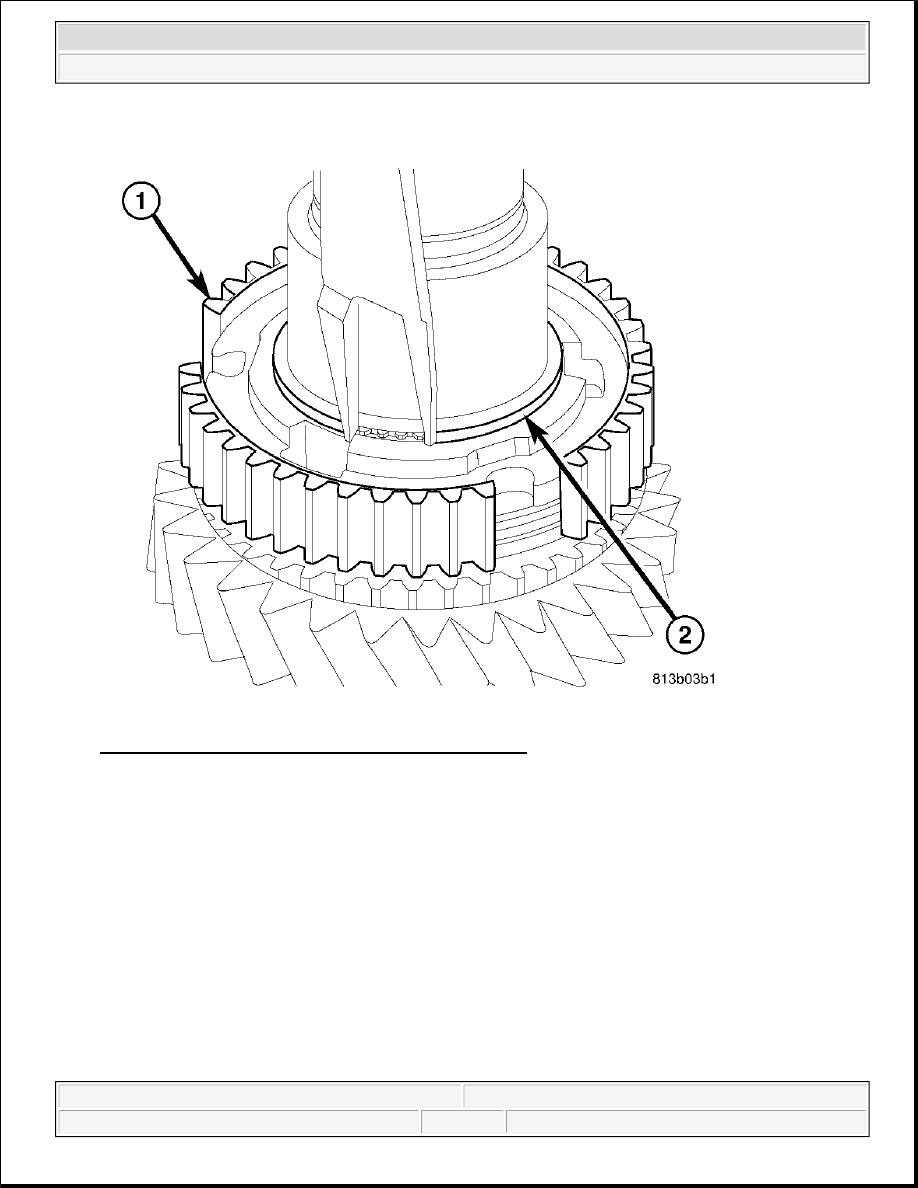

Fig. 71: Identifying 1-2 Synchronizer Hub & Snap Ring
Courtesy of CHRYSLER LLC

8. Install 1-2 synchronizer hub (1) snap ring (2).

NOTE:

Reuse original snap ring or thickest ring that will fit.



2007 Dodge Nitro R/T

2007 MANUAL TRANSMISSION NSG370 - Diagnosis & Overhaul - Nitro



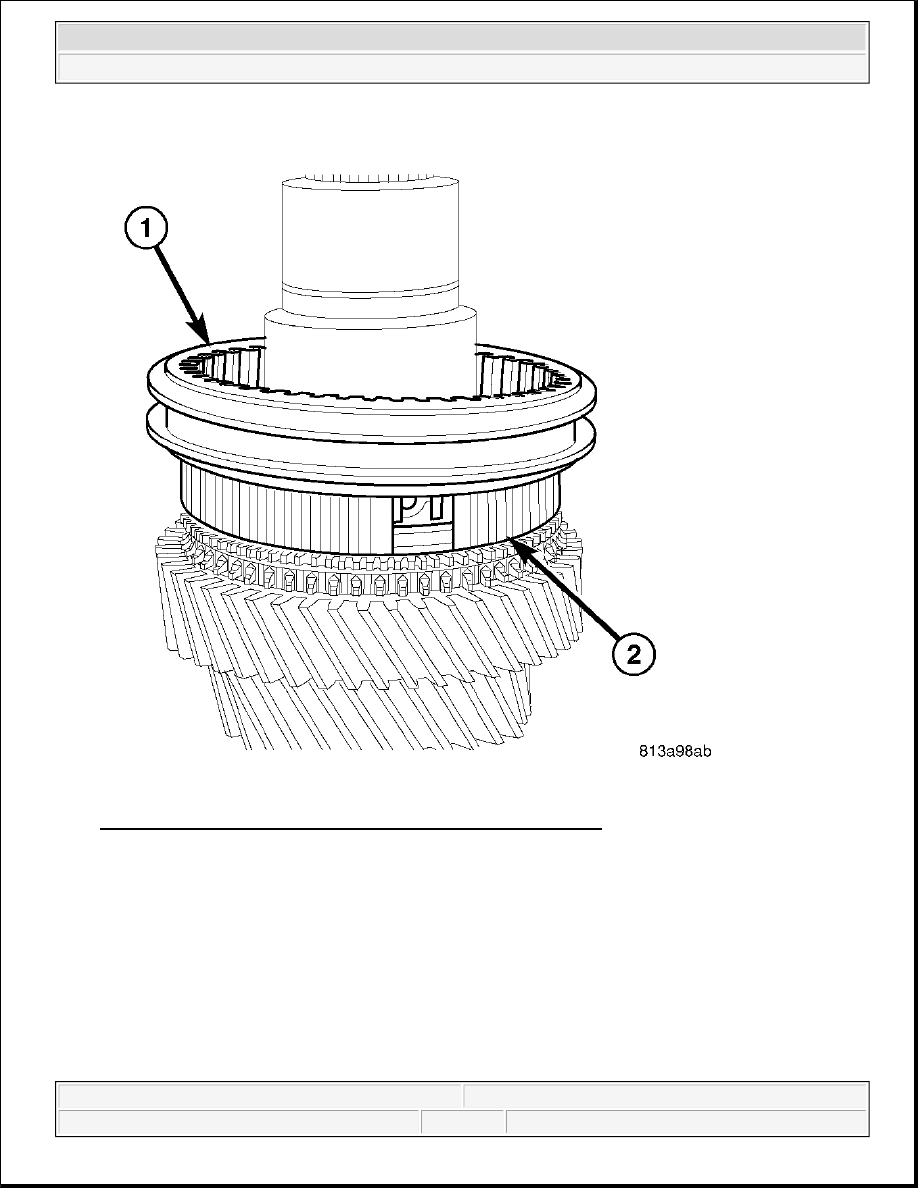

Fig. 72: Identifying 1-2 Synchronizer Sleeve & Synchronizer Hub
Courtesy of CHRYSLER LLC

9. Install 1-2 synchronizer sleeve (1) and push to the bottom of the synchronizer hub (2).



2007 Dodge Nitro R/T

2007 MANUAL TRANSMISSION NSG370 - Diagnosis & Overhaul - Nitro
